For reliable ambient light measurement, start with a voltage divider configuration using a cadmium sulfide cell and a fixed 10kΩ resistor. Connect the photoresistor between VCC (3.3V or 5V) and an analog input pin, grounding the fixed resistor to create a scalable voltage output. This setup ensures linear response in low-light conditions while preventing saturation in bright environments. Use a 10μF capacitor across the photoresistor terminals to filter electrical noise, especially in high-frequency applications.
To accurately map light intensity to voltage, apply Ohm’s Law calculations for calibration. Measure the dark resistance (typically 1MΩ+) and bright resistance (50-500Ω) of the sensing element, then adjust the fixed resistor value to optimize resolution. For microcontroller compatibility, employ a 12-bit ADC (e.g., STM32’s ADC) to capture subtle light changes–differentiating candlelight from direct sunlight–with a 4096-step resolution.
For outdoor or fluctuating environments, integrate a Schmitt trigger (like a 74HC14) after the voltage divider to eliminate false triggering. Set the threshold voltage at 60% of VCC for stable switching. When interfacing with digital logic, consider a comparison amplifier (LM358) to convert analog signals into clean TTL outputs, ideal for automated lighting systems requiring hysteresis.
To extend component lifespan, limit current through the photoresistor to 1mA or below by adding a 1kΩ series resistor. For AC-coupled applications, such as motion detection, replace the DC voltage divider with a high-pass filter (0.1μF capacitor + 10kΩ resistor) to isolate ambient light changes from static illumination. Always verify schematic polarity–photoresistors are non-polarized but incorrect ADC pin connections can distort readings.
Building a Light-Dependent Resistor Setup: Step-by-Step Assembly

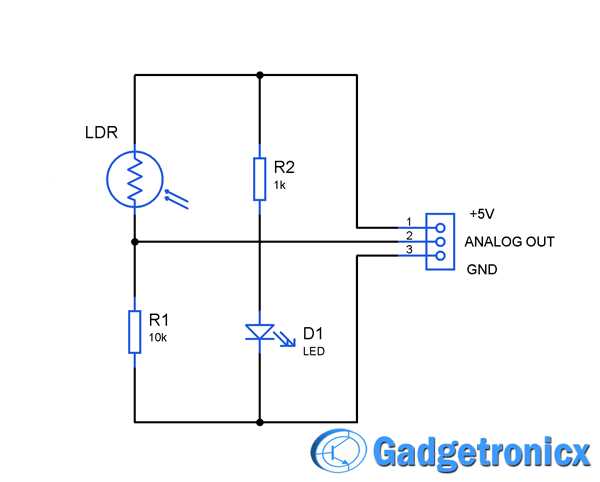

Start by pairing the photoresistor with a 10kΩ pull-down resistor to create a voltage divider. Connect the photoresistor’s first terminal to a 5V power source, then link its second terminal to both the pull-down resistor and an analog input pin on the microcontroller (e.g., Arduino A0). Ground the remaining end of the pull-down resistor. This configuration ensures the analog pin reads voltage variations between 0V (full darkness) and 5V (bright light), directly correlating to resistance changes in the photoresistor–500Ω in direct sunlight versus 1MΩ in complete darkness. For stable readings, add a 0.1µF ceramic capacitor between the photoresistor’s junction and ground to filter noise.
| Component | Specification | Notes |
|---|---|---|
| Photoresistor | GL5528 or similar | Resistance range: 8-20kΩ (10 lux), 1MΩ (dark) |
| Pull-down resistor | 10kΩ ±5% | Value critical for full 0-5V swing |
| Capacitor | 0.1µF ceramic | Smoothing; reduces flicker in low light |
| Microcontroller | Arduino Uno | Other boards work; adjust pin refs as needed |
Calibrate the setup by exposing the photoresistor to known light levels: use a smartphone lux meter app to record values at 10, 100, and 1000 lux. Note the corresponding analog readings from the microcontroller’s serial monitor. Plot these points to generate a linear interpolation formula: lux = (rawValue - 200) * 0.8. Deploy this in code to convert raw readings into lux values. For outdoor use, enclose the photoresistor in a 10mm diameter acrylic tube with a frosted diffuser to minimize angular dependence–this improves accuracy by ±5% under direct sunlight versus shaded conditions.
Choosing Parts for a Photoresistor-Based Illumination Detector
Opt for a cadmium sulfide cell with a resistance range matching your target light levels. Models like the GL5528 offer 5-10 kΩ in daylight and 0.5-2 MΩ in darkness, ideal for indoor lighting shifts. For outdoor tracking, the VT90N2 provides broader sensitivity but requires calibration due to higher resistance drift under temperature changes.
Pair the light-dependent resistor with an operational amplifier configured as a voltage comparator. A TL072 or LM358 delivers sufficient low-noise performance for low-frequency shifts, but avoid TL081 if sub-millivolt precision is critical–they exhibit higher input bias currents. For battery-powered setups, prioritize rail-to-rail amplifiers like the MCP6002 to maximize dynamic range.
Select a pull-down resistor based on the photoresistor’s typical resistance curve. For a 10 kΩ cell in daylight, use a 47 kΩ resistor to center the voltage swing around half the supply. Lower values increase sensitivity but risk output saturation; higher values reduce responsiveness. Validate with an oscilloscope–noise spikes exceeding 200 mV indicate insufficient decoupling or ground loop issues.
Decoupling capacitors must match the detector’s slew rate. A 0.1 µF ceramic capacitor placed within 1 cm of the op-amp’s power pins suppresses high-frequency transients, while a 10 µF tantalum capacitor at the circuit’s power entry point handles low-frequency noise. Avoid electrolytics for high-speed applications–their equivalent series resistance degrades performance above 1 kHz.
For switching outputs, a BJT like the 2N2222 suits currents under 200 mA, but its saturation voltage (~0.2 V) may cause logic-level errors with 3.3 V systems. MOSFETs such as IRLZ44N bypass this issue with near-zero gate-source resistance, though they require a gate driver for threshold voltages above 2 V. Verify thermal dissipation–barely noticeable resistive loads hide power losses that cook silicon over time.
Tune hysteresis by adjusting the feedback resistor on the comparator. A 1 MΩ resistor introduces ~50 mV of hysteresis, preventing rapid toggling in borderline light levels. Lower values increase stability but risk missing brief illumination changes. For sharp transitions, use a Schmitt trigger IC like the CD4093 instead of an op-amp–its built-in hysteresis table simplifies design.
Test component interaction with a variable light source. LEDs with a correlated color temperature below 3000 K skew cadmium sulfide readings by up to 30%; incandescent lamps or calibrated halogen emitters yield repeatable results. Document the detector’s voltage output at specific lux levels–ambient light meters rarely match on-board measurements due to spectral mismatches.
Step-by-Step Assembly of a Light-Dependent Resistor with Arduino
Begin by connecting the photoresistor’s first lead to the 5V power pin on the microcontroller. Use a 10kΩ pull-down resistor between the photoresistor’s second lead and ground to establish a stable reference voltage. This configuration ensures the analog input reads a consistent drop in resistance as ambient brightness varies, avoiding erratic fluctuations.
Insert the middle tap–where the photoresistor and pull-down resistor meet–into analog pin A0. Verify the connection polarity; reversing the resistor’s placement will invert the readings, making brighter conditions register as darker and vice versa. A multimeter set to continuity mode can preemptively confirm correct contacts before powering the board.
Fine-Tuning the Input Values
Upload a basic sketch that prints A0 readings to the serial monitor at 9600 baud. Cover the photoresistor with your hand and note the minimum value (typically 0–50); expose it to direct light to record the maximum (usually 800–1023). These extremes define the operational range. If readings cluster at one end, adjust the resistor value–try 4.7kΩ or 22kΩ–to widen the span without exceeding the 5V limit.
Map the raw analog readings to a meaningful scale within the sketch:
int mappedValue = map(analogRead(A0), minReading, maxReading, 0, 255);
This converts unpredictable high/low states into a predictable 0–255 range, ideal for triggering LEDs, relays, or PWM outputs. Test with a 220Ω LED on digital pin 3; the LED should glow brighter as ambient light increases.
Avoiding Common Pitfalls
Secure all solder joints with heat shrink tubing or electrical tape; loose connections introduce voltage drops indistinguishable from genuine light-level changes. Keep wiring shorter than 15 cm to mitigate electromagnetic interference from nearby motors or switching power supplies. If readings drift unpredictably, add a 0.1µF ceramic capacitor between A0 and ground to filter noise without affecting responsiveness.
Calibrating Resistance Values for Optimal Light Sensitivity
Begin with a 10 kΩ fixed resistor paired with the photoresistor in a voltage divider configuration. Measure the output voltage at two extreme light conditions: total darkness (covering the component) and direct bright light (e.g., 1000 lux from a calibrated source). Adjust the resistance downward in 1 kΩ increments if the voltage swing between conditions is less than 3V; increase in 500 Ω steps if the output saturates near the supply voltage. Record each resistance value with its corresponding voltage readings in a table to identify the linear range.
For indoor environments with ambient light between 50–300 lux, target a resistance that yields a midpoint voltage of 2.5V when exposed to 150 lux. Test with a 4.7 kΩ resistor as a starting point–if the voltage exceeds 2.8V at 150 lux, switch to a 3.3 kΩ or 2.2 kΩ resistor. Always verify using a lux meter; handheld models with ±3% accuracy suffice for initial calibration. Replace the fixed resistor once deviation between measured and target voltage drops below 0.2V.
- Use a trimmer potentiometer (10 kΩ or 20 kΩ) for fine-tuning instead of fixed resistors to avoid iterative soldering.
- Avoid calibrating at dawn/dusk–measurements taken between 10 AM and 3 PM provide consistent spectral distribution.
- For fluorescent lighting, increase fixed resistance by 15% compared to LED or halogen sources to compensate for spectral differences.
- Log temperature alongside resistance values; photoresistors exhibit a -0.5%/°C drift–recalibrate if ambient temperature deviates by ±5°C from baseline.
When the response curve flattens below 50 lux or above 500 lux, implement a dual-resistor configuration. Connect a second voltage divider in parallel using a 1 kΩ resistor for low-light and a 10 kΩ resistor for high-light ranges. Switch between dividers using a comparator with a 0.5V hysteresis threshold to prevent rapid toggling. This expands the effective detection range from 10–10,000 lux while maintaining a 0.1V resolution across the scale.
Final validation requires cycling through five light intensities (10, 50, 150, 500, 1000 lux) and plotting the voltage output. The ideal resistance selection produces a linear slope (R² > 0.95) on the plot. If linearity degrades above 700 lux, introduce a logarithmic amplifier stage with a 1 kΩ feedback resistor. Document the chosen resistance, voltage swing, and linearity coefficient for future reference–these parameters determine long-term stability without recalibration.
