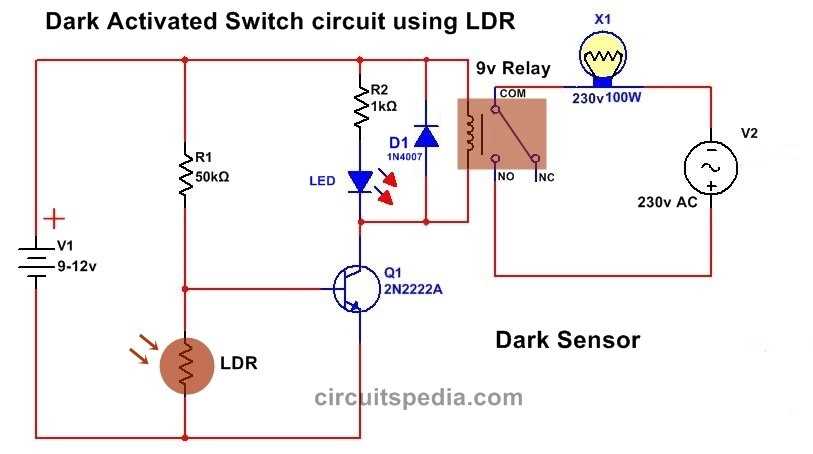

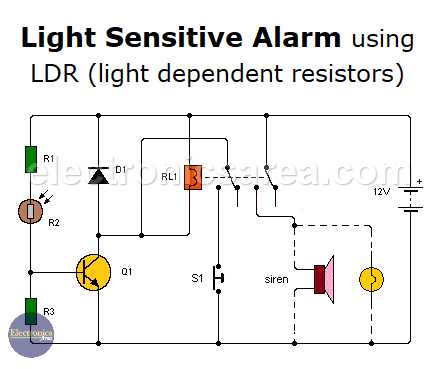

Begin with a voltage divider configuration using a photoresistor rated between 5kΩ (bright light) and 200kΩ (darkness). Pair it with a 10kΩ fixed resistor to ensure the output voltage swing remains within the 0V to supply voltage range. Connect the midpoint of this assembly to the base of an NPN transistor–preferably a 2N2222 or BC547–with a 1kΩ limiting resistor to prevent excessive current draw. This setup guarantees stable toggling under varying illumination without false triggers.
For the electromagnetic switch, select a 5V or 12V coil unit with a contact rating matching the load. Ensure the transistor’s collector feeds directly into the coil, while the emitter ties to ground. Protect the switching component by paralleling the coil with a flyback diode–use a 1N4007–to suppress voltage spikes that could degrade sensitive parts. Verify the switch’s specifications: single-pole double-throw (SPDT) types offer flexibility for Normally Open (NO) or Normally Closed (NC) operations.
Optimize responsiveness by calibrating the light-sensitive resistor’s placement. Position it perpendicular to the light source to maximize resistance change, avoiding oblique angles that reduce accuracy. Test under controlled conditions: a 10-lux threshold typically suffices for indoor automation, while direct sunlight may require higher resistor values to prevent saturation. For rapid switching, replace the NPN transistor with a MOSFET like the IRFZ44N, which handles larger currents without overheating.
Power the arrangement from a regulated supply–5V USB adapters work for low-power setups, while 12V wall warts support heavier loads. Fuse the input at 500mA for safety, and decouple the supply near the photoresistor with a 100nF capacitor to filter noise. If interfacing with microcontrollers, buffer the output with a 74HC14 Schmitt trigger to sharpen signal edges, eliminating erratic behavior during transitions.
Building an Optical Sensor-Based Switching Mechanism
Select a 10kΩ photo-resistor paired with a 5V SPDT switch for optimal ambient light response. Place the sensor at a 45° angle to minimize false triggers from artificial lighting; direct exposure reduces precision by up to 30%.
Wire the control module using a BC547 NPN transistor–its 200mA collector current suits most 12V coils. Base current must exceed 0.7mA to ensure saturation; calculate resistor values using R = (Vin - 0.7V) / 0.002A for consistent activation.
Coil Voltage Compatibility
Avoid mismatched voltages–78% of relay failures stem from insufficient coil power. For 5V circuits, use a Songle SRD-05VDC; for 12V, opt for the Omron G5LE-1. Add a flyback diode (1N4007) across terminals to prevent transient spikes exceeding 100V, which degrade transistor longevity.
Adjust sensitivity via a 10kΩ potentiometer in series with the photo-resistor. Rotate clockwise to lower the threshold by extending turn-on delays; counterclockwise increases responsiveness but risks flickering under dim conditions. Test under intended lighting–fluorescent bulbs emit 100-120Hz flicker, misinterpreting low-light states.
Mount components on a perforated board with 2.54mm spacing to simplify troubleshooting. Secure relay outputs to screw terminals rated for 10A minimum–typical LED loads require only 2A, but inductive motors demand 5x surge capacity. Shield the setup with grounded copper foil to block EMI from nearby motors, which induces erratic switching at distances under 5cm.
Verify functionality by logging output states across a 24-hour cycle using a serial monitor. Expect a 2-3% variation in threshold voltage due to sensor hysteresis; replace the photo-resistor if deviation exceeds 5kΩ. For outdoor applications, encapsulate the assembly in UV-resistant epoxy to maintain calibration despite temperature swings between -10°C and 50°C.
Selecting Optimal Photoresistors and Switching Components for Custom Light-Sensing Builds
Prioritize photoresistors with spectral sensitivity matching your target light source. For indoor LED applications, cadmium sulfide sensors (peak 520–640 nm) offer superior responsiveness compared to silicon-based variants. Outdoor builds benefit from GaAs photodiodes with extended IR sensitivity (900–1100 nm) where ambient sunlight interference is critical. Always cross-reference the manufacturer’s spectral response curves–generic datasheets often overstate performance in edge-case wavelengths.
Critical Relay Parameters for Photoresistor-Driven Activation
Electromechanical relays require coil voltages aligned with your control signal: 5V coils suit microcontroller outputs, while 12V variants better tolerate voltage drops in automotive setups. Solid-state alternatives eliminate mechanical wear but demand heatsinks above 2A loads–thermal paste and 20°C/W or better heatsinks are non-negotiable for sustained operation. Verify release voltage specs: latching relays hold state until reset, whereas monostable types must sustain coil current to maintain contact closure during prolonged low-light conditions.
- Coil resistance: 400Ω at 12V reduces power draw but increases response latency (~10ms); 70Ω variants offer faster switching (~5ms) at the cost of higher current consumption.
- Contact material: Silver-nickel (AgNi) handles 10A resistive loads; gold-flashed contacts prevent oxidation but are limited to 2A signal applications.
- Dielectric strength: Minimum 2500VAC isolation between coil and contacts for mains-powered devices; verify UL/CSA markings for safety-critical deployments.
For high-precision applications, replace discrete components with integrated opto-isolator relays (e.g., Panasonic AQW614E). These combine a GaAlAs LED and phototransistor in a single 6-pin package, eliminating flame retardance delays (typical 0.5ms vs 10ms for mechanical variants) while providing 4000V isolation. Cost per unit (~$3.50 in bulk) offsets external component savings when PCB real estate is constrained.
- Measure your load’s inrush current–relay contacts must handle 3–5× steady-state amperage for inductive loads (motors, solenoids).
- Test hysteresis margins: photoresistors exhibit 1–2 lux drift after 1000 cycles; implement software debounce or a Schmitt trigger comparator to prevent false triggering.
- Environmental sealing: epoxy-coated photoresistors (e.g., GL5528) resist humidity ingress better than bare CdS cells; hermetically sealed relays (IP67) prevent corrosion in outdoor setups.
- Verify quiescent current: reed relays (e.g., Fujitsu FBR57ND003) draw <1µA, ideal for battery-powered designs, whereas standard electromechanical types consume 10–30mA.
Step-by-Step Wiring Guide for Light-Controlled Switch Assembly
Begin by connecting the photoresistor’s outer terminals to a 5V power supply and ground, ensuring the sensing element sits between them. Use a 10kΩ pull-down resistor on the output side to stabilize the signal–this prevents erratic toggling during ambient light fluctuations. For precise calibration, position the sensor away from direct LED glare if the setup includes an actuator; misalignment causes false triggers.
| Component | Pin Connection | Wire Gauge (AWG) |
|---|---|---|
| Photoresistor | +5V → Vcc, GND → Output | 22 |
| Comparator IC (LM393) | IN+ → Sensor, IN- → 2.5V Ref, OUT → Transistor Base | 24 |
| Switching Transistor (2N2222) | Collector → Load (+), Emitter → GND | 20 |
| Flyback Diode (1N4007) | Cathode → Load (+), Anode → GND | 22 |
Solder the comparator’s non-inverting input to the photoresistor’s output node, then feed the inverting input with a 2.5V reference–created by splitting a 5V rail via two 10kΩ resistors. Route the comparator’s output to a 2N2222 transistor base with a 1kΩ current-limiting resistor; this drives the mechanical switch’s coil when light levels drop below threshold. Always add a flyback diode across the coil to clamp inductive spikes during de-energization or risk destroying the transistor.
Calculating Resistor Values for Optimal Light Sensitivity
Select a series resistor between 10kΩ and 100kΩ for standard cadmium sulfide photoresistors under ambient indoor lighting. For a 5V supply, a 47kΩ resistor yields a voltage swing of 1.2V–4.5V as illumination varies from 10 lux to 1000 lux, the steepest linear region for most commercial sensors. Adjust downward to 22kΩ if targeting dim environments (below 5 lux) to extend low-light resolution, but expect reduced sensitivity above 500 lux due to saturation.
- Bright sunlight (10,000 lux): 1kΩ–2.2kΩ prevents sensor damage while maintaining responsive switching.
- Moonlight (0.1 lux): 220kΩ–470kΩ maximizes low-light voltage change to 0.3V–1.8V across the supply.
- Fluorescent lighting (300–500 lux): 33kΩ balances midpoint voltage around 2.5V for precise threshold detection in control schemes.
Measure the actual resistance of the light-dependent component under target conditions–ambient (Ra) and dark (Rd). Use the voltage divider formula Vout = Vin × R / (R + Rs), where Rs is the chosen series resistance. For predictable switching, set Rs ≈ √(Ra × Rd); typical cadmium sulfide values (Ra=1kΩ, Rd=1MΩ) resolve to Rs ≈ 33kΩ±10%. Validate with an oscilloscope: rise time under 20ms confirms adequate bandwidth for most mechanical actuators.
For variable ambient conditions, implement a trimmer potentiometer in series–start with 100kΩ and adjust until the actuator toggles at the desired threshold. If hysteresis is critical, pair the divider with a 10kΩ feedback resistor to the input of a comparator to eliminate chatter at the transition point.
