Start by replacing C807 (220µF/35V) near the SMPS controller IC. This capacitor fails frequently in LG 32LC2D units, causing intermittent shutdowns or failure to power on. Use a multimeter to confirm ESR readings above 2Ω before removal–replacement with a low-ESR equivalent restores stable output.
Locate the STR-W6754 or NCP1271 driver chip on the voltage regulation board. Check pins 5–8 for input voltage (12–18V) and pin 4 for gate drive pulses. Absence of pulses indicates a faulty IC or damaged T1 primary winding–test continuity before replacing the entire switching module.
Trace the 5V standby line back to its transformer winding. Measure across D805 (1N4007) for voltage drop; if below 4.8V, replace the diode or check the AZ431 shunt regulator. For Samsung LN-T4065F models, focus on ICB801S–shorts here blow F801 (3.15A fuse) repeatedly.
Sharp LC-42D64U boards use a dual-switch topology. Verify Q803 (2SC5707) for open-circuit conditions before probing T801 secondary. The 24V rail should show ripple below 100mV; higher values suggest failed smoothing capacitors (C813: 1000µF/35V is a common offender).
For Sony KDL-40V2500, prioritize IC601 (MCZ3001D). Overheating discolors the PCB near pins 1–3–replace with a heatsinked upgrade if symptoms include random reboots. Check D601 for reverse leakage before concluding IC failure.
Understanding the Electronic Heart of Flat-Panel Displays

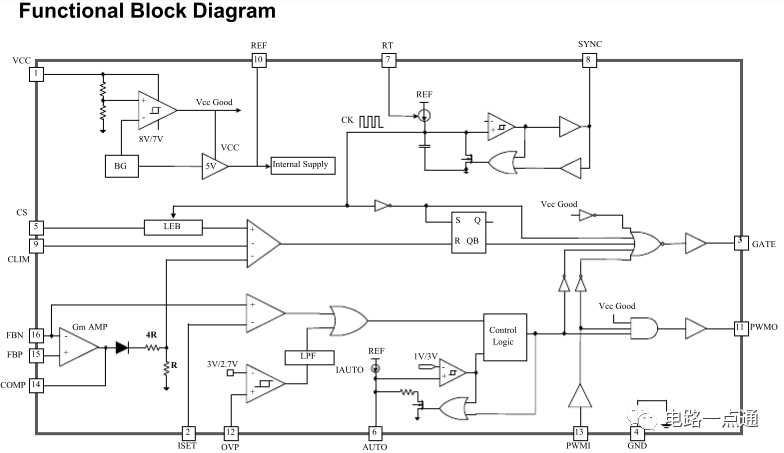

Start by identifying the main switching regulator in the voltage conversion module–typically a half-bridge or full-bridge topology controlled by an integrated PWM chip like the OB2269, TEA1733, or NCP1271. These controllers manage output stability by adjusting the duty cycle based on feedback from the secondary side via optocouplers, usually PC817 or EL817. Without precise isolation between primary and secondary circuits, high-voltage transients can damage downstream components.

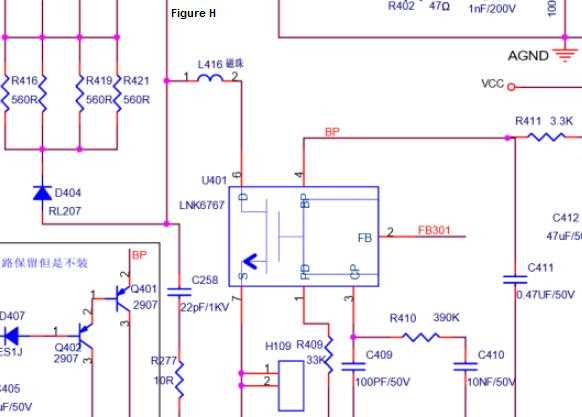

Examine the standby section separately from the main converter. Most modern televisual units use a dedicated low-power flyback transformer to provide 5V or 3.3V to the microcontroller during idle states. Look for a ViPer22A or FAN6754 regulating this auxiliary output. Insufficient filtering here leads to erratic behaviour when toggling between sleep and active modes.
Trace the bulk capacitance on the input rectifier–commonly 400V 100µF to 220µF electrolytics. These smooth the rectified AC before feeding the primary switch. Degraded capacitors often cause flickering or intermittent shutdowns under load. Replace any swollen or leaking units with identical voltage and ripple current ratings; substituting lower-spec parts risks overheating.
Inspect the overvoltage and overcurrent protection network. Zener diodes like P6KE200A clamp excess voltage, while current sense resistors (0.1Ω to 0.5Ω) trigger shutdown when exceeded. Bypass faulty components here, and the televisual module may sustain catastrophic failure during line surges or short circuits.
Verify the gate drive resistors connected to the MOSFETs–typically 22Ω to 47Ω. These limit inrush current and prevent ringing during switching transitions. High-impedance or open resistors cause irregular waveform shapes, reducing efficiency and increasing EMI. Replace damaged resistors with exact values to maintain optimal rise and fall times.
Study the feedback loop comprising a shunt regulator (TL431) and associated resistors (1kΩ to 10kΩ). This network ensures tight regulation across variable loads. A misconfigured feedback path results in either under-voltage or over-voltage conditions, damaging the backlight driver or logic board. Measure output voltages with an oscilloscope, not just a multimeter–AC ripple often exceeds safe limits without visible symptoms.
Document every component reference designator and placement before disassembly. Many voltage conversion boards use densely packed SMD components where orientation matters; reversing a diode or capacitor during reassembly can instantly destroy the entire module. Label connectors and take photographs–relying solely on memory risks irreversible errors.
Core Elements of a Flat-Panel Television Energy Module

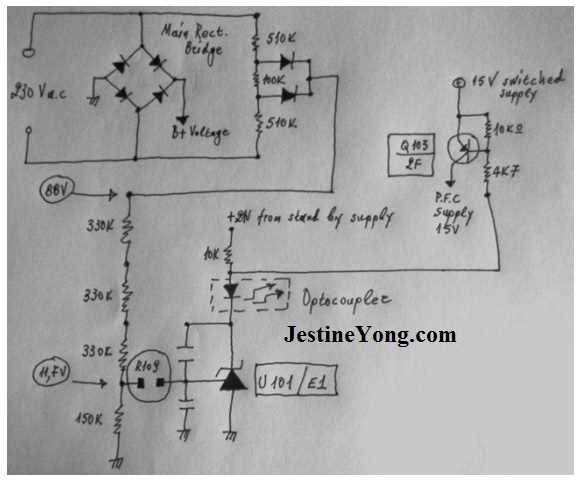

Identify the primary rectifier immediately–the bridge configuration handles AC-to-DC conversion. Look for a quartet of diodes (often DB101 or similar) arranged in a diamond pattern; failure here disrupts downstream regulation. Verify input capacitance next: a bank of high-voltage electrolytics (typically 400V/100–330μF) smooths pulsating current–replace bulging or leaking units without hesitation.
Regulation and Isolation Stages
SMPS controllers dominate modern designs–chips like FAN7602B or STR-W6252 dictate switching frequency and feedback loops. Trace the optocoupler (PC817 variant) pathway; this isolates low-voltage control from hazardous mains levels while maintaining precision regulation. Replace degraded optos with identical pinouts–impedance mismatches cause erratic standby behavior.
Standby transformers often precede main conversion. Locate the auxiliary winding; it generates 5V or 3.3V rails for MCU operation. Measure output with a load resistor (470Ω) to confirm stability–PWM controllers like TNY278P here demand strict load conditions during bench testing. Swap suspect transformers only with manufacturer-matched inductance values to prevent overvoltage spikes.
Protection and Filtering Networks
Metal-oxide varistors (MOVs) clamp transient surges–de-solder charred or cracked units promptly. EMI filters follow: common-mode chokes (typically 4–10mH) and X/Y capacitors must meet IEC 60384 standards; substitute deviations risk FCC violations. Current-sense resistors (often 0.1–0.5Ω, fusible types) trigger shutdown during overloads–replace burned traces with identical resistance tolerances.
Secondary rectification employs Schottky diodes (STPS30L40CT) for low forward drop; test under full load (10A+) to reveal thermal fatigue. Output filtering requires low-ESR capacitors–nichicon PW or Panasonic FR series (16V/1000μF) maintain ripple below 100mV. Relay drivers (ULN2003 family) or solid-state switches control power sequencing–swap with compatible darlington arrays if cooling tabs show discoloration.
Feedback resistors (1% tolerance, 100kΩ–1MΩ range) set output voltages–adjust only with precision decade boxes to avoid cathode ray distortion. Reverse-engineer standby circuits: discretely implemented buck regulators (LM317 derivatives) often lack schematics, so map pin-for-pin before probing. Replace cracked SMD inductors with wire-wound equivalents (4.7μH core saturation ≥2A) to prevent core losses.
Step-by-Step Guide to Decoding Electronic Board Blueprints
Start by locating the input section at the leftmost part of the layout–typically marked with AC lines, fuse symbols, or voltage ratings (e.g., 220V, 110V). Identify the bridge rectifier or diode array immediately downstream; its four diodes or single-package variant convert alternating current to direct current pulses. Trace the path to the primary smoothing capacitors–they’ll be large cylindrical components labeled with microfarad values (470µF–1000µF) and voltage ratings (400VDC). Confirm the ground reference here; it’s usually a thick line or a triangle symbol branching downward.
Next, pinpoint the switching controller IC–a small rectangular chip with 8–16 pins, often labeled with part numbers like OB2269, FAN7601, or NCP1251. Follow its connections: the high-voltage startup pin (usually tied to the rectified line via a resistor), the feedback pin (linked to an optocoupler), and the gate drive pin (driving the MOSFET). The MOSFET will be a TO-220 or SOT-223 package with three legs: gate (controlled by the IC), drain (connected to the transformer primary), and source (grounded via a current-sense resistor).
Critical Component Annotations
| Symbol | Component | Typical Values | Function |
|---|---|---|---|
| ⏚ | Ground | – | Reference point for all voltages |
| ⚡ | Transformer windings | 20T:5T or 30T:3T | Isolates and steps down voltage |
| ⏚→ | Optocoupler | PC817, EL817 | Feedback isolation |
| R≈ | Current-sense resistor | 0.22Ω–1Ω | Monitors MOSFET current |
Examine the secondary side of the transformer where low-voltage outputs emerge. Look for schottky diodes (commonly MBR20100CT) marked with banded cathodes–these rectify the high-frequency pulses into DC. Check the output capacitors; they’re usually low-ESR types (e.g., 1000µF/16V) and will specify ripple current ratings (1–3A). Identify the voltage regulation loop: the optocoupler feeds back to the primary controller, adjusting the PWM signal to maintain stable output (e.g., 12V, 5V, 24V). Trace this feedback path backward–it often includes a TL431 precision shunt regulator.
Verify every safety-critical element: X-capacitors (across AC lines, typically 0.1µF/275VAC) suppress differential-mode noise, while Y-capacitors (from AC line to chassis ground, 2.2nF) handle common-mode interference. Locate the thermistor (NTC 5D-9) in series with the AC input–it limits inrush current. Cross-reference all component values against the bill of materials; resistors use color codes (e.g., 10kΩ = brown-black-orange-gold), capacitors list microfarads and voltage tolerances (e.g., 10µF/50V ±10%).
Fault-Finding Shortcuts
If the board fails to start, measure the DC bus voltage after the bridge rectifier–it should read 300–320VDC for 220VAC input. No voltage? Check the fuse, thermistor, and bridge diodes. Oscilloscope the MOSFET gate; a proper signal shows 10–100kHz pulses with 10–15V amplitude. Outputs missing? Probe the schottky diodes–they should conduct during the transformer’s flyback phase. Swollen capacitors or charred resistors demand replacement, but always match ESR and ripple specs; a 1000µF/16V capacitor with 100mΩ ESR won’t suffice if the original was 30mΩ.
