Start with the tikz package–it handles 90% of technical illustrations natively. Install it via your package manager: tlmgr install tikz. Define global styles in the preamble to maintain consistency across figures; color schemes, line widths, and node shapes should follow a single configuration block.
Use kzlibrary to load essential libraries upfront: arrows.meta for arrowheads, calc for coordinate arithmetic, positioning for node alignment. Example setup:
kzlibrary{arrows.meta,calc,positioning}
tikzset{
block/.style={rectangle, draw, minimum width=2cm, minimum height=1cm},
arrow/.style={-Latex}
}
Build figures incrementally. Place anchors first: (0,0) at bottom-left, positive Y-axis upward. For circuits, rotate coordinates 90° to mimic traditional drafting conventions. Nodes snap to predefined styles–avoid manual adjustments after placement.
Group related elements with scopes: begin{scope}[shift={(x,y)},rotate=degrees]. Layering order is critical–define z-indexes via on background layer for labels, on foreground layer for connectors. Use draw commands sparingly; complex paths should be broken into reusable subpaths.
Export complete figures as standalone PDFs–standalone document class avoids page margins. For collaboration, embed source in verbatim blocks or append as *.tex attachments. Version control with Git tracks textual changes; binary formats lose history.
Optimize performance by minimizing transparency effects. Stick to native PDF rendering: {sharp corners} over {rounded corners}. Test overlays for presentations–pause commands break animations at logical points. Debug misalignments with temporary grid lines: draw[help lines] (-5,-5) grid (5,5);.
Constructing Precision Visuals in TeX Environments
Begin with the ckage{tikz} command in your preamble to unlock vector-based drawing capabilities. TikZ offers modularity absent in standard graphic inclusions, allowing pixel-perfect adjustments without image degradation. Define a custom style for repeated elements like nodes or edges to ensure consistency across complex layouts. Example:
tikzset{
block/.style={rectangle, draw, minimum width=2cm, minimum height=1cm},
arrow/.style={->, thick}
}
Leverage relative positioning to avoid manual coordinate calculations. Use
ode (a) at (0,0) {Source};
ode[below=1cm of a] (b) {Target};scope block to apply transformations collectively, such as rotations or scaling.
Optimizing Document Workflow
Store reusable components in a separate file and import them via input{mycomponents.tex} to avoid cluttering the main document. For large-scale projects, split the visual into multiple TikZ pictures and reference each with begin{tikzpicture}[remember picture,overlay] to ensure proper layering. Use kzlibrary{calc} for precise positioning based on calculations, such as ($(a)!0.5!(b)$) to find the midpoint between two nodes.
Color management requires deliberate choices to ensure accessibility. Define a palette using definecolor{}{RGB}{} and apply consistently using fill[mycolor] or draw[mycolor]. For gradients, employ shade with left color and right color parameters, but restrict use to areas where gradients add clarity rather than visual noise.
Text within visual elements should align with the document’s typographic standards. Use
ode[align=left, text width=3cm]small or footnotesize to scale labels appropriately. For mathematical notation, wrap content in $...$ or text{...} to maintain TeX’s typesetting precision.
Exporting for external use requires specific considerations. Add pgfkeys{/pgf/images/include external=true} to the preamble to generate standalone PDF images of each TikZ picture. For LaTeX-to-Word conversion, compile the document first and then use pdf2svg to retain vector quality. Avoid bitmap formats unless necessary, as they introduce scaling artifacts.
Automate repetitive tasks with loops and conditionals. A foreach loop can generate multiple similar components with minimal code, while ifthenelse allows dynamic adjustments based on parameters. Example:
foreach x in {1,2,3} {
ode[block] (nx) at (x*3,0) {Node x};
}
Debugging and Performance Tuning
Enable tikzset{debug=true} to visualize node boundaries and coordinates during development. For performance-heavy visuals, use kzlibrary{external} to cache compiled results, reducing reprocessing time. Simplify path constructions by minimizing the number of control points in curves, as excessive detail increases compilation overhead without improving visual fidelity.
Selecting Optimal Packages for Technical Illustrations in Document Preparation
For precise electronic layouts, circuitikz stands out due to its native compatibility with TikZ and extensive library of pre-defined components. It supports standard symbols for resistors, transistors, logic gates, and IC blocks while allowing custom shapes through TikZ anchors. The package eliminates manual coordinate calculations–define a path like draw (0,0) to[R=$R_1$] (2,0) and let the system handle positioning. For mixed-signal designs, include ckage[american voltages, european resistors] to toggle notation styles without redrawing.
pgfcirc, though less maintained, remains viable for basic needs when circuitikz introduces dependencies conflicts. Its syntax differs slightly–pgfcircversion provides version checks to avoid silent failures. Use it when targeting minimal build environments, but expect manual adjustments for modern operating conditions like microcontroller pinouts or surface-mount footprints. Combine with siunitx for unified typography of values and units through SI{5}{volt}.
For hierarchical block visuals, tikz-cd excels at network topologies and layered abstractions. Its matrix-based layout avoids absolute positioning–define relations through arrow[r, "text{label}"] for automatic alignment. While primarily for commutative diagrams, it adapts to circuit flowcharts by treating modules as nodes and connections as arrows. For bus architectures, overlay kzlibrary{decorations.pathmorphing} to add zigzag buses without manual paths.
When assembling complete documents, prioritize standalone for modular development–compile individual subcircuits as separate files with documentclass[border=2mm]{standalone}, then embed via input{subcircuit.tex}. This speeds up iterations by isolating errors. For multi-page layouts, pdfpages merges externally generated schematics (e.g., from KiCad exports) while preserving vector quality. Avoid epsfig for rasterization; use graphicx with includegraphics[width=linewidth]{schematic.pdf} instead.

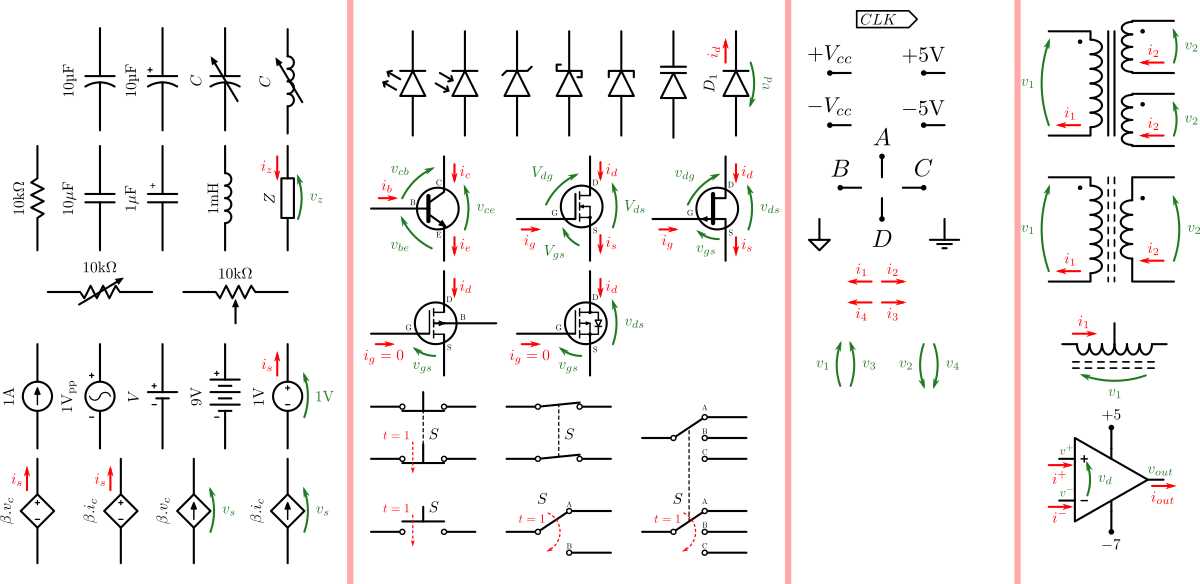

Step-by-Step Guide to Building Core Elements in Circuitikz
Install the circuitikz package via your TeX distribution manager if not already present. Confirm dependencies:
tikz(base package)pgf(graphics framework)
Load it in your document preamble with:
ckage[straightvoltages, americanvoltage]{circuitikz}Resistors are drawn using draw (x,y) to[R] (x,y+2);, where coordinates define position and length. Adjust the component orientation by swapping to[R] with to[R, *-*] for bidirectional connections or to[R, l=$R_1$] to label it directly. Common resistor styles include:
R(standard)variable american resistor(potentiometer)european resistor(rectangular)
Rotate components via angle notation: to[R, rotate=90].
Capacitors require the same coordinate syntax but use to[C] for standard plates or to[polar capacitor] for electrolytic variants. Define plate gap and polarity with to[polar capacitor, l_=$C_1$, *-*], where *-* connects both ends. Non-polarized types include:
C(standard parallel plates)C, american(curved plates)
Voltage direction is implied by the l_ or l^ key.
Inductors follow draw (x,y) to[L] (x+3,y); with a minimum 2-unit length for clarity. Use to[L, n=3] for multi-turn variants, where n specifies turns. Labels attach via l=$L_1$, positioned above (^) or below (_) the path. Core styles adjust with:
L(air core)L, american(filled core)L, european(open core)
Short paths (--) can merge adjacent components without redundant nodes.
Diodes embed via to[D], with cathodes marked by a line. Light-emitting types swap D for led, while Zener diodes use zD. Annotations for breakdown voltages:
draw (x,y) to[zD, l^=$V_{BR}$] (x+2,y);
Reverse polarity by flipping coordinates. Schottky diodes (sD) include a curved junction symbol.
Power sources use to[battery] for cells, to[battery1] for single cells, or to[vsource] for AC/DC voltages. Label voltage with:
draw (0,0) to[vsource, l=$V_{CC}$] (0,2);
Current sources (isource) use the same syntax. Ground symbols attach via to[ground] or to[eground] (european), placed at a path endpoint:
draw (x,y) node[ground] {};
Short leads (--) connect grounds to main elements.
Transistors insert with node[npn] or node[pnp], positioning them at coordinates. Leads extend automatically:
draw (1,2) node[npn] (Q1) {};
Identify terminals with (Q1.E), (Q1.B), (Q1.C) for emitter, base, collector. MOSFETs use node[nigfete] (enhancement mode) or node[jfet], with similar terminal notation. Rotate via rotate=45 in node options.
Interconnect nodes via -- or named coordinates. Bus notation simplifies parallel paths:
draw (0,0) node[circ] {}-- ++(2,0) -- ++(0,1) coordinate(A)
(A) -- ++(1,0) node[circ] {};
Circles (node[circ]) denote junctions; omit for clean traces. Label net names with node[above] {$V_{OUT}$}. For multi-page layouts, segment drawings into scopes:
begin{scope}[shift={(3cm,0)}]
% Component subtree here
end{scope}Compile twice to resolve label positioning errors.
