Use a bistable electromagnetic actuator for control circuits requiring persistent state retention without continuous power. A dual-coil configuration minimizes current draw–energize the set coil with a 50 ms pulse at 12V DC (300 mA) to engage, and apply the same to the reset coil to disengage. Avoid exceeding coil ratings: most industrial bistables tolerate ±10% voltage variance, but extended over-voltage risks permanent magnetic damage.
Incorporate a flyback diode (1N4007) across each coil to suppress voltage spikes during switching. For inductive loads, add a snubber circuit (0.1 µF capacitor in series with a 100Ω resistor) to extend contact longevity. Select contacts rated for 2A continuous current if driving resistive loads, or derate to 1A for inductive circuits–failure to do so results in pitting within 10,000 cycles.
For manual override, wire a momentary push-button (SPDT) in parallel with the set coil. Pressing it during power loss toggles the state without relying on external triggers. Ensure control inputs use Schmitt triggers (e.g., 74HC14) to filter noise–poor conditioning causes false toggles, particularly in industrial environments with EMI >5V/m.
Test prototypes with an oscilloscope: measure coil current peaks (should not exceed 350 mA) and contact bounce (ideal 10 years at 25°C but degrade faster under thermal cycling (>85°C accelerates contact oxidation by 40%). For fail-safe applications, integrate a parallel redundant contact set.

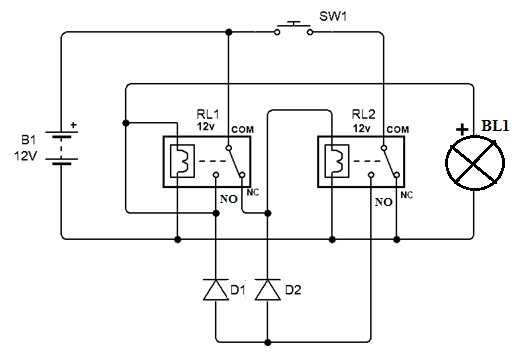

Retained Switch Circuit Blueprint
Start with a bistable switch core using two coils: one for set and another for reset. Connect a momentary pushbutton to each coil via a transient suppression diode like 1N4007, ensuring reverse polarity protection. Use a 12V DC supply for standard industrial setups; opt for 5V or 3.3V if integrating with low-power microcontrollers. The set coil must include a flyback diode in parallel, but orient it opposite to the drive current to prevent latch-up during switching. For high-current loads above 2 A, add a MOSFET gate driver between the button and coil to avoid contact arcing. Keep trace widths on the PCB above 0.5 mm for every 1 A of coil current, increasing to 1 mm for inductive loads. Test transient response with an oscilloscope: set and reset pulses should remain under 20 ms to ensure reliable state retention.
Place the permanent magnet adjacent to the armature, ensuring a gap no larger than 0.3 mm to maintain holding force. Use a dual-coil arrangement for fail-safe operation–drive the set coil with a 50 ms pulse and the reset coil with a 30 ms pulse to minimize power draw. For AC applications, add a bridge rectifier before the coils and include a snubber circuit (100 Ω resistor and 0.1 µF capacitor in series) across the contacts to suppress arcs. Label each coil polarity clearly on silkscreen; reverse connection can demagnetize the core and erase memory. Store the printed board in a Faraday cage during testing to prevent accidental magnetic interference from tools or nearby equipment.
Key Components of a Bistable Switch Circuit
Start with a high-quality dual-coil mechanism rated for your application’s voltage and current. Ensure the coils have distinct set/reset terminals–mixing them causes erratic toggling. For 12V DC systems, opt for coils with 50–100Ω resistance to prevent overheating during pulse activation. Single-coil variants require polarity reversal; verify the driver circuit supports this before selection.
Critical elements include:
- Pulse generator: A monostable multivibrator (e.g., 555 timer in one-shot mode) delivering 50–200ms pulses ensures reliable state changes without coil burnout. Adjust RC values to match the switch’s minimum activation time.
- Protection diodes: Place flyback diodes (1N4007) across each coil to clamp inductive spikes exceeding supply voltage by 2–3x. Skipping this risks damaging upstream components.
- Power mosfet/transistor: For high-current loads (>2A), use N-channel MOSFETs (IRF540N) with logic-level gates. For low-power setups, bipolar transistors (2N2222) suffice but require base resistors calculated via
R = (Vin - Vbe)/Ib.
Mechanical vs. Solid-State Variations
Mechanical toggles feature auxiliary contacts for status feedback–utilize these for self-holding logic or LED indicators. Solid-state versions (e.g., thyristor-based) eliminate moving parts but require opto-isolation (4N25 optocoupler) to separate control/logic grounds. Note solid-state variants often have higher on-resistance (0.1–0.5Ω), necessitating heat sinks for loads >10W.
For AC applications, integrate:
- A bridge rectifier (KBPC604) to convert AC to pulsed DC for coil activation.
- Snubber networks (100Ω + 0.1µF) across contacts to suppress arcing during 50/60Hz switching.
- Current-limiting resistors (1/4W, value derived from
R = Vpeak/Icoil) to prevent coil saturation during half-cycles.
Validate the circuit with a load test before deployment. Connect a resistive load matching the application’s specs (e.g., 24V/5W bulb for lighting) and confirm state retention after power cycles. For industrial use, add a debounce circuit (RC filter + Schmitt trigger) to ignore transient pulses shorter than 10ms. Document coil voltage/current limits–exceeding them reduces longevity, especially in bistable devices with narrow activation margins.
Step-by-Step Wiring for Bistable Switching Device

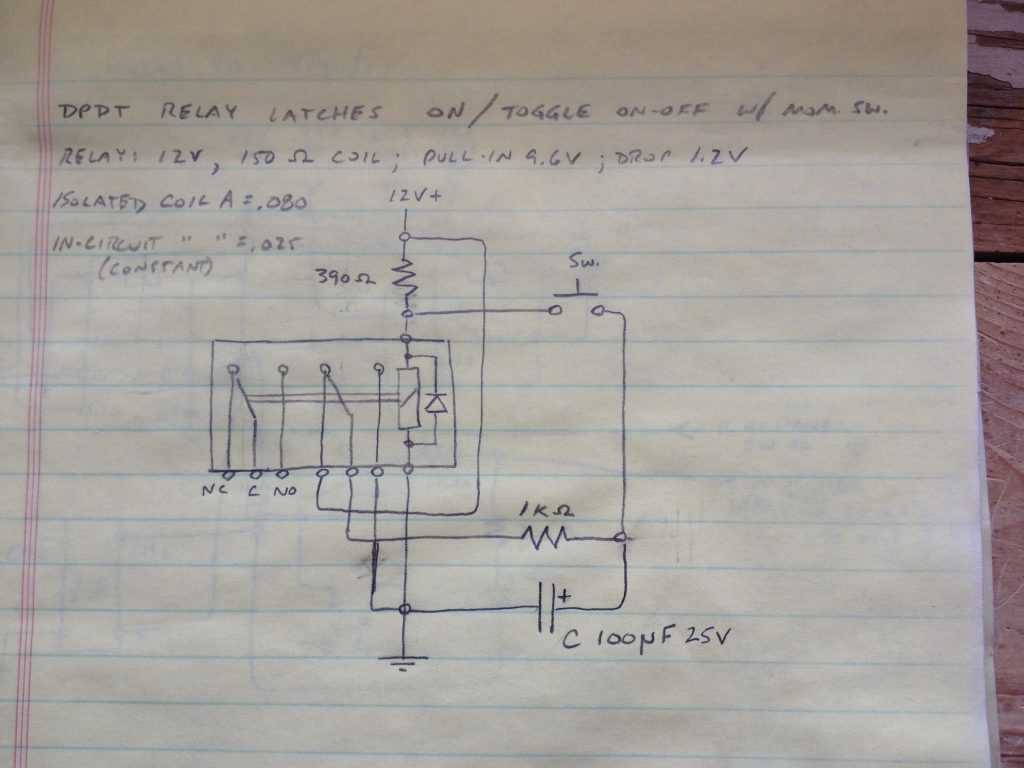

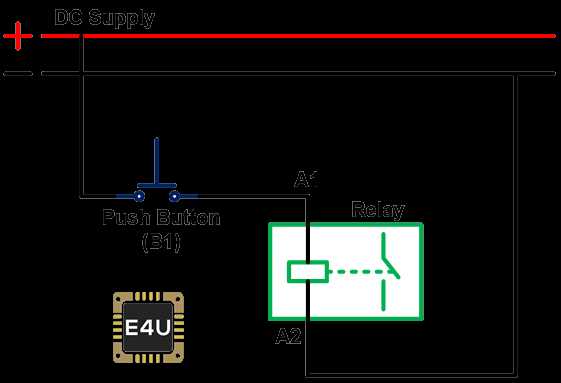

Identify the coil terminals first–typically labeled A1/A2 or Set/Reset. Use a multimeter in continuity mode to confirm polarity if markings are unclear; reverse voltage will cause the device to misoperate. For dual-coil bistables, wire separate pushbuttons or momentary switches to each coil, ensuring no overlap in connections to prevent false triggering. Single-coil variants require a toggle circuit with opposing voltage polarity for state changes–implement this using a DPDT switch or H-bridge driver for reliability.
Connect the load contacts to the output terminals, matching voltage and current ratings. For AC loads, include a snubber circuit (0.1µF capacitor + 100Ω resistor) across contacts to suppress arcing. DC loads below 30V may omit this, but verify contact material compatibility: silver-cadmium oxide handles inrush currents better than silver-nickel for inductive loads. Always wire the common terminal (COM) to the power source and the normally open (NO) or normally closed (NC) terminal to the load based on application needs.
Power the control circuit with a dedicated 5–24V DC supply, isolated from the load circuit. Use flyback diodes (1N4007) across each coil to protect against voltage spikes, especially in automotive or industrial environments. For battery-operated systems, include a low-voltage cutoff (e.g., TL431 shunt regulator) to prevent deep discharge damage. If using a microcontroller, optocouplers (PC817) isolate the logic level from the switching mechanism, reducing noise interference.
Test the bistable mechanism with a momentary 100ms pulse–excess duration wastes power and risks overheating. Verify stable state retention by cutting power; the device should retain its last position. If drift occurs, check for parasitic currents (>1µA) or capacitive coupling between coils–reroute traces with a minimum 3mm clearance. For high-cycle applications (>10k operations), upgrade to sealed contacts to prevent oxidation, which degrades performance over time.
Document the final layout with labels for each wire–color-coding alone fails under maintenance. For cumulative installations (e.g., energy meters), stagger coil activation intervals by 50ms to avoid power supply sags. If integrating with PLCs, configure the output module for pulsed operation; continuous signals will overheat the coil. Avoid daisy-chaining bistables; each requires its own dedicated driver to prevent voltage drop across long cable runs (>5m).
Power Supply Requirements and Polarity Considerations
Use a DC voltage source matching the coil’s nominal rating–typically 5V, 12V, or 24V–with a tolerance of ±5%. For miniature bistable switches, avoid exceeding 30% of the rated voltage to prevent overheating or magnetic degradation. Linear regulators (e.g., LM78xx) introduce efficiency losses; opt for a switching converter (e.g., LM2596) when input voltage varies more than 2V above the target. Include a flyback diode (1N4007) directly across the coil terminals, oriented cathode to positive, to clamp inductive spikes exceeding 50V.
Polarity reversal risks permanent damage. Test connections with a multimeter before applying power: positive to the set/reset pin, negative to common ground. For AC-coupled circuits, isolate inputs with optocouplers (e.g., PC817) to prevent ground loops. Store unused units with terminals shorted via a 1kΩ resistor to discharge residual capacitance, preserving internal spring tension.
Pulse Duration and Signal Timing in Switching Component Activation
Set trigger pulses between 20–50 ms for bistable electromechanical devices to ensure reliable state change without excessive power draw. Shorter pulses risk incomplete activation, while durations exceeding 100 ms waste energy and may degrade contact longevity. Test coil specifications–most bistable variants require ≥30 mJ of energy per transition, directly influencing minimum viable pulse width. For high-speed control circuits, use 30–40 V pulses with ≤15 ms duration to minimize response latency while avoiding overheating in auxiliary driver circuits.
Adjust timing based on ambient conditions: temperature fluctuations alter coil resistance, demanding 5–10% longer pulses at −20°C and 10–15% shorter at 85°C. Below is a reference table for pulse adjustments across common voltage ranges:
| Nominal Voltage (V) | Standard Pulse (ms) | Low-Temp Adjustment (ms) | High-Temp Adjustment (ms) |
|---|---|---|---|
| 5 | 45 | 50 | 40 |
| 12 | 30 | 33 | 27 |
| 24 | 25 | 27 | 22 |
| 48 | 20 | 22 | 17 |
Isolate timing circuits from load transients using Schottky diodes or dedicated flyback components–inductor kickback can retroactively extend effective pulse width by 2–3 ms, causing unintended toggles. For microcontroller-driven setups, implement hardware timers (e.g., STM32’s TIM peripherals) instead of software delays to eliminate variability from interrupt latency. Always validate timing with an oscilloscope–ringing on coil deactivation traces can indicate insufficient damping, necessitating snubber networks (typically 100 Ω + 10 nF) to prevent false activations during power-down sequences.
