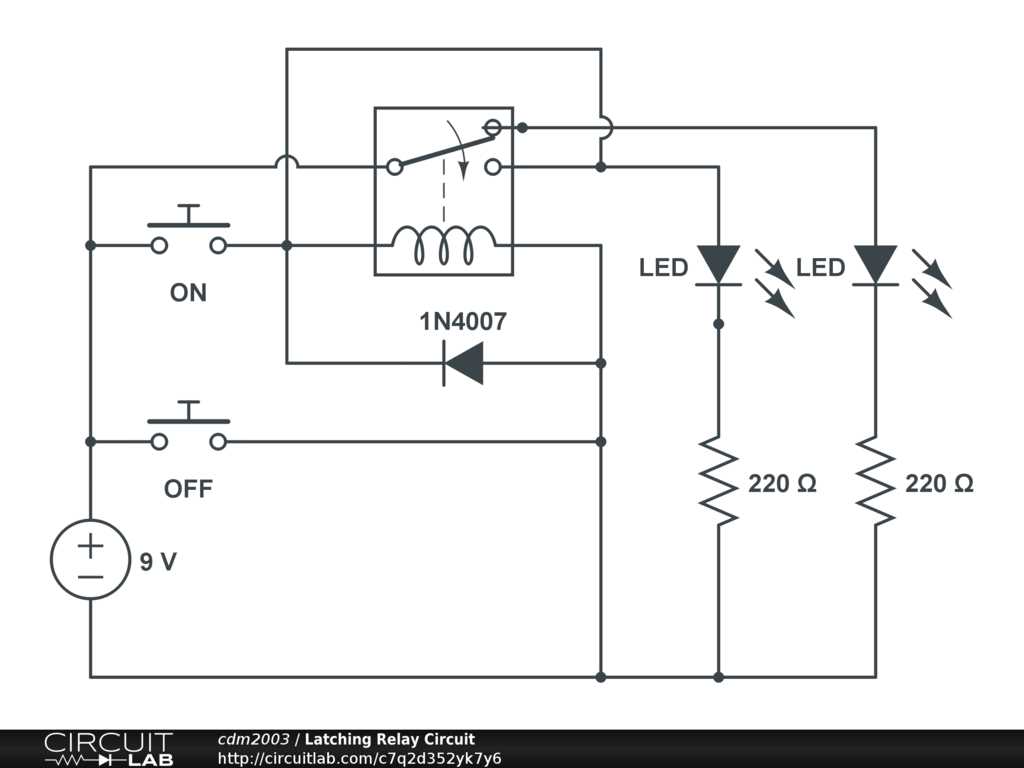

Build a self-maintaining relay configuration using a single pushbutton to toggle power without continuous pressure. Start with a NO (normally open) momentary switch connected to a 12V DC relay coil–this forms the control input. Wire the relay’s common (COM) and normally open (NO) contacts in parallel with the switch, creating a feedback loop. When pressed, the switch energizes the coil, and the NO contact closes, keeping current flowing even after release. To break the loop, add a NC (normally closed) pushbutton in series with the power supply.
For stable operation, match the relay’s coil voltage to your power source–5V, 12V, or 24V are common choices. A flyback diode (1N4007) across the coil prevents voltage spikes from damaging sensitive components. Test the setup with a multimeter: measure continuity across the NO contact after triggering the switch–it should remain closed until the NC button is pressed. Avoid exceeding the relay’s current rating; most general-purpose relays handle 5A to 10A, but check datasheets for exact limits.
Use SPST (single-pole single-throw) relays for simple toggles or DPDT (double-pole double-throw) if switching multiple circuits. To add latching behavior to an Arduino, replace the mechanical relay with a SR latch IC (74HC279)–connect the switch to the Set (S) pin and a reset button to the Reset (R) pin. This approach eliminates moving parts and reduces bounce. For high-current applications (above 10A), use a solid-state relay (SSR) with optoisolation to protect low-voltage control signals.
Designing a Self-Holding Switch Configuration

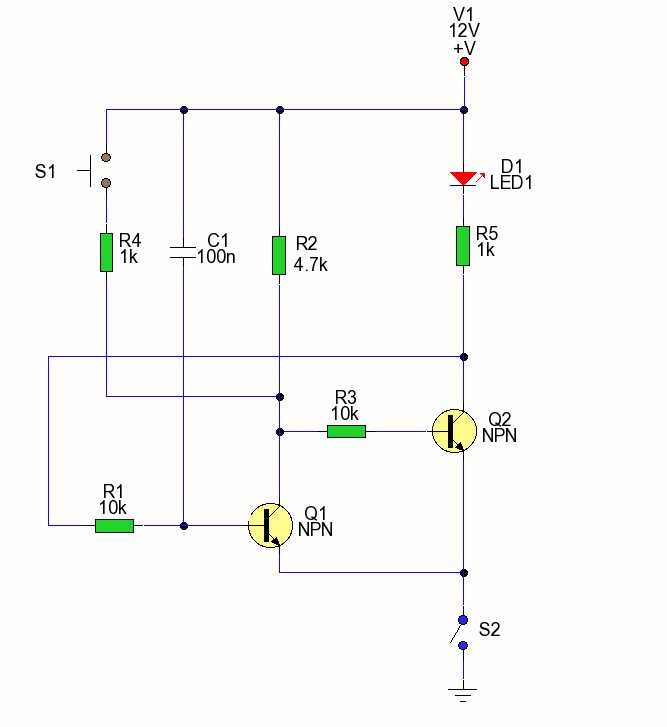

Use a dual-transistor setup with a momentary push button to maintain state without continuous input. Connect an NPN transistor (e.g., 2N3904) with its base to the button via a 1kΩ resistor and the emitter to ground. The collector should feed into the base of a PNP transistor (e.g., 2N3906) through a 10kΩ resistor, while its emitter connects to the supply voltage. When the button is pressed, the PNP transistor latches the output by feeding back to the NPN’s base, keeping the circuit active until power is cutoff or a reset button is added.
Key components to include:
- 10kΩ resistor between PNP collector and NPN base for feedback
- 1µF capacitor across the button to debounce mechanical noise
- Diode (1N4148) in series with the output to prevent reverse current
- Optional: LED with 220Ω current-limiting resistor for visual state indication
Test the configuration with a 5V supply for stable operation–higher voltages may require recalculating resistor values to avoid transistor damage.
Troubleshooting Common Issues
If the hold function fails, verify:
- Correct polarity of transistors (NPN/PNP orientation)
- Proper soldering of feedback path (cold joints disrupt latching)
- Button functionality (replace if contacts degrade)
- Power supply stability (noise may prevent initial trigger)
For battery-operated designs, add a 100µF decoupling capacitor near the power input to filter voltage drops during switching.
Core Elements for Constructing a Reliable Switching Assembly
Begin with a momentary push-button rated for continuous current matching your load–avoid tactile switches below 50 mA if driving relays or LEDs directly, as contact bounce will disrupt state retention.
Select a bistable mechanical relay or solid-state equivalent (e.g., thyristor-based module) with latching coil voltage matching your supply–low-voltage coils (3–5 V) simplify microcontroller interfacing, while 12–24 V models reduce false triggering in noisy environments.
A holding capacitor (10–100 µF) across the control input smooths transient spikes during switching; pair with a flyback diode (1N4007) on inductive loads to clamp voltage surges exceeding the coil’s breakdown threshold by ≥20%.
For logic-driven designs, integrate a flip-flop IC (e.g., CD4013 for dual D-type) or Schmitt trigger (74HC14) to debounce button inputs–ensure hysteresis ≥0.5 V to reject noise without adding external resistors.
Use current-limiting resistors (220 Ω–1 kΩ) for signal paths between buttons, ICs, and power stages; lower values accelerate response but increase power draw–calculate using Ohm’s law: R = (Vin – Vf) / Ihold, where Vf is the forward voltage of the driven component.
Snubber circuits (RC networks) mitigate arcing in high-power relays: typical values (0.1 µF + 100 Ω) for 230 VAC loads, scaled proportionally for DC. Test with an oscilloscope to confirm
Isolate control and power planes with a PCB trace width ≥2 mm (for 5 A) or ≥4 mm (for 10 A) copper pours; vias should be spaced ≤1 cm apart under relay pads to prevent thermal stress. For prototypes, breadboard-compatible modules (e.g., Omron G5LE) reduce wiring errors but limit customization.
Step-by-Step Wiring Guide for a Basic Memory Hold Setup
Begin by connecting the power supply’s positive terminal to a mechanical switch (e.g., pushbutton) using 22 AWG solid-core wire. Route the other side of the switch to a logic gate input–preferably a NOR gate for simplified feedback–securing the joint with a soldered connection or a tight terminal block. Ground the NOR gate’s remaining input permanently to ensure the feedback loop activates only when the switch closes. Use a diode (1N4148) between the switch and logic input to block reverse current, preventing unintended resets during transient spikes.
| Component | Specification | Purpose |
|---|---|---|
| Logic Gate | 74LS02 (NOR) | State retention via cross-coupled inputs |
| Diode | 1N4148 | Current isolation during transients |
| Resistor | 10 kΩ | Pulldown for stable low state |
| LED (Optional) | 5 mm, 2 V forward | Visual confirmation of latched state |
Attach a 10 kΩ resistor from the NOR gate’s output to ground to hold the node low in standby. Connect the second NOR gate’s inputs in parallel to the first, with its output feeding back into the first gate’s floating input–forming a bi-stable loop. Test functionality by momentarily pressing the switch; the output should toggle and remain in its new state until a second trigger resets it. For voltage compatibility, ensure the power rail matches the logic family’s requirements (5 V for TTL, 3.3 V for CMOS).
Common Pitfalls in Hold-and-Lock Switch Designs
Neglecting power-up states leads to unpredictable behavior. If the retention mechanism relies on a transistor or relay without a defined initial condition, the system may power on in an unwanted state–either latched or unlatched–depending on minor voltage fluctuations or residual charge. Always include a pull-up or pull-down resistor (DD reaches nominal voltage before any input triggers activate; delays as short as 10-50ms can prevent false toggling.
Underestimating feedback loop stability causes oscillation or failure to maintain state. When feedback paths share traces with high-current loads (e.g., inductors, motors), induced noise can corrupt the signal. Keep feedback traces isolated–ideally routed on a dedicated layer or shielded with a ground plane. For analog designs, avoid resistances below 1kΩ in feedback loops unless compensated with a capacitor (typically 10nF-100nF) to filter transients. Relay-based setups should use flyback diodes (1N4007) across coils to suppress spikes, which otherwise may reset the hold condition.
Component Selection Errors
- Using electrolytic capacitors in feedback loops where leakage current (>10µA) disrupts state retention. Opt for ceramic (X7R) or film capacitors (≤1µF).
- Choosing relays with coil voltages mismatched to supply rails. A 12V relay won’t reliably pull in on a 9V rail; specify within ±10% of nominal.
- Ignoring transistor gain (hFE). A general-purpose BJT (e.g., 2N3904) with hFE of 100 may fail to saturate if base current is C/hFE. Use Darlingtons (e.g., TIP120) for current demands >50mA.
Overlooking thermal effects in bistable designs accelerates degradation. Resistors dissipating >250mW should be rated at least 0.5W; derate to 60% of maximum power for reliability. Transistors in saturation (e.g., VCE70°C); use ceramic or metal-can alternatives. Always simulate worst-case thermal scenarios in tools like LTspice–neglecting this step invites silent failures after 1,000-10,000 cycles.
Proper Techniques to Clear a Self-Holding Switch Configuration
Disconnect the power source immediately after stable state engagement to prevent residual charge from maintaining the hold. For transistor-based designs, measure the base-emitter voltage–if it exceeds 0.7V, ground the base terminal briefly using a 1kΩ resistor to ensure a clean cutoff. Avoid direct shorting, as it may damage sensitive components or trigger unintended transients in bipolar setups.
Use a momentary pushbutton across the feedback loop to break the holding path. In relay-based systems, wire the reset switch in series with a flyback diode to absorb inductive spikes when de-energizing the coil. Test continuity with a multimeter: resistance should momentarily drop to zero during reset, confirming full disengagement.
Implement a timed reset pulse when dealing with logic gates or microcontrollers. A 100ms pulse from an RC network (e.g., 10kΩ resistor + 10µF capacitor) provides sufficient duration without risking latch re-engagement. For solid-state designs, verify the reset by monitoring the output with an oscilloscope–ripple exceeding 50mV indicates incomplete clearing.
For high-current setups, add a snubber (100Ω resistor + 0.1µF capacitor) across the reset contacts to suppress arcing. In thyristor or TRIAC configurations, ensure the reset switch handles the full load voltage; undersized switches risk weld-closed failures. Always discharge filter capacitors before attempting manual intervention.
Document the reset procedure for each variation–optocoupler-isolated setups require different handling than mechanical relays. Store test voltages and waveforms for troubleshooting; deviations from baseline often reveal degradation in reset components. Replace any suspect parts before reapplying power to avoid partial reset scenarios.
