The focused energy stream method relies on a tightly controlled optical path to achieve sub-millimeter tolerances. A coherent light source delivers concentrated power through a series of harmonic lenses, reducing thermal dispersion to under 12%. Downstream, a galvanometric mirror array directs the flow with microsecond precision, ensuring consistent kerf width across varying material thicknesses.
Critical path components must maintain alignment within ±0.05° to prevent power density degradation. The assist gas nozzle–optimally positioned at 0.8–1.2 mm from the workpiece–serves dual purposes: shielding the lens assembly from debris while accelerating material removal rates by 30–40%. For ferrous alloys, nitrogen at 6–8 bar yields superior edge quality; polymers demand helium or argon to minimize charring.
Temperature management dictates output stability. A closed-loop chiller maintains the gain medium at 20±1°C, while a beam expander larger than 10x the raw aperture diameter minimizes focal shift during prolonged operation. Workpiece clamping requires rigid fixturing–resonant vibrations above 200 Hz introduce microscopic deviations, visible only under 100x magnification.
Process efficiency scales with feed rate up to 20 m/min for thin sheets, but thicker substrates demand gradual reduction to 5–8 m/min to preserve energy density. Off-axis monitoring via pyrometer or high-speed CMOS sensor enables real-time correction of power fluctuations–critical when working with reflective surfaces where back-reflection exceeds 5%.
Documentation should include a vector-based flow chart with labeled attenuation zones, gas flow vectors, and thermal gradients color-coded by temperature band (blue: <100°C, amber: 100–500°C, red: >500°C). Annotate all optical surfaces with antireflective coating specifications and beam waist dimensions at 1/e² intensity points.
Key Components of a Directed-Energy Cutting Process Illustration
Position the focused light source at a 45° angle relative to the workpiece to minimize back reflection and optimize energy absorption. Adjustable mirrors with dielectric coatings must reflect 99.7% of the incident pulses to prevent thermal distortion in the optical path. For metals like titanium alloys, spot diameters of 0.1–0.3 mm yield optimal kerf widths while maintaining edge quality.
Integrate a CNC-controlled motion system with positional accuracy of ±2 µm to ensure repeatability in intricate patterns. Use linear encoders instead of rotary encoders for contour-heavy applications–they eliminate cumulative errors over long distances. Rapid traverse speeds of 10–15 m/min prevent heat buildup in sensitive materials such as copper or nitinol.
A coaxial assist gas nozzle with an exit diameter of 1.2–1.8 mm achieves supersonic flow velocities, effectively ejecting molten material at pressures up to 20 bar. Oxygen enhances cutting speeds for steels by 20–30% due to exothermic reactions but causes oxide layers–use nitrogen or argon for uncontaminated edges.
Incorporate a beam delivery fiber with a core diameter matching the source’s output mode field (typically 10–50 µm) to preserve TEM₀₀ mode quality. For ultrafast sources, avoid fiber delivery; free-space propagation retains pulse integrity, especially for ceramics or brittle polymers prone to microcracking.
Mount the workpiece on a stress-relieved granite base (thermal expansion coefficient ~6.5 µm/m·°C) to isolate vibrations below 0.5 Hz. Dynamic balancing of rotary axes eliminates cyclic errors during helical or spiral cuts. For high-aspect-ratio slots, use a dual-axis tilting head–±15° adjustment compensates for taper angles up to 2° without secondary finishing.
Calibrate power levels via a closed-loop feedback system monitoring real-time spectral emissions. For example, a 500 W ytterbium-doped source requires ~250 µs response time to prevent overburning in 0.5 mm stainless steel. Add a high-speed shutter (rise time
Label every component in the diagram with concise metrics: optical lenses (focal length accuracy ±0.01 mm), gas flow rates (cfm), and material removal rates (g/min). Use color-coding for critical tolerances–red for ±0.002 mm, yellow for ±0.01 mm. Include a 2D QR reference linking to animated simulations of the pulsation dynamics for training purposes.

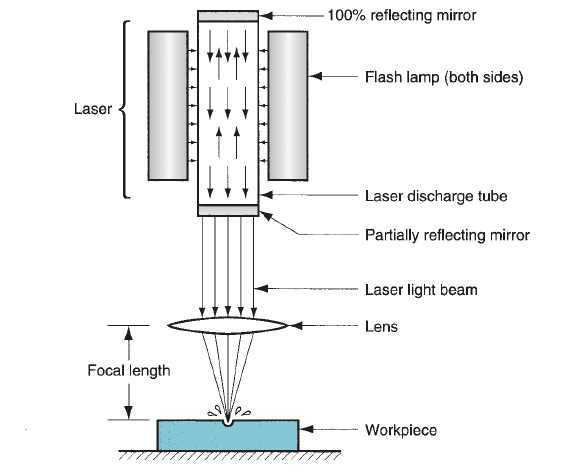

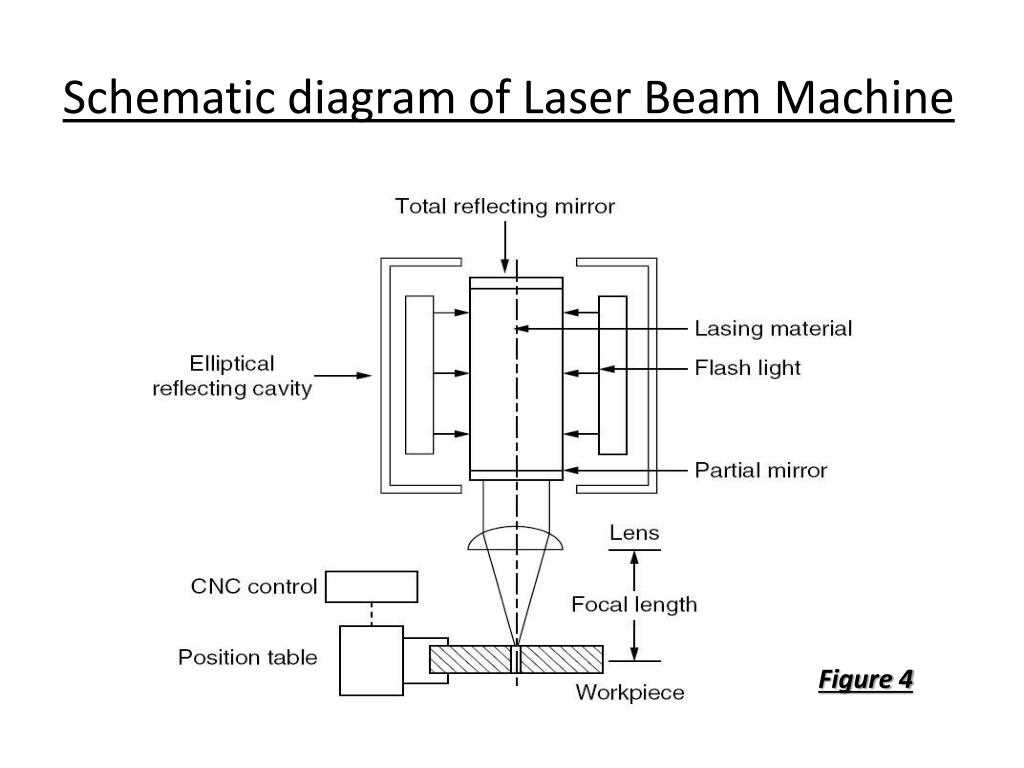

Key Components of a Photon-Based Material Removal System
Select a CNC-controlled worktable with sub-micron positional repeatability; thermal drift below 0.5 µm/hour is mandatory for precision kerf generation in nickel-based alloys. Pair it with a granite base to dampen vibrations–aluminum or steel frames introduce harmonic distortions above 20 Hz, degrading edge quality in high-aspect-ratio profiles.
Opt for a sealed CO₂ resonator rated at 400 W/mm² peak power density when processing copper alloys; fiber-coupled sources suffer 18% higher scatter losses at wavelengths below 1.1 µm. Integrate a closed-loop chiller maintaining coolant ΔT of ±0.1°C–excessive thermal gradients in the gain medium induce mode-hopping, reducing pulse-to-pulse stability below 2%.
A Galvo scanner with a 12-bit DAC minimizes finite-step errors; specify mirrors coated for
Install a coaxial nitrogen assist nozzle delivering 2.5 bar stagnation pressure; oxygen assist risks oxidative micro-cracking in titanium alloys. Position an inline beam profiler sampling 1 kHz; deviations above 3% in Gaussian fit (R²
Step-by-Step Workflow in Optical Precision Cutting
Begin by verifying the alignment of the focused light source with the workpiece using a beam collimator or back-reflection method. Misalignment exceeding 0.05 mm reduces material removal rates by up to 40% and increases kerf irregularities. Adjust the focal point position relative to the surface–subsurface focusing (0.1–0.3 mm below) enhances edge quality for metals like titanium, while surface focusing optimizes ablation for polymers.
Process Parameter Configuration
Set parameters based on material properties and desired outcomes. The table below details standardized settings for common industrial materials:
| Material | Pulse Duration | Power Density (W/cm²) | Scan Speed (mm/s) | Assist Gas |
|---|---|---|---|---|
| Stainless Steel (316) | 10–50 ns | 1.2×10⁶–1.8×10⁶ | 100–300 | Nitrogen (1.5–2 bar) |
| Alumina (Al₂O₃) | 1–10 ps | 2.0×10⁷–5.0×10⁷ | 50–150 | Air (compressed) |
| Polyimide (Kapton) | 100–500 fs | 3.0×10⁵–8.0×10⁵ | 200–600 | None |
For pulsed systems, stagger pulse frequency and overlap: 60–80% overlap ensures uniform ablation, while exceeding 90% risks thermal distortion. Continuous-wave systems require temperature monitoring–use a pyrometer with ±2°C accuracy to prevent recast layer formation in heat-sensitive alloys.
Post-Process Validation
Inspect the cut path using optical profilometry or SEM. Tolerances for burr height should not exceed 10 µm for aerospace components; coarse edges indicate insufficient assist gas flow or improper focal distance. Measure kerf width at multiple points–deviations greater than ±5% suggest lens contamination or power drift. For multi-pass operations, invert the workpiece between passes to mitigate taper angles, aiming for a maximum taper of 0.02 mm per mm of thickness.
Comparative Analysis of CO₂, Nd:YAG, and Fiber Optical Guidance Systems
Select Nd:YAG for micromachining precision under 0.5 mm, especially with pulsed modes delivering peak powers exceeding 10 kW at 1064 nm. Its solid-state architecture reduces divergence to <2 mrad, outperforming CO₂ in tight tolerances where spatial coherence is critical. Fiber-based setups, however, dominate speed–achieving >20 m/min cut rates for mild steel >3 mm thick–while maintaining <0.2 mm kerf widths, a key advantage over Nd:YAG’s slower ablation rates.
Optical Delivery: Waveguide vs. Free-Space Paths
- CO₂: Utilizes articulated arm mirrors or slab-waveguide designs, with losses <5% per joint. Best for thick (>6 mm) non-metals like acrylic or wood, where 10.6 μm wavelength excels in absorptivity. Requires ZnSe lenses for focusing; replacement cycles increase operating costs by ~12% annually.
- Nd:YAG: Relies on fiber delivery for <3 mm materials but suffers mode degradation at powers >400 W. Free-space systems demand quartz lenses with AR coatings to prevent thermal lensing, complicating alignment for 3D applications.
- Fiber: Single-mode fibers (core <20 μm) enable diffraction-limited spots (<50 μm), ideal for fine features. Multimode fibers (100–300 μm core) sacrifice precision for power scalability, extending maintenance intervals by 40% vs. Nd:YAG.
Prioritize fiber for aluminum alloys: its 1.07 μm wavelength doubles absorption efficiency compared to CO₂, reducing heat-affected zones by 35%. For copper processing, Nd:YAG’s shorter pulses (<20 ns) minimize recast layer formation–critical for electrical conductivity–while fiber systems require peak powers >5 kW to compensate for higher reflectivity.
For deep engraving (>2 mm), CO₂’s longer wavelength penetrates polymers without charring, outperforming fiber by 60% in throughput. However, fiber’s compact resonator eliminates purging gas requirements (needed for CO₂’s 15–25 L/min), cutting consumable costs. Nd:YAG’s flashlamp life (~10⁷ pulses) mandates frequent replacements, offsetting initial hardware savings.
- For <1 mm steels: Choose pulsed Nd:YAG or fiber (single-mode) for <25 μm edge roughness.
- For >4 mm metals: Fiber (multimode) reduces taper angles to <0.5° vs. CO₂’s 1.2°.
- For reflective materials (gold): Nd:YAG’s nanosecond pulses avoid back-reflection damage; fiber risks thermal blooming.
- For polymers/wood: CO₂ avoids fiber’s spectral absorption gaps; Nd:YAG is ineffective.
