Obtain exact voltage reference points for troubleshooting power delivery issues by locating PQ and PR designators on the PCB layout. These identifiers correspond to MOSFETs and current-sense resistors that control buck converters–common failure points in charging circuits. Measure voltage between TP_VCORE, TP_1V5, and ground while simulating load with a 10 Ω resistor. Deviations exceeding ±5% indicate faulty components upstream.
Trace signal paths for USB-C port failures by following U (microcontrollers) and Y (crystal oscillators) on the board view. Use a logic analyzer to verify 48 MHz clock signals at Y1 for PD negotiation chips. Absent waveforms suggest damaged traces or shorted capacitors near the receptacle, often caused by liquid ingress. Probe CC1/CC2 lines with a differential probe set to 10x attenuation to avoid false negatives.
Decode BIOS corruption symptoms by referencing PU (flash memory) and UEFI strap resistors labeled R_BOOTSEL. Compare resistance values against the board’s BDM (Board Design Manual) to confirm correct boot mode configurations. Use an external programmer with clip adapters to reflash corrupted firmware–ensure voltage levels match the chip’s specifications (typically 3.3V for SPI, avoid 1.8V variants without level shifters).
Identify GPU-related shutdowns by inspecting PG (power good) signals and GPU VRAM voltage rails (1V35_VRAM). Thermal throttling often stems from failed dual N-channel MOSFETs near the GPU core. Check continuity between GPU_VCC and ground with a milliohm meter–values below 20 Ω indicate internal shorts requiring reballing or die replacement.
Resolve Wi-Fi instability by verifying AC coupling capacitors (labeled C_AC) on the PCIe lanes connecting the wireless module. Signal integrity issues appear as excessive packet loss (above 3% in 5 GHz mode) or intermittent driver crashes. Replace C_AC capacitors with 0402 100nF 25V X5R–cheaper X7R variants cause RF leakage at high frequencies.
Advanced Circuit Blueprints for Portable Computing Device Restoration

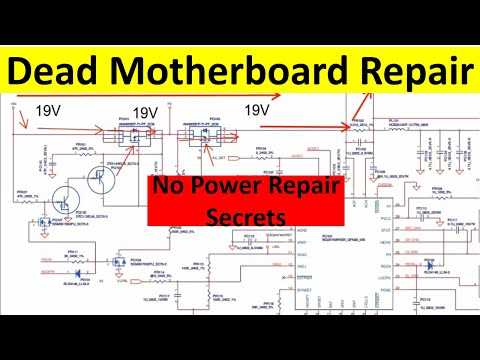

Begin by locating the system board’s power delivery section, typically marked near the DC jack or battery connector. Use a multimeter to verify voltages at key test points listed in official service manuals–common values include 3.3V, 5V, and 12V rails. Datasheets for voltage regulators like the ISL6237 or TPS51218 often include pinouts and expected output ranges. Cross-reference these readings with the board’s layout files to identify failed components before desoldering.
Critical Signal Paths and Troubleshooting Shortcuts
Trace clock signals from the main oscillator (e.g., 14.318 MHz) to the chipset using an oscilloscope. A missing wave suggests a dead crystal or corrupt firmware; reflash the BIOS using a programmer like CH341A if needed. For data buses (PCIe, DDR), check termination resistors (usually 22–100Ω) for tombstoning–a frequent failure in compact PCB designs. Below is a reference table for resistor values in common high-speed lanes:
| Bus Type | Typical Resistor Value | Common Failure Mode |
|---|---|---|
| DDR3/4 | 33Ω (series) / 10Ω (parallel) | Open circuit due to thermal stress |
| PCIe x1/x4 | 22Ω (AC coupling cap pair) | Short to ground via degraded caps |
| SATA | 10Ω (differential pair) | Corrosion near SMD inductors |
Prioritize capacitor inspection near the EC (Embedded Controller)–bulging or leaking tantalum caps (marked 10μF/6.3V) often disrupt power sequencing. Replace with X5R/X7R ceramic alternatives rated for 16V to prevent recurrence. Thermal damage near GPU/CPU BGA balls manifests as random reboots; reflow with flux and precise temperature control (240°C–260°C peak) using a hot-air station.
For EEPROM-related issues (e.g., corrupted boot blocks), use an SOIC8 test clip to dump the firmware via SPI flash tools. Compare the binary against known-good dumps from repositories like BadCaps or GitHub–mismatches in the ME region (Intel systems) necessitate a full descriptor reset. Keep a database of board-level component IDs (e.g., Richtek RT8206 PWM controllers) to expedite part sourcing.
Static and Transient Protection Measures
ESD damage often fries MOSFETs near I/O ports–replace gates with lower RDS(on) equivalents (e.g., AO3400A for high-side switches). For transient overvoltage failures, add a 100pF–1nF ceramic cap across the input filter inductor to snub inductance spikes. Document every resistor and capacitor swaps in a spreadsheet, including exact coordinates from the PCB revision files, to avoid signal integrity issues during future diagnostics.

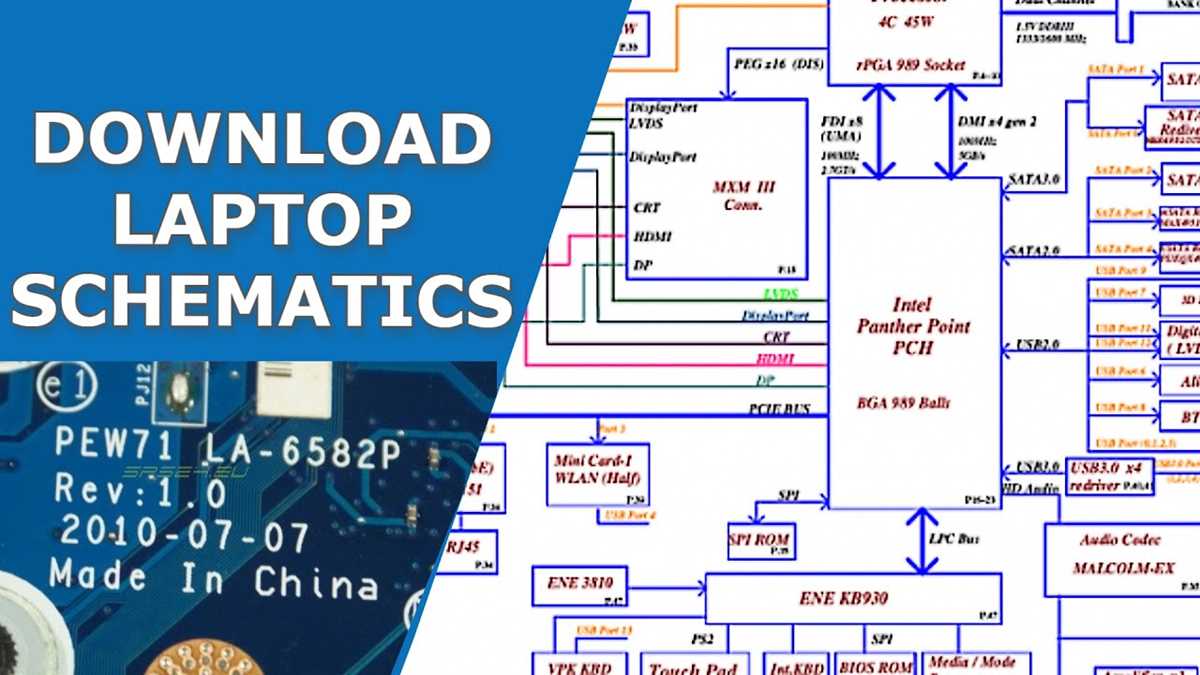

Finding and Downloading Board Blueprints for Portable PC Models
Begin by identifying the exact device series and revision–manufacturers like Dell (Inspiron, Latitude, XPS), HP (EliteBook, Pavilion, Spectre), Lenovo (ThinkPad, Yoga), and ASUS (ROG, ZenBook) host official service manuals on their support portals. Use the serial number or part code (e.g., LA-Bxxx for Quanta, DA0xxx for Compal) to filter results. Third-party repositories such as BadCaps.net, Electro-Tech-Online, or GitHub repos like schematics-unofficial archive older and obscure models when OEM sources fail. Search queries should combine the model identifier with filetype:pdf or site:github.com to narrow downloads.
Verify document authenticity by cross-referencing component layouts with physical board markings–mislabeled schematics often mix revisions. Adobe Acrobat’s “Find” tool (Ctrl+F) speeds up locating power rails, BGA pinouts, or test points; use terms like “DC_IN,” “CPU_Vcore,” or “EC_RST#.” For paywalled files, Archive.org’s Wayback Machine may retain previously accessible links. Avoid forums soliciting “donation” uploads–most legitimate sources provide free access.
Critical Circuit Elements to Locate in PCB Blueprints

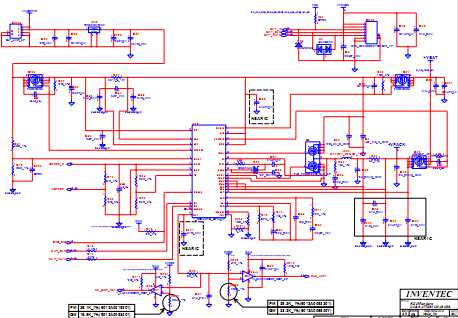

Start by pinpointing the power delivery network–trace the main voltage rails (e.g., +3.3V, +5V, +12V, and VCORE) from the input connector to their respective regulators and filter capacitors. Verify the presence of inductors on switching power stages, as their absence or damage indicates failed DC-DC conversion. Use the reference designators (e.g., PU8, PR12) to cross-check components against the bill of materials; discrepancies often reveal substituted or counterfeit parts that cause intermittent faults.
- CPU/PCH interface: Identify the socket footprint and associated traces leading to the platform controller hub. Probe the data lanes (DMI, PCIe) for continuity–open circuits here disrupt signal integrity.
- Embedded controllers (EC/KBC): Locate the SMBus lines feeding the EC; corrosion or shorts on these traces trigger false thermal shutdowns.
- Memory modules: Confirm termination resistors on DDR traces. Missing or out-of-tolerance resistors (>10% deviation) corrupt RAM initialization.
- Clock generators: Check crystal oscillators (e.g., 25MHz, 32.768kHz) and their load capacitors. Drifting frequencies above ±50ppm destabilize the entire system.
- BIOS/UEFI chip: Trace the SPI lines connecting the firmware storage to the chipset. Damaged tracks prevent booting; verify pull-up resistors on CS# and WP# lines.
- I/O ports: Examine ESD diodes on USB, HDMI, and LVDS connectors. Failed diodes expose circuits to transients, causing port failures.
Step-by-Step Guide to Trace Power Delivery Paths in Circuit Blueprints

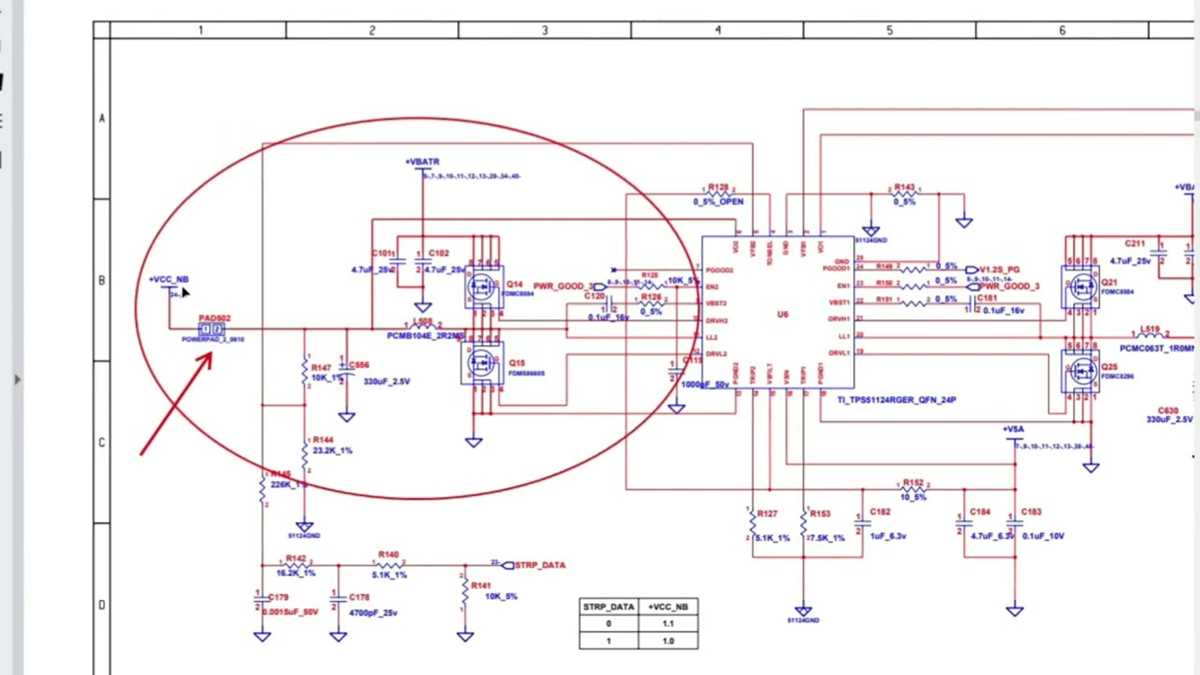

Locate the primary voltage regulator module (VRM) section in the PCB layout by identifying the controller IC–marked with model numbers like ISL6237, RT8206, or TPS51218. Verify input rails labeled VIN, VCC, or +5V_ALW using a multimeter in continuity mode against ground references; confirm these feed into the controller’s pinouts before proceeding downstream. Cross-reference the IC’s datasheet to isolate enable (EN) and feedback (FB) pins–these dictate switching behavior. Measure resistance between FB and adjacent capacitors to rule out shorts, then check gate drivers (UGATE/LGATE) for proper switching waveforms (100–400 kHz, 3–7V peak) with an oscilloscope.
Follow the output path toward power planes (e.g., +VCORE, +1.8VS) by tracing copper pours annotating layer transitions–vias near inductors (L1, L2) often signal filtering stages. Probe each stage’s inductor for AC ripple (≤30mV) and DC offset matching expected rails (e.g., 1.0V for GPU VCORE). If output drops below specs, isolate components: replace faulty load switches (AO4496) or mosfets (Si7336), verify schottky diodes (common in SBU lines), and confirm bypass capacitors (.1µF–10µF) near ICs lack leakage using an LCR meter (≤0.1Ω ESR).
Key Circuit Board Symbols and Their Role in Fixing Portable Computers
Start by learning resistor markings–their values dictate current flow in power delivery areas. A 1kΩ symbol next to a MOSFET suggests voltage division for gate triggers. Look for zigzag lines with “R” labels; these directly influence standby voltages in charging circuits.
Capacitors, shown as double parallel lines (polarized) or curved single lines (non-polarized), smoothing voltage spikes near regulators. Faulty ones cause random reboots–check ESR values against board traces. Non-polarized symbols near crystal oscillators stabilize clock signals; failures lead to no POST.
- Diode symbols (arrows pointing to lines): Block reverse current in DC-DC converters. An “SS34” near a coil means Schottky protection–backflow here fries power ICs.
- Transistors (NPN/PNP, shown as intersected lines): Switch or amplify signals. “Q201” near a super I/O chip likely handles keyboard backlight dimming; swap if unresponsive.
- Integrated circuits (rectangles with numbered pins): Contains controller logic. “PU1” near RAM slots often handles memory initialization–measure voltages at pins 4/8/12/16 if boot fails.
Coils (spiral symbols) store energy in switching regulators. A “L30” near a buck converter should have
Trace connections between symbols before replacing components. A resistor labeled “R501” linking a GPU to ground might drop 0.8V normally–if 0V, the GPU isn’t grounding properly. Use a thermal camera to check for cold joints near these nodes.
- Identify ground symbols (three horizontal lines decreasing in size): All voltages originate/revert here. Probe ground points near PCH chips first if system won’t turn on–shorts here prevent power-up.
- Look for “TP” test points: Labeled “VCC_CORE” or “1.5V_PCH,” these confirm voltages. Missing 1.05V at “VCCIO” points to dead memory circuits.
- Voltage rails (thick blue/red lines): Common rails like “3.3V_S5” appear near ECs. If missing, check upstream fuses drawn as rectangles with “F” labels.
Finally, cross-reference component IDs with service manuals. A “U42” labeled “MAX8698C” near a charging port is a fuel gauge IC–if input is correct but output fails, replace it. Always verify symbol orientation: a backwards PMIC (drawn as a box with thick borders) will fry immediately if installed wrong.
