For bidirectional control of brushed DC actuators at up to 46V and 2A per channel, integrate a dual full-bridge IC with onboard voltage regulation and current sensing. Connect the positive supply directly to the input terminals labeled VS, ensuring a common ground plane spans the logic supply (VSS), load, and microcontroller. Bypass capacitors–100nF ceramic across VS and GND, plus 10µF electrolytic near the supply–minimize transient noise and ripple.
Enable pins (ENA, ENB) modulate output via PWM; drive them high (>2.3V) for full activation or floating for hardware shutdown. Sense resistors on SENSE A/B lines provide current feedback–calculate load draw by measuring voltage drop across 0.5Ω resistors (VSENSE = I × R), then route signals to an ADC for real-time monitoring. Logic inputs (IN1–IN4) accept 3.3–5V TTL; pull unused inputs low to prevent erratic switching.
Avoid exceeding thermal limits–dissipation peaks at ~20W under continuous 2A load. Mount a TO-220 heatsink if ambient temperature exceeds 50°C or duty cycles approach 80%. Separate high-current traces from logic lines on the PCB; use 2oz copper weight for power paths and vias near terminals to reduce resistance. Test continuity between VS and GND before applying power–shorts risk permanent damage.
Understanding the Dual H-Bridge Power Controller Schematic
Start by connecting the power input pins to a stable 5V–12V DC supply, ensuring the current rating exceeds your actuator’s peak demand by at least 30%. The IN1–IN4 logic pins accept 3.3V or 5V TTL signals–use a microcontroller’s PWM outputs (e.g., Arduino’s 980Hz default) for precise speed control. Avoid floating inputs; tie unused pins to ground via 10kΩ resistors to prevent erratic behavior during idle states.
Verify the OUT1–OUT4 terminals match your load’s wiring polarity–reverse connections risk permanent damage. For brushed DC actuators, bypass the onboard 5V regulator if supplying over 7V; connect the microcontroller’s VCC directly to the module’s +5V output pin to avoid thermal shutdown. Include 0.1µF ceramic capacitors between each power pin and ground, placed within 10mm of the component leads, to suppress voltage spikes exceeding 20V transient.
Current sensing resistors (0.5Ω, 1W) on the ENA/ENB pins enable torque monitoring–consult the datasheet’s equations to convert voltage drop (typically 0–3V) to amperage. Heat dissipation requires a 40×40mm aluminum heatsink if operating above 60% duty cycle; without it, thermal throttling reduces output current below 1.5A. For bi-directional control, ensure PWM signals on IN1/IN2 or IN3/IN4 never transition within 5µs of each other to prevent shoot-through.
Test the configuration with a bench multimeter before attaching actuators–measure continuity between logic and power grounds to confirm isolation. If driving inductive loads (e.g., gearheads), add flyback diodes (1N5822) across each output terminal, cathode to +V, to clamp back-EMF at 0.5V above supply voltage. Operating frequency should not exceed 40kHz; above this threshold, switching losses degrade efficiency by 12% per 5kHz increment.
Key Elements and Interface Configuration of the Dual H-Bridge Controller
Begin integration by identifying the primary interface points: voltage input, signal control, and actuator connections. The board accommodates a dual-channel configuration, each featuring:
- Power Supply Pins: Two terminals for external voltage (7–46VDC) and a dedicated logic voltage input (5VDC) to energize internal circuitry. Always verify polarity before energizing to prevent permanent damage.
- Control Signal Lines: Four logic-level inputs per channel (IN1–IN4), accepting TTL or CMOS signals. Drive these with 3.3V or 5V microcontroller outputs–exceeding 7V risks overheating.
- Output Terminals: Paired connections for each channel (OUT1–OUT4). Ensure proper heatsink attachment if driving loads exceeding 2A continuous current.
Jumpers located adjacent to the power input regulate onboard voltage regulation. Removing the jumper disengages the internal 5V regulator, requiring an external logic supply. For inductive loads (e.g., DC actuators), keep the jumper in place to enable freewheeling diodes–omitting this step risks voltage spikes above 60V, damaging both the board and connected electronics.
The component layout includes critical protection features:
- Dual Schottky diodes (1N5822) clamping reverse EMF, rated at 3A forward current.
- Thermal overload cutoff at 150°C–exceeding this trips the onboard PTC resettable fuse, requiring cooldown before resuming operation.
- Current sensing resistors (0.5Ω) for each channel, outputting proportional voltage on dedicated pads (SENSE A/B). Use these for closed-loop velocity control.
Always solder these components directly to the board; wire-wrapping or clip leads introduce resistance, skewing current measurements.
For optimal thermal management, mount the IC on a heatsink using thermal adhesive rated for ≥2W/°C. Avoid insulating washers–they exacerbate heat buildup. When driving opposing polarities (e.g., clockwise/counterclockwise), insert a 500ns delay between direction changes in the control logic to prevent shoot-through currents, which can exceed 5A transiently and degrade the H-bridge transistors within milliseconds.
Connecting the H-Bridge Controller to Dual DC Actuators for Bidirectional Power

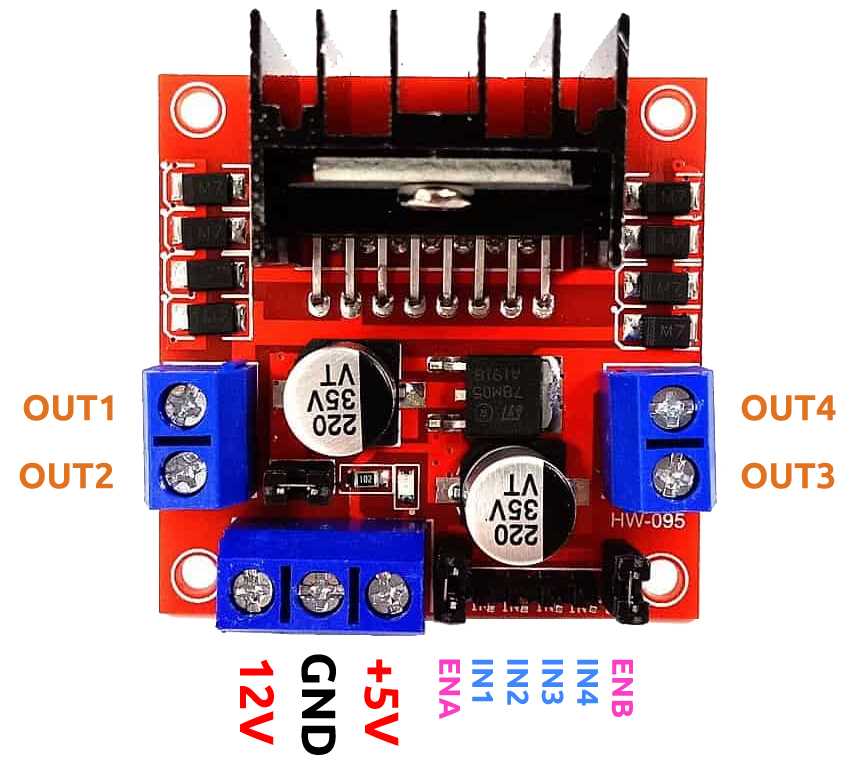

Begin by identifying the output terminals on the integrated bridge board: marked as OUT1, OUT2 for the first channel and OUT3, OUT4 for the second. Strip 5mm of insulation from the leads of each actuator and insert them into the corresponding outputs–positive wires to OUT1/OUT3, negative wires to OUT2/OUT4. Secure connections with screws, ensuring no copper strands stray outside the terminal block. Use 16-18 AWG wire for currents up to 2A per channel; downgrade to 20 AWG only for lightweight, low-duty cycles.
Feed power to the bridge via the +12V and GND inputs. For actuators rated 6-12V, connect the external supply directly; voltages above 12V require an inline 5V regulator to power the logic side. Insert a 1N4007 flyback diode across each actuator’s terminals, cathode to positive, to clamp inductive spikes. Omit this step only if the controller’s built-in protection is verified for your specific load conditions. A 100µF electrolytic capacitor across the supply input smoothes voltage dips during high-current switching.
Wire the control signals to a microcontroller or logic output: IN1-IN4 dictate direction and enable. Use the adjacent ENA/ENB jumpers only for full-speed operation; remove them and link to PWM pins for variable speed control via duty cycles above 20kHz to avoid audible whine. Below is a quick reference for signal mapping:
| Actuator | IN1 | IN2 | Enable |
|---|---|---|---|
| Channel 1 (Left) | High | Low | PWM pulse |
| Channel 1 (Right) | Low | High | PWM pulse |
| Channel 2 (Left) | High | Low | PWM pulse |
| Channel 2 (Right) | Low | High | PWM pulse |
Test each channel separately before combining: apply a 1-second 50% PWM pulse with IN1 high/IN2 low, then reverse. Monitor current draw–anything exceeding 2A per channel indicates miswiring, excessive load, or missing flyback diodes. For stalled actuators, limit duty cycles to 80% to prevent thermal shutdown. If both channels share a single supply, decouple noise with 0.1µF ceramic capacitors at each actuator’s terminals.
For dual-channel synchronization, stagger PWM signals by 1-2µs to reduce supply ripple. Avoid grounding the controller logic and actuator returns to the same point–use a star configuration to prevent ground loops. Calibrate dead zones: program a 50-100ms delay between direction changes to allow the integrated bridge’s internal decay circuits to settle. Check thermal pads–attach a heatsink if sustained loads exceed 1.5A per channel; active cooling is mandatory above 3A.
Power Supply Requirements and Voltage Regulation Options
Select a 7.5V to 12V input range for optimal performance, ensuring efficiency doesn’t drop below 60% under full load. Voltages below 6V risk insufficient headroom for linear regulators, while exceeding 18V accelerates thermal degradation in integrated switches.
Linear regulators like the LM7809 stabilize output at 9V with 5% tolerance, but dissipate excess energy as heat. For currents above 1.5A, switch to synchronous buck converters (e.g., MP2307) achieving 90% efficiency at 12V input, reducing heat sinks by 40%.
Decoupling capacitors should include a 100nF ceramic near input pins and a 470μF electrolytic at the supply entry point. Smaller transient loads (e.g., PWM spikes) benefit from an additional 1μF tantalum capacitor close to the load, preventing voltage droop under 3A pulses.
For dual-rail systems, isolate grounds between logic (3.3V/5V) and high-current paths using a star topology. A 3Ω resistor in series with the logic supply limits backflow during inductive kickback, safeguarding microcontrollers from latch-up.
Thermal considerations demand a calculated PCB copper area: 2 oz/ft² copper with 10mm² per watt for natural convection. Active cooling (40mm fan at 5CFM) extends continuous operation beyond 25W, crucial for enclosed designs. Monitor junction temperature with a KTY81-210 sensor, setting a 120°C cutoff to prevent silicon failure.
Battery-powered setups require low-dropout regulators (e.g., LT1086) with ≤0.5V headroom and quiescent currents under 1.5mA. Lithium-ion sources need undervoltage protection at 3.0V/cell to avoid deep discharge, while lead-acid systems tolerate 1.75V/cell. Always fuse the main supply at 125% of the maximum continuous current.
