For precise bidirectional power regulation of DC actuators, integrate a dual-channel push-pull amplifier IC with your development board using a configuration of eight main connections. Connect the voltage supply pins (Vcc1 and Vcc2) to a stable 5V rail for logic and a separate 6-12V source for load power, ensuring at least 0.5A current capacity per channel for sustained torque. Ground both the logic and load GND pins to the microcontroller’s reference plane to prevent voltage drift.
Wire each control input to distinct digital output pins on your board, reserving one additional pin per channel for enable signals. Apply a 1kΩ pull-down resistor to control lines if switching below 3.3V logic levels to guarantee clean transitions. For encoder-equipped loads, route feedback pulses to interrupt-capable pins and configure debounce intervals of 2-5ms to filter electrical noise. Verify signal integrity with a multimeter by confirming 0V/5V swings on all lines before energizing the load.
Mount 0.1µF ceramic capacitors directly across the IC’s power pins to suppress transient spikes, and add a 22µF electrolytic capacitor at the load supply input if operating near the maximum 600mA continuous rating. Test rotational direction by pulsing the control pins in complementary patterns, observing instantaneous response without stalling or thermal shutdown. For variable speed control, modulate enable signals with 1-10kHz PWM waveforms, calibrating duty cycles against measured RPM to eliminate dead zones.
To scale beyond single-actuator control, chain multiple amplifier modules in parallel, isolating each with a 0.33Ω current-sense resistor on the load return path. Monitor resistor voltage drop with analog inputs to detect overload conditions, triggering fault recovery routines if thresholds exceed 10% of supply voltage. Document pin assignments in your firmware with macros for portability across hardware revisions.

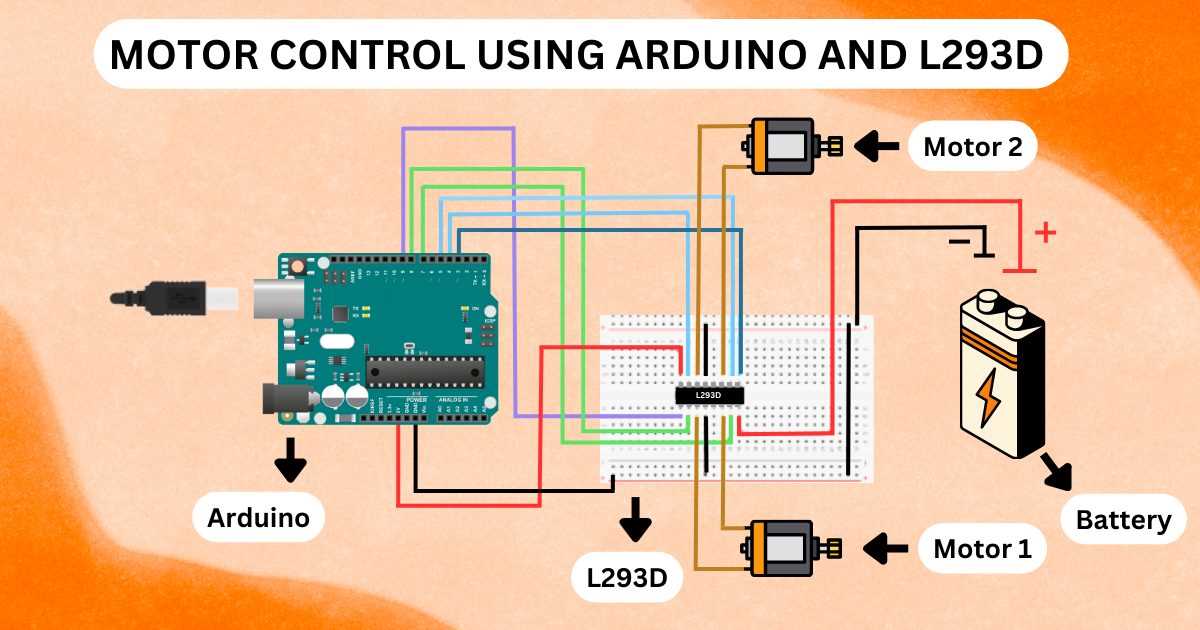

Building a Dual-Channel Actuator Controller with ATmega-Based Microcontrollers
Begin wiring by connecting the power input pins of your integrated H-bridge module directly to the microcontroller’s 5V output to avoid voltage drops. For higher torque applications, bypass this and use an external source up to 36V, but ensure the chip’s logic voltage stays within 4.5–7V–failure to isolate these will fry the silicon.
Attach control signals to PWM-capable pins (like D3, D5, D6, D9, D10, or D11 on most Uno-compatible boards) for variable speed; constant high/low outputs will suffice for direction switching only. Keep signal cables under 20cm to reduce interference–twisted pairs help if longer runs are unavoidable.
Ground both the logic and high-current sections together at a single point near the module to prevent ground loops. If the board lacks a dedicated power ground plane, run a thick wire (18AWG or thicker) directly from the external supply negative terminal to the chip’s ground pad, bypassing thin traces that won’t handle 1.2A continuous current.
Enable pins (typically marked EN1/EN2) must be pulled high for operation; tying them to 5V via 1kΩ resistors ensures stable activation while allowing for quick shutdown via digital output if needed. Omitting this step leaves actuators unpredictable–floating inputs pick up noise, causing erratic rotation or surging.
Solder 0.1µF ceramic capacitors between each power input and ground, as close to the chip as possible, to suppress voltage spikes during switching transitions. For dual-channel setups driving 600mA+ loads simultaneously, add a 220µF electrolytic cap on the main supply to smooth sustained draws.
Test direction control by sending 100% duty cycle signals to opposing inputs–for example, channel A: HIGH/LOW vs. channel B: LOW/HIGH. Ensure mechanical stops are in place; reversing direction without deceleration can damage gearboxes. Monitor current draw with a multimeter in series to confirm it doesn’t exceed 1A per channel, even briefly.
For bidirectional speed control, use the `analogWrite()` function with values from 0 (off) to 255 (full power). Avoid abrupt changes–ramping from 30 to 200 over 500ms reduces electrical stress. If overheating occurs despite adequate heatsinking, reduce PWM frequency via timer registers (e.g., TCCR2B for pins 9/10) to 31kHz or lower to minimize switching losses.
Label all connections with heat-shrink tags or color-coded wires; common failures stem from misplaced enable lines or swapped polarity inputs. Verify wiring with a continuity tester before powering up. Keep a spare module on hand–overvoltage from inductive loads often destroys these chips without warning.
Pinout Details for H-Bridge IC and Microcontroller Wiring
Connect the power stage IC’s VS (pin 8) to a supply voltage between 4.5V–36V–match this to the actuator’s rated voltage for optimal torque and speed. Tie VSS (pin 16) to the microcontroller’s 5V rail; this biases the internal logic gates and ensures clean switching. Route the enable 1 (pin 1) and enable 2 (pin 9) straight to digital pins on the board, set to HIGH to activate the half-bridges, or LOW to coast or brake.
Input 1 (pin 2) and Input 2 (pin 7) determine direction: LOW-HIGH spins clockwise, HIGH-LOW spins counter-clockwise, and HIGH-HIGH or LOW-LOW stops the rotor with regenerative braking. Use PWM-capable pins for enable lines if variable speed is required, and insert a 0.1 µF ceramic capacitor between VS and ground near the IC to suppress voltage transients. Avoid exceeding 600 mA per channel–thermal shutdown triggers at ≈150 °C–and always place a flyback diode across inductive loads if they’re not already embedded in the module.

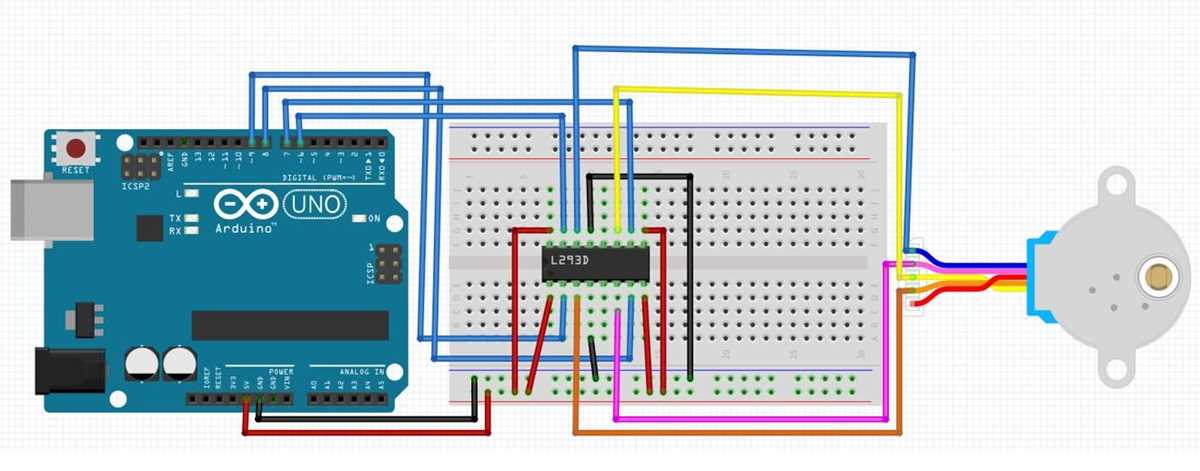

Step-by-Step Wiring Guide for DC Actuators
First, connect the power supply’s positive terminal to the control module’s VCC pin–use a 9V battery or 12V adapter if the actuator requires higher torque. Verify the voltage matches the module’s specifications; exceeding it risks burning the board or damaging the coils.
Attach the actuator’s leads to the module’s output terminals. For bidirectional movement, ensure polarity aligns with the intended rotation direction. Swap wires later if the actuator spins opposite to expected behavior. Label the wires to avoid confusion during testing.
Ground the module by linking its GND pin to the microcontroller’s ground rail. Use a breadboard or direct soldering for stability–loose connections cause erratic operation. Add a 1000µF capacitor across the power input to smooth voltage spikes, critical for high-current loads.
Bridge the module’s logic pins to the microcontroller’s digital outputs. For example:
- Pin A → D5 (forward signal)
- Pin B → D6 (reverse signal)
- Enable pin → D3 (PWM for speed control)
Avoid floating inputs; pull unused pins to ground via 10kΩ resistors.
Testing and Troubleshooting
Upload a basic script to validate movement:
- Set D3 to HIGH (full speed)
- Alternate D5 and D6 between HIGH/LOW to switch direction
- Monitor current draw with a multimeter–excess above 600mA indicates mechanical binding or incorrect voltage
If the actuator stutters, check solder joints and re-tighten screws on terminal blocks.
Advanced Configurations
For dual-actuator setups, parallel the power supply but isolate logic signals to prevent interference. Use optocouplers if noise affects sensitive sensors. For precision control, replace the default 1kHz PWM with 20kHz on compatible microcontrollers to reduce audible whine. Always heatshrink exposed wires–vibration from prolonged use loosens connections.
How to Supply Power to the H-Bridge IC Properly
Use separate voltage sources for logic and load sides. The control chip requires 4.5V to 7V on pin 16 (VCC1) for internal logic, while the load pins (8 and optionally 9) accept 4.5V to 36V for actuators. Connecting both sides to the same regulator or battery without decoupling capacitors risks latch-up or erratic switching.
- Pin 16 (VCC1): 4.5–7 VDC, regulated, sized for ≈50 mA.
- Pin 8 (VS): 4.5–36 VDC, sized for peak actuator current plus 20 % overhead.
- Pin 9 (optional second VS): Same range as pin 8 if dual actuators are used.
Add bulk and decoupling capacitors immediately at the pins. A 100 µF electrolytic cap on pin 8 counteracts voltage sag under transient loads. Place a 0.1 µF ceramic cap between pin 16 and ground, and another 0.1 µF cap between pin 8 and ground, each within 2 mm of the IC body. These prevent false triggering during PWM edges.
Calculate the required supply current from the actuator datasheet. Typical small brushed DC units draw 1–2 A stall, but gear-train inertia can spike to 3× nominal. Size the regulator or battery pack accordingly; undersized sources cause brownout reset of microcontrollers even when the IC appears functional.
Common Failure Modes and Remedies
- Excessive voltage on VS (≥36 V) vaporises internal emitter resistors leading to permanent conduction.
- Missing bulk cap on VS causes momentary saturation of the switching transistors, falsely signalling undervoltage lockout.
- Shared ground paths induce noise, simulate encoder pulses, or stall actuators during acceleration.
Use thick traces or wires for the VS supply. Minimum 1.5 mm² copper foil for 2 A continuous; 2.5 mm² for 3 A. Thin traces act as fuses under surge, melting before the IC fails.
Test power rails with an oscilloscope before connecting the IC. Probe VS during maximum actuator start-up–ripple should stay under ±0.3 V. Excess ripple indicates insufficient bulk capacitance or a weak regulator; replace with a higher-current module rated for 120 % of peak demand.
If actuators are remote, keep the VS lines twisted-pair and route them away from logic traces. Add transient-voltage-suppression diodes at the actuator terminals to clamp back-EMF spikes below 36 V, preventing internal clamp diodes from conducting.
