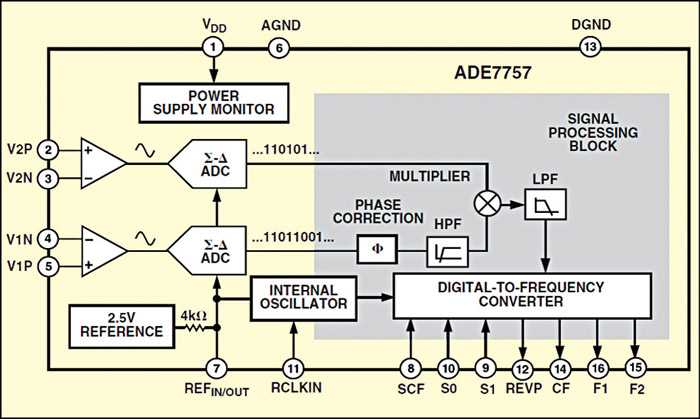

For accurate residential power monitoring, integrate an AD7755 or CS5460 measurement IC as the primary sensing element. These chips handle voltage-to-frequency conversion with ±0.1% linearity, critical for billing-grade precision. Wire the voltage divider directly to the mains input–use 1 MΩ series resistors and a 470 nF safety capacitor to suppress transients. The current path must route through a 10 mΩ manganin shunt with Kelvin connections to eliminate thermal drifts.
Power the circuit via a transformerless capacitive-dropper (X-class capacitors rated for 400 VAC) paired with a 78L05 linear regulator. Opt for Schottky diodes (e.g., 1N5817) on the low-voltage side to minimize forward-voltage losses. Route the logic pins of the measurement IC through 4.7 kΩ pull-up resistors to an ATmega328 or STM32 microcontroller, ensuring SPI clock rates stay below 2 MHz to avoid EMI-induced errors.
Layout traces with 2 oz copper for the high-current paths, keeping the shunt return path under 5 mm to reduce stray inductance. Isolate analog and digital ground planes at a single star-point near the measurement IC’s ground pin. Add a 20 pF ceramic capacitor between the reference voltage pin and ground to filter noise–failure here introduces ±2% waveform distortion in the readings.
Calibration requires a 0.1% precision load (e.g., 100 W incandescent bulb) and a digital oscilloscope to verify the IC’s pulse train matches 3200 imp/kWh (or your target resolution). Store calibration constants in the microcontroller’s EEPROM–use CRC-8 checksums to detect corruption from brownouts. For tamper-proofing, add a PCF8583 RTC with a 3.6 V lithium battery to timestamp events independently of the microcontroller’s clock drift.
Electrical Energy Counter Circuit Layout
Begin by integrating a shunt resistor or current transformer for precise load current measurement–their selection depends on the expected range. For residential applications, a 600:5A transformer with a 0.01Ω shunt resistor ensures minimal loss while maintaining accuracy within ±0.5%. Connect the secondary winding directly to the measurement IC, bypassing any intermediate amplification to reduce signal distortion. Ensure the current path is isolated from the voltage reference to prevent ground loops, using optocouplers or isolated differential amplifiers rated for at least 2kV.
- A/D converter resolution: 24-bit for Class 0.2 accuracy, sampling at ≥1kHz to capture transient loads.
- Voltage detection: Potential divider with a 1MΩ:10kΩ ratio for 230VAC networks, scaled to 0.5V for the IC’s input.
- Frequency tracking: Zero-crossing detector with hysteresis (2-5% of peak voltage) to filter noise, measured via a Schmitt trigger circuit.
- Data storage: FRAM or EEPROM with ≥1M write cycles, clocked at 32kHz for time-stamped consumption logs.
- Display interface: 4-digit 7-segment LED or e-ink panel, multiplexed at 100Hz to avoid flicker.
Opt for a ATM90E36A or CS5463 IC as the core processor–both support dual-channel measurement, reactive power calculation, and harmonic distortion analysis. Wire the analog front-end with shielded twisted pairs for current and voltage inputs, grounding the shield only at the IC side to eliminate stray capacitance. Include a transient voltage suppressor (TVS) diode across the voltage input, rated for 1.5× the nominal peak voltage (400V for 230VAC systems), to protect against surges above 6kV.
- Calibrate the system using a reference load: Apply a 1kW resistive load (e.g., 230VAC/4.35A) and adjust the IC’s gain registers until the displayed value matches within ±0.2%.
- Verify linearity: Test at 10%, 50%, and 100% of the maximum load (e.g., 0.1kW, 0.5kW, 1kW) and confirm deviation stays below ±0.1%.
- Check phase compensation: For inductive loads, ensure the IC’s phase delay setting offsets the current transformer’s secondary lag (typically 0.5-2°).
- Isolate wireless modules (e.g., LoRaWAN or Zigbee) with a DC-DC converter to prevent noise coupling into the measurement path.
- Firmware: Implement a rolling average of 64 samples for stable readings, with under/overvoltage alarms triggered at ±10% of nominal voltage.
For tamper detection, add a Hall-effect sensor or auxiliary winding to the current transformer to monitor magnetic interference. Route all signal traces on a PCB with a ground plane, keeping high-current paths (≥1A) at least 3mm wide to prevent voltage drops. Use a 3.3V LDO for the IC’s digital supply, decoupled with 10µF tantalum and 0.1µF ceramic capacitors placed within 2mm of the pins. Test the assembled unit in a climate chamber (-20°C to +60°C) to validate thermal drift, which should not exceed ±0.1% per 10°C change.
Core Elements of an Electrical Energy Measurement Device
Ensure the current transformer (CT) matches the load’s expected range–typical residential models handle 5–100 amps, while industrial units scale to 2000 amps. Select a CT with
Voltage Sensing and Signal Processing
Shunt resistors for voltage division should use precision thin-film types (tolerance ±0.1%, TCR
Energy accumulators demand non-volatile storage with ≥1 million write cycles; FRAM (e.g., Cypress FM25V) lasts 100x longer than EEPROM. Real-time clocks (RTC) must synchronize to ±2 ppm for time-of-use billing–DS3231 modules surpass DS1307 by 5x in thermal stability. PCB traces for high-frequency signals require controlled impedance (50–120 ohms) and >1 oz copper thickness to reduce skin-effect losses at 50/60 Hz.
Calibration and Protection Mechanisms
Implement software-based gain/offset compensation to correct for component drift–measurement error should stay below 0.2% over 0–70°C. Surge protection requires bidirectional TVS diodes (e.g., Littelfuse SMAJ series) with 1 cm from live conductors to prevent capacitive coupling. Test immunity to radiated EMI (IEC 61000-4-3) up to 10 V/m at 80–1000 MHz before deployment.
Step-by-Step Wiring for Single-Phase Energy Counters
Disconnect the main circuit breaker before handling live wires to prevent electric shock. Use a screwdriver with an insulated handle (minimum 1000V rating) to loosen terminal screws on the device. Connect the live (hot) wire–typically red or brown–to terminal L or 1, ensuring no exposed copper exceeds 2mm beyond the clamp. Attach the neutral wire (blue or black) to terminal N or 3, tightening screws to 0.8Nm torque using a precision torque screwdriver. For models with dedicated earth terminals, ground the green/yellow wire to the ⏚ post, crimping with a lug if wire thickness exceeds 2.5mm².
Verification and Safety Checks
Restore power and observe the LCD or dial for movement within 10 seconds–static display indicates reversed polarity or open circuit. Use a multimeter set to AC voltage (250V range) to measure between terminals L and N; readings should match local mains voltage (±10%). If the device lacks consumption data, verify the load by switching on a 100W lamp–display should increment within 30 seconds. Secure the cover with tamper-evident screws (if provided) and apply a seal to deter unauthorized access.

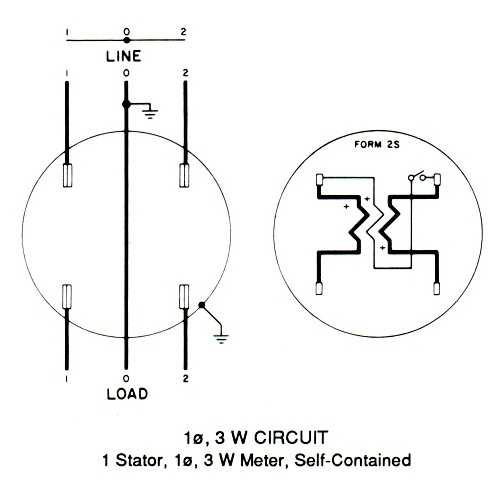

How to Interpret Current and Voltage Coils in Circuit Representations
Locate the current coil first–it appears as a thick, continuous loop or zigzag line in the path of power flow. Its placement directly in series with the load confirms its role: measuring amperage by generating a magnetic field proportional to the conducted charge. A thinner line branching off from this coil typically denotes the sensing wire leading to the register mechanism.
Voltage coils manifest as spirals or concentric circles, often positioned parallel to the supply rails. Their symbol anchors to a point before the load while the other end connects to the return path, forming a shunt across the potential difference. Look for a dotted or dashed line linking this coil to the current coil–this indicates mutual coupling for inductive interaction.
Identify coil orientation through polarity markers: a “+” or dot at the starting terminal defines the direction of flux alignment. Reversed polarity distorts readings by canceling opposing magnetic fields, leading to undercount. Check alignment against the flow arrows–current coils must mirror the load’s series path, while voltage coils must parallel the supply rails without crossing resistive elements.
| Symbol | Type | Placement Rule | Fault Impact |
|---|---|---|---|
| Thick zigzag | Current loop | In series with load | Open: total failure; short: zero count |
| Spiral/circle | Voltage loop | Parallel to rails | Open: high count; short: erratic reading |
Trace auxiliary windings–smaller, secondary loops drawn adjacent to main coils. These often serve compensation for power factor lag, adjusting the phase angle between flux and emf. Their absence signals a basic design lacking accuracy refinement; their presence hints at precision calibration.
Compare coil ratios: a voltage coil’s higher turns count (e.g., 10,000 vs. 100 for current) reflects its role in scaling down high-line potential for safe magnetic interaction. Current loops, conversely, prioritize minimal impedance, tolerating only a few turns of heavy-gauge wire to prevent voltage drop across the load path.
Troubleshooting Misalignment in Symbol Interpretation
Swap symbols if legacy schematics depict current coils as parallel spirals–older IEC styles sometimes reverse convention. Cross-check against ANSI/IEEE standards: thick lines remain current, circular spirals remain voltage. Use a multimeter to verify coil continuity: current paths demand near-zero resistance; voltage paths tolerate kilo-ohm ranges.
