For accurate installation, start by identifying the 12V constant power lead–typically marked in yellow on most harness adapters. This wire maintains memory functions and must connect directly to the battery’s positive terminal with an inline fuse (10A–15A recommended). Avoid splicing it into accessory circuits to prevent voltage drops or parasitic drain.
Ground connections demand attention: use 16–18 AWG bare or black wire, secured to a clean, unpainted metal chassis point. Poor grounding causes persistent noise, intermittent power loss, or even damage to the head unit’s circuitry. Verify continuity with a multimeter before finalizing the connection.
Speaker wires follow a standardized coding: white (front-left positive), white/black (front-left negative), gray (front-right positive), and so on. Swap these at your peril–incorrect polarity inverts the audio phase, weakening bass response and stereo imaging. For systems with amplifiers, confirm impedance compatibility (usually 4 ohms) to avoid overheating or distortion.
If the factory harness lacks standard ISO connectors, consult the manufacturer’s pinout documentation. Common aftermarket adapters (e.g., Metra or Scosche) simplify integration, but pin assignments vary by model year. Always cross-reference with a vehicle-specific schematic–generic diagrams often omit critical details like CAN bus interfaces or parking brake sensors required for certain displays.
Before powering on, disconnect the battery’s negative terminal to prevent short circuits. Reconnect after verifying all wiring: a single misplaced wire can fry the head unit or trigger airbag faults in integrated systems. Use a test light or probe to confirm voltage presence on power leads without assuming functionality.
Understanding Vehicle Audio System Circuit Connections
Begin by locating the harness connector behind the dashboard unit–it typically contains 12 to 16 pins. Identify the power supply cables first: the constant 12V (yellow), accessory (red), and ground (black). These ensure the device powers on when the ignition is active. Incorrect pairing here causes intermittent operation or total failure.
Speaker outputs follow standardized wire gauges: front left (gray), front right (white), rear left (green), and rear right (purple). Cross-check these against the aftermarket manual; mismatched connections distort sound staging. Signal wires (blue/white) and mute wires (orange) may require adapters if upgrading from factory units.
Common Wire Functions in Audio Installations
| Color Code | Purpose | Voltage | Critical Note |
|---|---|---|---|
| Yellow | Battery Constant | 12V DC | Must fuse within 7 inches |
| Red | Ignition Switched | 12V DC | Disconnects when key removed |
| Black | Chassis Ground | 0V | Clean metal surface required |
| Blue/White | Amplifier Remote | 12V Trigger | Max 300mA draw |
Verify each connection with a multimeter before securing terminals. Factory harnesses often include illumination wires (light green) for dash compatibility–omit these if retaining daytime functionality isn’t necessary. Some models integrate steering wheel controls via a separate violet wire; use a resistor bypass if removing this feature.
Aftermarket adapters simplify integration but may lack specific signals like parking brake detection (brown). Hardwiring these directly to their sources avoids malfunction codes. Tape off unused wires with electrical tape rather than cutting–they may be required for future upgrades.
For systems supporting high-pass crossovers, match the amplifier’s impedance (typically 2–8 ohms) to the speaker outputs. Unbalanced loads risk overheating or clipping distortion. Sempre-enabled units distribute low-frequency signals separately (gray/black striped); bypass this only with component speakers pre-installed.
Troubleshooting Signal Issues
If static persists, check for corroded terminals or shared ground paths. Bluetooth and aux inputs rely on shielded cables (gray/orange)–avoid running these alongside power lines. Finally, reconnect the negative battery terminal last to prevent memory resets in newer vehicle control modules.
Matching the Right Aftermarket Connector to Your Vehicle Variant
Begin by locating the OEM connector behind the head unit in your vehicle’s dashboard–it typically features a 12-pin or 16-pin rectangular plug with distinct latch clips. Check the model year against the harness compatibility chart: 2010–2015 variants use Metra 70-8112, while 2016–2023 require Metra 70-8114 or Scosche KS16B, which include built-in amplification adapters for factory-equipped premium audio. Variations exist for base and premium trims, so confirm via the service manual’s electrical schematics under section 8A-40; base models omit the data bus pins (14 and 15), whereas premium trims integrate them for steering wheel controls and vehicle status feedback.
Verify the presence of a CAN bus module before selecting an adapter–aftermarket harnesses like iDatalink Maestro RR or Axxess ASWC-1 integrate with it, but non-CAN-compatible units (such as Sony XAV-AX5500) risk losing climate control displays or requiring an additional interface. Use a multimeter to test pin 16 (constant 12V), pin 4 (switched ignition), and pin 5 (ground); deviations exceeding 0.5V indicate corrosion or a failing fuse (check Fuse Box B, position 22 for 20A). For hybrid models, isolate the high-voltage interlock circuit (pin 8) to avoid damaging the inverter module during installation.
Misaligned connectors cause intermittent power loss or chirping speakers–compare the harness’s pin layout to the vehicle’s service port diagram (available via VIN decoder at etis.ford.com or Hyundai/Kia’s official repair site). Brands like PAC RP4-KI21 and AntenNAX AX-KI1 include pigtails for external amplifiers; trim these if unnecessary to reduce signal interference. For vehicles with dual-zone climate controls, ensure the harness retains pins 9 and 10 (auxiliary audio inputs) if retaining factory USB or auxiliary ports; bypassing them may disable rear-seat entertainment systems.
Aftermarket harnesses often bundle incorrect crimp terminals–use TE Connectivity 1532624-1 for 2.3mm female spades or Molex 43645-1215 for micro-fit connectors to match OEM specifications. Apply dielectric grease to the pins post-installation to prevent oxidation, particularly in humid climates; omit it for fiber-optic pins (common in Harman Kardon-equipped variants). If retaining the factory satellite radio, confirm the harness includes an SID (Satellite ID) adapter or purchase one separately–Pioneer DMH-WT8600NEX includes this, but generic harnesses like Amazon Basics 12P16C may not.
For Euro-spec or JDM variants, account for regional wiring differences: Japanese Domestic Market models often use a single ground loop for both audio and chassis, while European models separate them (pins 5 and 14). Test load resistance before finalizing the connection–aftermarket head units typically expect 4-ohm speakers, but factory premium systems (e.g., Lexicon) may use 2-ohm dual-voice-coil subs, requiring impedance-matching harnesses like Crutchfield’s CU-KI-LEDI.
How to Find the Audio System Circuit Plan in Your Vehicle’s Owner Handbook
Turn directly to the section labeled “Electrical Components” or “Infotainment System Details.” Most manuals place the schematic near pages covering fuse boxes, speaker locations, or aftermarket installation instructions. Look for a chapter title that includes phrases like “Harness Connections,” “Connector Pinouts,” or “System Integration.” If the handbook has an index, scan entries starting with the letter “C” for “connector” or “circuit.”
Locate the fold-out page or appendix marked with grid references if the manual includes one–these often contain detailed illustrations of wiring harnesses. Manufacturer-specific guides sometimes embed these diagrams behind tabs or as separate pull-out sheets. Pay attention to any small icons near wiring drawings; they may denote voltage specifications, cable gauge, or polarity.
Identifying Relevant Schematic Pages
Search for diagrams displaying labeled connectors–typically displayed as rectangles with numbered or lettered terminals. Focus on the section showing power input routes, ground points, and signal outputs, as these correlate with common aftermarket upgrades. If present, footnotes or legends will explain abbreviations such as “ACC” (accessory power), “ILL” (illumination), or “ANT” (antenna).
Compare the model year-specific pages if your manual spans multiple revisions. Wiring configurations can change even between minor trim updates, so verify your vehicle’s exact production date against the date stamped on the schematic. Check for disclaimers indicating compatibility, especially if the vehicle shares a platform with newer models.
Print or bookmark the relevant pages for quick reference during installation. Use a highlighter to mark critical connections like constant power, ignition-switched lines, and speaker outputs to prevent wiring errors. Cross-reference the drawn wires with the physical harness behind the unit to confirm matching colors and terminal arrangements.
Interpreting Electrical Connections in Vehicle Audio Systems
Begin by locating the solid yellow lead–this carries constant battery voltage directly from the fuse box, ensuring sustained memory for preset stations and settings when the ignition is off. Verify its integrity with a multimeter set to DC voltage; readings should remain at 12V regardless of key position. If voltage drops below 10V, inspect the fuse and wiring harness for corrosion or loose connections, as intermittent power can corrupt stored data.
The red switched power cable activates only when the ignition is in the “ACC” or “ON” position, feeding the head unit’s primary circuits. Unlike the yellow lead, this line should register 0V with the key off and 12V when engaged. Cross-check against the vehicle’s service manual, as some models merge this with illumination circuits, potentially causing dimming or erratic behavior when combined with incorrect bulb types.
Ground connections–typically black or brown–require direct attachment to unpainted chassis metal, preferably near the unit’s mounting bracket. Resistance above 0.5 ohms indicates poor grounding; clean the contact surface with fine-grit sandpaper and secure with a star washer to prevent oxidation. Avoid relying on factory ground points shared with high-current components like motors or relays, as voltage fluctuations can introduce noise into the audio path.

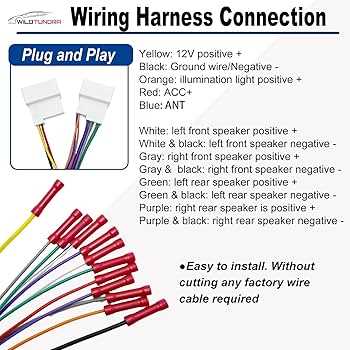

Speaker outputs follow a standardized pairing: white/white-striped for front left positive/negative, gray/gray-striped for front right, green/green-striped for rear left, and purple/purple-striped for rear right. Test each pair with a 1.5V battery to confirm polarity–connecting momentarily to the positive and negative wires should produce an audible pop in the corresponding speaker. Reverse polarity risks damaging the amplifier’s internal bridge circuits over time.
Illumination circuits (often orange or orange-striped) adjust display brightness in sync with dashboard lighting. This wire must connect to the vehicle’s dimmer switch, not directly to a 12V source, to maintain proportional brightness control. Confusing this with switched power cables leads to displays that either remain fully lit or fail to illuminate altogether, complicating nighttime operation.
Antenna triggers–usually blue or blue-striped–activate external amplifiers or power antennas when the system turns on. This lead should connect to the vehicle’s powered antenna relay or aftermarket amplifier remote turn-on input. Measure current draw; if exceeding 300mA, substitute a relay to prevent overheating the head unit’s internal fuse. Some models integrate this function with the memory wire, so verify separate outputs before splicing.
Auxiliary inputs or steering wheel control interfaces appear as extra leads in newer harnesses. Brown or brown-striped wires typically handle vehicle-specific data protocols, requiring adapters for aftermarket compatibility. Consult pinout documentation for the specific trim level, as mismatched connections can disable climate controls or trigger diagnostic trouble codes in the vehicle’s computer.
When replacing factory connections, use crimp connectors with rosin-core solder for joints exposed to vibration, but reserve twist-and-tape methods for temporary diagnostics only. Heat-shrink tubing over soldered joints prevents moisture ingress, while improper insulation can cause short circuits to adjacent wires. Label all wires before disconnecting to ensure correct reinstallation, as even minor misroutes can result in distorted audio or system malfunctions.
