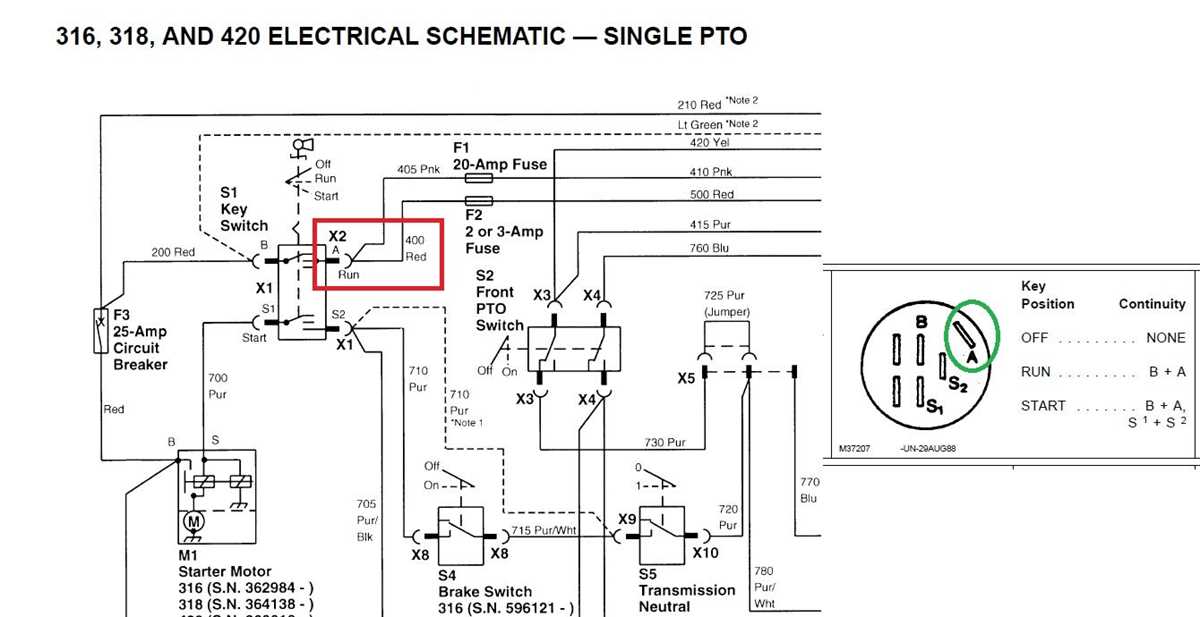

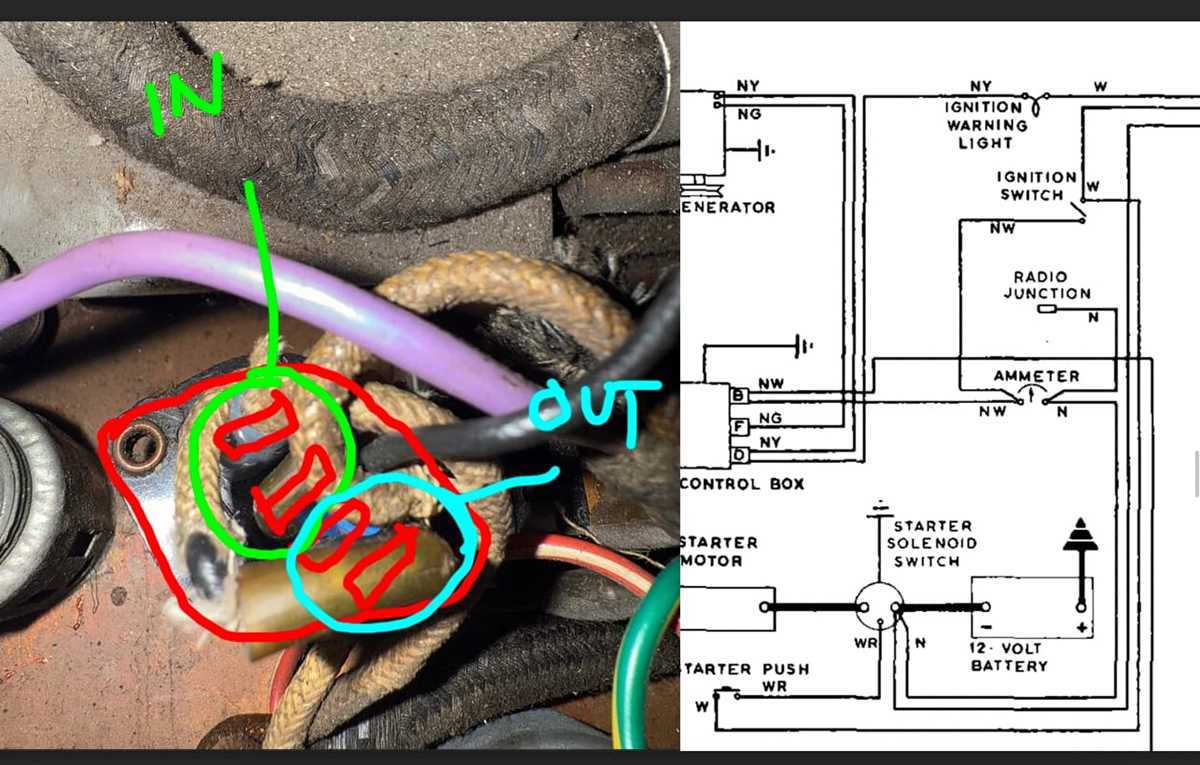

Start by identifying the contact terminals on your ignition assembly. Most models use a 5-pin configuration: battery (+), accessory (ACC), ignition (IGN), starter (ST), and ground. Verify these with a multimeter–ACC should register voltage only when turned to the accessory position, IGN during engine start, and ST briefly during cranking. Reverse polarity here will fry the module instantly.
Use 18-gauge stranded copper wire for all connections to handle transient currents. Solder joints instead of crimp terminals–vibration from engine startup can loosen cheap connectors within weeks. Apply heat shrink tubing immediately after soldering to prevent shorts from debris or moisture ingress. Never rely on factory seals; re-route wires away from exhaust manifolds and sharp edges to avoid chafing.
For aftermarket alarm integration, wire a relay between the ignition output and starter solenoid. Hot-wire attempts without a relay risk damaging the ignition cylinder’s internal wafers. Use a 30A fuse on the main power feed–anything less invites fire hazards from short circuits. Test continuity with the key in each position before finalizing the install; failure to validate will leave critical circuits dead or stuck on.
If working on a push-button start system, locate the PIN diode in the lock barrel circuit–this prevents backfeed into the accessory circuit. Remove factory wiring harnesses one at a time to avoid swapping wires; label each terminal with masking tape. Reassemble only after confirming each circuit with a no-load test using a 12V test light. Anything less guarantees misfires, drained batteries, or non-starting scenarios.
Understanding Lock Mechanism Electrical Layouts
Begin by identifying the power source: most ignition assemblies require a 12V DC supply, typically drawn from the vehicle’s battery. Ensure the positive lead connects directly to the terminal marked for constant power, often labeled “30” in European schematics or “B+” in Asian models. Ground the system at a clean, corrosion-free point near the chassis, avoiding painted or coated surfaces to prevent voltage drops.
Trace the activation path: the solenoid or relay coil usually demands a transient signal, frequently routed through the starter interrupt terminal (“50” in DIN standards). Implement a 20-amp fuse between the power source and this trigger point to protect against short circuits. Check OEM specifications–some systems integrate anti-theft modules that require a coded pulse for engagement.
Component Placement and Signal Flow
Position the interlock device within 30 cm of the ignition actuator to minimize signal degradation. Use 16-gauge stranded copper wire for main circuits and 18-gauge for auxiliary signals, prioritizing heat-resistant insulation where wires pass near exhaust manifolds. Twist paired conductors at a rate of 4–5 twists per 10 cm to reduce electromagnetic interference, especially critical for push-button start configurations.
Map the accessory circuit (“ACC” or “15” terminal): this branch powers non-essential electronics like radio or HVAC. Route it through a 10-amp fuse and a dedicated relay if the load exceeds 8A. For delayed-off features (e.g., power windows), incorporate a timer module set to 30–45 seconds to avoid parasitic battery drain while allowing graceful shutdown.
Validate connections under load: simulate ignition cycles by bench-testing with a multimeter. Expect voltage at “30” to remain steady at 12.6–13.8V. Verify the “50” terminal drops to 0.2V or lower during cranks–elevated readings indicate high resistance in the starter path. For rotary locks, confirm the microswitch contact closes fully (resistance
Troubleshooting Common Faults
Inspect for intermittent failures by flexing wiring harnesses while monitoring circuits: frequent disruptions suggest internal conductor breakage or brittle insulation. Address voltage spikes (common in aftermarket alarms) with a transient voltage suppression diode rated for 20V across the solenoid coil. Replace any factory splices with crimped butt connectors filled with dielectric grease–solder alone can fracture under vibration.
For keyless entry integrations, parallel the unlock signal through a 1kΩ resistor to prevent false triggers from static discharges. Use a non-contact infrared thermometer to check for abnormal heat in relays (>60°C suggests overload). Document all deviations from the original schematic with wire gauge, color codes, and connector pinouts for future diagnostics.
Core Parts Needed for Lock Mechanism Circuit Assembly
Start with a momentary pushbutton actuator rated for 12V–24V DC, ensuring its travel matches the intended mount depth (typically 3–5mm). Pair it with a SPDT microswitch (Omron V-15 series or comparable) featuring snap-action contacts–crucial for preventing flutter during engagement. Include a 22–24 AWG stranded copper conductor in silicone insulation to handle flex cycles; avoid PVC for ambient temps exceeding 60°C. For grounding, use a tinned copper bus bar (minimum 1.5mm thickness) instead of crimp terminals to reduce corrosion risk in humid environments.
- Diode: 1N4007 (reverse voltage protection for inductive loads).
- Resistor: 1KΩ ¼W carbon film (current limiting for LED indicators).
- Fasteners: M2.5×6mm stainless machine screws + locking washers (torque 0.4Nm).
- Insulation: Polyimide tape (3mm width) for layer separation near heat sources.
- Connector: JST PH 2.0mm pitch 2-pin housing (for modular replacement).
Ensure all conductive surfaces are nickel-plated if exposed to saline atmospheres–flame-sprayed zinc coatings degrade under 1,000 mating cycles.
Step-by-Step Assembly for Push-Button Lock Connections
Begin by identifying the actuator’s terminals–typically marked as COM (common), NO (normally open), and NC (normally closed). For momentary activation, connect the circuit’s power source to COM, and the load (e.g., relay, solenoid) to NO. Use 18-22 AWG stranded copper wire to ensure flexibility and prevent breakage under vibration. Strip 6-8mm of insulation from each end, then twist strands clockwise before crimping or soldering to avoid frayed contact points.
Verify the power rating of the control mechanism–most miniature push-button locks support 1-5A at 12-24VDC. Exceeding these limits risks overheating; check the datasheet for derating curves if operating near thresholds. For low-voltage applications (≤12V), apply heat-shrink tubing over splices to prevent short circuits from debris or moisture. If soldering, use a temperature-controlled iron (350°C max) to avoid damaging the contact plating.
Follow this terminal sequence for a standard setup:
- Attach the positive lead of the power supply to COM.
- Route the negative lead to the load’s common return path.
- Link NO to the load’s activation input (e.g., relay coil).
- Connect NC only if designing a failsafe or latching arrangement–leave floating otherwise.
Test continuity with a multimeter before applying full voltage. Press the actuator firmly; resistance should drop to near zero between COM and NO during engagement. If erratic, inspect for:
- Cold solder joints (reflow or re-crimp).
- Loose terminations (tighten to 0.5Nm torque).
- Contaminated contacts (clean with isopropyl alcohol).
For high-cycle applications (e.g., industrial controls), consider gold-plated contacts to minimize oxidation.
Secure all leads with cable ties every 50mm along the routing path to prevent strain on terminals. Route wires perpendicular to moving parts to avoid abrasion. If mounting on metal surfaces, use nylon washers to insulate the actuator’s body. Label each connection (e.g., “12V+ → COM”) for future troubleshooting. For modular panels, use quick-disconnect spade terminals instead of solder for easier maintenance.
Frequent Errors in Linking Mechanical Controls to Energy Supplies
Reversing polarity during installation immediately damages sensitive components. Always confirm positive and negative terminals before attaching leads–most manufactures mark them with red (positive) or distinctive grooves, but double-check with a multimeter if markings are unclear. A single misalignment can fry circuits in less than a second, especially in low-voltage setups under 12V.
Overlooking current ratings causes overheating and fires. Each control module specifies a maximum amperage–typically between 3A and 15A–yet users often splice wires designed for 5A into 10A sources. Use appropriately gauged wires (16 AWG for 10A, 14 AWG for 15A) and add inline fuses matching the device’s limit plus a 20% buffer to prevent meltdowns.
Soldering connections without heat shrink tubing exposes bare metal to moisture and short circuits. After soldering, slide tubing over the joint, heat it with a heat gun until it contracts snugly, and test continuity. Skipping this step invites corrosion that degrades performance within weeks, particularly in humid or outdoor environments.
Ignoring ground loops creates hum and erratic behavior. Every module should share a single, dedicated ground connection to the chassis rather than daisy-chaining grounds through multiple devices. Separate signal and power grounds–use a star configuration–and measure resistance between grounds (should be under 0.1 ohms) to avoid interference.
Twisting wires too tightly cracks insulation, leading to intermittent failures. Maintain a gentle twist rate of 5-7 turns per inch, secure with zip ties spaced 4-6 inches apart, and avoid pinching wires between metal edges. Vibration tests reveal weak spots; if leads flex more than 1/8 inch under gentle tugs, reinforce splices with additional layers of electrical tape rated for 600V.
Applying excessive torque to terminal screws strips threads and loosens connections. Fasten screws to manufacturer-specified torque values–usually 0.5-1.0 Nm for small terminals–and use a torque screwdriver for precision. After tightening, gently tug each wire to verify grip; if it slides, the terminal may require replacement or crimping.
Skipping load testing after installation risks undetected faults that surface during operation. Apply power in stages: first, verify voltage at the terminal with no load; then, connect the device and measure current draw (should match specifications ±5%). Monitor for 30 minutes–temperature rise above 30°C indicates poor contact or undersized wires.
