The system’s harness requires precise matching to avoid signal issues or equipment damage. Begin by identifying the power leads: the constant 12V (yellow) for memory retention, switched 12V (red) for ignition-triggered operation, and ground (black) for noise suppression. Incorrect pairing here causes intermittent operation or battery drain.
Speaker outputs follow a strict pairing convention: front left (white/gray), front right (gray/white), rear left (green/orange), and rear right (purple/green). Swapping positive and negative wires distorts audio quality and may overload the amplifier. Verify polarity with a multimeter–positive leads must read +12V relative to ground when the head unit is active.
For auxiliary inputs, connect the blue/white remote turn-on to the amplifier’s activation wire. Misrouting here prevents external devices from powering on. If Bluetooth pairing fails, ensure the teal accessory wire is grounded; this enables module detection. Check fuse ratings–10A for power circuits, 15A for high-current paths–to prevent overheating.
Use heat-shrink tubing on all splices to prevent corrosion. Tape-wrapped connections degrade over time due to vibration. Avoid solid-core copper wire for speaker leads; stranded wire flexes better and reduces breakage. After assembly, test each function before final installation–volume control, equalizer settings, and auxiliary input switching should respond instantly.
If static persists, trace the ground wire to a bare metal chassis point, sanding paint away if necessary. Loose grounds introduce noise into the audio path. For troubleshooting, refer to the pinout chart in the service manual–alternative schematics often omit critical details like illumination dimming (orange) or reverse signal (pink) wires.

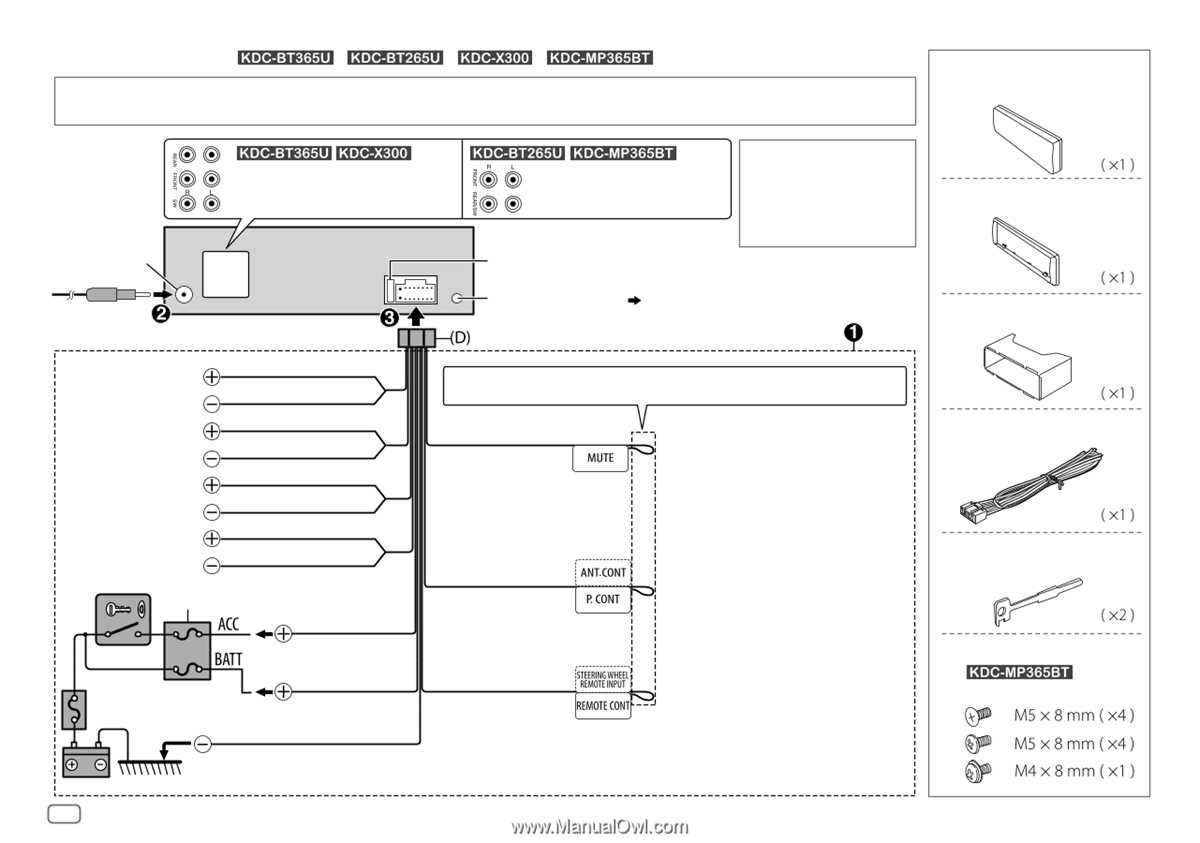

Full Installation Schematic for Bluetooth Media Receiver
Connect the red power cable to a fused 12V ignition source – a switched circuit ensures the unit powers on only when the vehicle is running. Use a 15A fuse within 6 inches of the battery terminal for protection. The yellow constant power lead secures settings and presets; route it directly to the battery’s positive terminal with an identical fuse. Avoid bridging yellow and red wires, as this drains the battery overnight.
Ground the black wire to bare metal chassis – sand off paint or corrosion at the contact point. A loose or painted connection causes audio interference and erratic Bluetooth pairing. Use a ring terminal crimped tightly with a 10mm bolt, then apply dielectric grease to prevent oxidation. Test continuity with a multimeter before finalizing the attachment to ensure resistance below 0.5 ohms.
Pair speaker wires using the standard 2-ohm rating for factory systems. Front left and right channels require 18-gauge wires; rear channels handle lower power but still need shielded cable if running parallel to power leads. Twist each pair several times per inch to reduce signal noise. Label every wire at both ends before insertion – miswiring swaps channels or risks shorting the amplifier section.
For reverse camera input, attach the purple/white lead to the parking sensor module’s video output. The pink reverse trigger wire must connect to the vehicle’s reverse light circuit; verify voltage at 12V when the transmission shifts into reverse. Use RCA connectors with gold plating for camera signal to prevent signal degradation over long cable runs.
Reset the unit after full connection: disconnect battery for 30 seconds to clear error codes. If static persists, detach antenna lead temporarily – excessive impedance can mimic wiring faults. Use ferrite beads on long cable runs crossing alternator or ignition coils. Factory harness adapters simplify installation but introduce potential voltage drop; verify all connections uphold 11.8V minimum under load.
Connecting the Power Leads on Your Car Stereo Head Unit
Locate the yellow and red cables from the harness. The yellow wire delivers constant 12V power directly from the battery, ensuring memory retention for settings and clock time when the ignition is off. The red lead supplies power only when the ignition switch is active, triggering the device to turn on. Both wires must be connected separately to avoid draining the battery when the vehicle is off.
Use a multimeter to verify the voltage on the car’s existing harness. Set the meter to DC 20V and probe the candidate wires while toggling the ignition. A reading of 12V at all times confirms the yellow lead’s target; a reading that appears only when the key is in the “on” or “accessory” position identifies the red lead. Label both wires immediately to prevent confusion during installation.
Attach the yellow cable directly to the battery’s positive terminal or a fused distribution block. Never connect it to an accessory wire, as this will quickly deplete the battery. Install an inline fuse (10A–15A) within 18 inches of the battery to protect the circuit. The red wire can join the vehicle’s accessory circuit, typically found at the fuse box or ignition switch harness.
| Wire Color | Function | Voltage Trigger | Recommended Connection Point |
|---|---|---|---|
| Yellow | Constant 12V | Always on | Battery positive (+) |
| Red | Switched 12V | Ignition “on” or “ACC” | Fuse box accessory circuit |
If the vehicle lacks a dedicated accessory circuit, splice the red wire into a fuse tap for circuits that activate with the key, such as the radio, heater, or dashboard lights. Use a fuse tap rated for the existing fuse (usually 10A–15A) to avoid overloading. Avoid splicing into circuits powering heavy loads like cooling fans or fuel pumps.
After connecting, test for functionality. Turn the ignition off–the stereo should retain settings but remain powered down. Turn the key to “ACC” or “on”–the unit should power up. If it fails to start, recheck the red wire’s source voltage; if settings reset, verify the yellow wire’s constant 12V supply and fuse integrity.
Ground the black wire to a bare metal chassis point using a self-tapping screw or existing bolt. Scrape off paint or corrosion at the grounding point to ensure a solid electrical connection. Poor grounding causes intermittent power loss, noise, or failure to turn on. Secure all connections with solder or crimp connectors and heat-shrink tubing to prevent oxidation.
For vehicles with start-stop systems, add a relay to the yellow wire if parasitic draw exceeds 30mA when the engine is off. This preserves battery life while maintaining memory. Use a 30A SPDT relay, triggering it from the ignition-switched circuit to break the constant 12V feed when the vehicle is off.
Double-check all connections against the vehicle’s manual to confirm no interference with other systems, such as anti-theft or keyless entry. Incorrect wiring may trigger fault codes or disable certain features. Secure loose wires with zip ties to prevent contact with moving parts or hot surfaces.
Step-by-Step Guide to Connecting Speaker Wires to the Aftermarket Stereo Receiver
Identify the rear harness connector pins labeled for front and rear speakers: four pairs (left/right, positive/negative) marked FR+, FR–, FL+, FL–, RR+, RR–, RL+, and RL–. Strip 8–10mm of insulation from each wire end–use a sharp cutter to avoid frayed strands or nicked copper. Twist exposed copper tightly clockwise to prevent shorting; tin the ends with solder if terminals use crimp connectors instead of direct inserts.
Match speaker wire gauge to the unit’s specifications: 16–18 AWG for lengths under 12 feet, 14 AWG for runs exceeding that. Cross-referencing polarity is critical–connect positive (striped or solid color) to the + pin and negative (solid white or black) to the – pin. Use a multimeter set to continuity mode to verify each connection; a tone confirms correct pairing, silence indicates an open circuit that requires re-stripping or re-termination.
Secure each connection with insulated butt connectors or solder, then wrap with electrical tape–avoid loose wires near moving parts. Test audio output sequentially: start with front left, then right, ensuring clear sound without distortion before proceeding to rear channels. If one channel produces no sound, check for reversed polarity or a disconnected wire; rattling or buzzing signals a short or ground interference requiring immediate correction.
Integrating Bluetooth Mic and Antenna with Your Head Unit
Locate the blue and white striped wire on the harness–this carries the amplified motor antenna turn-on signal. Connect it to a 12V relay coil or directly to the antenna motor input if using a powered unit. For passive antennas, splice this wire to the antenna’s power lead. Verify voltage at rest (0V) and when activated (12V) with a multimeter to prevent damage to the receiver’s tuner stage.
For the external microphone, solder the 3.5mm TRRS jack tip to the pink/black lead on the main connector. The ring connects to the shield (ground), while the sleeve carries the audio return. Route the cable away from ignition coils, alternators, or other EMI sources–shielded twisted pair reduces noise by 60% in high-current environments. Place the mic near the driver’s sun visor, angled downward to reject cabin echo.
Enable Bluetooth hands-free in the settings menu under Phone Setup > Mic Level–start at 50% gain and adjust incrementally while monitoring for clipping (distortion at peaks). The default echo cancellation works best with the mic positioned 30-50cm from the mouth; closer causes overload, farther increases ambient noise pickup. If pairing fails, reset the module by holding the phone button for 10 seconds until the display flashes BT INIT.
The purple phone mute wire must connect to the vehicle’s mute input if available–this prioritizes calls over audio sources. On aftermarket harnesses, leave it disconnected unless the amplifier supports signal sensing. Test operation by initiating a call: audio should seamlessly switch from speakers to the mic, with no delay or clicking artifacts. For dual-zone setups, split the mic input to both channels via a Y-adapter, ensuring impedance matches (600Ω nominal) to prevent loading effects.
