Locate the model number on a metal plate inside the door frame or rear panel before accessing any internal components. These plates often include critical safety ratings and voltage specifications–common values for similar units range between 220-240V for dual-phase circuits and 120V for control boards. Misidentifying voltage risks damaging the machine or voiding insurance coverage.

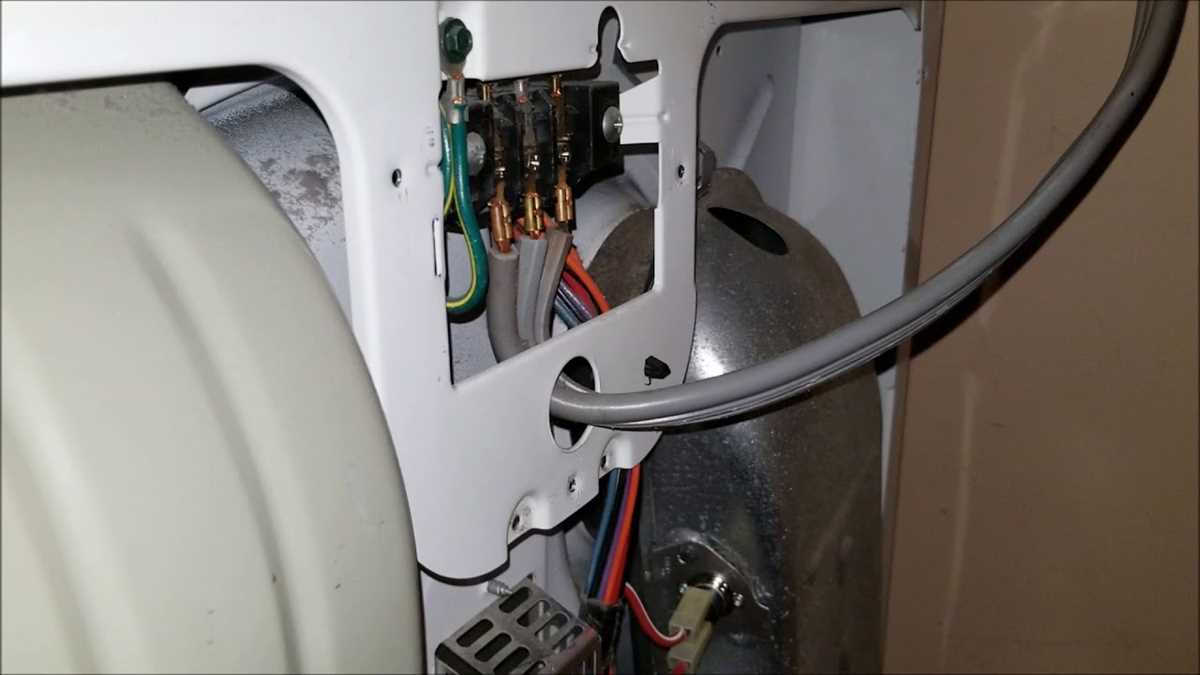

Trace power flow starting from the wall outlet. Label each wire with masking tape or digital photos if disconnecting multiple connectors. Typical configurations include a red/black wire for heating elements, white or neutral wires for timer motors, and green or bare copper for grounding. Test continuity with a multimeter set to ohms (Ω) before assuming any wire is live; resistance for intact heating coils usually measures between 10-50Ω.
Identify the thermal fuse near the blower housing–it’s a frequent failure point, often causing no heat while tumble motion persists. Replace it only with an exact OEM part; third-party fuses may lack proper thermal ratings for lint-heavy airflow. Similarly, motor capacitors require microfarad (µF) values printed on the casing–deviation risks overheating or inoperative start cycles.
Check door switches with leads connected. Voltage should drop to zero when the door closes–if not, replace the switch immediately. Internal pressure regulators on gas models or cycling thermostats on electric units often reside behind the drum assembly panel. Access requires removing screws from the rear bulkhead; handle component mounts carefully–aluminum brackets warp easily if overtightened.
Reassemble only after verifying each terminal connection with a non-contact voltage tester. Reattach the outer cover before restoring power–many models use interlock mechanisms that prevent operation with panels removed. Run a test cycle with a damp article of clothing; observe for consistent heat within 3-5 minutes and listen for unusual humming or clicking from the motor relay.

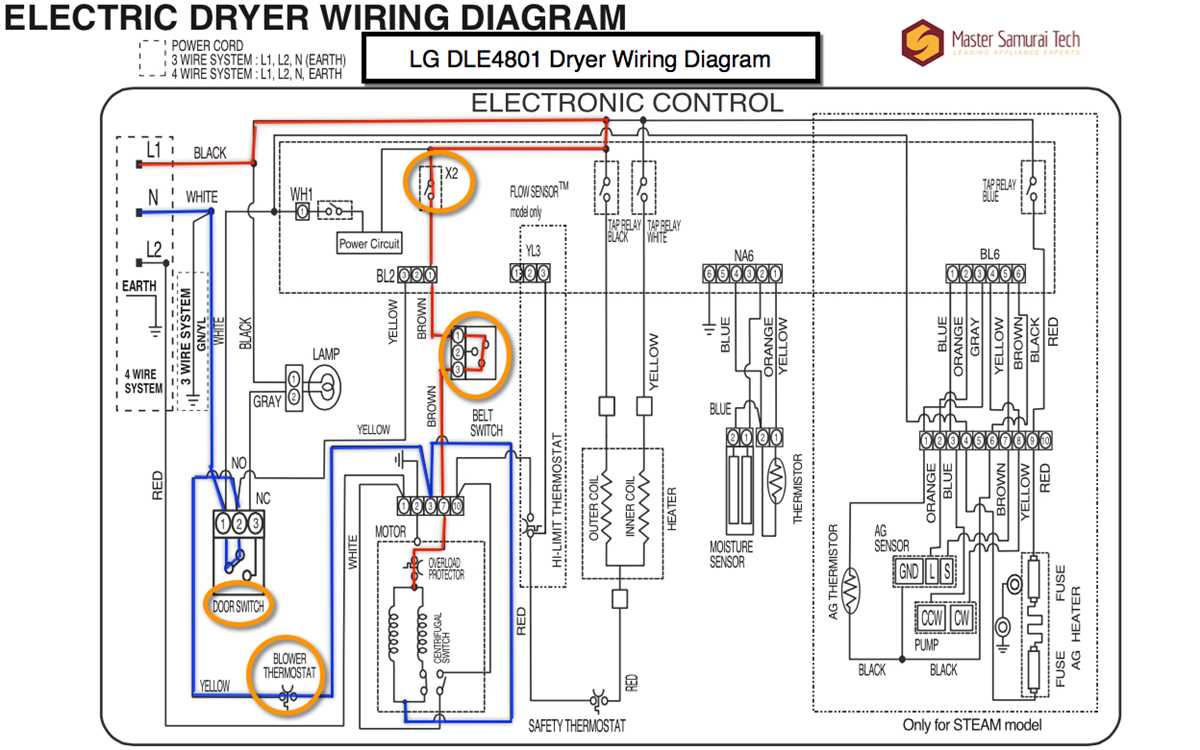

Understanding Electrical Schematics for Clothes Drying Machines
Locate the model number on the appliance’s interior door frame or rear panel before referencing schematics. Models 110.xxxxx, 417.xxxxx, and 796.xxxxx follow distinct circuit layouts–verify digits before proceeding. Terminal blocks typically use color-coded leads: red for L1, black for L2, white for neutral, and green or bare for grounding. Confusion between these can trip breakers or damage components.
Examine the thermal fuse near the blower housing–its absence in continuity tests (below 1 ohm) signals overheating issues. Replace it using part numbers 3392519 (240V) or 3387134 (120V) to restore operation. Avoid bypassing this safety device; doing so risks fire hazards from unchecked motor overheating.
Component Layout and Safety Checks

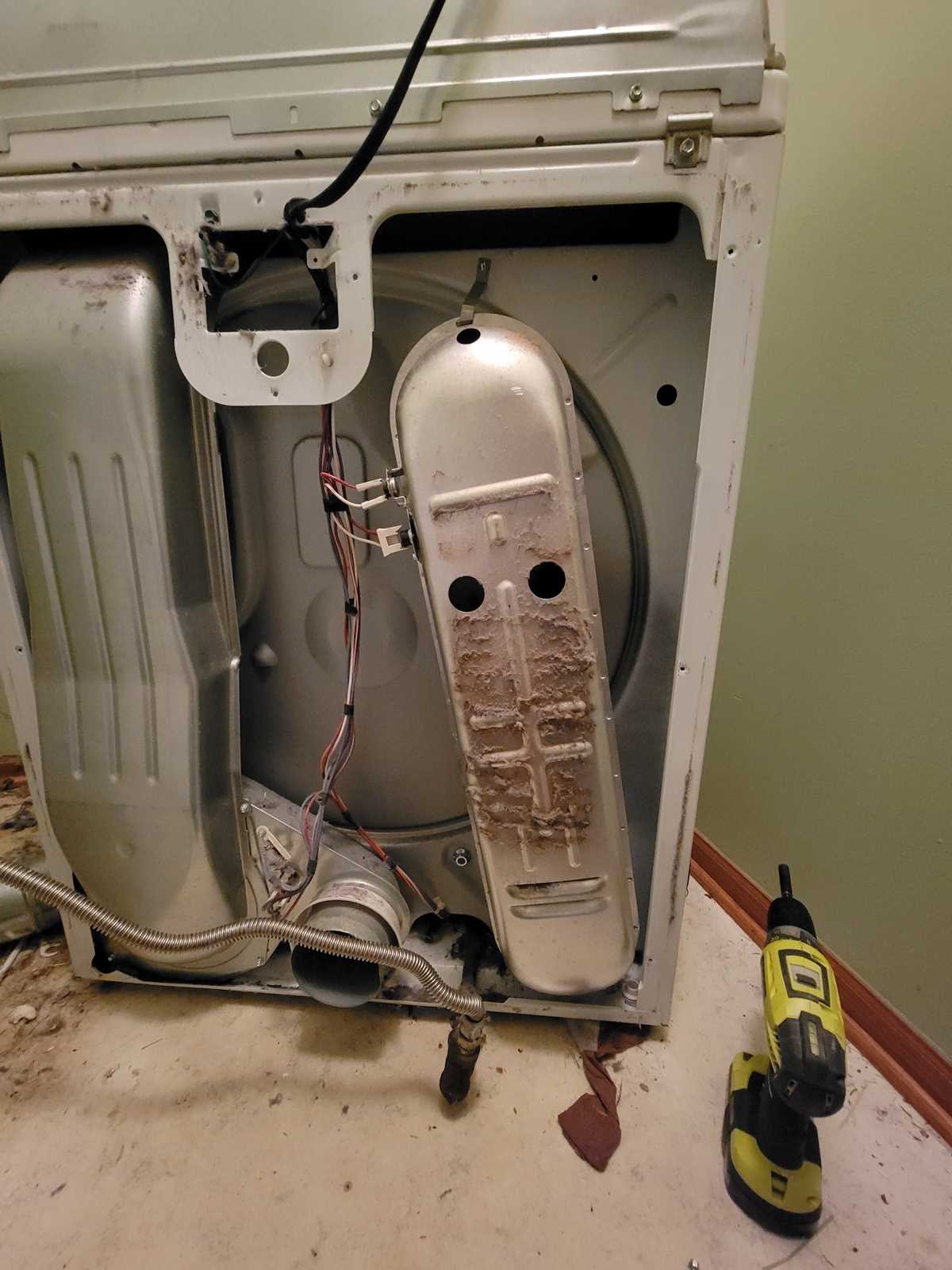

Trace the heating element’s path to the high-limit thermostat. Resistance should read 10-50 ohms across the coil; infinite resistance indicates burnout. Disconnect power, isolate leads with a multimeter, and confirm readings match manufacturer specs. For gas-powered units, check solenoid valves separately–faulty valves prevent ignition, mimicking electrical failures.
Inspect the door switch with a multimeter. Pressed in, its resistance should shift from infinite to near-zero. Inoperative switches stall drum rotation and halt cycles. Replace with OEM parts (e.g., WP3406107) to ensure compatibility. Aftermarket switches may not align with the original mounting bracket, risking misalignment or false opens.
Refer to the tech sheet stapled inside the control panel for component locations. Schematics typically detail voltage drop across capacitors (2-5µF for start capacitors) and relay coil resistance (50-150 ohms). Deviations suggest degraded parts. For models with electronic controls, reset the board by unplugging for 3 minutes–transient faults often clear without repairs.
Locating Authentic Electrical Schematics for Your Appliance Model
Visit the manufacturer’s support portal first. Enter the full appliance number–usually found on a metal plate inside the door frame or on the back panel. Sears PartsDirect hosts most legacy and current models; filter by year and series to narrow results. If the label is faded, measure the appliance’s dimensions and note unique features (e.g., dual heating elements, moisture sensors) to cross-reference.
Search the exact model prefix and suffix, omitting spaces or dashes. Example: “11086862700” retrieves precise schematics, while “110 86862700” often yields irrelevant matches. Include “tech sheet” in your query–these documents combine component layouts, voltage specs, and troubleshooting trees on a single page.
| Website | Direct URL Path | Download Limit |
|---|---|---|
| Sears PartsDirect | /partsdirect/en_US/model_display | Unlimited PDF |
| ManualsLib | /manuals?query= | Three per day without login |
| AppliancePartsPros | /videos-and-manuals | Full access with login |
Members-only forums such as ApplianceBlog and ElectriciansForums archive high-resolution scans uploaded by technicians; a free account grants access after email verification. Thread titles typically include “internal diagram” or “component overlay,” followed by the model in brackets.
Local appliance repair shops often print schematics and can email a PDF if you provide the model and serial number; call ahead–some charge a nominal scanning fee (~$5). Public libraries with access to ProQuest or ChiltonLibrary databases house manufacturer-submitted technical bulletins dating back to the 1980s.
Extract the original packing slip or receipt stapled to the user guide; retailers like Lowe’s and Home Depot attach a QR code linking directly to the technical supplement via their inventory system. Take a clear photo of the data plate next to a ruler for scale–this expedites manual lookup on third-party sites.
Check the rear exhaust duct for a white adhesive label; early production runs sometimes embed the schematic here in microfont print. A USB microscope or smartphone macro lens reveals otherwise illegible details.
If the appliance shipped after 2015, search the parent company’s recall notices–schematics are sometimes embedded within the recall PDF to assist owners in verifying affected circuits.
Locating Unique Electrical Parts in Appliance Models
Examine the metal plate affixed to the interior of the unit’s back panel or side wall. Most Series 900 and newer variants encode the model identifier directly after the manufacturer prefix, typically beginning with “110.” Cross-reference the last four digits with the official parts catalog to isolate the exact thermal fuse, heating coil, and start switch used in that configuration. Avoid substituting parts from visually similar units–voltage and amperage ratings can differ by 20% even within the same product line.
Trace the power cord entry point to identify high-voltage components. On models manufactured after 2015, the terminal block retains two ceramic resistors labeled R1 and R2; these regulate the motor’s start winding current. Earlier iterations embed these resistors beneath the blower housing–removal of the drum belt and idler pulley grants access. Verify resistor values with a multimeter: 2.2 kΩ for R1 and 3.3 kΩ for R2 (±5%) before proceeding.
Differentiate door switch assemblies by actuator shape. Units released between 2008 and 2012 employ a triangular plunger, while 2013 onward adopt a rectangular design. The electrical path varies–triangle-activated switches interrupt the neutral line, whereas rectangular switches cut the live line. Misidentification risks shock or fire; test continuity while manually depressing the actuator to confirm correct alignment.
Inspect the moisture sensor bars mounted on the lint filter housing. Series 800 models integrate single brass strips; Series 900 models pair two parallel strips separated by a 3 mm gap. The gap determines sensitivity–adjustable via a trimmer potentiometer beneath the control board. Clean strips with isopropyl alcohol; oxidation alters resistance readings, leading to premature cycle termination.
Refer to internal labels on the control module for capacitor specifications. Post-2018 units embed a dual-run capacitor–one section rated 15 μF for the motor, the other 5 μF for the blower. Pre-2018 units use separate components, often shielded beneath the top panel. Capacitor failure manifests as delayed drum start or erratic rotation; replace with exact microfarad ratings and withstand voltages marked on the casing.
Isolating Variable Speed Motor Configurations
Decode the motor’s wiring harness tag. Four-wire motors denote reversible rotation (common in vented units), while three-wire motors operate unidirectionally (typical in condenser variants). The red lead on reversible motors toggles direction via a relay on the main board; incorrect wiring reverses airflow, reducing drying efficiency by 40%. Confirm rotation before securing the rear bulkhead to prevent belt misalignment.
Check the thermal cutoff beneath the blower wheel. Models equipped with steam cycles incorporate a secondary cutoff, distinguishable by its gold-colored casing and 160°C rating. Standard units feature a silver-cased 145°C cutoff. Desoldering the cutoff requires a 60-watt iron–excessive heat damages adjacent thermistor leads, complicating diagnosis. Reassemble with heat-shrink tubing to prevent short circuits.
How to Interpret Electrical Schematics for Laundry Appliances
Locate the color-coded legend first. Most manufacturers segment conductors by solid and striped hues–black, red, blue, yellow, white, and green typically denote line, neutral, motor coils, thermal cutoffs, and grounding respectively. Verify each label against component terminals; a mismatch of even one stripe can reroute 240V to low-voltage circuits, tripping safety switches or damaging timers.
Trace Current Paths Systematically
- Start at the power inlet–note the two hot leads (L1/L2) and neutral entering the machine.
- Follow each branch: one hot lead feeds the heating element via a thermostat, the second splits to the motor, door switch, and control board.
- Identify series vs. parallel links–thermal fuses appear in line with heaters, while motor windings share voltage in parallel loops.
- Check for arrows or dashed lines; these indicate optional paths activated by timers or relays.
Measure voltage drop if colors fade–use a multimeter on continuity mode between component pins. A missing 110V at the motor start winding confirms an open circuit.
Cross-reference symbols with the manual’s parts list. Circles represent switches, zigzags signify resistors (like heating coils), and rectangles with diagonal slashes denote capacitors. Early models may lack modern icons; consult supplementary schematics showing mechanical linkages–in-console knobs often map directly to rotary switches indicated by numbered contacts.
