For sub-ohm resistance values, use a four-lead sensing arrangement to eliminate lead and contact resistances obscuring the true measurement. Connect the current injection terminals to a high-precision DC source and the voltage detection leads to a nanovoltmeter. Keep the distance between each pair minimal–ideally less than 1 mm–to reduce stray thermal EMFs and inductive pickup.
Match the nominal resistance of the ratio arms within 0.1 % to achieve balance sensitivity better than 1 ppm. Use manganin or Evanohm wire wound resistors with a temperature coefficient below 5 ppm/°C. Place copper thermal shields around each resistor to equalize ambient temperature gradients, preventing drift during the null sequence.
Limit test currents to 10 mA or less for resistors below 1 Ω to prevent self-heating. When nulling, sweep the balancing resistor in exponentially decreasing steps (initial steps of 1 %, final steps of 0.01 %) to converge in fewer than 20 adjustments. For samples prone to thermoelectric voltages, reverse the current direction and average the null points to cancel offsets.
Shield every interconnection with double-braided copper cable connected to a single ground point adjacent to the nanovoltmeter’s chassis. Maintain a constant environmental temperature within ±0.5 °C during the entire measurement cycle–fluctuations beyond this range introduce non-linear errors exceeding 2 ppm.
Precision Resistance Measurement Configuration

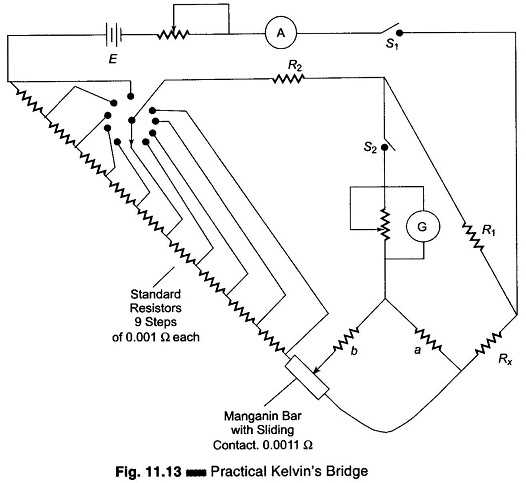

Select a ratio arm arrangement with values between 10:1 and 100:1 to minimize lead influences while maintaining sensitivity. Ensure the standard resistor has a thermal coefficient below 5 ppm/°C to prevent drift during prolonged testing. Use a four-terminal connection scheme–current excitation at the outer leads and voltage sensing at the inner pair–to cancel parasitic resistance contributions.
Position the auxiliary balancing network in parallel with the ratio arms, utilizing manganin or constantan wire for stability. The cross-connecting link between ratio and auxiliary branches should be fabricated from copper with a cross-section exceeding 1.5 mm², reducing thermal EMF buildup during transient measurements.
Component Tolerance Requirements
Avoid resistors with initial accuracy worse than ±0.01%–even transient shifts of 0.05% can distort low-resistance readings by ±2 µΩ. For the galvanometer, choose a unit with a deflection sensitivity of at least 0.5 mm/µV to detect imbalance under 1 ppm. Shield the entire network with a Faraday cage if ambient fields exceed 10 mG.
Verify the excitation source maintains constant current within ±0.02% during the entire sweep; a regulated 100 mA supply typically suffices for metals testing, while semiconductors may need adjustments between 1 mA and 10 A. Connect a reversing switch upstream to cancel thermal offset before final balancing.
During final calibration, adjust the auxiliary branch in steps finer than 0.1% of the ratio arm value. Record readings at both polarities and average; discrepancies beyond 0.03% indicate residual thermoelectric voltages requiring additional thermal isolation. Store reference resistors in a temperature-controlled oil bath if daily drift exceeds 3 µΩ.
Troubleshooting Field Issues
If the galvanometer refuses to zero despite multiple adjustments, test lead continuity with a micro-ohmmeter; stray resistances above 0.1 mΩ invalidate readings. Replace corroded lugs immediately–even slight oxidation adds unpredictable leakage. For high-impedance samples, deploy a Wagner ground to bypass capacitive coupling effects exceeding 0.1 nF.
Key Components Required for a Precision Resistance Measurement Setup
Start with a stable, low-noise current source delivering
Critical elements include:
- Reference resistor: Fixed-value,
- Ratio arms: Adjustable resistance decades with tap granularity down to 0.1 Ω, preferably wire-wound to minimize inductance. Verify linearity within ±0.02% across the full scale.
- Null detector: Nanovolt-level resolution, 120 dB CMRR isolates stray signals.
- Shielding: Enclosed metal housing with grounded Faraday cage to block RFI/EMI. Separate guard circuits for high-impedance nodes prevent leakage errors.
Thermal Management Demands
Mount all resistive elements on a thermally conductive but electrically insulating substrate (e.g., alumina or aluminum nitride) to uniformize temperature gradients. Use a PID-controlled Peltier module or oil bath for stability within ±0.01°C during lengthy balancing cycles. Avoid conductive adhesives–they introduce unpredictable thermoelectric offsets at junctions.
Interconnects must be low-thermal-EMF materials: copper cladding on constantan, twisted-pair wiring for noise immunity, and gold-plated contacts to prevent oxidation. For sub-milliohm targets, use solid copper bars instead of wires to reduce contact resistance below 1 μΩ. Calibrate the entire assembly at multiple points across the intended range with traceable standards to characterize parasitic effects.
Step-by-Step Wiring Guide for Accurate Low-Ohm Testing
Connect the unknown resistor (Rx) in series with a precision current shunt (Rs = 0.01 Ω ±0.05%) rated for at least 2 A. Route separate potential leads directly from the terminals of Rx to the input jacks of a nanovoltmeter (e.g., Keithley 2182A) with <1 nV resolution. Keep these leads twisted, shielded, and no longer than 15 cm to minimize thermoelectric offsets. Solder joints must use 63/37 Sn-Pb alloy; avoid crimp connections for sub-milliohm targets.
| Component | Spec | Cable Type |
|---|---|---|
| Current source | 0–5 A, <100 ppm ripple | 16 AWG silicone-jacketed stranded |
| Potential leads | <0.5 mΩ total loop resistance | 24 AWG twisted pair, Mu-metal shield |
| Shunt reference | 0.01 Ω ±0.05%, 5 W | N/A (mounted on copper bus) |
Before energizing, null the nanovoltmeter using its internal zero function while both leads touch a single solder blob on a copper plate cooled to 20 °C ±0.1 °C. Apply 100 mA test current and allow a 30 s settling period; record voltage at 5 s intervals until ΔV < 50 nV between reads. If drift exceeds 200 nV/min, reroute leads away from AC mains and switch-mode power sources by at least 0.8 m.
For resistors below 1 mΩ, reverse current polarity after each measurement set to cancel thermocouple effects; discard the first two transient readings (typically 8–15 ms settling). Repeat the cycle five times and average results, excluding outliers beyond ±2σ. Calculate Rx as Vx/Vs × Rs; for 0.01 Ω shunt expect ±0.2% combined uncertainty if ambient temperature remains within 19–21 °C.
Common Mistakes in Precision Resistance Measurements and Solutions
Reverse the polarity of the unknown resistor and repeat the test to identify thermoelectric errors. Even a 1 μV offset can skew results by 0.1% when measuring resistors below 10 mΩ. Use copper wiring exclusively for all connections to prevent Seebeck effect voltages that arise from dissimilar metals. For accurate four-terminal sensing, ensure current and potential leads never share a physical contact point; a 0.5 mm overlap introduces 50 μΩ of error.
- Trim all leads to equal length (±1 mm) to eliminate inductance imbalances.
- Verify excitation current stability: ±0.02% drift alters readings by 0.05%.
- Perform zero-resistance calibration with a shorted copper strap to cancel parasitic paths.
- Isolate the setup from AC mains interference; 50/60 Hz noise can distort readings by 0.2%.
- Replace corroded terminals immediately–oxidation adds 200 μΩ of contact resistance.

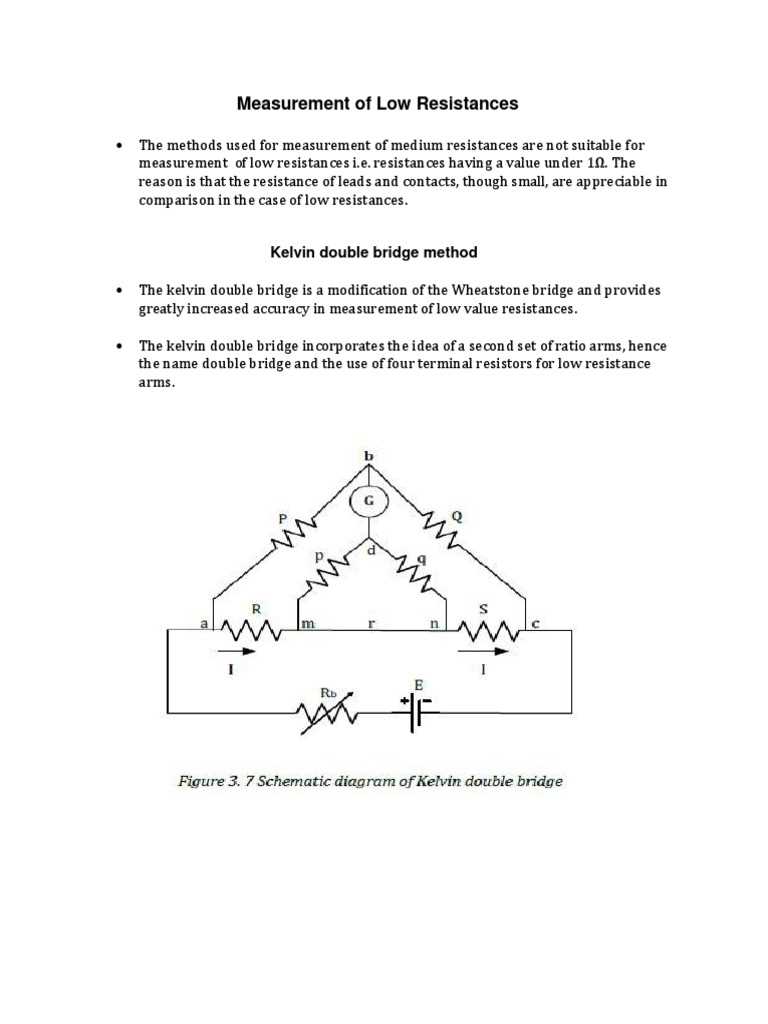

Precise Resistance Measurement via the Four-Terminal Compensation Method
To determine an unknown resistor value using the four-terminal compensation network, first ensure all ratio arms (R1, R2, R3, R4) are calibrated against traceable standards. Match R1/R2 and R3/R4 within 0.01% to eliminate ratio errors; typical configurations use 100:100 Ω or 1000:100 Ω pairs for low- and high-resistance targets respectively. For sub-ohm measurements, select R3 and R4 as 10 Ω precision resistors to minimize thermal drift–temperature coefficients should not exceed ±5 ppm/°C.
Apply a stabilized current source (≤1 mA for 1 Ω) to avoid self-heating, then null the galvanometer by adjusting Rs–the variable standard resistor. The null condition yields the unknown resistance Rx via Rx = (R1/R2) × Rs when R1/R2 = R3/R4. For non-ideal ratio mismatches, correct using Rx = (R1/R2) × Rs × [1 + (ΔR/R)], where ΔR/R is the fractional deviation between the two ratios, measurable to 1 ppm with a seven-digit DMM.
Use shielded leads for Rx connections to suppress leakage currents; PTFE-insulated twisted pairs reduce capacitive coupling to 120 dB for resistors above 1 mΩ.
Validate results by substituting Rx with a known standard (e.g., Vishay VFR 0.1% foil resistor) and verify the calculated value matches within the combined uncertainty of the network (Rx versus time using a data acquisition system sampling at ≥10 Hz to capture drift–thermal time constants in copper specimens often range 5–20 sec/cm². Document environmental conditions (temperature, humidity) to apply correction factors: ΔR/R ≈ +0.39%/°C for copper, -0.05%/%RH for absorbed moisture on PCB traces.
For automated setups, interface the ratio arms with a programmable decade resistor (e.g., ESI SR1040) and control via GPIB/USB. Script the null sequence in Python or LabVIEW, polling the galvanometer until the error voltage drops below 10 nV. Typical residual uncertainties include:
