Start troubleshooting by locating the main fuse near the battery–it’s often a 20-amp blade type, protected by a clear plastic cover. If the bike fails to start, check this first before probing the ignition circuit. The stator output wires (three yellow leads) must read between 0.2 and 0.5 ohms across each pair when measured with a multimeter; resistance outside this range indicates coil failure, requiring replacement of the alternator assembly.
Disconnect the regulator/rectifier before diagnosing charging issues. Under load, the voltage at the battery terminals should climb to 14.2–14.8 VDC at 4,000 RPM. Readings below 13.5 V suggest a faulty rectifier or grounded stator wires (inspect the yellow bundle for frayed insulation). The black/white ground wire from the regulator must bond firmly to the engine case; corrosion here causes intermittent starting problems.
Trace the ignition wiring with a probe light: the brown/white wire from the CDI unit pulses during cranking, while the orange/red lead carries 12 VDC from the ignition switch. If spark is absent, swap the ignition coil–the primary terminals should show 2.8–3.5 ohms, secondary (spark plug cap) 8–15 kohms. Replace the coil if values exceed 20% of these specifications.
For turn signal malfunctions, examine the flasher relay (mounted near the headlight bucket) and the bullet connectors on the light green and light blue wires. Corrosion here dims or stops the blinker operation. The hazard switch interrupts both circuits simultaneously–test continuity with the switch toggled to both positions. Melted wires behind the dashboard often cause shorts; reroute any damaged wiring using 1.0 mm² cross-linked polyethylene copper strands.
Understanding Your Sport Bike’s Electrical Blueprint: Hands-On Tips
Trace the ignition system’s orange cable from the starter button to the solenoid – it’s often overlooked but critical for smooth engine turnover. Verify the 5A fuse protecting this circuit hasn’t oxidized; replace with an identical amp rating if resistance exceeds 0.5 ohms when tested with a multimeter. Ground connections near the battery should be scraped clean down to bare metal, then secured with star washers to prevent voltage drop.
For the lighting subsystem, isolate the headlight’s low-beam yellow/red stripe lead before splicing; incorrect taps create parasitic drain that drains the battery overnight. The blinker relay’s two spade terminals must audibly click when toggled – silence indicates a failed relay needing same-day replacement to meet road legality. Keep wiring loom ties tight but leave 3mm slack near sharp edges; vibrations chafe insulation within 100 miles if unchecked.
When servicing the charging circuit, attach voltmeter probes to battery posts with engine at 3000 RPM – readings below 13.8V signal a faulty stator requiring coil resistance checks (spec: 0.2–1.0 ohms across pairs). The regulator’s heatsink should never feel warmer than 125°F during operation; excessive heat means impending failure and justifies proactive swap with a solid-state unit for consistent voltage output.
Finding Key Electrical Connector Points on Your 250cc Sport Bike
Begin by removing the left side fairing panel–secured by five screws and two clips near the rear. Beneath it, you’ll expose the primary harness bundle running from the battery to the tail section. Trace the thickest cluster of wires; the first major connector sits adjacent to the ignition coil, identifiable by its rectangular, 12-pin plug with two locking tabs.
The second critical junction lies behind the dashboard. Disconnect the speedometer housing by loosening its single screw–lift carefully to avoid damaging the odometer reset cable. Here, three connectors intersect: a 6-pin white plug (instrument cluster), a 4-pin black plug (neutral switch), and a smaller 2-pin plug for the turn signal relay. Mark each with tape before unplugging to prevent misalignment during reassembly.
- Front brake lever area: Locate the 3-pin yellow plug near the master cylinder. This interfaces with the brake light switch–verify continuity before handling.
- Rear subframe: The 7-pin connector for the taillight assembly sits above the license plate bracket. Check for corrosion; clean with contact cleaner if terminals appear oxidized.
- Engine bay: Identify the 8-pin ECU connector beneath the fuel tank. Access requires tilting the tank upward–ensure the fuel line is disconnected first.
Inspect all connectors for:
- Loose locking tabs (press firmly until they click).
- Dirt buildup (use compressed air, not sharp tools).
- Melted plastic (indicates overheating–replace the harness if damaged).
Avoid forcing connections; misaligned pins can cause shorts or sensor failures.
For troubleshooting, reference the bike’s service manual (page 12-4) for pin assignments. Test each connector with a multimeter–set to 20V DC–probing the pin side while the ignition is on. Expected readings:
- Red wire: 12V (main power).
- Black wire: Ground (0V).
- Yellow/red stripe: 5V (sensor reference).
Deviations signal wiring faults or component failure.
Reassembly requires routing wires along factory paths. Secure bundles with zip ties every 150mm, avoiding sharp edges or moving parts. Apply dielectric grease to all connectors to prevent moisture ingress, especially the 6-pin instrument cluster plug–prone to intermittent errors in humid conditions.
Step-by-Step Wire Color Coding for the Mid-Size Sportbike Charging Circuit
Begin by locating the three-phase stator connections–these are identified by solid colors: yellow, green, and white. Each wire feeds alternating current to the rectifier; cross-check them against the service manual to confirm correct pairing with the regulator’s input terminals.
Trace the yellow lead first; it routes directly from the stator’s first coil output to the rectifier’s leftmost connector. Ensure no fraying or corrosion exists before securing it with a crimp terminal rated for 10 AWG. A false contact here cuts charging output by 30% or more.
Rectifier Connections: AC to DC Conversion
The green and white wires mirror the yellow’s path but attach to the middle and right AC inputs, respectively. Label each connection with heat-shrink tubing marked “AC1,” “AC2,” and “AC3” to prevent misrouting during reassembly. A reversed pair triggers immediate voltage spikes degrading battery life.
From the regulator’s DC side, a red wire carries 14.2–14.8V to the battery’s positive terminal. Measure voltage at the connector before attaching; readings below 13.5V indicate a faulty diode inside the rectifier. Replace the unit if readings fluctuate under 5000 RPM.
The black wire with a colored stripe serves as the main ground, routing from the rectifier to the bike’s frame near the battery tray. Clean the contact point with 400-grit sandpaper and apply dielectric grease to prevent oxidation. A weak ground causes erratic charging up to 1A less than spec.
Voltage Sense and Signal Wires
A thin blue wire runs from the rectifier to the ignition switch, monitoring system voltage. Disconnect this wire during bench testing to isolate charging faults; reconnect only after verifying stator output. Intermittent connections here mimic alternator failure symptoms.
The brown wire connects to the neutral switch on models with electric start; bypass it temporarily if testing reveals no-start issues. Use a multimeter set to continuity mode to verify the switch’s function before soldering any repairs. Always reconnect the original harness; aftermarket splices introduce resistance.
Finally, wrap all exposed terminals with adhesive-lined heat shrink or silicone tape rated for -40°C to 120°C. Secure loose wires away from rotating parts using zip ties and a 5mm rubber grommet where they pass through the frame. Inspect every 1000 miles for chafing or vibration-induced breaks.

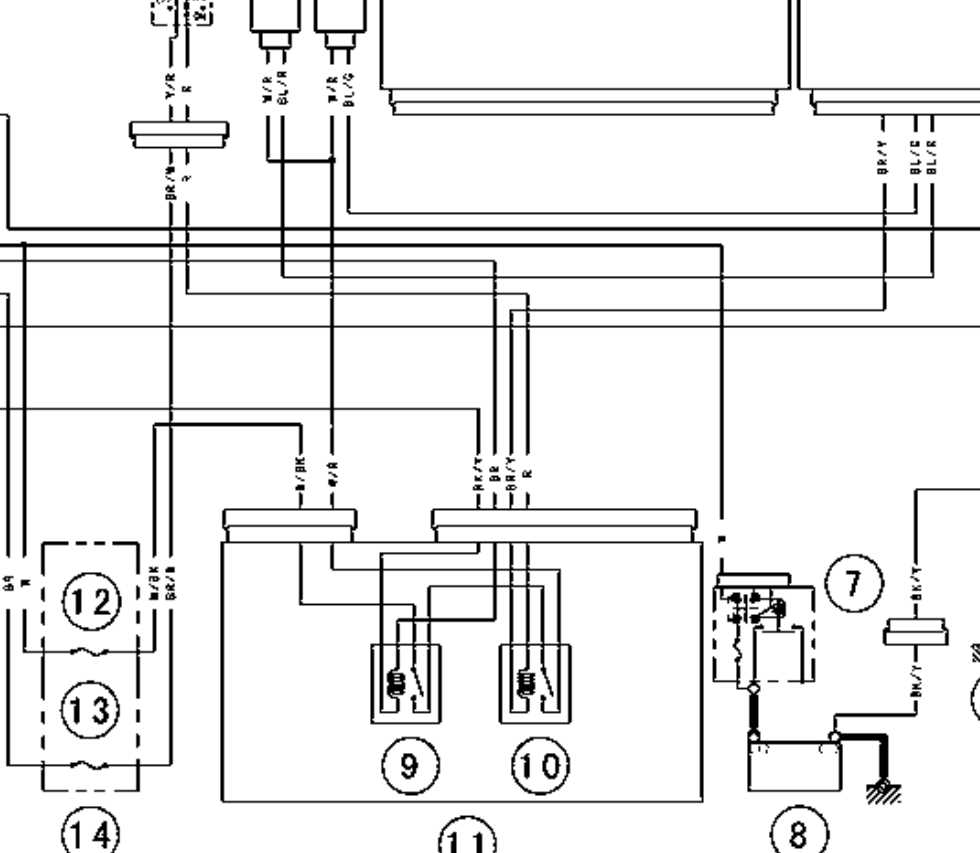

Locating and Verifying Spark System Circuits on Electrical Schematics
Trace the ignition coil lines on the schematic starting from the primary windings. Each coil should connect to the ECM (engine control module) via a distinct wire color–red with a yellow stripe (R/Y) and black with a yellow stripe (B/Y) for most 2-cylinder engines. Use a multimeter to check for 12V at the ECM connector pin when the key is on; absence indicates a break or faulty fuse. Verify the ground path (black wire) between the coil and chassis by measuring resistance–values above 0.5 ohms suggest corrosion or loose terminals.
Examine the trigger circuit next. The ECM sends a low-voltage pulse through pink (P) or green with white stripe (G/W) wires to the ignition coils, signaling spark timing. Probe these wires while cranking the engine–expect a fluctuating 1-4V reading; steady voltage confirms a dead circuit. If readings are weak or absent, inspect the ECM outputs, pulse generator (pickup coil), or wiring harness for shorts. The pickup coil’s resistance should range between 200-500 ohms; deviations signal internal failure.
Testing Sensor Inputs and ECM Responses
Check the crank position sensor (CPS) wiring, typically orange (O) or gray (Gy) leads. Set the multimeter to AC voltage and spin the engine–healthy outputs range from 1-3V AC. No signal requires replacing the sensor or inspecting its magnetic reluctor ring for damage. Confirm the ECM receives this input by back-probing the connector while cranking; erratic readings hint at connector oxidation or ECM faults.
Inspect the kill switch circuit–it interrupts ignition by grounding the pink (P) wire through the switch. Test continuity from the switch to ground with the key off; the circuit should open when the switch is in the “run” position. If the engine stalls randomly, bypass the switch temporarily to isolate the issue. For intermittent stalling, scrutinize the wire’s insulation near the handlebar controls, where chafing often occurs.
Verify the charging system’s role in ignition stability. The stator’s white wires (W) supply power to the coils; voltage should hover around 13-14V at idle. Low voltage strains the ignition system, causing weak sparks. Probe the regulator/rectifier output while revving the engine–consistent readings confirm proper charging; fluctuations mandate stator or regulator replacement. Lastly, check for parasitic draws by disconnecting the battery and measuring current across the terminals–any reading above 0.2A warrants a fuse pull test to isolate the drain.
