Start by locating the 7-pin round socket on your towing vehicle–this is the standard interface for most recreational haulers. If your setup uses the European 13-pin variant, verify pin assignments before splicing wires; pin 3 (yellow) carries left turn and brake signals, while pin 5 (green) handles right-side equivalents. Mismatches here cause system failures or reverse polarity, damaging LEDs in modern lights.
Use a multimeter to test continuity between the plug and lighting assembly; readings below 12.6V indicate corroded terminals. Clean contacts with dielectric grease before securing connections–ordinary petroleum jelly attracts moisture, leading to oxidation within weeks. For modular adapters, prioritize brands that meet ISO 11446 standards; non-compliant models often lack proper grounding, causing flickering taillights.
Color-coded cables must match the following sequence: brown (tail/running lights), white (ground), blue (reverse lights), and black (12V auxiliary). Deviate from this scheme and risk short circuits–replace any frayed or brittle cables immediately, as exposed copper strands trigger fuses. For vehicles with electronic brake controllers, ensure the brake output wire (typical red or purple) connects directly to the controller’s output terminal, not the battery.
After assembly, perform a road test in low light. Observe all signal functions–brake lights should illuminate independently of turn signals. If any inconsistency appears, isolate the issue by disconnecting the hauler and retesting the tow vehicle’s harness. Most failures stem from poor soldering or inadequate crimp connectors; use heat-shrink tubing over splices to prevent water intrusion.
Connecting Your Mobile Home Electrical System: Pin-by-Pin Guide
Start by verifying the voltage drop across each circuit conductor before finalizing connections. Use a multimeter set to DC 12V and measure between the tow vehicle’s socket and the corresponding terminal on the auxiliary unit’s harness. Readings above 0.5V indicate excessive resistance–replace the wiring or clean corroded terminals with a wire brush and dielectric grease. Color codes follow ISO 11446 for 13-pin setups: green (left turn), yellow (right turn), brown (tail lights), blue (reverse light), white (ground), black (power feed), and red (brake signal).
Align the connectors with precision: 7-pin configurations often mismatch pin assignments between North American and European towing setups. Here’s the exact mapping:

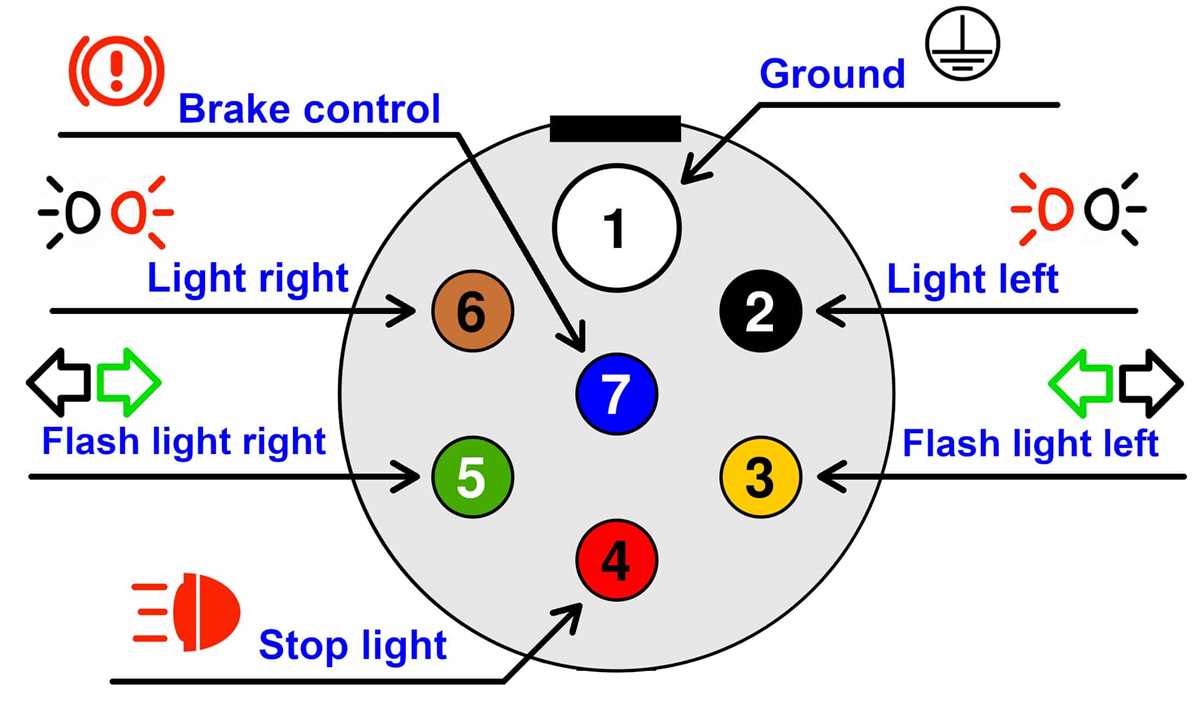

| Pin Number | Function (NA) | Function (EU) | Wire Gauge |
|---|---|---|---|
| 1 | Ground | Ground | 12 AWG |
| 2 | (Reserved) | Reverse Lights | 16 AWG |
| 3 | Brake Lights | Left Turn/Brake | 14 AWG |
| 4 | Tail Lights | Right Turn/Brake | 16 AWG |
| 5 | Left Turn/Brake | Tail Lights | 14 AWG |
| 6 | Right Turn/Brake | Battery Charge | 12 AWG |
| 7 | (Reserved) | (Reserved) | 16 AWG |

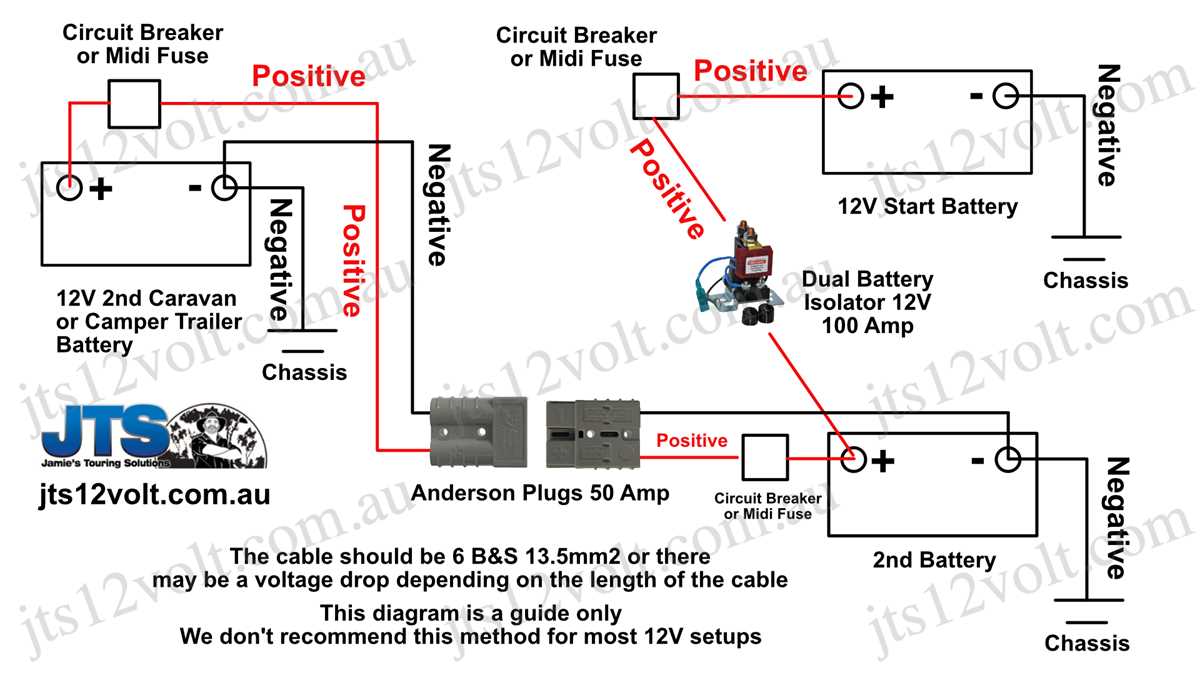

For auxiliary power circuits, install a 20A fuse directly on the positive lead within 7 inches of the battery terminal. Use marine-grade tinned copper wire to prevent oxidation in humid conditions–standard PVC insulation degrades at 80°C, while cross-linked polyethylene (XLPE) withstands 125°C. Terminate all strands with crimp connectors and heat-shrink tubing; soldering introduces brittle joints under vibration. Test each function sequentially: activate the tow vehicle’s running lights, blinkers, and brakes while observing the mobile unit’s corresponding lamps. A 1-second delay in response points to loose connections or undersized wiring.
Integrate a surge protector rated for 24V transients between the charging line and the auxiliary battery. Models like the CTEK MXS 5.0 include desulfation modes critical for lead-acid units; lithium-ion requires a dedicated BMS bypassing standard voltage regulators. Route all harnesses away from sharp edges using plastic loom tubing (split type for easy access) and secure every 18 inches with nylon zip ties–avoid metal clamps that chafe insulation. Label both ends of each wire segment with heat-shrink labels or permanent marker, noting function and destination.
Finalize with a full circuit integrity check: disconnect the ground lead first, then retest continuity through each path with the multimeter’s diode-test setting. Store spare connectors in a sealed container with silica gel packets to prevent moisture ingress. Update documentation immediately if modifications are made–incorrect polarity on the battery charge line destroys converters within milliseconds.
Choosing the Right Electrical Connector for Your Towable Unit

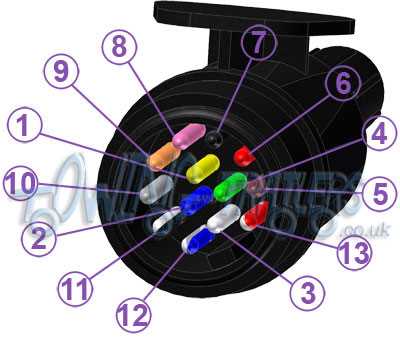

Match the harness type to the vehicle’s connector standard before purchase. Common configurations include 4-pin flat for basic lighting (tail, brake, turn signals), 5-pin flat adding reverse lights, 6-pin round including electric brakes control, and 7-pin round (SAE J560 standard) for full auxiliary power, brakes, and backup lights. Verify the tow vehicle’s socket–Ford, GM, and Dodge often use varying pin layouts, especially for 7-way connectors. For European or Australian models, confirm whether the 13-pin ISO standard applies, which consolidates functions into a single circular plug.
- 4-flat: Tail, stop, turn, ground (minimum legal setup)
- 5-flat: Adds reverse light (required for backup cameras)
- 6-round: Electric brakes + charge line (common for mid-size campers)
- 7-round (SAE J560): Dedicated brake battery power, auxiliary circuit, lighting
- 13-pin ISO: Integrated 12V, brake, turn, tail, reverse, and fog signals
Measure the existing plug’s pin diameter–millimeter-spec variants (4.8 mm vs. 5.5 mm) demand compatible harnesses to prevent loose connections. Avoid universal adapters unless the voltage drop is tested; long hauls risk overheating spliced wires. Check for corrosion-resistant coatings–tin plating outperforms bare copper in wet climates.
Test continuity with a multimeter before finalizing installation. Disconnect the towing vehicle’s battery first to prevent short circuits. Route harnesses away from moving parts, exhaust, and sharp edges; secure with zip ties every 12–18 inches using non-conductive clips. Replace any frayed or brittle wiring–aluminum-core wires age faster than copper-stranded. For modular systems, ensure plug-and-play components lock firmly; rattling connections cause intermittent failures at speed.
Step-by-Step Guide to Connecting 4-Pin Vehicle Towing Connectors
Start by identifying the four core wires on both the tow vehicle’s socket and the towed unit’s plug: yellow (left turn/brake), green (right turn/brake), brown (tail/marker lights), and white (ground). Use a multimeter to confirm each wire’s function–set it to continuity mode and probe the socket pins while activating the corresponding lights on the vehicle. If the readings match, proceed; if not, trace the wiring harness back to the fuse box to locate faulty connections or blown fuses. Ensure the ground wire is securely attached to a clean, unpainted metal surface on the vehicle’s frame to prevent voltage drops.
Cut the plug’s wires to the required length, strip 5mm of insulation, and crimp or solder ring terminals for a secure connection. Match each wire to its counterpart by color: yellow to yellow, green to green, brown to brown, and white to the designated ground point. Use heat-shrink tubing or electrical tape to insulate joints after soldering. Test the setup by engaging the vehicle’s turn signals, brake lights, and tail lights–verify brightness and consistency across all functions. If flickering occurs, recheck grounds and connections for corrosion or loose strands. For installations on older models, consider adding a relay kit to avoid overloading the vehicle’s lighting circuit.
Troubleshooting Common Issues
If a single function fails, isolate the problem by swapping the non-working wire with a known good one (e.g., swap green with brown) to determine if the issue lies in the wiring or the light assembly. Corroded pins can often be cleaned with a wire brush or contact cleaner; replace the plug if damage is visible. For trailer-mounted LED lights, ensure the vehicle’s socket supplies a stable 12V output–some older systems may require a load resistor to prevent hyperflash. Always secure excess wiring away from moving parts or exhaust components to prevent abrasion or heat damage.
Solving Electrical Problems in Mobile Living Units
Start by checking the tow vehicle’s fuse box if lights fail intermittently. Locate the fuse labeled for the harness connector–often a 10A or 15A fuse–and test it with a multimeter. Replace blown fuses only after verifying no short exists in the harness, as repeated failures indicate a deeper issue in the circuit.
Corrosion on connectors is a primary cause of signal loss. Disconnect the plug and inspect pins for green or white buildup. Clean contacts with electrical contact cleaner and a wire brush, then apply dielectric grease to prevent future oxidation. Focus on the ground pin first, as poor grounding disrupts all functions.
If brake lights work but turn signals don’t, the fault likely lies in the flasher relay or the vehicle’s signal switch. Test the relay by swapping it with a known-good one–most relays are 4-pin and interchangeable. If the issue persists, probe the signal switch terminals with a test light while activating the turn signal.
Dim or flickering lights often point to insufficient voltage. Measure voltage at the plug while the engine runs–readings below 12V suggest a weak ground, alternator issues, or undersized wiring. Upgrade the ground wire to a minimum of 10-gauge copper and verify the alternator outputs at least 13.8V under load.
For non-responsive electric brakes, first ensure the brake controller is properly calibrated. Access the controller settings and adjust gain until the brakes engage smoothly without locking. If no response occurs, test the brake magnet resistance–typically 3.2 to 4.5 ohms for a functional unit. Values outside this range confirm a faulty magnet.
Erratic behavior after rain suggests water intrusion. Remove the plug cover and dry connections with compressed air. Apply waterproofing compound to cable entry points and consider relocating the plug if it sits exposed to road spray. Silicone spray can temporarily seal minor leaks, but lasting protection requires permanent sealing.
Inspect the harness for chafed insulation, especially near sharp edges or suspension components. Use heat-shrink tubing to repair minor abrasions and relocate vulnerable sections away from moving parts. For extensive damage, replace the entire harness–patchwork repairs introduce failure points.
When all functions work but running lights stay off, test the lamp sockets with a 12V test probe. Remove bulbs and check for voltage at the socket–absence indicates a break in the running light circuit. Trace the wire back to the plug, repairing any severed or frayed sections with solder and shrink tubing.
