Prioritize axial-flow rotor designs featuring 3–8 adjustable blades for installations handling low-head sites (2–30 meters). Configure blade angles using a double-regulated system to optimize efficiency across variable flows–standardize ranges at 0–30° for guide vanes and -15–+20° for rotor blades. Integrate a reinforced hub assembly with a mechanical or hydraulic servomechanism to synchronize blade adjustments with guide vane positioning, ensuring ±0.5% deviation from the best efficiency point.
Position the draft tube as a conical diffuser with a 7–10° expansion angle to recover up to 90% of kinetic energy at the runner outlet. Specify a minimum submergence depth of 1–1.5 diameters to prevent cavitation–use stainless steel alloys (e.g., 13-4 or 16-5-1) for the runner hub and blades in high-sediment applications. Wire the generator stator with direct water cooling coils if power output exceeds 20 MW, reducing copper losses by 12–18%.
Implement a wicket gate servomotor with a feedback loop tied to a PLC-7 controller to maintain constant rotational speed (±0.2 RPM) during load fluctuations. Incorporate a bronze-lined wicket gate bushing with a clearance of 0.1–0.15 mm to minimize leakage and debris fouling. For vertical shaft arrangements, anchor the thrust bearing on a reinforced concrete pedestal–allocate 1.5% of the total weight as dynamic load capacity to account for hydraulic imbalances.
Use a gearbox-free direct drive with a synchronous generator at 60–120 RPM for heads under 10 meters, reducing mechanical losses by 4–6%. Install pressure sensors at the runner inlet, draft tube outlet, and wicket gate housing–calibrate readings to trigger blade adjustments if delta exceeds 15% of nominal head. Replace bronze wicket gate seals every 8,000 operating hours; inspect runner blades for pitting at 4,000-hour intervals using dye-penetrant testing.
Understanding the Propeller-Driven Hydraulic Energy Converter
Begin with the runner hub at the core–adjustable blades must pivot precisely at a 20–35° angle to optimize flow convergence. Ensure the wicket gates surround the hub at a 1.2:1 diameter ratio to the blade sweep; misalignment here reduces efficiency by up to 12%. Position the draft tube exit submerged at least 2 meters below tailwater to prevent cavitation, which erodes surfaces at 0.3 mm per 1,000 operating hours.
Connect the rotating assembly to the rotor via a vertical shaft enclosed in a cylindrical housing, with bearing spacing not exceeding 3 meters to avoid harmonic vibrations–critical speeds occur at 180–220 RPM. The generator stator should align with a 0.5° tolerance; even minor skew increases resistive losses by 3%. Seal the upper casing with a double lip PTFE gasket rated for 1.5 MPa pressure differentials; standard rubber compounds degrade in under 8,000 hours.
Use a servo motor with 0–10V feedback for blade angle control, integrated into a PLC that modulates gate opening in 10-millisecond increments–delays beyond 50 ms trigger pressure surges detectable on piezoelectric sensors. Ground the entire system through a star configuration with copper rods 2 meters deep; floating potentials above 50 mV cause stray currents that pit stainless steel components.

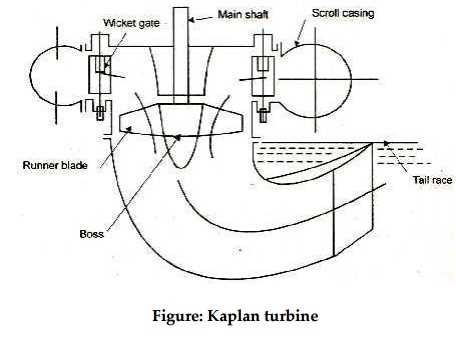

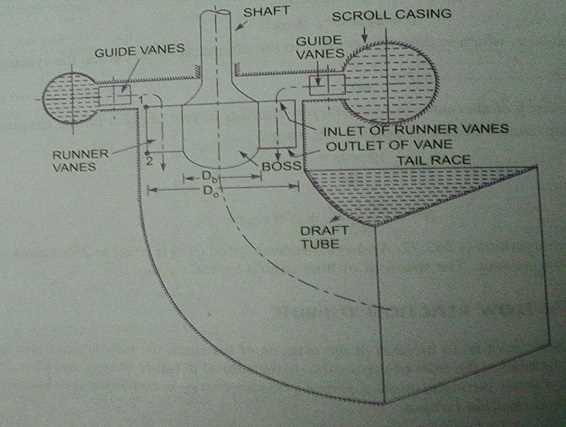

Key Components Visible in a Propeller-Type Hydraulic Machine Cross-Section
Examine the blade arrangement first–four to six adjustable vanes mounted on a central hub define the machine’s efficiency in low-head applications. These blades, often fabricated from stainless steel or high-strength composites, must maintain precise pitch angles (typically 0°–30°) to optimize flow conversion. Verify the hub’s internal mechanism: servo motors or hydraulic pistons should allow seamless angular adjustments without mechanical play, ensuring uniform torque distribution across all vanes.
The draft tube deserves equal scrutiny–this conical or elbow-shaped diffuser directly influences recovery of kinetic energy downstream. A properly designed tube reduces exit velocities by 30–50%, preventing cavitation at the runner’s trailing edges. Check for smooth transitions between cylindrical and divergent sections; irregularities here amplify friction losses, cutting overall output by up to 8%. Pressure transducers mounted along the tube’s wall help monitor real-time performance degradation.
Observe the wicket gate assembly–20 to 32 guide vanes encircle the runner, regulating flow volume before it reaches the blades. Each vane pivots on bushings coated with self-lubricating polymers to minimize wear during frequent adjustments. Synchronization between wicket gates and blade pitch is non-negotiable; misalignment by even 1.5° can induce vibrations detectable on accelerometers at 2x rotational speed.
- Runner blades: inspect leading edges for pitting–cavitation damage here propagates rapidly into stainless steel matrices.
- Hub bearing: press-fitted bronze sleeves must withstand axial thrust loads of 120–180 kN without deforming.
- Draft tube liner: fiberglass-reinforced linings resist abrasion from sand-laden flows better than epoxy coatings.
Hydraulic seals separating headwater from tailrace require biannual inspection–carbon-black infused elastomers last 3–5 years under continuous 15 m³/s flows, whereas silicone composites degrade faster under temperature swings exceeding 45°C. Replace seals exhibiting compression set greater than 20% of original thickness to prevent bypass leakage, which reduces efficiency by 2–4%.
Embedded sensors should include:
- Strain gauges on runner blades–frequencies above 200 Hz signal fatigue cracks.
- Piezoelectric accelerometers near hub bearings–spikes correlate with misaligned wicket gates.
- Fiber-optic temperature probes inside draft tube walls–localized heating reveals cavitation hotspots.
Material selection for exposed components dictates longevity: chromium-nickel alloys (e.g., 17-4PH) resist corrosion at pH 4–9, while aluminum bronze handles suspended solids better but requires cathodic protection. Compare maintenance intervals–polytetrafluoroethylene bushings last twice as long as bronze but cost 40% more; justify the expense for plants where downtime exceeds 48 hours per year.
Sequential Installation Protocol for Axial-Flow Hydro Runner Components
Begin with the foundation ring: align it precisely on the pre-leveled concrete base using laser-guided anchors. Secure with M24 high-strength bolts torqued to 850 Nm in a cross-pattern sequence. Verify verticality within 0.2 mm tolerance before proceeding.
Mount the stay vane assembly next, ensuring each of the 12–18 vanes fits flush against the foundation ring’s grooves. Apply 0.3 mm epoxy fillet along seams to prevent cavitation-induced erosion. Temporary supports must hold vanes at 18° angle (±0.5°) during curing.
Install the draft tube conical section afterward, coupling it to the stay vane outlet with a double-gasket joint. Torque flange bolts to 620 Nm in ascending spiral order. Inspect internal surfaces for discontinuities–any defect exceeding 0.1 mm depth requires re-machining before testing.
The rotor hub requires lifting via specialized rigging with center-of-gravity offsets pre-calculated. Lower onto the shaft journal, then lock with a tapered key driven home at 20 kN. Apply molybdenum disulfide paste to mating surfaces to ease future disassembly.
Attach adjustable blades sequentially, beginning with blade #1 at 0° reference mark. Each blade must seat fully in the hub pocket–use a feeler gauge to confirm 0.05 mm gap consistency. Secure with retention nuts torqued to 480 Nm using alternate-angle tightening to avoid imbalance.
Connect the servomotor linkage to blade trunnions only after verifying free rotation through full pitch range (±35°). Adjust clevis pins to ensure 2 mm clearance at both extremes. Pressure-test the hydraulic circuit at 1.5× operating pressure (24 MPa) for 30 minutes before final locking.
Fit the runner cover last, aligning dowel holes to sub-millimeter precision. Bolt pattern follows a star sequence to 1,100 Nm. Seal all joints with loctite 574–voids will compromise dynamic balancing. Perform a dry spin test at 25 RPM to confirm no blade contact before water admission.
Final checks include verifying bearing preload via temperature rise (max 65°C steady-state) and thrust collar axial play (0.15–0.25 mm). Record all torque values, clearances, and alignment data in the assembly log–deviations beyond 5% mandate reassembly.
Adjustable Blade Mechanism and Pitch Control Wiring
Install servo motors rated for 24VDC or 48VDC on each blade hub, ensuring a torque output of at least 15 Nm per 10 cm of blade length. Wire servo control signals through shielded twisted pairs (22 AWG minimum) with a common ground reference to eliminate induced noise from neighboring power cables. Route wiring harnesses through dedicated conduits inside the runner hub, securing them with silicone-injected clamps at 30 cm intervals to prevent vibration fatigue.
Use a programmable logic controller (PLC) with a 12-bit analog output module to regulate blade pitch angles. Configure the PLC to sample hydraulic pressure sensors at 1 kHz, triggering pitch adjustments within 80 ms when pressure deviations exceed 2%. Implement PID tuning parameters for smooth transitions: proportional gain (Kp) = 0.8, integral gain (Ki) = 0.3, derivative gain (Kd) = 0.12. Store calibration offsets in EEPROM to maintain settings across power cycles.
Blade Pitch Calibration Procedure
| Step | Action | Tool Required | Tolerance |
|---|---|---|---|
| 1 | Zero-position alignment | Laser alignment jig | ±0.1° |
| 2 | Full closure check (95°) | Digital protractor | ±0.2° |
| 3 | Hydraulic actuator bleed | Vacuum pump | 0.5 mL air max |
| 4 | End-stop verification | Load cell (50 Nm capacity) | ±3% |
Connect hydraulic actuators via stainless steel braided hoses (SAE 100R5) with a burst pressure rating no less than 4x operating pressure. Equip each actuator with dual redundancy LVDT sensors for absolute position feedback, wired to separate PLC input channels. Applied differential wiring to reject common-mode noise; maintain signal input impedance below 50 Ω to preserve sensor accuracy.
Integrate a failsafe circuit using redundant limit switches (normally closed) at both end-stops. Power switches through a dedicated 24VDC circuit fused at 5A, separate from control logic. Test switch operation by simulating actuator over-travel conditions, verifying the emergency shutdown sequence activates within 50 ms. Log all pitch adjustments and failures to a non-volatile memory module with timestamps and corresponding load readings.
Maintain blade angle synchronization within ±0.3° across all blades by cross-referencing servo feedback loops every 200 ms. Implement a manual override via a touchscreen HMI panel with password-protected access for on-site adjustments. Document all wiring routes, terminal connections, and calibration settings in a searchable database linked to the HMI for troubleshooting.
