For precise control in power conversion systems, the TL494 equivalent PWM controller remains a cornerstone. Before diving into schematics, verify the feedback loop stability by checking the compensation network–typically a 2.2µF capacitor with a 47kΩ resistor ensures proper phase margin. Replace generic values with measured data: input voltage tolerances (±10% for 12V/24V sources), ESR of bulk capacitors (target
Problems like output voltage ripple exceeding 1% often stem from improper grounding. Use a star topology for high-current paths, separating analog (feedback) and power grounds at a single point near the controller. For transient response, adjust the error amplifier gain via the 20kΩ/2kΩ resistor divider–higher ratios improve regulation but risk oscillation. Test with an electronic load pulling 5A to confirm recovery within 1ms.
Heatsinking requirements depend on MOSFET selection. A typical H-bridge setup using IRFZ44N demands 6°C/W sink for 50W output at 40°C ambient. For compact designs, replace through-hole diodes with STTH200L (200V, 2A, 30ns reverse recovery) to reduce switching losses. Avoid paralleling MOSFETs without current-sharing resistors (0.1Ω/1W) unless using matched dies. Always compare gate drive waveforms (Vgs) against datasheet rise/fall times–deviations indicate parasitic inductance or weak driver strength.
For protection, the dead-time control (pin 4) prevents shoot-through at 0.5–5% of the switching cycle. Without it, cross-conduction can halve efficiency. Overcurrent thresholds should trigger within 2µs–use a 20mΩ shunt resistor with a LM358 comparator for precise trips. Test faults by shorting output to ground while monitoring IC temperature (max 125°C). If thermal shutdown engages prematurely, increase heatsink area or reduce switching frequency.
Building a PWM Control Block: Step-by-Step Wiring Essentials
Start by connecting the TL494CN’s feedback loop to the output stage–pins 1 and 2 must link to a 10kΩ potentiometer, adjusting the duty cycle from 5% to 95%. Place a 0.1μF decoupling capacitor between VCC (pin 12) and ground to stabilize switching noise, ensuring the IC operates within its 7V–40V input range. For precision, solder a 1kΩ resistor from the dead-time control pin (pin 4) to ground; this prevents shoot-through in half-bridge configurations by introducing a 3%–5% delay between transistor switching.
Output Stage Configuration for High-Current Loads
Route the TL494CN’s emitter outputs (pins 9 and 10) through complementary 2N3055/ MJE13009 transistor pairs, using 1N4148 diodes across each base-emitter junction to clamp inductive flyback. For 20A+ loads, add a current-sense resistor (0.01Ω, 5W) between the source and ground, feeding the signal back to pins 15 and 16 via an LM358 op-amp buffer–this limits peak current to 25A. Isolate the high-side driver with a bootstrap capacitor (22μF, 50V) charged via a 1N4007 diode from the 12V auxiliary supply, ensuring reliable switching at frequencies up to 200kHz.
Test the assembly with an oscilloscope: probe the output pins for clean, 50% complementary square waves (phase-shifted by 180°). If ringing exceeds 10% of the peak voltage, add a 10Ω resistor in series with the gate drive and a 1nF snubber capacitor across the transistor drain-source. For thermal stability, mount all semiconductors on a heatsink with thermal compound, calculating dissipation based on duty cycle and load (e.g., 60W for 20A at 12V).
Pin Configuration and Functional Analysis of the KA7500B PWM Controller
Start by connecting Pin 1 (Non-Inverting Input) to a precision voltage reference–typically 2.5V for stable feedback control. This pin sets the comparison threshold for the internal error amplifier, directly influencing output regulation. Use a low-tolerance resistor divider (e.g., 1% tolerance) to minimize drift and ensure consistent performance across temperature variations.
Pin 2 (Inverting Input) requires a feedback signal from the output stage, fed through a resistor-capacitor network to filter high-frequency noise. Avoid oversized capacitors here; a 10nF-100nF range suffices to prevent phase lag while maintaining loop stability. The ratio between Pins 1 and 2 dictates the duty cycle, so verify calculations with an oscilloscope to confirm linear response under load transients.
Pin 3 (Feedback/Compensation) demands a compensation network–usually a series resistor (1kΩ–10kΩ) and capacitor (100pF–10nF)–to shape the control loop’s frequency response. For fast transient recovery, target a zero placement at 1/5 to 1/10 of the switching frequency. Skipping this step risks oscillatory behavior or sluggish load-step response, especially in high-current designs.
Pin 4 (Dead-Time Control) is critical for preventing shoot-through in push-pull or half-bridge topologies. Apply a DC voltage (0V–3.3V) here to set the minimum off-time between complementary outputs. For primary-side regulation, tie this pin to ground via a 1kΩ resistor to maximize conduction time. Overlook this adjustment, and efficiency drops by 5–15% due to increased switching losses.
Output Stage and Protection Features
Pins 8 and 11 (Outputs A/B) drive external MOSFETs or transistors, but their 200mA sink/source current is insufficient for high-power applications without buffering. Pair each pin with a totem-pole driver stage (e.g., TC4427) to extend current capability beyond 2A. Ensure dead-time synchronization between these pins to avoid cross-conduction, which can destroy power devices within microseconds.
Pin 9 (Output Control) enables or disables outputs when pulled high (above 2V) or low (below 0.8V). Use this pin for soft-start implementation–connect a capacitor to ground and a resistor to a reference voltage. A 10µF capacitor with a 100kΩ resistor yields a ~1-second ramp-up time, reducing inrush current spikes. Short-circuit protection schemes can also leverage this pin by toggling it via an overcurrent comparator.
Pin 12 (VCC) tolerates 7V–40V, but bypass it with a 1µF–10µF ceramic capacitor as close to the pin as possible. Voltage ripple here directly modulates output jitter, so keep trace impedance below 0.1Ω. For transient-sensitive applications, add a 10Ω series resistor to further dampen high-frequency noise from the supply.
Pin 16 (5V Reference) provides a precision 5V output (±2%) for biasing external circuits. Load this pin with no more than 10mA to avoid degrading regulation. For isolated designs, use an optocoupler tied to this reference to transmit feedback across galvanic barriers. Failing to stabilize this pin results in erratic switching frequency and potential latch-up under start-up conditions.

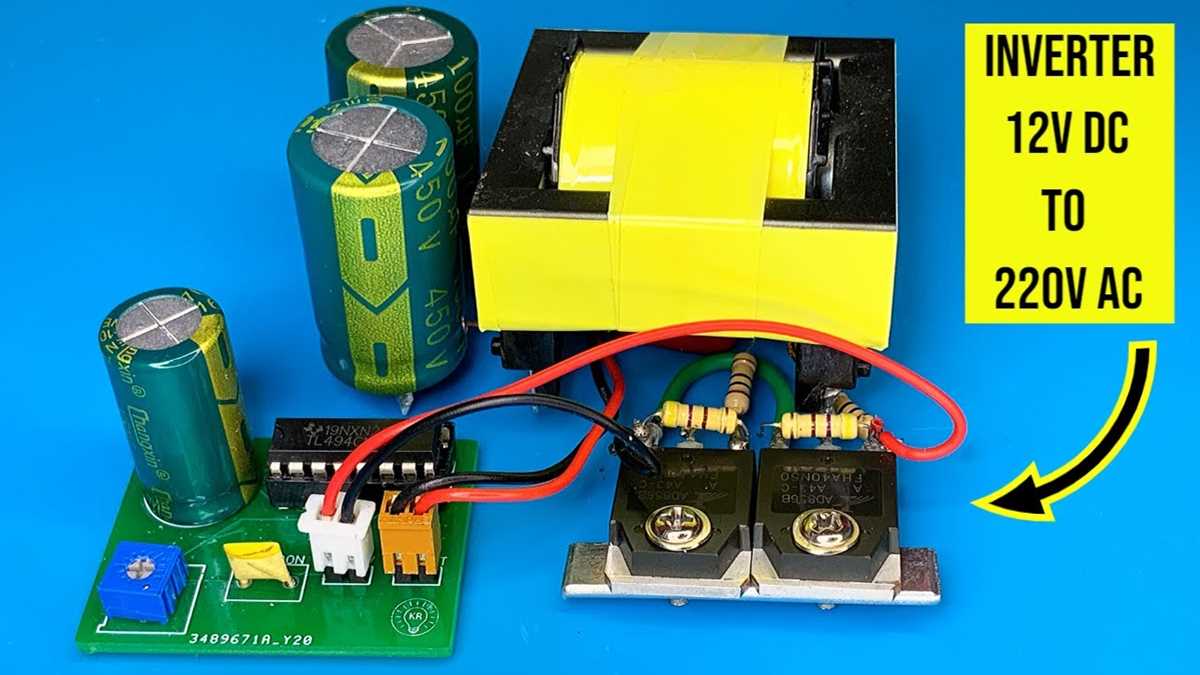

Step-by-Step Assembly of a Pulse-Width Modulation Controller Power Unit
Begin by securing a 12V DC power source with a minimum 10A current rating to avoid voltage sag under load. Connect the input terminals of the TL494-equivalent chip (or its direct replacement) to a 5V reference voltage derived from a 7805 regulator, ensuring stable feedback for duty cycle control. Use a 1kΩ resistor between the reference pin and the error amplifier’s non-inverting input to set the initial output voltage. Solder a 10kΩ potentiometer between the inverting input and ground to fine-tune the output frequency within the 50Hz–60Hz range–critical for matching regional grid standards.
Component Placement and Heat Management
| Component | Specification | Critical Notes |
|---|---|---|
| Push-pull MOSFETs (IRF3205) | 100V, 110A, RDS(on) = 8mΩ | Mount on a 40×40mm heatsink with thermal paste; derate current to 50A for longevity |
| Gate drive transformer | Ferrite core EE20, 2:1 turns ratio | Use bifilar winding to minimize leakage inductance; test for |
| Output filter capacitors | 470μF, 400V electrolytic (Nichicon) | Place |
Wire the MOSFET gates through 10Ω gate resistors to prevent ringing–ringing above 20MHz can trigger false switching. The source terminals must share a common ground plane with the controller chip, ideally a 2oz copper PCB trace 5mm wide to handle transient currents. For the high-voltage side, use 18AWG wire rated for 300V AC, twisting pairs to cancel magnetic interference. Test each stage with a multimeter: verify 0V at the MOSFET gates before connecting the load to avoid shoot-through.
Assemble the feedback network last. A voltage divider using a 100kΩ resistor and a 4.7kΩ NTC thermistor monitors the output–this provides over-temperature protection by reducing the duty cycle above 80°C. Connect the secondary winding of the output transformer to a 20A bridge rectifier, followed by a LC filter (1mH choke + 470μF capacitor) to smooth the waveform. Verify sine wave purity with an oscilloscope: total harmonic distortion should not exceed 5%. If distortion persists, replace the filter capacitor with a lower-ESR type (e.g., polypropylene) or adjust the dead-time setting via the chip’s timing capacitor (typically 1nF to 10nF).

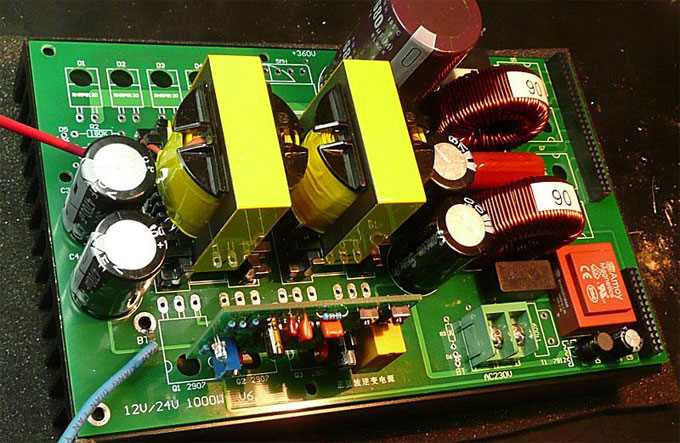

Common Schematic Variations for Different Power Outputs
Adjust transformer winding ratios and MOSFET selection based on target wattage. For 200W–500W configurations, use IRFZ44N or IRF3205 MOSFETs with a 1:10 primary-to-secondary turns ratio on an EE16 or EE20 core. Gate resistors should be 10Ω–22Ω to balance switching speed and ringing suppression. Higher outputs (800W–1.5kW) require IRL3713 or IXFH40N60P MOSFETs paired with a 1:15 ratio on an EE25 or EE33 core; increase gate resistors to 33Ω–47Ω to handle larger current spikes. Always match the snubber capacitor (typically 1nF–4.7nF) to the switching frequency–higher frequencies need smaller values to avoid over-damping.
Component Selection for Efficiency Tiers
- Low-power (50W–200W):
- Schottky diodes (1N5822, SB560) for secondary rectification to minimize forward voltage drop.
- PWM controller dead-time set to 300ns–500ns to reduce cross-conduction losses.
- Feedback divider resistors (10kΩ/5.1kΩ) to maintain 2.5V reference at light loads.
- Mid-range (300W–800W):
- Replace diodes with synchronous rectifiers (IRFB3206) for currents above 10A; confirm gate drive timing matches body diode conduction.
- Increase input capacitance (2200µF–4700µF) to handle inrush current from larger transformers.
- Add a 10µH–33µH input choke to smooth current ripple before the switching stage.
- High-power (1kW–3kW):
- Parallel two MOSFETs per leg with individual gate resistors; use Kelvin connections for source terminals to prevent uneven current sharing.
- Core material shift to ferrite PC40 or PC95 for frequencies below 60kHz to avoid saturation at high flux densities.
- Implement active clamp snubbers (100V Zener diodes) on MOSFET drains to absorb leakage inductance spikes.
For all variants, verify thermal management–80°C junction temperature is the absolute maximum for reliable operation. Use copper pours on PCB layers for heat dissipation or external heatsinks with thermal pads rated for at least 1W/°C. Replace electrolytic capacitors every 5,000 hours of operation in high-stress environments.
