Begin by locating the vehicle’s factory harness adapter–typically bundled with aftermarket stereo kits. Match the color-coded wire strands to the installation manual’s pinout chart: yellow (constant 12V), red (switched 12V), black (ground), blue/white (amp turn-on), and speaker wires (striped pairs). Verify polarity with a multimeter before securing crimp connectors–reverse polarity risks damaging the amplifier or subwoofer outputs.
For common vehicles, pre-made harnesses exist (e.g., Metra 70-1721 for Toyota, Scosche GMOS-LAN for GM models). If splicing manually, strip only 5mm of insulation to prevent short circuits, then twist strands tightly before soldering or using heat-shrink butt connectors. Avoid electrical tape–moisture ingress causes intermittent failures within months.
Double-check the parking brake wire (usually purple) and reverse signal (if navigation is installed). Incorrect grounding (e.g., bolting to painted surfaces) introduces alternator whine; attach directly to chassis metal using a star washer for optimal conductivity. For amplified systems, route the thick RCA cables away from power wires to reduce interference.
Test functionality before final assembly: turn ignition to ACC, confirm display powers on, and verify all speakers produce sound without distortion. If static persists, recheck ground connections and ensure RCA shields are intact. For integrated steering wheel controls, use a bypass module matching the vehicle’s make (e.g., PAC RP5-GM52 for GM trucks).
Car Stereo Connection Schematic: Step-by-Step Instructions
Identify the power wires first: the yellow cable connects to a constant 12V source (battery), while the red wire requires ignition-switched 12V. Use a multimeter to verify voltage before securing connections to prevent short circuits. Crimp connectors should be soldered for long-term reliability, especially in high-vibration vehicles.
Locate the ground wire (black) and attach it to a clean, bare metal surface near the stereo’s mounting location. Paint or corrosion on the chassis can impede conductivity–scratch the surface to expose raw metal. Avoid sharing the ground with other accessories to prevent noise interference.
Speaker Wire Matching
Trace the stereo’s speaker outputs: front/rear left/right pairs are typically color-coded (e.g., gray, white, purple, green). Match these to the vehicle’s existing harness or speaker wires using a continuity tester to confirm polarity–reversed connections reduce sound quality. Factory harnesses may use non-standard colors; refer to the vehicle’s manual for clarity.
Use twisted-pair wiring for speakers to minimize electromagnetic interference, particularly with aftermarket amplifiers. For vehicles with premium sound systems, retain the original wiring’s impedance-matching resistors if present–removing them can damage factory amplifiers.
Secondary Connections
Antenna inputs (usually a blue wire or blue/white stripe) require a 12V trigger to activate powered antennas or signal amplifiers. Connect this to the stereo’s remote turn-on lead or a switched power source. Dimming controls (orange or orange/white) adjust illumination–link to the vehicle’s dash light circuit for automatic brightness sync.
Steering wheel controls, if compatible, need an adapter interface–common brands include Metra ASWC-1 or PAC SWI-RC. Follow the interface’s pinout precisely; incorrect wiring can disable controls or cause electrical faults. For USB or auxiliary inputs, route cables away from ignition coils and high-current wires to avoid audio distortion.
Test all connections before finalizing the install. Play audio through each input and verify speaker balance, fade, and subwoofer output (if applicable). If static or intermittent sound occurs, recheck grounds and power sources–loose connections are the most frequent cause of issues. Secure wires with zip ties and loom tubing to prevent rattling or abrasion from moving parts.

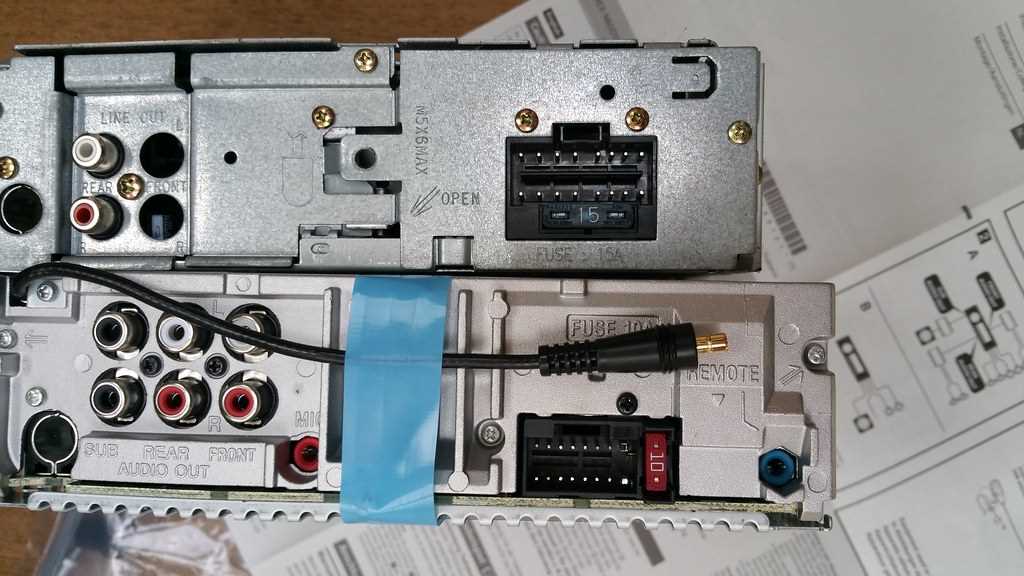

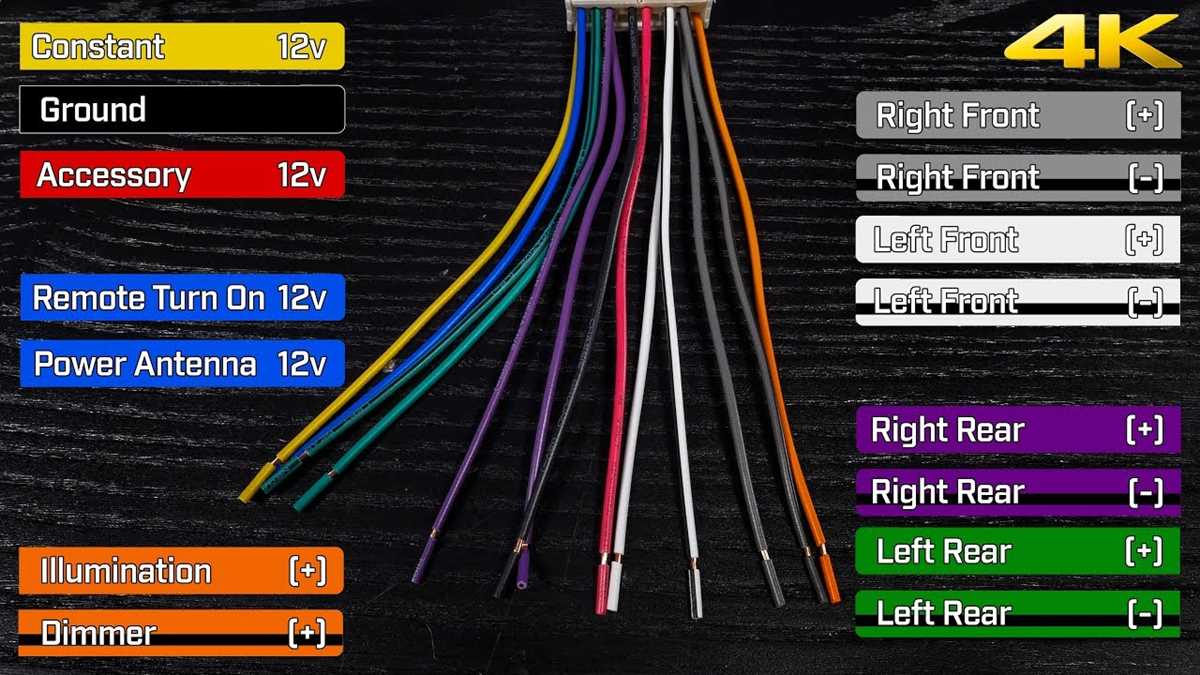

Decoding Cable Hues and Roles in Car Audio Interfaces
Locate the solid yellow wire–this is your constant 12V supply, always energized regardless of ignition state, crucial for preserving memory settings and clock time. Verify its voltage with a multimeter before connecting to avoid battery drain; fluctuations above 13.5V signal alternator issues requiring immediate attention.
Pair the red lead with accessory ignition: this delivers power only when the key is turned, activating the stereo’s primary functions. Mistaking it for yellow risks resetting presets or corrupting firmware during hard power cycles–use a dedicated fuse link (20A recommended) for protection against shorts.
The black ground wire demands a direct chassis connection, ideally within 18 inches of the device’s metal casing using a ring terminal crimped securely. Avoid daisy-chaining grounds through factory harnesses; corrosion or weak contact here introduces noise, distorts audio, or prevents startup entirely.
Speaker Wire Codes: Standard vs. OEM Variations
Front right positive typically uses a gray wire, front left positive is white–both striped with their corresponding negative colors (gray/black and white/black). Rear channels follow the same logic: violet for right, green for left, with matching striped partners. Confirm polarity before tapping into OEM harnesses; reversed connections cancel bass frequencies and degrade stereo imaging.
Factory harnesses sometimes repurpose colors for non-standard purposes–brown may carry illumination, pink might trigger amplifier turn-on remotely. Cross-reference with a pinout chart specific to your vehicle model; even minor deviations (e.g., blue used for steering wheel controls instead of antenna) necessitate custom adapters.
For aftermarket amplifier integration, the blue/white remote turn-on lead activates external power stages when the system powers up. Solder this to the amplifier’s remote input or use a relay if multiple devices share the signal; insufficient gauge thickness (below 18AWG) risks voltage drop and intermittent amplifier shutdowns.
Illumination wires (often orange or orange/white) adjust display brightness in sync with dash lights–connect these to the vehicle’s dimmer circuit. Skipping this step leaves screens at full brightness at night, causing glare, or renders them unreadable in daylight. Test dimming functionality before finalizing dashboard assembly to avoid rework.
Step-by-Step Guide for Connecting Your Automotive Audio System
Begin by identifying the power harness adapter matching your vehicle’s make and model. Locate the 12V constant power lead (typically yellow), ignition-switched wire (red), and ground connection (black). Use a multimeter to verify voltage–12V constant should maintain power even with the ignition off, while the switched lead activates only when the key is turned. Secure the ground to bare metal, ensuring no paint or corrosion interferes; poor grounding causes intermittent sound or complete failure.

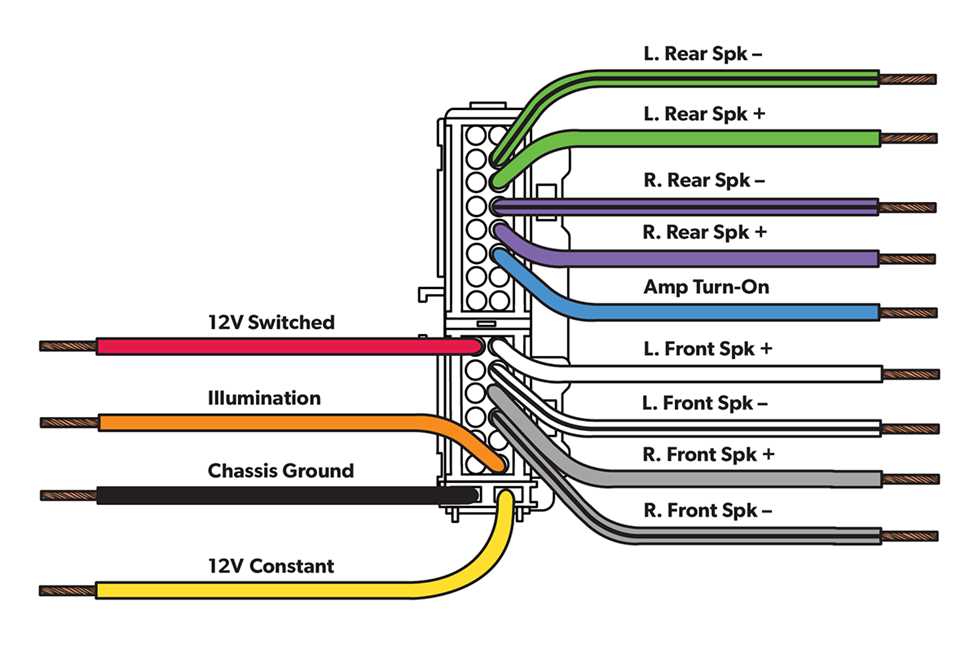

Match the speaker outputs to the aftermarket stereo’s color-coded connectors:
- Front Left (+): White
- Front Left (-): White/black stripe
- Front Right (+): Gray
- Front Right (-): Gray/black stripe
- Rear Left (+): Green
- Rear Left (-): Green/black stripe
- Rear Right (+): Purple
- Rear Right (-): Purple/black stripe
Strip 6-8mm of insulation, twist strands tightly, and crimp with soldered connections for long-term reliability. Avoid squeezing speaker wires directly–this risks short circuits or blown channels.
Handling Auxiliary Features
For vehicles with factory amplifiers, remove or bypass the OEM amp to prevent signal degradation. Connect the new system’s RCA outputs to an amplifier input if adding external power–use shielded cables to minimize noise. Steering wheel controls require an adapter module; pair the module’s output wires to the stereo’s SWC input (often blue/white). Verify compatibility with the vehicle’s protocol (CAN bus, resistive, or digital) before purchasing.
Final checks include testing all functions before reassembling the dash:
- Power on–confirm display lights and background audio.
- Insert a CD or USB–check playback clarity in all speakers.
- Adjust fade/balance–isolate each channel for distortion.
- Engage parking brake–verify video playback if applicable.
- Visually inspect connections–no exposed copper or loose fits.
Reassemble trim panels only after verifying zero rattles or buzzes, indicating a secure installation.
Resolving Installation Problems in Car Entertainment Systems
Check the fuse on the constant power line if the system fails to power on after installation. Use a multimeter to verify 12V DC at the yellow cable connection point–absence of voltage indicates a blown fuse, faulty relay, or interrupted supply from the battery. Replace the fuse with an identical rating (typically 10A) and retest; if the issue persists, inspect the vehicle’s relay box for corrosion or loose connections.
Intermittent Audio Dropouts
Ground loops often cause static or intermittent sound loss. Ensure the black ground cable is secured to bare metal, free of paint, rust, or oxidation. If symptoms continue, run a dedicated ground wire directly to the vehicle’s chassis, avoiding shared grounds with other electronics. Twisted pair wiring for RCA cables reduces interference, especially in vehicles with aftermarket amplifiers.
Dim displays or unresponsive controls typically stem from incorrect illumination wire connections. The light green or white/green stripe wire must connect to the vehicle’s dash light circuit–verify voltage changes between 0V (lights off) and 12V (lights on). If no voltage is detected, bypass the factory dimmer switch by connecting directly to the headlight circuit, but expect non-adjustable brightness.
For systems that power on but reset randomly, measure voltage stability at the accessory line (red cable). Voltage drops below 10.5V during engine cranking or accessory activation (e.g., rear defroster) can trigger resets. Install a capacitor (minimum 2200µF) in parallel with the accessory line to buffer voltage fluctuations, or run a dedicated fused wire from the battery’s positive terminal.
