Start with a 5-directional input device–two potentiometers for axis control and a tactile switch for selection. The X-axis potentiometer connects to pin A0 and the Y-axis to pin A1, both requiring 5V power and a shared ground. Use 10kΩ resistors for pull-down if the switch is not internally debounced; external capacitors (0.1µF) will stabilize signal fluctuations.

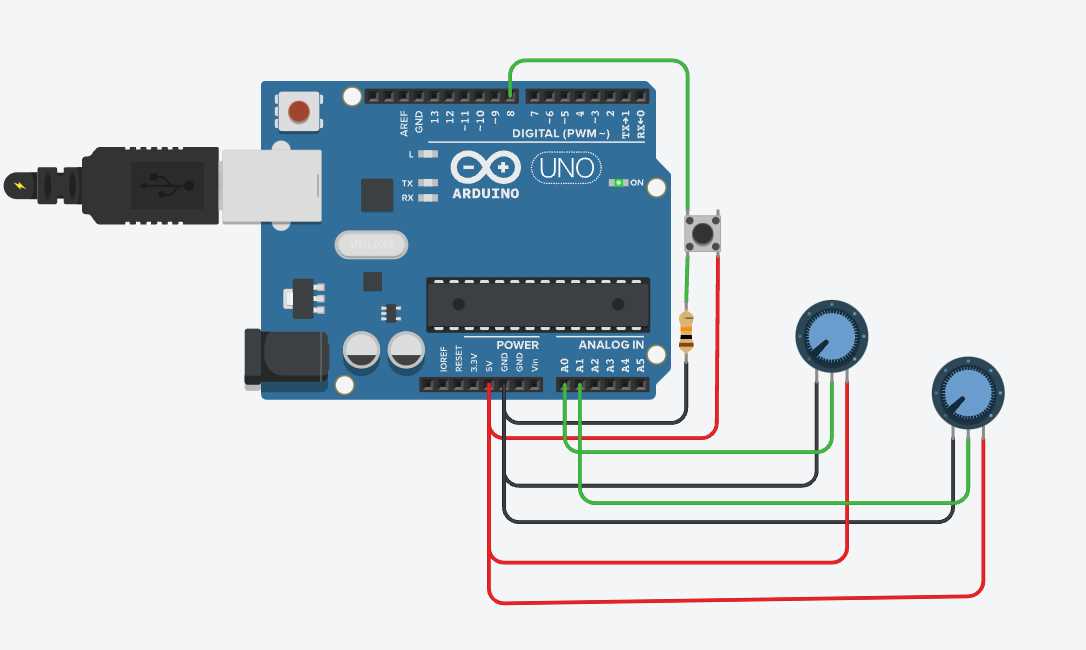

For Arduino-based setups, wire the center pin of each potentiometer to analog inputs, while the outer pins go to VCC and GND. The push-button links to a digital pin (e.g., D2) with a 1kΩ pull-up resistor to prevent floating states. Raspberry Pi users should add an ADC converter (MCP3008) if analog readings are needed, as the board lacks native support for resistive inputs.
Power delivery must be isolated from data lines; a separate 3.3V regulator prevents voltage spikes from affecting sensor accuracy. If interfacing with a microcontroller without built-in ADCs (e.g., ESP8266), consider using an I2C GPIO expander (PCF8574) for the switch input to free up limited pins. Always test each axis with a multimeter–ideal resistance values should range between 0–10kΩ, shifting smoothly without abrupt jumps.
For noise reduction, add ceramic capacitors (0.01µF–0.1µF) across potentiometer terminals. If the switch triggers inconsistently, replace it with a mechanical debounce circuit using a 1N4148 diode and a 10µF electrolytic capacitor. For long cable runs, use twisted-pair wiring to minimize EMI interference, grounding one end to the main board.
Designing a Handheld Controller Schematic
Use a dual-axis potentiometer as the core sensing element–standard 10kΩ linear models work reliably for most analog input needs. Connect each axis to separate ADC channels on your microcontroller, ensuring at least 10-bit resolution for smooth directional readings.
Add pushbutton functionality by incorporating a momentary switch with a low-profile tactile dome. Wire the switch in series with a 1kΩ pull-down resistor to prevent floating inputs during open states. This simplifies debouncing in firmware later.
Voltage regulation is critical–feed the potentiometers a stable 3.3V or 5V supply from an LDO like the AMS1117, bypassed with a 10µF tantalum capacitor close to the input pin. Without regulation, fluctuations will distort axis readings during battery depletion.
Grounding matters: Separate the analog ground plane from digital components to minimize noise coupling. Connect the potentiometer’s common terminal directly to the analog ground, then tie both ground planes at a single point near the power source.
For connectors, use a 5-pin header spaced at 2.54mm–two pins for power/ground, two for axis outputs, and one for the button. Alternately, solder wires directly to a PCB if portability is prioritized over modularity. Test continuity after assembly using a multimeter set to diode mode.
Calibration offsets vary per unit–store minimum/maximum ADC values in EEPROM during initialization. Adjust firmware thresholds accordingly, accounting for mechanical play in the stick’s neutral position. Most potentiometers settle within ±5% of their midpoint.
Debugging Common Issues
Erratic readings often stem from poor solder joints or loose connections. Reflow suspect pads with flux and verify each axis outputs a clean 0V-VDD ramp through its full range. If cross-talk occurs between axes, shield the analog traces with a grounded copper pour or relocate them farther apart.
Basic Wiring Connections for a Thumb-Controlled Input Device

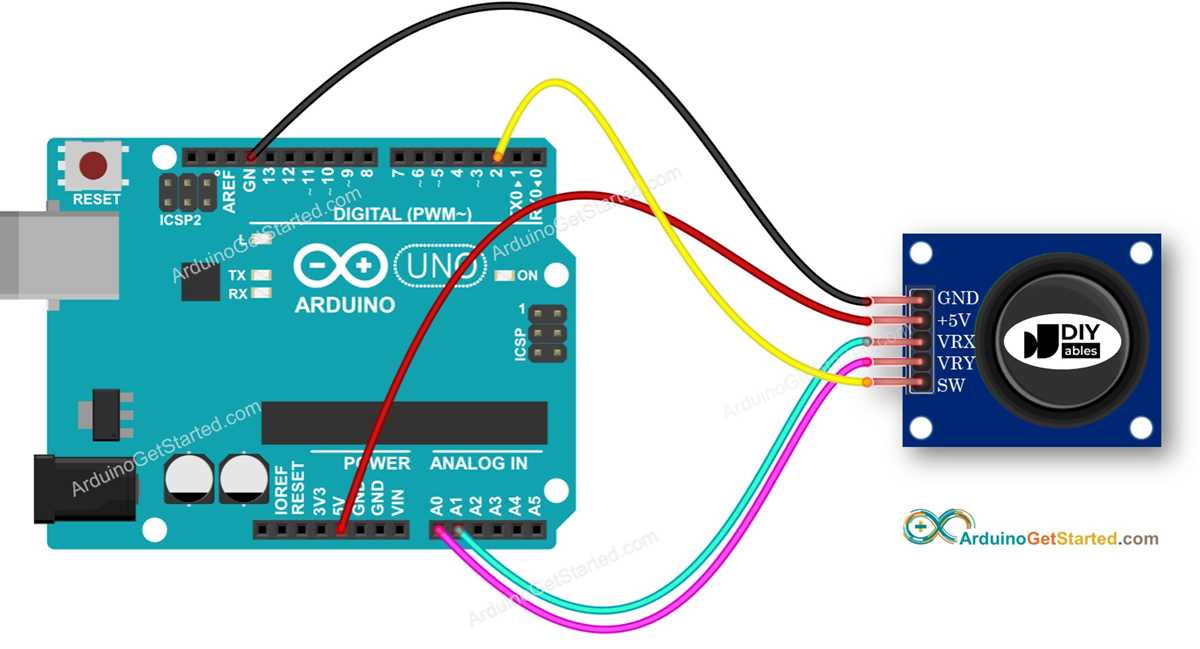

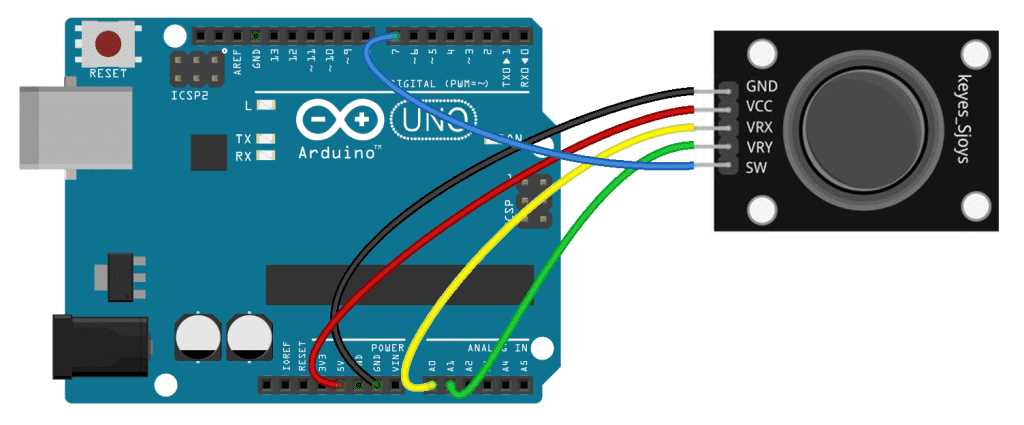

Connect the X-axis and Y-axis pins of the input controller to analog inputs on your microcontroller–typically A0 and A1 for Arduino-based boards. These outputs provide variable voltage readings between 0V and VCC (often 5V), reflecting the stick’s position. Ensure correct voltage sourcing: power the controller’s VCC terminal using the microcontroller’s regulated output or an external supply matching its requirements (e.g., 3.3V or 5V). Ground (GND) must be shared between the controller and the host board to avoid floating readings.
For digital buttons–usually labeled SW (switch)–wire one terminal to a digital pin on the microcontroller (D2, D3, etc.) and the other to GND. Enable the internal pull-up resistor in your code to avoid needing an external one. Example configuration for Arduino:
pinMode(buttonPin, INPUT_PULLUP);int buttonState = digitalRead(buttonPin);readsLOWwhen pressed.
When prototyping, use jumper cables for initial tests–short, high-quality conductors (22-26 AWG) reduce noise. For permanent setups, solder connections or use crimped connectors (e.g., DuPont or JST-XH). Avoid loose wires: vibrations can disconnect components, causing erratic readings. If signal stability is critical, add decoupling capacitors (0.1µF) between VCC and GND near the controller pins to filter power noise.
Verify wiring before powering the system. A multimeter in continuity mode confirms unbroken paths between pins and microcontroller sockets. For voltage checks, move the stick to extremes–X/Y outputs should near 0V (full left/down) and VCC (full right/up). Mid-position readings typically hover around VCC/2. Deviations suggest miswiring or a faulty potentiometer. Limit current through analog pins to 20mA per channel to prevent damage.
For multi-directional input units with dual axes, ensure cross-axis isolation. Some controllers route X/Y wipers through a single GND reference–test with an oscilloscope for unintended coupling at 1kHz. If interference occurs, separate ground paths or shield cables. For wireless applications, pair the input unit with an HC-05 Bluetooth transceiver or NRF24L01 radio, matching baud rates (9600–115200) and power parameters (e.g., 3.3V for ESP32).
Voltage and Resistance Specifications for Analog Input Controls
Most thumb-operated potentiometers operate reliably at 3.3V–5V with a 10kΩ nominal resistance. Exceeding 5V risks overheating the wiper track; dropping below 3V reduces signal resolution, especially on 10-bit ADCs. Dual-axis variants pair X and Y axes with identical pots–any mismatch above ±5% between axes introduces cross-axis drift. For noise-sensitive applications, use thin-film pots with temperature coefficients under 100 ppm/°C and bypass capacitors (100nF) directly on the wiper pins.
| Parameter | Optimal | Minimum | Maximum | Notes |
|---|---|---|---|---|
| Supply voltage | 5.0 V | 3.3 V | 5.5 V | 5 V maximizes ADC range |
| Pot resistance | 10 kΩ | 5 kΩ | 50 kΩ | Higher values increase noise |
| Wiper current | 50 µA | 20 µA | 1 mA | Beyond 1 mA degrades track |
| Resolution | 10-bit | 8-bit | 12-bit | 12-bit needs shielded traces |
Series resistors on wiper outputs prevent catastrophic shorts if the wiper opens–use 1kΩ for 5V supplies, 680Ω for 3.3V. Avoid ceramic pots below 1kΩ; their end-stops add parasitic inductance. Carbon conductive plastic pots deliver >1M-cycle lifespan at 25 °C, but humidity >80%RH accelerates resistance drift–seal the assembly with conformal coating if operation exceeds 50 °C ambient.
Extracting Precise Analog Signals from Dual-Axis Control Sticks
Connect each potentiometer directly to an ADC pin with a reference voltage matching your microcontroller’s specs–3.3V for most ARM-based boards, 5V for Arduino Uno. Use a 0.1µF ceramic capacitor between the wiper and ground to filter high-frequency noise without smoothing legitimate movements. Sample the voltage at 100Hz or faster to capture micro-adjustments; slower rates introduce aliasing and missed peak values. Calibrate endpoints by reading raw ADC counts at mechanical extremes, then map these to 0-1023 (or your resolution) to eliminate dead zones. Multiply readings by 0.8 and subtract 10% of the range to compensate for potentiometer non-linearity near edges.
Pair readings from both axes using array indexing to avoid floating-point math: precompute offset tables in firmware for O(1) lookup during runtime. Replace analogRead() loops with DMA-driven ADC configurations on STM32 or ESP32 to offload CPU cycles; configure the ADC clock at 1MHz and use 12-bit resolution for granularity while maintaining real-time response. Apply a moving average filter with a window of 5 samples–store values in a circular buffer and discard the oldest entry on each new read to maintain responsiveness without lag buildup. Test potentiometer tolerance by applying 70% of the rated voltage across the wiper for 24 hours; variance >2% signals imminent wear requiring replacement.
Diagnosing Faulty Analog Control Stick Issues
Check voltage levels first when buttons respond but axis readings drift unpredictably. Most two-axis potentiometers require stable 3.3V–5V input from the controller board. Use a multimeter to measure voltage between the power pin and ground while moving the lever. Readings should stay within ±5% of the supply voltage; fluctuations exceeding 0.2V point to a failing voltage regulator on the PCB.
Inspect solder joints on the underside of the board, particularly where the flex cable attaches. Cold solder or cracked connections often cause intermittent signal loss. Reflow suspect joints with a fine-tip soldering iron–apply fresh solder if pads appear dull or oxidized. Avoid excessive heat to prevent lifting traces.
Test resistance across each potentiometer channel with the lever centered. Typical mid-scale resistance ranges from 2.5kΩ–10kΩ depending on the model. If values drop below 1kΩ or exceed 20kΩ in any position, the potentiometer’s carbon track is worn or contaminated. Clean the track with isopropyl alcohol and a microfiber swab, or replace the entire sensor assembly if readings remain unstable.
Calibrate manually if software calibration fails. For Arduino-based setups, edit the map() function parameters to match the actual voltage swing. Example:
- Original:
map(analogRead(VRX_PIN), 0, 1023, 0, 255) - Revised:
map(analogRead(VRX_PIN), 200, 820, 0, 255)
Adjust the min/max thresholds until the full range aligns with neutral, forward, and reverse extremes.
Verify the pull-up/pull-down resistor configuration. Default 10kΩ resistors on some boards cause signal attenuation. Replace with 1kΩ–4.7kΩ resistors if the output voltage swing is too narrow. Measure the voltage at the microcontroller pin–it should span at least 80% of the supply voltage when moving the lever from one extreme to the other.
Examine the flex cable for micro-tears or delamination. Hold the cable between fingers and gently bend it while monitoring the serial output. Intermittent readings indicate internal conductor breaks. Replace the cable or solder direct wires if fractures are found. For temporary fixes, apply a thin layer of conductive ink to repair minor cracks.
Check for electromagnetic interference if readings jump erratically near motors or wireless transmitters. Wrap the cable in aluminum foil grounded to the controller’s negative rail, or relocate the sensor array away from noise sources. Ensure decoupling capacitors (0.1µF–1µF) are populated near the power input if absent from the design.
If dead zones persist, adjust the mechanical trimmer screws on dual-axis sensors. Turn clockwise to reduce deadband until the lever moves smoothly from edge to edge. For digital alternatives lacking trimmers, modify the code to ignore values within ±X% of the center point. Example for a 10% deadzone:
- Read raw value (e.g., 0–1023).
- Calculate midpoint (512).
- Check if
abs(rawValue - midpoint) . - Return neutral if true, else proceed.
