Start by locating the fuse box beneath the dashboard on the driver’s side. Remove the cover to access the relays; the audio system harness typically connects via a white-and-orange striped wire (power) and a black ground lead. Use a multimeter set to 12V DC to confirm current before proceeding–this prevents damage to sensitive components.
Disconnect the battery’s negative terminal before handling any wiring. Trace the main harness from the head unit downward, noting color codes: yellow (constant 12V), red (switched 12V), blue/white (amplifier trigger), and green/white (speaker output). Label each wire with masking tape to avoid cross-connections during reassembly.
If the factory schematic is unavailable, reference a pinout configuration for your model year–2007-2010 variants use a 14-pin connector, while 2011+ integrate CAN bus interfaces. Probe each terminal with the multimeter’s continuity setting to verify connections; a beep confirms intact circuits. Replace frayed wires with automotive-grade 18-gauge copper wiring, crimping with heat-shrink tubing for durability.
For aftermarket installations, splice an inline fuse (10A) into the power lead near the battery. Avoid connecting directly to the accessory fuse slot–this can drain the battery when the vehicle is off. Test each speaker individually by touching a 9V battery to the leads; a pop confirms proper polarity and functionality.
Understanding Your 2010 Compact SUV Audio System Connections

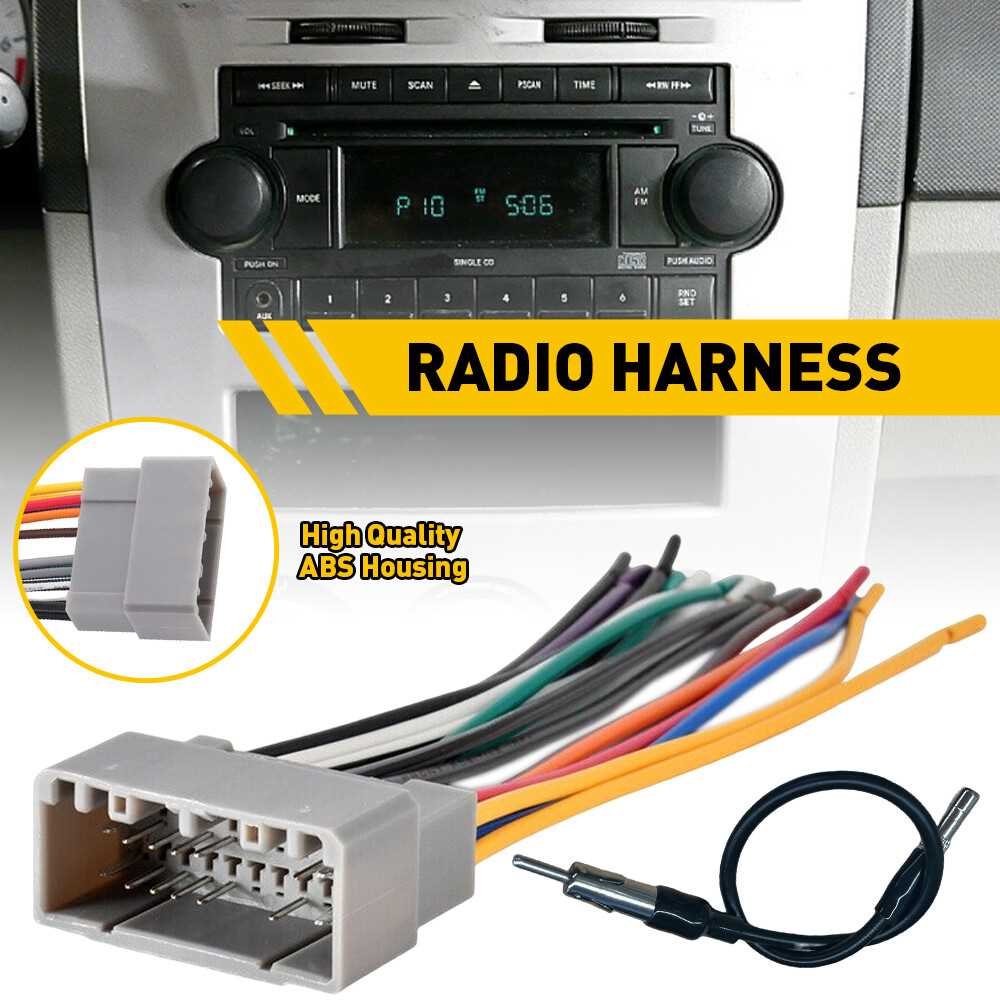

Begin by locating the harness adapter behind the dashboard center console–the 12-pin Metra 70-1002 matches the factory interface without splicing. Disconnect the negative battery terminal before handling any connectors to prevent short circuits.
The aftermarket stereo wiring harness for this model typically includes these color-coded connections:
| Function | Factory Wire Color | Typical Gauge |
|---|---|---|
| Left Front Speaker (+) | Gray/Violet stripe | 20 AWG |
| Left Front Speaker (-) | Gray | 20 AWG |
| Right Front Speaker (+) | Dark Green/Orange stripe | 20 AWG |
| Right Front Speaker (-) | Dark Green | 20 AWG |
| Constant 12V Power | Yellow | 18 AWG |
| Ground | Black/Light Green stripe | 12 AWG |
For vehicles equipped with the premium amplifier, an additional 8-pin connector beneath the glove box handles subwoofer outputs. The pink/light blue wire carries switched power–verify voltage with a multimeter before proceeding, as incorrect connections drain the battery.
Use heat-shrink tubing or solder and electrical tape for secure joins; avoid twist-and-tape methods, which corrode over time. The factory antenna lead (dark blue/white stripe) requires a 3.5mm bullet adapter for compatibility with most aftermarket head units.
If retaining steering wheel audio controls, install an ASWC-1 module between the new stereo and the factory data bus–the vehicle’s CAN protocol requires specific setting adjustments via the module’s software interface.
Reassembly sequence matters: secure plastic retaining clips for the center dash before tightening the stereo mounting cage screws. Misaligned clips cause rattles and may interfere with the climate control cables.
Finding the Stock Audio Connector in Your Compact SUV
Begin by removing the center console trim panel. Use a plastic trim tool to gently pry the panel starting from the lower edge near the gear shift. Work upward and outward to avoid damaging clips. The panel secures with six hidden clips–two on each side and one at the top and bottom. Disconnect any electrical plugs for heated seats or auxiliary controls before fully removing the panel.
The factory harness is typically nestled behind the climate control module, mounted on the left side of the dashboard cavity. Look for a 12-pin rectangular connector with a gray or beige housing. This connector carries power, ground, speaker feeds, and illumination signals. If present, an additional smaller 4-pin connector may handle steering wheel audio controls–note its position for reinstallation.
Color coding varies by model year but follows industry standards. Expect solid colors (white, gray, green, purple, blue, yellow) for positive speaker leads and matching striped wires for negative returns. A yellow/black stripe supplies constant 12V power, red delivers switched power, and black is the ground. An orange wire with a white stripe handles dimmer illumination. Verify these with a multimeter set to DC voltage before making any connections.
Trace the harness upward if it’s not immediately visible. The bundle routes through a firewall grommet behind the glovebox on 2012-2017 models, while earlier versions tuck it behind the instrument cluster. Remove the glovebox or lower dashboard panel for access–four 7mm screws secure the latter. Avoid tugging wires; some may snake into the footwell for courtesy lights or antenna amplifiers.
For vehicles with premium sound systems, an additional inline amplifier may sit near the left kick panel. Its harness will include thicker gauge wires (typically 16-18 AWG) for low-frequency signals. Disconnect the battery before probing these to prevent shorts or activating airbag circuits. If retrofitting an aftermarket unit, splice into the main harness rather than removing the amplifier to retain door chime functionality.
Troubleshooting Hidden Connectors
If the main harness isn’t found, check for factory harnesses routed beneath the driver’s side carpet. Some variants have a secondary junction block here for rear seat entertainment or satellite tuners. Peel back the carpet to expose a black plastic cover–remove two screws to access. Label any disconnected plugs immediately to avoid miswiring during reassembly. Use insulated crimp connectors for repairs; soldering introduces heat risks to adjacent systems.
Identifying Harness Wire Colors and Purposes for Custom Audio System Upgrades
Locate the 12-volt constant power lead (typically yellow or orange with a red stripe) first–it maintains memory settings even when the ignition is off. Verify with a multimeter: voltage should read 12V regardless of key position. The switched power feed (red or pink) activates only when the ignition is turned; never splice these two together, as this will drain the battery overnight. Ground wires (black or brown) must connect directly to chassis metal, not plastic or painted surfaces, to prevent electrical noise.
Speaker cables follow a consistent but not universal color scheme: front left positive (gray or light gray), front left negative (gray with black stripe), front right positive (white or white with red stripe), front right negative (white with black stripe), rear left positive (green or green with violet stripe), rear left negative (green with black stripe), rear right positive (purple or purple with gray stripe), and rear right negative (purple with black stripe). A polarity tester or quick 1.5V battery touch confirms correct phasing–reversing polarity weakens bass response and distorts stereo imaging. Keep RCA signal cables (red for right, white or black for left) at least 4 inches away from power wires to avoid alternator whine.
Amplifier remote turn-on (blue or blue with white stripe) requires a clean 12V signal from the factory harness–resistance exceeding 1 ohm on this line can trigger amplifier faults. For steering wheel controls, identify the data bus wire (often a single-pin connector, purple/tan or orange/light blue); adapter modules like Metra ASWC-1 simplify integration without cutting factory harness integrity. Always secure connections with solder and heat-shrink tubing–wire nuts or electrical tape degrade within months, causing intermittent failures.
Installing an Aftermarket Audio System in Your SUV: A Hands-On Guide
Disconnect the negative terminal from the vehicle’s battery before starting. This prevents short circuits and protects the electronics. Locate the factory harness behind the dashboard–it’s typically a 10-to-16-pin plug bundled with colored wires. Match these to the aftermarket head unit’s harness using a wiring adapter for your model year (e.g., Metra 70-1002 or Scosche SU1060B). If no adapter exists, strip the factory wires carefully and use a multimeter to identify voltage–constant 12V (yellow), switched 12V (red), ground (black), and speaker leads (varies by trim).
Attach the new stereo’s harness to the adapter or directly to the vehicle’s wires using crimp connectors or solder. Soldering provides a more reliable connection; heat-shrink tubing protects the joint from corrosion. Avoid twist-and-tape methods–they fail under vibration. For amplifiers, tap into the constant 12V and ground at the fuse box (add a 10A fuse inline) rather than the stereo harness to prevent voltage drop. Speaker wires (typically 16-18 AWG) should pair as follows: front left (+/-), front right (+/-), rear left (+/-), and rear right (+/-). Polarity is critical–reversing it distorts sound.
Mounting the Head Unit Securely
Remove the dashboard trim by prying clips with a plastic trim tool–start at the bottom and work upward. Some models require unscrewing the climate controls or hazard button panel. Test-fit the new stereo’s mounting kit (e.g., Metra 99-8212) before securing it. If the factory brackets interfere, trim them with a rotary tool. Insert the stereo into the kit’s cage and align the tabs; failure to lock it properly causes rattles or misalignment. Reinforce the connection with small zip ties through the side vents if the mount feels loose.
For vehicles with steering wheel controls, connect a compatible interface module (e.g., iDatalink Maestro RR) between the stereo and factory wiring. Program the module via USB or Bluetooth using the manufacturer’s software–popular brands like Alpine, Sony, and Pioneer include preset profiles. Skip this step if the control functions aren’t needed; the basic audio system will still operate. Reconnect the battery and test all functions before reassembling the trim. Check for warning lights on the dash–these indicate a misrouted wire or missed ground.
Final Adjustments and Troubleshooting
If static occurs, reroute the antenna cable away from power wires or add a ferrite choke near the stereo’s input. Low volume on one side suggests a loose speaker wire–recheck polarity and connection tightness. Some aftermarket stereos require a parking brake bypass (check local laws) to enable video playback; this involves splicing into the brake wire (usually pink) and grounding it via a switch. For backup camera integration, repurpose the reverse light wire (purple/white) and connect it to the stereo’s camera input.
Reassemble the dashboard in reverse order, ensuring all clips snap fully. Press firmly but avoid overtightening screws–plastic trim cracks easily. If the climate controls feel misaligned, remove the trim and adjust the stereo’s mounting depth. Once satisfied, take a short test drive to verify all audio zones, Bluetooth, and USB inputs work across different speeds and road conditions. Keep the original harness and stereo for resale value; document any splices for future upgrades.
