For 2010–2023 model years, the fuse box under the instrument panel contains 42 slots, with relays numbered 1–12 on the left bank and 13–24 on the right. Slot 15 (20A) powers the rear defroster grid; slot 32 (10A) handles the transfer case shift motor. Test voltage at the relay socket using a multimeter set to DC 20V–expect 12.4–12.6V at the input terminal. If readings drop below 11.8V, inspect the battery terminals for corrosion or loose connections before proceeding further.
Trace the thick red wire (10-gauge) from the alternator’s B+ output to the junction block behind the driver’s kick panel. At this junction, three splices distribute current: one to the fuse panel, one to the ignition switch, and one to the starter relay. Cut back 3mm of insulation on the starter relay splice and check continuity with the multimeter in ohmmeter mode–readings should show <0.5Ω resistance. Higher values indicate internal breakage; replace the wire segment if continuity exceeds 1Ω.
Locate the onboard diagnostic connector beneath the dashboard, left of the steering column, marked OBD-II. Pin 16 (+12V), pin 4 (ground), and pin 5 (sensor ground) are critical for scan-tool connectivity. Probe these three pins while the ignition is ON–pin 16 must read 12.2–13.0V, pins 4 and 5 should measure 0.0V (±0.1V). Deviations suggest parasitic draw; unplug fuses sequentially until voltage stabilizes to isolate the faulty circuit.
Remove the T47 torx bolts holding the passenger-side rear quarter panel to access the rear lighting harness. The tailgate wiring harness contains six leads: two 12V power, two ground, and two CAN bus (twisted pair). Strip 2mm of insulation on the CAN H (yellow/red stripe) and CAN L (yellow/black stripe) wires. Between these wires, the differential voltage should swing 0.5–2.5V AC when monitored on an oscilloscope with ignition ON. Flatline signals indicate a severed CAN bus; splice in a new twisted pair run to restore communication.

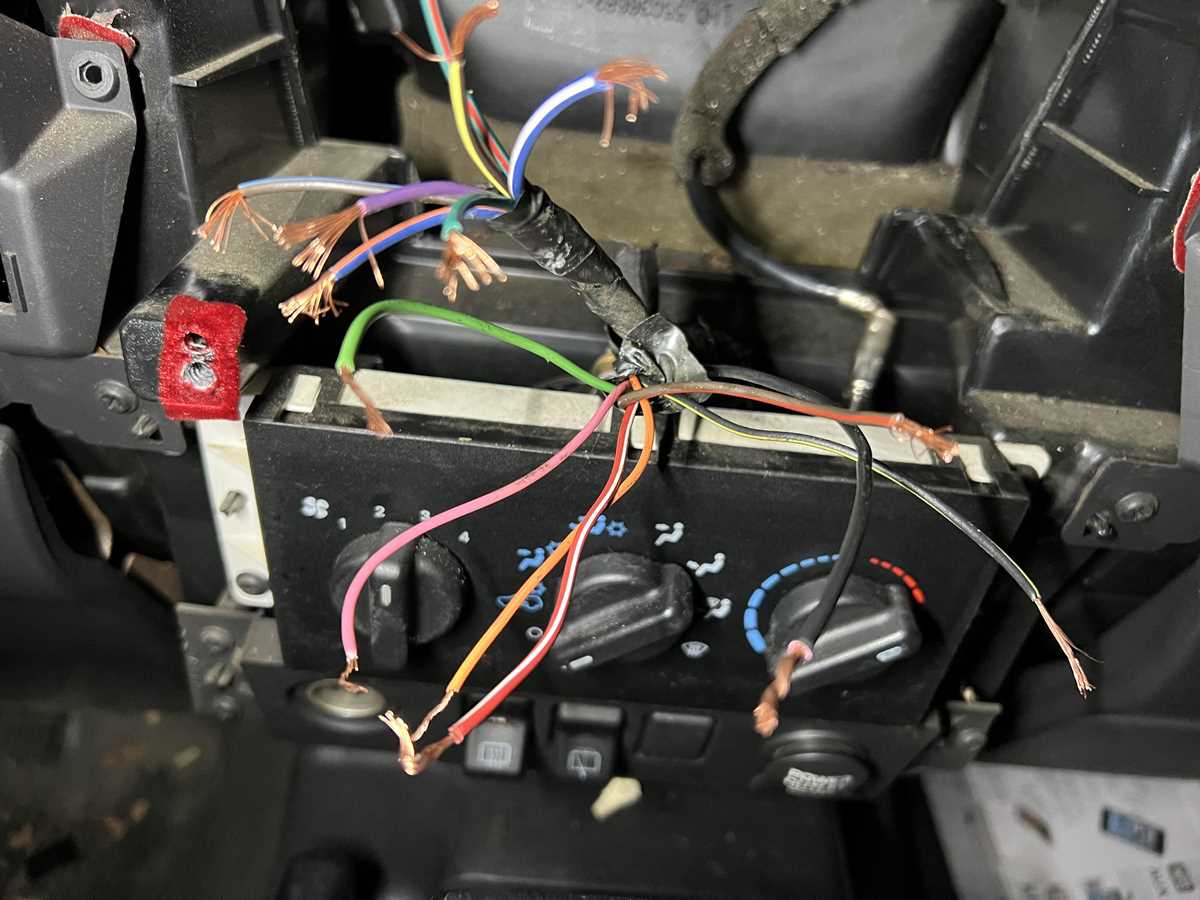

Replace any heat-damaged grey connectors (thermal rating 125°C) at the HVAC module located behind the glove box. The 8-way connector uses crimp terminals; verify crimp depth at 1.5mm before reassembly. Apply dielectric grease to pins 4 (A/C clutch) and 8 (blower speed controller) to prevent oxidation–oxidized pins cause intermittent low-speed fan operation.
Complete Off-Road Vehicle Electrical Schematic Handbook
Begin by locating the main fuse block under the dash on the driver’s side. Remove the mounting screws to access the internal schematic connections. Labels on the panel detail circuit assignments for critical systems: ignition (IGN), headlight relay (HL), and auxiliary power outlets (AUX). Mislabeling here causes frequent electrical failures–verify each connection before reassembly.
For the powertrain control module (PCM), reference pinout positions in the factory service manual. Terminals 32 (12V ignition feed) and 51 (ground) often corrode; clean contacts with an abrasive pad. Use a multimeter to test resistance–values below 0.5 ohms indicate intact wiring. Replace the harness if readings fluctuate or exceed 2 ohms.
Critical Circuit Inspections
- Engine bay relay center: Check Terminal 87a on the horn relay for continuity during activation. Failure here disables starting systems.
- Rear tailgate harness: Inspect the flexible conduit near the liftgate hinge. Frayed wires here are a common cause of intermittent rear wiper and defogger failures.
- Dashboard cluster: Probe the grey/red wire (terminal C2) for stable 5V reference voltage. Deviations distort fuel gauge readings.
Trace the CAN bus network using a scan tool set to “module identification” mode. The bus bars should communicate at 500 kbps; sluggish response suggests damaged twisted-pair cables near the OBD-II port. Shielded wiring repairs require soldering and adhesive-lined heat shrink for moisture protection–a crimp connector will fail in off-road conditions.
- Disconnect the negative battery terminal before splicing any circuits.
- Label cable ends with masking tape and a permanent marker.
- Apply dielectric grease to connectors after reinstallation.
- Recheck all connections with a load test before final reassembly.
Locating Manufacturer-Approved Electrical Schematics for Your SUV
Start with the official service portal at www.techauthority.com. This platform provides direct access to OEM blueprints under subscription, categorized by model year, trim, and system–such as power distribution, infotainment, or lighting circuits. Pricing tiers begin at $25 for a 3-day pass, while full annual access costs $120, covering all updates and revisions. For 2012–2024 vehicles, use the VIN decoder to filter schematics specific to your build, including late-production changes like adaptive cruise control integration or hybrid system wiring.
Alternative Sources
- Factory repair manuals sold on Mopar Repair Connection include fold-out schematics for $50–$80 per volume. Look for the *Service Information* section under “Electrical Diagnosis,” where diagrams appear as high-resolution PDFs with pinpoint callouts for connectors and splice points.
- Select library systems (e.g., Alibris) stock out-of-print *Chilton* or *Haynes* manual reprints–check chapter 12 for fold-out system maps. Expect pre-2010 models to lack CAN bus details.
- Ford-owned Motorcraft Service hosts cross-referenced schematics for shared TIPM modules. Filter by *Shared Platform* > *WK2* architecture.
For urgent needs, independent forums like WK2Jeeps archive member-uploaded files tagged by VIN prefixes. Search threads labeled “WK_YYYY_Trailer_Wiring” or “ZJ_2018_Harness_Patch” to bypass paywalls–verify accuracy by cross-checking fuse locations against the owner’s manual fuse box legend. Avoid aftermarket schematic generators that omit color-coding or splice termination IDs.
Decoding Color Abbreviations in Automotive Electrical Blueprints
Start by locating the legend on the schematic–usually positioned in a corner or along the margins. Most manufacturers use standard two-letter codes derived from the first letters of the base hue and the stripe color. For instance, BK signifies solid black, while PK denotes pink with no secondary stripe. If the second letter is L (e.g., BL), expect a lighter variant–often a white tracer. Verify against the legend; some models deviate, substituting LG for light green instead of LT GN.
Common Variations and Exceptions
Certain harnesses introduce single-letter abbreviations where space is limited. R alone may indicate red, but OR typically means orange. Multicolor wires combine codes in order of dominance: DB/YL shows a dark blue core with a yellow stripe, never the reverse. When encountering a dash (GN-YL), treat it as a transition–first segment green, second yellow. Check the component side of the schematic; some connectors label pins with both wire codes and pin numbers.
| Code | Primary Color | Stripe/Tracer | Notes |
|---|---|---|---|
| BK | Black | None | Ground circuits |
| BR | Brown | None | Lighting, fuse links |
| RD/WT | Red | White | Power feeds, 10A+ |
| GN/OG | Green | Orange | Sensor signals |
| PU | Purple | None | Aftermarket fuse taps |
| YL/BK | Yellow | Black | Data buses, CAN |
Inspect wire bundles under hood and behind panels–colors often fade or darken due to heat. Use a multimeter set to continuity mode to trace wires without relying solely on visual cues. Probe from known points (e.g., fuse box terminals) moving toward the load side. Record findings directly on the schematic using a contrasting highlighter; red for power paths, blue for grounds. Some European-sourced modules substitute VI for violet instead of PU–cross-reference with build sheets if in doubt.
Twisted pairs require special attention. Look for TP notation or dashed circles around two wires–these carry differential signals (CAN high/low, sensor feeds). Splice points appear as dots with a diameter larger than 2mm; label each with its function (e.g., S101) using masking tape. Ignore generic labels like “output” or “input”; replace with specific identifiers (“Park Lamp Relay Coil” or “BCM Ignition Sense”) to speed troubleshooting later.
Advanced Techniques for Ambiguous Schematics
When legends are missing or inconsistent, compare the schematic against a known-good harness from the same trim and year. Peel back loom tape incrementally, confirming each wire’s path with a continuity tester. Some OEMs reuse color codes across different systems–distinguish by circuit protection. A red wire with white stripe protected by a 10A fuse likely feeds multiple components; a 20A-protected RD wire (no stripe) may indicate a starter or high-draw accessory. Take photographs of connectors before disconnecting; upload to a tablet and overlay schematic annotations using digital markup tools.
Store annotated schematics in binders or cloud folders organized by system (lighting, powertrain, HVAC). Update legends with handwritten corrections immediately after verifying discrepancies. Replace generic PDF editors with vector-based tools that preserve layers–allowing future edits without losing original data. Avoid highlighters over faded traces; prefer ballpoint pen for annotations that won’t bleed through thin paper.
Step-by-Step Electrical System Troubleshooting for Off-Road SUV Models
Begin by examining the fuse box located beneath the dashboard on the driver’s side. Use a multimeter to test each 20-amp fuse linked to the interior lighting and power accessory circuits–common failure points in late-90s to mid-2000s variants. Replace blown fuses with identical ratings; avoid temporary fixes like foil or higher-rated substitutes to prevent overheating.
Inspect the ground connections near the battery tray and firewall. Corrosion on the 10-mm bolts securing the negative cable to the chassis disrupts signal flow. Clean contact surfaces with a wire brush and apply dielectric grease before reattaching. For models equipped with trailer harnesses, check the auxiliary ground wire–often overlooked but critical for stable voltage distribution.
Diagnosing Intermittent Power Window Failures
Remove the door panel carefully, disconnecting the latch rods and speaker connectors. Trace the window regulator motor’s harness for frayed insulation or exposed copper strands where the wiring bends near the hinge. Solder breaks using 16-gauge silicone-coated wire and heat-shrink tubing. For motors that fail to respond, test voltage at the connector with the switch depressed–less than 12V indicates a faulty switch or broken circuit within the harness bundle.
Test the body control module (BCM) if multiple systems act erratically. Locate it behind the glove compartment, unplug the 84-pin connector, and probe terminal C3 (orange/white stripe) for ignition-sourced voltage. Fluctuations below 11.8V suggest a degraded alternator or parasitic drain–measure current draw with all accessories off using a clamp meter across the negative battery terminal; values above 50mA demand further investigation.
Resolving Rear Tailgate Electrical Faults
Open the liftgate and access the wiring grommet at the hinge pivot. Cut away cracked rubber seals to reveal the folded harness–commonly damaged by trapped water. Strip back 3 inches of sheathing to expose individual conductors; identify breaks by flexing each wire while monitoring for continuity with a test light. Repair using step-down soldering (overlap joins by 1 inch) and wrap each joint in adhesive-lined heat shrink.
Check the power liftgate module mounted on the inner panel below the wiper motor. Disconnect the 6-pin plug and verify pins 3 (purple/black) and 5 (gray/yellow) carry 12V when the switch is activated. Absence of signal confirms module failure–replace the unit rather than attempting reprogramming, as aftermarket fixes rarely resolve sporadic shutdowns.
Verify all repairs by cycling each affected component ten times. Monitor battery voltage during operation; dips below 12V during startup indicate unresolved high-resistance faults. Document resistance readings across repaired sections–expect
