Start by isolating the main harness connections at the firewall. The 1976–1986 chassis use a 12-terminal bulkhead connector–label each wire before disconnecting. Mistakes here will cascade through the entire system. Use a multimeter to verify continuity; resistance above 1 ohm indicates corrosion or frayed strands.
Trace the ignition feed next. The purple wire with a white stripe (B circuit) delivers power from the ignition switch to the fuse block. If this path fails, accessories like the voltage regulator and fuel pump won’t engage. Replace the inline fuse holder if it shows discoloration–standard 10-amp fuses insufficient for aftermarket upgrades.
The lighting circuit relies on a daisy-chain of brown wires. Headlights connect first, then marker lights, then tail lights. Cutting into this chain for additions like LEDs often causes voltage drop at the rear. Solder all splices and insulate with heat-shrink tubing–electrical tape degrades within months.
Ground points cluster near the battery tray and driver-side fender. Corrosion here mimics dead batteries–scrape paint to bare metal, use star washers, and torque bolts to 15 ft-lbs. Missing ground causes erratic gauge readings and starter motor failure.
For V8 swaps, reroute the alternator wiring directly to the battery. Stock layouts run through a 30-amp fusible link that melts under increased load. Upgrade to 4-gauge cable and a 100-amp alternator. Label every new connection with the destination component.

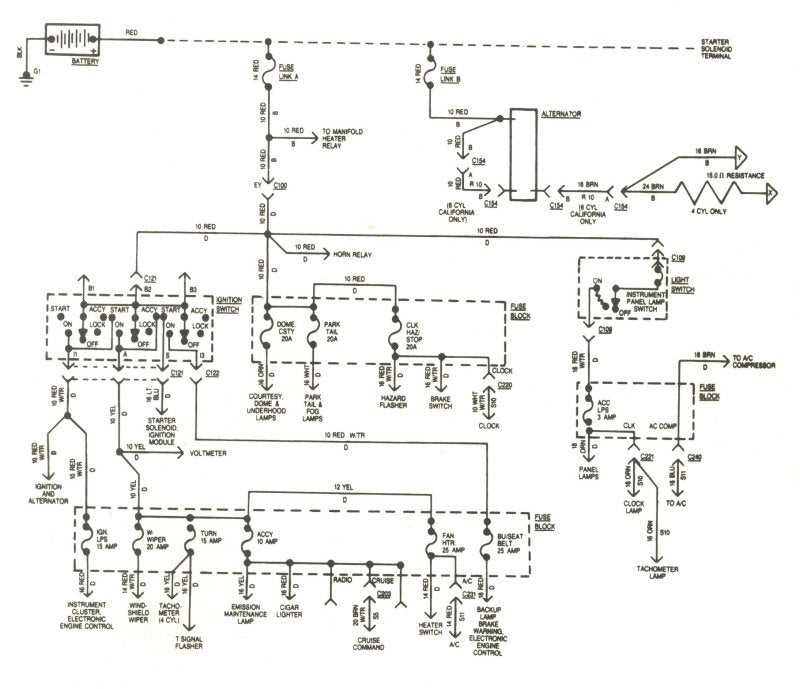

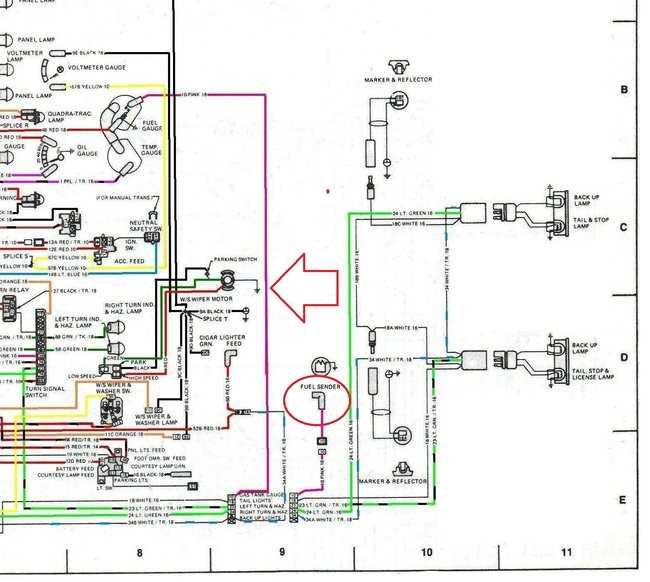

Off-Road Classic Electrical Schematic Reference
Locate the primary fuse box under the dashboard on the driver’s side near the steering column–identify relay slots labeled “headlights,” “ignition,” and “accessory” before disassembly. Use a multimeter to test continuity between terminal 30 (constant 12V) and terminal 87 (load output) with the relay removed; readings below 0.5 ohms confirm integrity. Replace any corroded connectors with gold-plated replacements (TE Connectivity PN 1-967620-1) to prevent voltage drop during operation.
Trace the alternator’s red/white striped cable from the B+ terminal directly to the starter solenoid’s main post–splice resistance should not exceed 0.2 ohms. If voltage drops below 13.8V at idle, inspect the stator windings for discoloration; blackened coils require replacement with a 63-amp unit (Motorcraft PWB-5901). Route ground straps away from exhaust manifolds–secure to bare chassis points using M8 bolts torqued to 25 Nm.
Decode OEM color codes: brown/white = left turn signal, dark green/orange = fuel sender, yellow = backup lights. Cross-reference with aftermarket manuals (Chilton Chapter 12, Haynes Section 8) to verify splice points for auxiliary lighting. Install a 30-amp circuit breaker (Littelfuse 283030) inline for any non-factory electrical additions to prevent fuse overload.
Inspect the bulkhead connector at the firewall–clean each pin with electrical contact cleaner (CRC 05103) and apply dielectric grease before reassembly. Document each step with timestamped photographs; label wires using heat-shrink tubing (Panduit HSTTS-1/4) marked with permanent ink (Sharpie 38000). Store spare fuses (AGC type) in the glovebox alongside a pocket-sized schematic for field diagnostics.
Locating Critical Elements in an Off-Road Vehicle’s Electrical Bundle
Trace the main power distribution block first–typically a rectangular fuse panel near the firewall, marked by heavy-gauge cables (6-8 AWG) feeding accessory circuits. Look for labels like “BAT” or “IGN” on terminals; these connect directly to the battery and ignition switch, respectively.
Identify the harness split where brake lights, reverse lights, and turn signals diverge. The trailer connector often branches here–locate the 7-pin or 4-pin plug, usually secured beneath the rear bumper. Check for corrosion-resistant terminals; aftermarket packages often use tin-plated brass for durability.
Battery Feed and Ground Points
Follow the thickest cables from the battery to the starter solenoid–the red (positive) and black (negative) leads should be no thinner than 4 AWG to handle cranking amperage. Ground straps must attach to bare metal, ideally directly to the engine block or chassis rail. Verify no fewer than three ground points: engine, body, and transmission mounts.
Examine the ignition switch connector–smaller than other junctions but critical. The connector will have 5-6 pins; pinout guides for 1976-1986 models list terminals “B” (constant 12V), “I” (ignition 1), “S” (start), and “A” (accessory). Probe with a multimeter to confirm voltage drops don’t exceed 0.2V under load.
Isolate the instrument cluster wiring by removing the dash panel. Small-gauge wires (18-22 AWG) in green, blue, and yellow stripes correspond to fuel sender, oil pressure, and temperature sensors. These terminate at the back of the gauge pod–disconnecting the cluster requires releasing a 12-pin Molex connector.
Accessory Circuit Tracing
Locate the horn relay, often near the steering column or under the hood. It’s triggered by a thin wire (16-18 AWG) from the horn button, completing the circuit to a heavier gauge output feeding the horn itself. Replace stock relays if spade terminals show pitting or oxidation.
Check the auxiliary circuits last–winches, off-road lights, and aftermarket stereos draw power from separate inline fuses or distribution blocks. Look for add-on harnesses routed through grommets in the firewall or along the inner fender wells. Document each splice before modifying; half the troubleshooting time is spent verifying original paths.
Decoding Electrical Schematics: Color Standards for Off-Road Vehicles
Start by identifying the main power distribution block under the dashboard. The central feed cable–typically 10-gauge with a bright orange stripe–delivers 12 volts from the battery. Verify continuity with a multimeter before proceeding, as corrosion in older harnesses often disrupts current flow at this junction.
Trace the ignition circuit next. The purple wire with a white tracer connects the ignition switch to the coil, relay, and auxiliary circuits. Splice repairs here require 16-gauge heat-shrink tubing to prevent shorts; avoid electrical tape as it degrades under vibration.
| Circuit | Primary Color | Tracer | Wire Gauge |
|---|---|---|---|
| Headlight Low Beam | Yellow | None | 14 |
| Turn Signal Front | Light Green | Black | 16 |
| Brake Light | Red | Yellow | 16 |
| Fuel Sender | Gray | Pink | 18 |
For lighting circuits, the brown wire supplies power to parking and tail lights via the headlight switch. Ground connections must use a dedicated ring terminal crimped to chassis points free of paint or rust; bare metal contact ensures stable voltage.
Check the instrument cluster by testing the dark blue wire with a white stripe, which carries voltage from the alternator to the voltmeter. Replace any corroded bullet connectors with new sealed units to maintain signal integrity, especially in wet conditions.
Reverse light activation relies on a gray wire with a red stripe running from the gearbox switch to the rear lamp housing. Test functionality while engaging reverse; a faulty switch often causes intermittent failures, mimicking wiring issues.
When repairing damaged leads, match the original gauge–never upsize. A 20-gauge wire handling a fuel gauge signal will overheat if replaced with 16-gauge, despite appearing physically compatible. Use crimp connectors rated for automotive applications rather than wire nuts.
Label each connection with heat-shrink labels before final assembly. Photo documentation of the original harness layout prevents misrouting during reassembly, especially for non-factory modifications like winches or auxiliary lighting.
Diagnosing Typical Circuit Problems with Off-Road Vehicle Schematics
Begin by isolating the affected circuit using the color-coded guide: red for constant battery feed, yellow for ignition-controlled, and brown for grounding paths. Probe the fuse block with a multimeter–voltage should read 12.6V at fuse slots marked “IGN” when the key is in the ON position. If readings drop below 11V, inspect the alternator output (typically a thick white cable) and regulator connections; corrosion at the B+ terminal often causes parasitic voltage loss.
Key Areas to Test
- Headlight relay socket: Pin 86 must show 12V when headlights are switched on; if absent, trace the purple wire back to the dimmer switch or stalk connector.
- Turn signal flasher: A clicking sound should accompany bulb operation–no click means a burned-out load resistor (often a metal can near the steering column).
- Ignition coil: Black&white wire should pulse when cranking; if steady 12V is present, check the ignition module’s tan wire for continuity to the ballast resistor.
For intermittent faults, flex each bundle segment near the firewall grommet while monitoring symptom recurrence–chafed insulation here commonly shorts green/yellow wires (instrument panel feeds) against the chassis. Replace any brittle or cracked wire segments with automotive-grade GPT cable, not household Romex, to prevent future breakdowns under vibration.
Upgrading the Off-Road Vehicle’s Electrical Setup for Custom Add-Ons
Install a 12-circuit fuse block with a relay-controlled master switch to manage auxiliary components without overloading the original harness. Position it near the battery, using 8-gauge primary power cables for high-draw devices (winches, light bars) and 16-gauge wires for low-amperage accessories (GPS, monitors). Add waterproof crimp connectors with heat-shrink tubing at all splices–avoid twisting wires, which can corrode under vibration. Ground each circuit directly to the chassis at a single point to prevent voltage drops; sand paint off mounting spots for bare-metal contact.
Integrate a dual-battery isolator if powering a fridge or air compressor–opt for a VSR (voltage-sensitive relay) to automatically switch between batteries without manual intervention. For LED upgrades, bypass the factory dimmer with a dedicated PWM controller to eliminate flickering. Label every connection with mil-spec wire tags or color-coded sleeves, noting amperage ratings on the fuse block’s cover for troubleshooting. Test all circuits with a multimeter before finalizing routes, ensuring no exposed wires contact moving parts or hot surfaces.
