For reliable half-bridge switching, adopt a VCC decoupling capacitor of 1 µF ceramic type, rated 50V, positioned ≤2 mm from the driver’s VCC pin. This placement minimizes parasitic inductance, reducing voltage spikes during commutation. Pair it with a 10 µF bulk capacitor at the DC input to absorb high-frequency transients from the MOSFET switching edges.
Separate the high-side and low-side gate drive loops by routing traces on opposite PCB layers. Use a solid ground plane beneath the low-side section to shield against cross-coupling. Keep the bootstrap capacitor trace width ≥1.5 mm for currents up to 2A, ensuring stable voltage supply to the high-side driver during PWM transitions.
Ground the COM pin directly to the source of the low-side MOSFET via a ≤3 mm trace. Avoid shared paths with the high-side return to prevent latch-up. Insert a 10 Ω resistor in series with the gate drive signals to dampen oscillations, particularly when driving fast-switching SiC MOSFETs (rise/fall times 20 ns).
Monitor VBS node with an oscilloscope probe using ≤10x attenuation, as high-side floating voltage can exceed 600V. Shield the bootstrap diode (Schottky, 200V, 1A) from EMI by surrounding it with a ground pour and placing it ≤10 mm from the driver. For applications above 100 kHz, reduce trace lengths to ≤15 mm to limit switching losses.
Thermal vias under the driver’s exposed pad should connect to a copper plane with ≥2 oz/ft² thickness. Space vias 1 mm apart, using ≥0.3 mm diameter, to improve heat dissipation. Experimental data shows 30% lower thermal resistance with this configuration compared to standard vias.
Practical Implementation of the High-Side/Low-Side Driver Schematic
Begin with a bootstrap capacitor sized between 0.1µF and 1µF, directly connected to the VB pin and HS pin. Use a low-ESR ceramic capacitor rated for at least 25V to withstand voltage spikes during switching transitions. Avoid electrolytic types–their higher ESR introduces unwanted delays.
Place a freewheeling diode immediately adjacent to the power transistor’s drain-source path, cathode facing the positive rail. Select a Schottky type with a reverse recovery time under 50ns; standard silicon diodes degrade efficiency by up to 15% in high-frequency applications. Position it within 5mm of the transistor to minimize parasitic inductance.
Route the HO and LO outputs through separate vias to the gate resistors. Use 10Ω–47Ω values to balance switching speed and ringing suppression. For MOSFETs above 100A, reduce the resistor slightly–excessive resistance prolongs turn-off time, risking shoot-through.
Isolate the COM and VSS grounds. Connect COM to the negative terminal of the bootstrap capacitor and VSS to the system ground plane at a single point. Any shared path here induces ground bounce, corrupting driver logic and causing erratic gate behavior. Keep traces wider than 2mm for currents above 5A.
Add a 10kΩ pull-down resistor between the SD pin and ground to prevent floating inputs during startup. Without it, noise may unintentionally enable the driver, damaging the load or the switching element. For EMI-sensitive designs, include a 1nF ceramic capacitor in parallel to filter high-frequency transients.
Layout Considerations for High-Frequency Operation
Minimize loop area between the driver’s output and the MOSFET gate-source terminals. Long traces act as antennas, radiating EMI and reducing efficiency. Use a star-point topology for power and ground connections, avoiding daisy-chained paths that introduce voltage drops and disrupt timing.
Position decoupling capacitors (0.1µF and 1µF) within 2mm of the VCC pin. Larger electrolytic bulk capacitors (10µF–100µF) belong at the power entry point, not near the driver–their inductance filters low frequencies while ceramics handle switching noise. Bypass VDD with a 10Ω resistor if the driver operates above 100kHz to dampen oscillations.
For dead-time adjustment, insert a 10pF–100pF capacitor between the CT pin and ground. Start with 33pF for 1kHz applications, increasing in 10pF increments as frequency rises. Monitor gate waveforms with an oscilloscope–excessive dead time increases conduction losses, while insufficient time risks cross-conduction.
Selecting Optimal Bootstrap Elements for Half-Bridge Drivers
Prioritize ultra-fast recovery diodes for bootstrap networks. Standard 1N4007 variants introduce unacceptable delays due to reverse recovery times exceeding 5 μs. Instead, use Schottky diodes like SB140 (40 V, 1 A) or ultrafast types such as MUR120 (200 ns reverse recovery) to prevent transient latch-up in high-frequency applications. For 20–100 kHz switching, verify diode capacitance–values above 50 pF degrade gate charge efficiency by 12–18%.
Match bootstrap capacitor ESR to driver load current. A 1 μF X7R ceramic capacitor with ESR under 20 mΩ ensures less than 5% voltage droop during 10 μs pulses at 2 A gate current. Polypropylene film types (e.g., FKS2G0105) reduce dielectric absorption but increase PCB footprint by 40%. For compact layouts, stack two 0.47 μF 0805 ceramics vertically to maintain thermal stability while halving ESR-induced losses.
Capacitor Selection Matrix
| Capacitor Type | Voltage Rating | ESR (max) | Frequency Response | Footprint Cost |
|---|---|---|---|---|
| Multi-layer Ceramic (X7R) | 50 V | 10–30 mΩ | 300 kHz | Low |
| Polypropylene Film | 63 V | 2–15 mΩ | 500 kHz | High |
| Aluminum Electrolytic | 100 V | 100–300 mΩ | 20 kHz | Medium |
Reserve resistors limit inrush current to under 1 A during bootstrap charging. A 10 Ω, 1/4 W carbon film resistor prevents exceeding the driver’s absolute maximum ratings but causes 3% power loss at 50 kHz. For efficiency-critical designs, use a 2.2 Ω resistor with a parallel 100 nF capacitor to shave 1.2 μs off charging time while capping initial surge to 800 mA. Metallized film resistors improve pulse handling by 30% over standard carbon types.
Isolate bootstrap ground from power ground using a dedicated trace or via stitching. A common impedance of 5 mΩ between these grounds induces 75 mV noise at 2 A switching, corrupting gate drive signals. Route bootstrap components on a separate layer with a star-point connection to the main ground plane. For two-layer PCBs, use a 4 mm wide trace with 2 oz copper to maintain less than 20 mV drop during 1 μs transients.
Size the bootstrap capacitor using the formula C = Qg / ΔV, where Qg is total gate charge and ΔV is allowable voltage drop. For a 75 nC gate charge and 0.5 V maximum droop, require 150 nF minimum capacitance. Practical designs add 30% margin for aging and temperature effects–use 200 nF for 85°C ambient. X5R ceramics lose 20% capacitance at 125°C, requiring derating to 330 nF for automotive-grade compliance.
Evaluate bootstrap diode reverse voltage rating against maximum bus voltage plus transients. A 50 V diode suffices for 24 V systems, but 60 V types (e.g., PMEG6010) handle 18–20 μs, 80 V spikes common in non-isolated converters. Include a 1 μF snubber capacitor across the bootstrap diode for circuits with greater than 100 kHz switching to clamp ringing below 150% of bus voltage.
Thermal Considerations
Mount bootstrap components 5 mm from heat-generating power devices to prevent temperature drift. X7R capacitance drops 2% per °C above 25°C–position the capacitor downwind of airflow paths. If reflow temperatures exceed 250°C, select diodes with glass-passivated junctions to avoid reverse leakage doubling at 125°C. Forced-air cooling reduces bootstrap diode forward voltage drop by 8 mV, improving charging efficiency by 1.5% at 100 kHz.

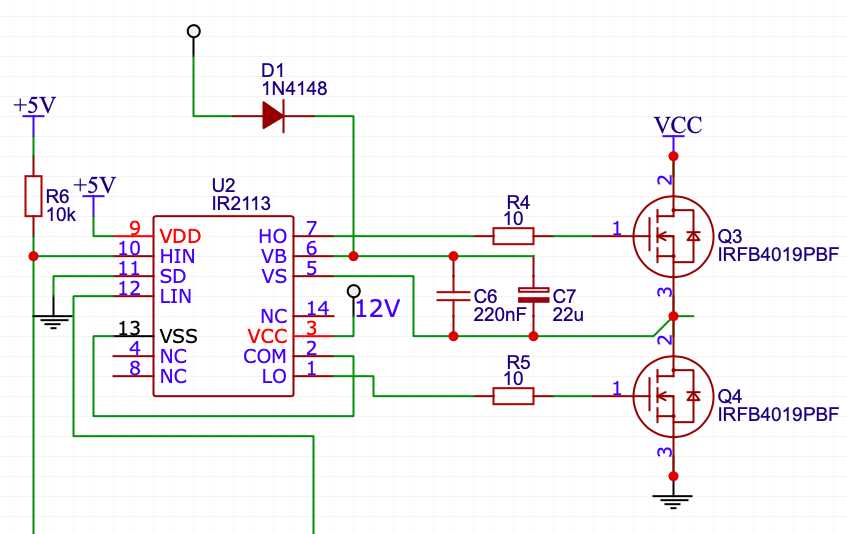

Step-by-Step Half-Bridge Driver Connection Guide
Begin by connecting the high-voltage supply (VCC) to pin 3, ensuring a voltage range of 12–15V. Bypass this pin with a 1µF ceramic capacitor directly to ground to suppress noise. For the floating supply (VB), attach a 10µF bootstrap capacitor between VB (pin 8) and VS (pin 6), with the capacitor’s negative terminal tied to VS. This setup powers the high-side gate during operation.
Link the low-side MOSFET’s gate to HO (pin 7) through a 10Ω resistor. The source of this transistor goes to VS (pin 6), and its drain connects to the load. For the high-side MOSFET, route its gate to LO (pin 5) with a matching 10Ω resistor. Ground the MOSFET’s source, and connect its drain to the same load point as the low-side device to form the half-bridge.

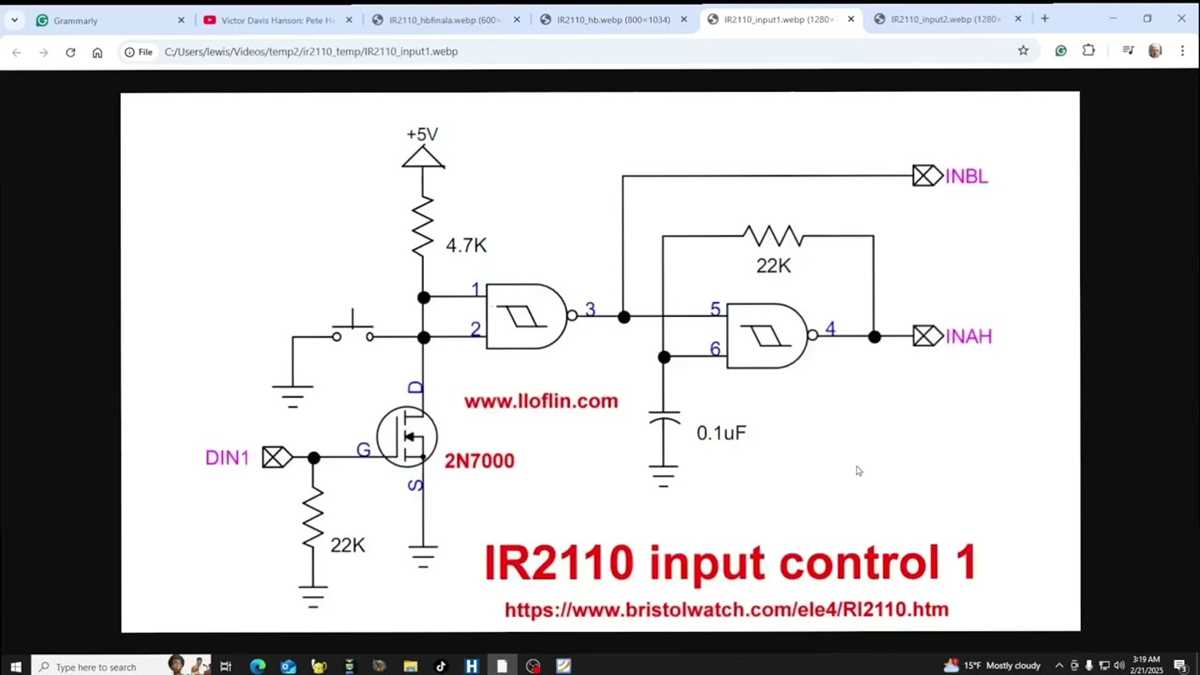

Signal Input and Grounding
Apply the control signals to HIN (pin 10) for the high-side switch and LIN (pin 12) for the low-side switch. Use 3.3V or 5V logic levels, ensuring a series 1kΩ resistor to limit current. Tie COM (pin 2) to the system ground, but isolate it from the power ground (VS) to prevent ground loops. Verify signal polarity–high on HIN activates the high-side, while high on LIN turns on the low-side.
Critical Power and Load Connections
Attach the load between the midpoint of the half-bridge (MOSFET drains) and the positive rail of your power source, typically 24–60V. For stable operation, add a 1N4148 diode across the bootstrap capacitor with its anode at VB to clamp reverse voltages. Test with an oscilloscope–check for clean transitions on HO and LO, ensuring no cross-conduction. Adjust resistor values if ringing exceeds 10% of VCC.
Calculating Optimal Gate Resistance for High-Side Drivers
For MOSFETs with gate capacitance (Ciss) between 1–5 nF, use a gate resistor (Rg) of 10–33 Ω to balance switching speed and ringing suppression. Begin with 22 Ω as a baseline for 600 V devices in half-bridge topologies, adjusting ±10 Ω based on waveform analysis (target
Key Parameters Influencing Resistance Selection
- MOSFET specifications:
- Ciss (input capacitance): lower values permit smaller Rg (e.g., 5 Ω for Ciss
- Qg (total gate charge): calculate Rg = (Vdrive – Vth) / (dQg/dtmax), where dQg/dtmax ≤ 2 A/μs for >200 V devices.
- PCB trace inductance: Keep gate loop area under 2 cm²; use 1 oz copper for traces wider than 2 mm to reduce Ltrace to
- Driver output current (IOH/IOL): Verify peak current compliance: Rg ≥ (Vdriver – VGS) / Ipeak, where Ipeak ≤ 2 A for most isolated drivers.
Measure turn-on/off times with Rg values in 5 Ω increments. For 12 V gate drive, target tr = 20–50 ns and tf = 30–70 ns; deviations indicate miscalculated Rg or excessive gate loop inductance. Use a damped RLC model (Rg + MOSFET internal gate resistance + trace inductance) to predict ringing frequency: fring = 1 / (2π√(L·Ciss)). If fring > 50 MHz, increase Rg by 20% or add a 100 pF snubber capacitor across gate-source to attenuate high-frequency oscillations.
