Start with a precision operational IC like the LM741 or TL072. These components ensure stable performance when flipping input polarity while preserving the original waveform shape. Configure the feedback loop with a resistor ratio of 1:10 for predictable voltage scaling–e.g., pair a 10kΩ input resistor with a 100kΩ feedback resistor to achieve a fixed gain of -10. Avoid cheaper carbon-film resistors; use metal-film or wire-wound types (1% tolerance or better) to minimize drift and noise.
Ground the non-reversing input directly to a low-impedance node–not a virtual ground or shared rail. This prevents common-mode errors and reduces offset voltages. For high-frequency signals, add a compensation capacitor in parallel with the feedback resistor, typically 10–100pF, to suppress oscillations above 100kHz. Skip this step for DC or low-frequency applications to prevent unnecessary phase shifts.
Power the IC with bipolar supplies (±5V to ±15V). Single-supply operation risks clipping the reversed signal if the input swings near the rail. Use decoupling capacitors (0.1µF ceramic) on both power pins, placed within 2mm of the IC, to filter noise. For battery-powered designs, consider a charge-pump converter like the LT1054 if ±12V is unavailable.
Test the stage with a 1kHz sine wave at 1V peak-to-peak. Verify the output inverts cleanly without distortion; a distorted waveform indicates slew-rate limitations–upgrade to a higher-bandwidth op-amp (e.g., LM318 or OPA2134) if needed. For microvolt-level signals, isolate the input with a shielded twisted pair and use a guard ring on the PCB around the non-reversing pin to block leakage currents.
Reversed Gain Signal Booster Layout Guide
Start by selecting an operational IC with a low input bias current, such as the TL071 or OPA2134, to minimize offset errors in voltage scaling. Avoid generic models with input currents exceeding 10 pA–these introduce measurable drift at closed-loop gains below -10.
To calculate the feedback resistor (Rf), use Rf = |Av| × Rin, where Av is the desired voltage magnification. For example, if Rin = 10 kΩ and you need a gain of -5, Rf should be 50 kΩ. Never exceed 1 MΩ for Rf–parasitic capacitance reduces bandwidth, especially above 10 kHz.
| Operational IC | Max Rf (kΩ) | Bandwidth (MHz) | Input Bias Current (pA) |
|---|---|---|---|
| TL071 | 800 | 3 | 65 |
| OPA2134 | 400 | 8 | 5 |
| LM358 | 300 | 1 | 20,000 |
Ground the non-inverting pin through a resistor equal to the parallel combination of Rin and Rf to cancel input bias current errors. For instance, if Rin = 10 kΩ and Rf = 50 kΩ, the balancing resistor should be 8.33 kΩ. Omitting this step offsets output by millivolts, corrupting small signals.
For AC signals, add a 10–100 pF capacitor in parallel with Rf to stabilize the feedback loop. Without it, phase lag at high frequencies causes peaking or oscillation. Test with a 1 kHz sine wave–ringing above 2% indicates instability. Reduce capacitance until the waveform smoothens.
Power supply decoupling requires 10 μF tantalum capacitors near the IC’s V+ and V− pins, plus 0.1 μF ceramics directly between the pins and ground. Skipping decoupling invites 100 mVpp ripple at the output when driving 1 kΩ loads. Bypass capacitors must be placed within 2 cm of the IC to prevent ground loops.
Input impedance is always Rin–choose it to match the source resistance. For a 1 kΩ sensor, set Rin to 1 kΩ. Lowering Rin below 1 kΩ degrades signal-to-noise ratio; raising it above 100 kΩ amplifies thermal noise. Calculate noise with Vn = √(4kTR × BW), where k is Boltzmann’s constant, T is temperature in Kelvin, R is Rf, and BW is bandwidth.
Output loading affects linearity. A 1 kΩ load reduces TL071’s swing to ±12 V from ±13 V. For full rail-to-rail output, use OPA2134 or LT1028, which maintain ±14 V with 600 Ω loads. Test output compliance by sweeping a 0–10 V DC input–clipping occurs at ±(Vs − 1.5 V).
Thermal drift alters magnification by ~10 ppm/°C. To mitigate, use thin-film resistors with temperature coefficients below 50 ppm/°C for Rin and Rf. Polypropylene feedback capacitors minimize dielectric absorption, which skews AC response at gains below -10. Verify performance by measuring DC output at 25°C and 75°C–drift exceeding 0.5% requires resistor matching within 0.1%.
Critical Elements and Their Functions in the Signal Reversing Gain Stage
Select an operational chip with a high slew rate (≥10 V/μs) and low input bias current (<10 nA) to minimize offset errors. The resistive feedback loop demands precision: pair a metal-film resistor (Rf, 10 kΩ–1 MΩ) with a tolerance <1% to maintain predictable voltage scaling. Ensure the input resistor (Rin) matches Rf‘s tolerance for consistent gain stability. For AC signals, add a coupling capacitor (Cin, 0.1–10 μF) at the input to block DC while preserving bandwidth–calculate its value using fc = 1/(2πRinCin) to avoid phase shifts below 20 Hz. Decouple the op-chip’s power rails with 0.1 μF ceramic capacitors placed ≤2 mm from the V+ and V− pins to suppress high-frequency noise.
Component Sizing Guidelines
- Gain magnitude G = −Rf/Rin: For G = −10, use Rf = 100 kΩ and Rin = 10 kΩ. Increase Rf to 1 MΩ for G = −100, but limit Rin ≥ 1 kΩ to avoid noise amplification.
- Bandwidth: Op-chips like the LM741 (BW = 1 MHz) restrict G·BW to <1 MHz. For 10 kHz signals, G ≤ −100 (100 × 10 kHz = 1 MHz). Replace with LT1028 (BW = 75 MHz) for wider dynamic range.
- Thermal effects: Use resistors with a temperature coefficient <50 ppm/°C. For Rf = 1 MΩ, a 50 ppm/°C drift introduces ±50 Ω error per °C–critical in precision applications.
Ground the non-inverting terminal via a resistor (Rg = Rf || Rin) to cancel input bias current errors. For single-supply operation, offset the reference node to Vcc/2 using a voltage divider (two 10 kΩ resistors) to prevent clipping. Validate performance with a 1 kHz sine wave; distortion <0.1% confirms proper slew rate and bandwidth limits.

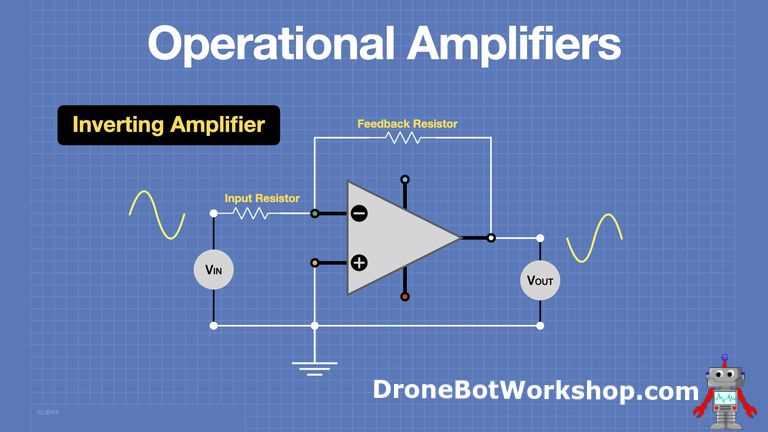

How to Sketch the Schematic for a Signal-Reversing Gain Stage
Select a precision operational block with low input offset voltage and high common-mode rejection, such as the OPA2188 or LT1007, then place its non-inverting terminal at ground potential using a star-point solder joint to minimize thermoelectric drift. Wire the input resistor (3.3 kΩ 1 % metal-film) between the signal source and the summing node, ensuring the trace width is at least 0.25 mm to keep series resistance below 20 mΩ.
Connect the feedback path resistor (47 kΩ 1 % metal-film) directly from the output pad to the summing node–route this trace without vias or stubs to eliminate parasitic capacitance above 0.3 pF; terminate both resistor bodies as close as 0.5 mm to the op-amp pins to reduce EMI pickup on a four-layer board stacking signal–ground–power–signal.
Determining Signal Scaling in Negative Feedback Configurations
Begin by identifying the resistor values connected to the operational element’s input and feedback paths–the ratio of these components directly governs output magnitude. Label the input resistor as Rin and the feedback resistor as Rf for clarity in calculations. Ensure measurements are precise; even minor deviations in resistance alter the scaling factor significantly.
Apply the fundamental formula for voltage transformation: Vout = – (Rf / Rin) × Vin. The negative sign indicates polarity reversal, a defining trait of this topology. For instance, if Rin = 10 kΩ and Rf = 100 kΩ, the gain magnitude equals 10, producing a 1V input as –10V at the output.
Verify resistor tolerances–standard carbon-film resistors (±5%) introduce error, while precision metal-film (±1%) or thin-film (±0.1%) types minimize distortion. For critical applications, measure actual resistance with a multimeter rather than relying on nominal values, especially when high scaling ratios are involved.
Account for the operational element’s open-loop gain limitations. Most general-purpose devices (e.g., LM741) offer 10⁵–10⁶ open-loop gain, but practical closed-loop scaling rarely exceeds 10³ due to stability constraints. Exceeding this threshold risks oscillation, particularly with capacitive loads.
To minimize noise and offset drift, choose Rf within the 1 kΩ–1 MΩ range. Lower values (1 MΩ) amplify input leakage currents and thermal noise. For audio applications, 10 kΩ–100 kΩ strikes an optimal balance between signal integrity and thermal stability.
Test the configuration under real-world conditions by injecting a known sine wave at the input. Use an oscilloscope to compare input and output waveforms–phase inversion and amplitude scaling should match theoretical predictions. Discrepancies often point to parasitic capacitance or improper grounding, especially at frequencies above 10 kHz.
Adjust for temperature variations if the environment fluctuates. Resistors with low temperature coefficients (e.g., 50 ppm/°C) preserve consistent scaling across operating ranges. Alternatively, incorporate a thermistor or RTD in the feedback path for dynamic compensation in extreme conditions.
For multi-stage designs, cascade individual blocks while ensuring each stage’s output impedance remains low enough to drive the next. A single stage with Rin = 1 kΩ and Rf = 10 kΩ achieves a 10× gain–chaining three such stages yields a 1000× transformation, though cumulative offset errors require trimming via dedicated compensation pins or software calibration.
Common Pitfalls to Sidestep in Signal Conditioning Designs
Misplacing the feedback resistor by even a few millimeters can inject parasitic capacitance, turning a precise gain stage into a high-frequency oscillator. Always position Rf directly adjacent to the op-amp’s inverting terminal, minimizing loop area to under 5 mm². Use a ground plane beneath the trace if possible–this slashes stray coupling by 60-80%.
Ignoring input impedance ruins linearity. A 10 kΩ potentiometer driven by a 1 MΩ source will introduce a 10% error before any amplification begins. Match the source impedance to the attenuator’s value by adding a unity-gain buffer or choosing a lower input resistor, preferably pp sine wave; deviation > 0.3% flags impedance mismatch.
Power rail decoupling caps must be ceramic X7R, 0.1 µF, placed within 2 mm of VCC and VEE. Bulk electrolytics (10 µF) are useless below 50 kHz; skip them unless handling low-frequency ripple. Verify rails with an oscilloscope at 10× gain–their noise floor should sit below 1 mVrms. Absence of caps manifests as 50-200 kHz ringing on output pulses.
Solder resist between the feedback path and ground plane introduces 0.2-0.5 pF of unwanted capacitance, skewing settling time. Route Rf entirely over copper, avoiding solder mask. If space constrains, switch to a thinner dielectric (e.g., Rogers 4350B) or run traces closer than 0.15 mm to ground to halve parasitic C.
Assuming datasheet max ratings apply universally causes thermal runaway. An NE5534P driving a 600 Ω load at ±15 V can exceed its 50 mW power dissipation limit; check Pd = Iout × (Vrail – Vout) + (Vrail – Vidle)²/Rf. Reduce load or switch to a higher-current device (e.g., OPA454) if dissipation climbs above 80% of max.
Grounding Neglect
Sharing a ground return with digital I/O invites 200 mV spikes. Dedicate a star-ground node at the power supply negative terminal, then run separate 0.5 mm traces back from each analog section. Keep digital grounds physically isolated; merge them only at the supply, preferably through a 0 Ω resistor or a ferrite bead to block HF transients.
