Begin by identifying the *load*, *line*, and *neutral* terminals on your device’s terminal block–most models label these as L (hot wire), T (switch leg), and N (return path). Mistaking these will cause the device to malfunction or create a short circuit. For 120V residential circuits, the black (hot) conductor connects to the L terminal, the red or blue (or marked wire) attaches to T, and the white neutral secures to N. Ground the bare or green wire to the metal junction box or grounding screw.

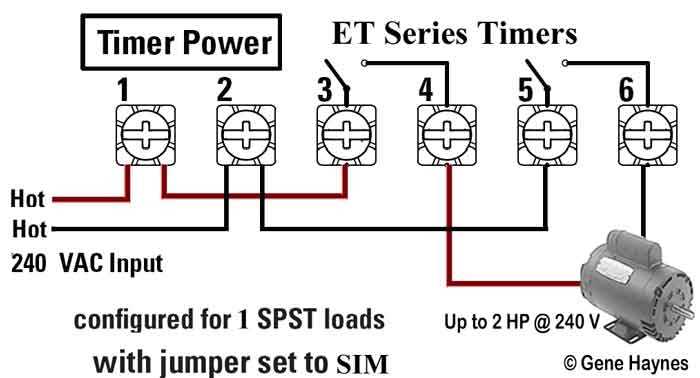

If working with a 240V setup, two hot conductors (often black and red) link to the L1 and L2 posts, respectively–no neutral is required. Double-check the voltage rating on the device’s housing before connecting; exceeding it risks permanent damage. Use a multimeter to confirm absence of voltage before handling wires; test between each conductor and ground, then across conductors. Avoid twisting wires together loosely; secure all connections with wire nuts and wrap them clockwise to prevent slippage under tension.
For digital or programmable variants, consult the manual for jumper configurations–some models require bridging terminals to bypass internal functions. Incorrect jumper placement can disable scheduling features or cause erratic operation. If the device fails to activate, verify the schedule settings match the 12-hour or 24-hour clock format, and ensure the override switch (commonly labeled ON/AUTO/OFF) is in the AUTO position. Replace batteries annually in battery-backed units to prevent settings loss during power outages.
Mount the device in a dry, accessible location away from direct sunlight or heat sources; prolonged exposure to moisture or temperature swings degrades internal components. After installation, restore power and observe for 60 seconds–normal operation includes a quiet hum or relay click when engaging. If the device trips a circuit breaker immediately, a wiring fault exists; disconnect and retest connections for shorts or reversed polarity.
How to Connect Your Automated Control Device Properly
Before handling any electrical connections, shut off the power at the circuit breaker to prevent accidental shocks. Use a non-contact voltage tester to confirm the wires are dead–this step is non-negotiable. If the device includes a backup battery, remove it temporarily to eliminate residual current. Label each wire with masking tape to avoid confusion during reinstallation, especially if the existing setup is complex.

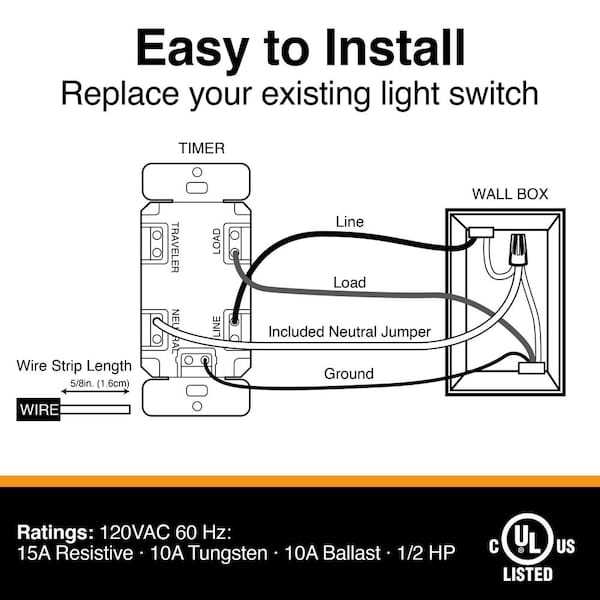

The neutral wire, typically white, must connect directly to the terminal marked for it. In systems with a ground wire (bare copper or green), attach it to the designated grounding screw or post. Misplacing these can cause operational failures or safety hazards. For models requiring a separate load wire, match it to the terminal labeled “load” or “output”–usually identified by a darker screw or a distinct marking.
Devices designed for 240-volt setups demand careful attention to wire gauge. Use 12 AWG for standard loads under 20 amps, but switch to 10 AWG if the circuit handles higher amperage. Undersized wires overheat, reducing efficiency and creating a fire risk. Check the manufacturer’s specs for exact requirements–older models may differ from newer versions.
If the unit features a manual override, test it before finalizing connections. Toggle the override switch to ensure it bypasses scheduled operations without causing sparks or tripping the breaker. Some advanced units include a digital display–if yours does, follow the quick-start guide to set the correct time and schedule before proceeding. Incorrect initial programming can lead to unintended cycles.
For multi-pole units, verify that all corresponding terminals align with the same circuit phase. Cross-connecting phases (L1 to L2, for example) can damage the device or create a short. Use a multimeter to check continuity between terminals if unsure. A reading of zero ohms confirms proper linkage, while infinite resistance indicates a misconnection.
After securing all wires, wrap electrical tape around each terminal to prevent accidental shorts. Reinstall the backup battery if removed earlier, then restore power at the breaker. Observe the unit for unusual noises, flickering lights, or burning smells–all signs of a flawed setup. If any occur, cut power immediately and recheck connections.
Calibrate the device by running a test cycle. Set a short duration (10–15 minutes) and monitor the connected load. If it engages and disengages as scheduled, the installation is correct. For units with astronomic settings, input your latitude and longitude to ensure sunrise/sunset synchronization aligns with local conditions. Errors here lead to premature or delayed activation.
Store the manual near the installation site for future reference. Note the model number and purchase date on the cover–useful for warranty claims or troubleshooting. Regularly inspect terminals for corrosion, especially in humid or coastal areas, as buildup impedes conductivity. Tighten loose screws annually to maintain a stable connection.
Step-by-Step Guide to Identifying Control Unit Model Numbers
Locate the product label on the back or side panel of the device. Most manufacturers stamp model details in a small, recessed area away from primary functional components. Check for alphanumeric codes beginning with “EJ,” “HB,” or “T100” followed by 3-4 digits–these denote series-specific variations. If the label is faded, use a flashlight at a 45-degree angle to reveal embossed characters.
Compare the series code against known production batches. The table below outlines common prefixes and their corresponding release periods:
| Prefix | Manufacturing Years | Key Features |
|---|---|---|
| EJ | 2005–2012 | Mechanical dial, 7-day programming |
| HB | 2013–2018 | Digital interface, battery backup |
| T100 | 2019–present | Wi-Fi enabled, solar-compatible |
For units installed in enclosures, remove the faceplate by pressing the release tabs on each side–most are held by two plastic clips. Examine the interior frame for a secondary label, often placed near the circuit board edge. If corrosion obscures the text, gently brush with isopropyl alcohol and a soft-bristled tool to clear debris without damaging traces.
Advanced Identification for Unmarked Units
Measure the control unit’s dimensions and note distinct physical traits. Legacy mechanical series typically have a 4.25″ × 4.25″ footprint, while newer variants reduce to 3.75″ × 3.5″. Count the terminal screws: older models feature 5 terminals (Line, Load, Neutral, Ground, Common), whereas recent versions omit the Common. Cross-reference these observations with the manufacturer’s official support database using the prefix as a search filter.
Essential Equipment and Supplies for Installing an Automatic Time-Based Control Device
Begin with a voltage tester to confirm the circuit is de-energized before handling any connections. Choose a non-contact model with a sensitivity range of 50V–1000V AC for safety and precision. Brands like Fluke, Klein Tools, or Milwaukee offer reliable options with audible and visual alerts.
A sturdy pair of wire strippers is critical for cleanly removing insulation without damaging conductors. Select a tool with multiple gauge settings (10–22 AWG) and integrated cutting blades for efficiency. Look for ergonomic designs with spring-loaded handles to reduce hand fatigue during prolonged use.
Needle-nose pliers help manipulate small wires in confined electrical boxes. Opt for models with insulated handles rated for 1000V AC and serrated jaws for better grip. Some variants include wire-crimping slots, useful for securing terminal connections.
Specialized Components for the Time-Controlled Mechanism
Ensure the replacement control unit matches the electrical specifications of the existing system. Verify voltage (120V or 240V), amperage (typically 15A or 20A), and whether it supports single-pole or double-pole configurations. Check compatibility with inductive loads like motors or transformers if required.
Use UL-listed wire nuts or lever-type connectors for secure, long-lasting joints. For 12-gauge wire, yellow nuts or Wago 221 series connectors provide optimal tension and conductivity. Avoid twist-on connectors lacking compression springs, as they may loosen over time.
A multi-bit screwdriver with interchangeable tips (Phillips #2, flathead 1/4″, square #2) speeds up mounting and terminal adjustments. Magnetic tips prevent dropped screws in tight spaces, while insulated shafts protect against accidental shorts. Models with cushion-grip handles improve torque control.
Conduit or cable clamps (NM or MC type) organize and protect wires entering the junction box. Select clamps rated for the appropriate cable diameter (e.g., 1/2″ for 14-2 NM cable) and ensure they meet local code requirements for strain relief. Metal clamps with saddle-style designs prevent wire chafing better than plastic alternatives.
For final verification, a digital multimeter measures voltage, continuity, and resistance. Choose a meter with automatic ranging, a backlit display, and a minimum CAT III 600V safety rating. Models with low-impedance mode avoid false readings from ghost voltages in older installations.
How to Safely Deactivate Power Before Handling an Electronic Control Device
Locate the primary circuit breaker box in your building–typically found in basements, garages, or utility rooms. Verify the panel is clearly labeled with identifiable tags for each fuse or breaker. If labels are missing or unclear, prepare to methodically test each circuit using a non-contact voltage detector before proceeding.
Turn off the specific circuit governing the area where the control device will be installed. Use the main breaker only as a last resort, as this cuts power to the entire property, including critical systems like refrigeration, security, or medical equipment. Double-check the circuit by testing nearby outlets or fixtures with the voltage detector to confirm deactivation.
For additional safety, use a multimeter to measure voltage at the installation site. Set the multimeter to AC voltage mode and touch the probes to the terminals where the device connects. A reading of 0 volts confirms the circuit is safe to handle. Even after breaker disconnection, residual current may persist in capacitors or inductive loads–wait at least 5 minutes before touching any components.
Wear insulating gloves rated for electrical work (e.g., ASTM D120 or IEC 60903) and use tools with insulated handles. Avoid standing on wet surfaces or near conductive materials like metal pipes. If working in a confined space, ensure proper ventilation and have an assistant nearby in case of emergencies.
Before beginning any modifications, tape the breaker switch in the OFF position with electrical tape to prevent accidental reactivation. This step is critical if other individuals have access to the panel. Use a flashlight or headlamp–never rely on temporary lighting connected to an unsecured circuit.
Common mistakes to avoid:
- Assuming a circuit is dead without testing–always use a detector.
- Ignoring nearby live circuits that may share a junction box.
- Touching bare wires or terminals with bare hands, even if the breaker is off.
- Skipping the multimeter verification step when working on high-load circuits.
If the panel lacks clear labeling, systematically shut off each breaker one at a time while someone else monitors nearby fixtures or outlets with a voltage detector. Mark each verified circuit with temporary labels to streamline future work. Never work alone on high-voltage systems–always have a second person present certified in basic first aid and CPR.
After completing the installation, restore power gradually. First, turn the specific breaker back on and test the device. If issues arise, immediately shut off the circuit and recheck connections. Only after confirming functionality should you re-energize other circuits or remove the breaker lockout. Document any changes to the panel labeling for future reference.
