Begin by confirming the power supply matches the label specifications–typically 120–240V AC–before handling any terminals. Locate the line side marked “L” and connect the incoming hot wire to this screw first, using a screw-down clamp rated for at least 20A. Secure the neutral return (commonly white) to the adjacent unlabeled terminal, ensuring no exposed strands extend beyond the terminal plate–excessive length risks short circuits under load.
Attach the load wires (red or black) to the switched terminals labeled “1” and “2,” verifying polarity alignment per the device’s duty cycle requirements. For 24-hour operation, skip the “skip-day” jumper; for astronomical scheduling, bridge the designated pins with a 18-gauge solid copper jumper. Circuit integrity demands torque settings: apply 12 in-lbs to each terminal screw–undertightening causes heat buildup, overtightening distorts clamp threads.
Before restoring power, meter the connections for continuity between the line hot and load hot using a multimeter–a reading above 0.5 ohms signals improper contact. Test all programmed cycles with a non-critical load (e.g., a 40W incandescent bulb) to confirm relay engagement timing matches on/off expectations. If erratic operation persists, inspect for voltage drop across the line-L feed; values exceeding 3% of nominal indicate undersized conductors or distant source impedance.
Step-by-Step Manual Switch Setup for Mechanical Cycling Devices
Connect the power source’s hot wire to the brass terminal marked “L” or “Line” on the device’s base. Use a 12-gauge copper conductor for circuits rated up to 20 amps to prevent overheating under continuous load. Strip exactly 5/8 inch of insulation from the wire end–excess length increases risk of shorting against adjacent terminals.
Attach the neutral wire directly to a grounded terminal screw, typically silver-colored, bypassing the mechanism entirely if neutral isn’t required for operation. Verify local codes–some jurisdictions mandate neutral connections at all device boxes regardless of functional need. Test for voltage drop across the neutral path with a multimeter; readings above 3V indicate loose connections demanding immediate correction.
Route the output load wire to the dark-colored terminal labeled “Load” or “X.” Securely tighten all terminal screws to 12 in-lbs torque using a calibrated driver–over-tightening risks thread damage, while under-tightening causes arcing. For inductive loads like motors, install a snubber capacitor (0.1µF, 250VAC) across these terminals to suppress transients that degrade contacts over time.
Set the dial face by aligning the on-off trippers to the desired schedule. Each quarter-hour increment equals 15 dial minutes–adjust trippers in pairs for symmetrical cycles. Lubricate the dial mechanism with silicone spray annually to prevent binding; petroleum-based lubricants attract dust and accelerate wear. Avoid exceeding 64 trips daily–the internal spring fatigue threshold begins at this count.
For 240-volt configurations, split the incoming hot wires across two adjacent brass terminals, confirming both carry balanced current via clamp meter. Uneven loads exceeding 10% imbalance mandate a dedicated neutral path to prevent overheating in single-side termination scenarios. Ground the metal case to the equipment grounding conductor with a green #10 AWG wire, even if the circuit breaker lacks GFCI protection.
Test operational sequences by manually actuating the switch three times in rapid succession–sticking trippers indicate contaminant buildup requiring cleaning with electrical contact cleaner. Replace worn trippers showing less than 3mm protrusion; factory-spec replacements ensure consistent engagement with the dial mechanism. For outdoor installations, use a weatherproof cover featuring a hinged door and silicone gasket rated NEMA 3R minimum.
Calibrate the internal clock mechanism by rotating the dial slowly while powered–manufacturer-spec deviation is ±2 minutes per 24 hours. Compensate for drift by adjusting tripper positions in 0.5mm increments until scheduling accuracy falls within ±30 seconds daily. Document all adjustments in a maintenance log attached to the device housing; include date, drift direction, and tripper position changes for future reference.
Isolate power via upstream disconnect before servicing. Verify zero voltage at all terminals with a non-contact tester followed by a multimeter in continuity mode–failure to confirm isolation voids UL listing compliance. Use only factory-approved replacement parts; aftermarket components often alter trip torque ratios, causing premature failure of the spring-driven escapement gear.

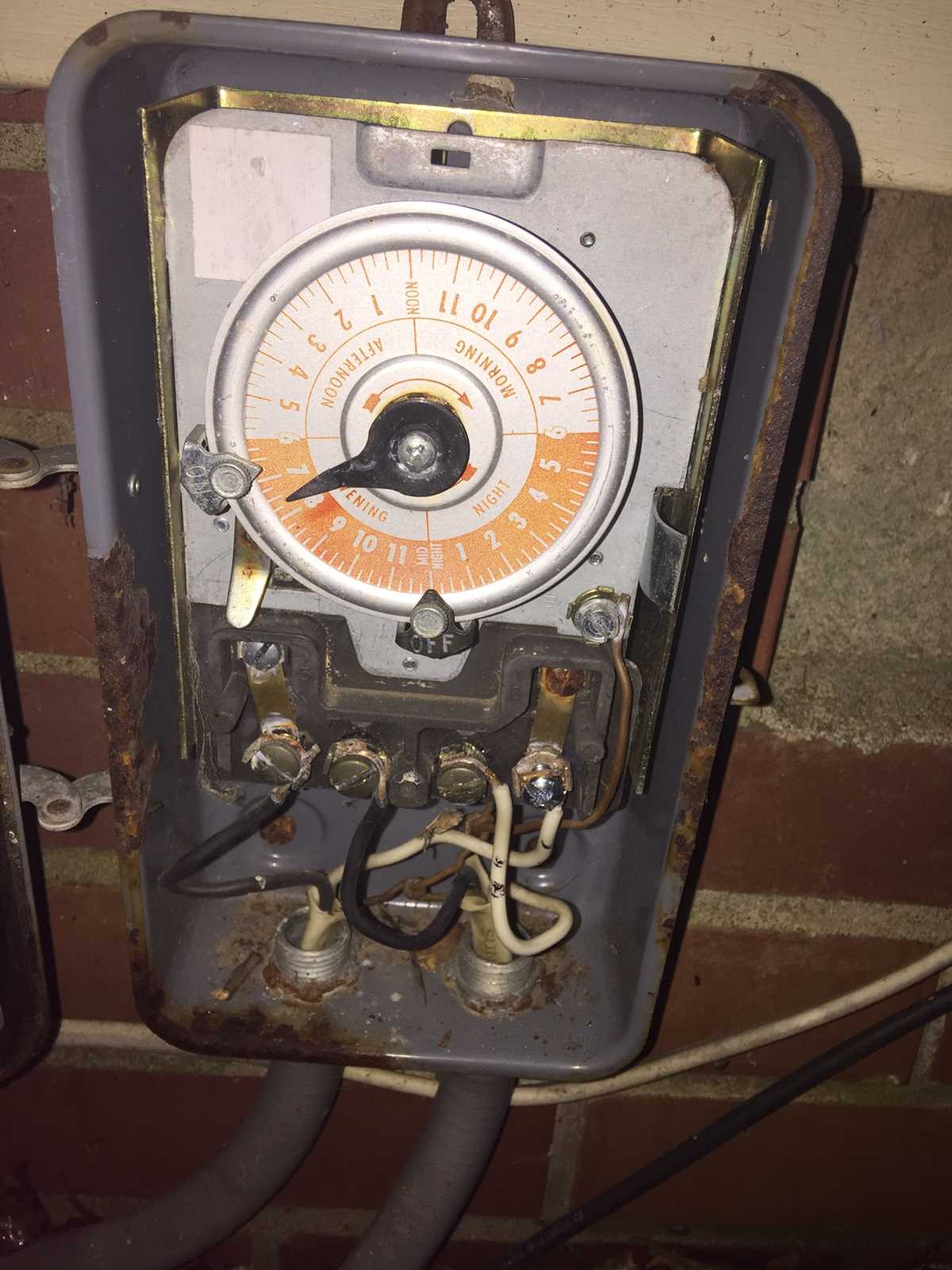

Understanding the Terminal Layout on Your Time-Based Switch
Label each contact clearly before disconnecting any wires–terminals marked 1, 2, 3, and 4 correspond to power in, load, neutral in, and neutral out. Place a small piece of masking tape directly beneath each screw to note wire function; this eliminates guesswork during reinstallation. Verify the neutral pair (3 and 4) is landed correctly–swapping them trips breakers instantly.
Check the manual’s exploded view for torque specs: tightening screws to 8–10 in-lbs prevents arcing under 15-amp inductive loads. If replacing a defective unit, snap a photo of the existing hookup before stripping wires; use wire nuts sized for 12 AWG solid copper only. Strip insulation to exactly 5/16″ using a dedicated gauge–excess conductor increases resistance, leading to terminal overheating.
Cycle the mechanism fully before energizing; if the clock face doesn’t advance smoothly, lubricate the synchronous motor’s rotor with a single drop of light machine oil at the shaft access hole–do not over-apply. Confirm the circuit’s polarity with a non-contact voltage tester at each terminal immediately after tightening; false readings can occur if the meter is not calibrated within the last 90 days.
Single-Pole Mechanism Connection Guide
Begin by disconnecting power at the circuit breaker to eliminate risk. Identify the two supply wires: the hot (typically black or red) and the neutral (usually white). For a standard 120V setup, connect the hot wire to the terminal marked “L” or the upper left contact. Attach the neutral to the remaining main terminal if available; otherwise, cap it securely with a wire nut for future use. Confirm no bare wires remain exposed before proceeding.
Attach the load wire–often black or another distinct color–to the terminal labeled “T” or the bottom contact. If the mechanical switch includes a grounding screw (green or bare), connect the equipment ground wire here to ensure safety compliance. Verify all connections are tight; loose terminals can cause arcing or inconsistent operation. Use a multimeter set to AC voltage to test for 0V at the load terminal when the control is off and full voltage when engaged.
| Wire Type | Terminal | Color Code (Common) |
|---|---|---|
| Power Input | L (Line) | Black/Red |
| Power Output | T (Load) | Black/Blue |
| Neutral | N/A (Cap if unused) | White |
| Ground | Green Screw | Green/Bare |
After securing all wires, restore power and cycle the device through its settings. Observe the connected fixture–it should activate and deactivate according to the programmed schedule. If irregularities occur, recheck terminal tightness and wire routing; stray strands can create shorts. For 240V applications, connect both hot legs to the appropriate terminals while omitting the neutral entirely, as these systems lack a grounded conductor.
If integrating with a photocell or external sensor, bypass the internal clock by setting the dial to “On” or connecting a jumper between designated contacts. Refer to the device’s manual for exact jumper locations, as configurations vary. Always label wires with their function before finalizing covers to simplify future maintenance or adjustments.
Configuring a Dual-Switch 240V Control Setup for Mechanical Time Controls
For a dual-switch 240V arrangement, connect the line-voltage supply leads–typically black (L1) and red (L2)–to the upper terminals marked “1” and “3” on the device. Verify the voltage rating on the device matches the circuit: 240V configurations require both hot legs to be active. Use 10 AWG copper conductors for currents up to 30A; ensure all connections are torqued to the manufacturer’s specification (usually 12-15 lb-in) to prevent overheating. Install a double-pole, 30A breaker in the panel, deducing its compatibility with the control’s load rating.
Load and Neutral Wiring Considerations
Attach the load wires–usually another black and red pair–to terminals “2” and “4,” ensuring polarity aligns with the supply side. If the controlled appliance requires a neutral (e.g., certain pumps or heaters), splice the white conductor to the neutral bar in the panel; omit it if unnecessary. For multi-wire branch circuits, verify shared neutral integrity with a clamp meter (leakage should not exceed 0.5A). Label all wires at both ends to simplify future diagnostics.
Solving Frequent Configuration Errors in Mechanical Time Switch Setups
Verify the incoming power connections first. The terminal labeled “L” or “Line” must receive the hot wire from the circuit breaker, while the neutral should connect to the corresponding terminal, often marked “N.” Reverse polarity here will prevent the device from operating and may damage internal components. Use a voltage tester to confirm correct live/neutral pairing before securing contacts.
Check for incorrect load connections. The switched output terminal–typically marked “1” or “Load”–should attach only to the device being controlled (e.g., pump, lighting). Connecting this terminal directly to neutral or ground will bypass the switching mechanism. If the controlled device fails to activate, measure voltage between the load terminal and neutral while the switch is engaged; absence of voltage indicates either a faulty connection or internal relay failure.
- Loose or corroded terminals cause intermittent operation. Tighten all screws securely and clean contacts with a wire brush if oxidation is visible.
- Incorrect dial calibration prevents accurate scheduling. Ensure the tripper pins align precisely with the desired on/off times; minor misalignments can shift operation by 15–30 minutes.
- Skipped manual override steps. After installing, toggle the override switch through all positions–auto, on, off–to reset internal mechanics.
Grounding errors trigger safety hazards. The grounding terminal must connect to a bona fide ground wire or metal junction box bonded to the electrical system. Floating grounds may cause erratic behavior or trip GFCI devices. Test continuity between the grounding terminal and a known ground point using a multimeter set to ohms.
Schedule conflicts arise from mismatched voltage ratings. A 120V model will not function correctly on a 240V circuit, and vice versa. Confirm the device’s rated voltage matches the circuit by checking the label on the rear panel. If voltage is incompatible, replace the unit or rewire the circuit to match specifications. Do not rely on transformer adapters as they introduce additional failure points.
- Reverse motor rotation in the mechanism indicates incorrect dial installation. Remove the faceplate, reorient the clock dial so the notched side aligns with the motor shaft, then reassemble.
- Humming without engagement suggests a stalled motor. Disconnect power immediately to prevent burnout; lubricate gears with dry silicone spray applied sparingly to the worm drive.
- Daylight savings adjustments require manual recalibration. After resetting the clock, check that tripper pins still align with the intended schedule–each hour shift moves the dial 15 degrees.
