Begin with a dual-element thermopile detector rated for 5–15 μm wavelength range, such as the Melexis MLX90614 or Panasonic AMG8833. Place it at the schematic’s front end with a low-noise operational amplifier (e.g., Texas Instruments OPA333) within 2 cm to minimize parasitic capacitance. Power the op-amp from a 3.3V linear regulator (LD1117V33) to avoid switching noise; decouple with a 10 μF tantalum capacitor and 0.1 μF ceramic capacitor in parallel at the supply pins.
Route the detector’s differential output through a bandpass filter centered at 0.1–10 Hz to reject ambient thermal drifts. Use a 2nd-order Sallen-Key topology with 1% tolerance resistors (100 kΩ) and polypropylene film capacitors (1 μF). This preserves signal integrity while cutting EMI from fluorescent lighting or PWM-driven loads. Add a Schottky diode (BAT54) across the op-amp’s input to clamp transient voltages exceeding the supply rails.
For digitization, pair the analog stage with a 16-bit ADC (ADS1115) configured for ±2.048V range. Clock the ADC at 10 samples/second via I2C bus, using 4.7 kΩ pull-up resistors on SDA/SCL lines. Segregate analog and digital grounds at the PCB star point; stitch them only at the LDO’s ground plane. Shield the sensitive traces with a via-stitch fence spaced ≤ λ/20 apart (λ = 65 mm at 4.6 MHz).
Calibrate the circuit using a blackbody source (e.g., Fluke 4180) set to 35°C and 37°C. Place the source 30 cm from the detector and log the ADC readings. Apply a linear regression to map raw counts to temperature; expect resolution of 0.02°C. For motion tracking, add a PIR module (HCSR501) with its own 3.3V supply, wiring its output to a GPIO pin through a 10 kΩ series resistor to prevent latch-up.
Passive Heat Detection Circuit Blueprint
Begin with a VS1838B THT module as the signal receiver, pairing it with a Schottky diode (1N5817) to clamp transients. Place a 10kΩ pull-up resistor on the output line to stabilize logic levels–this prevents false triggers from ambient flicker. For power filtering, a 100nF ceramic capacitor across the supply pins reduces ripple to under 20mVpp, critical for 38kHz signal integrity.
Emitter and Receiver Pairing Layout
Use TSAL6200 emitters driven by an NPN transistor (2N3904) with a 220Ω base resistor for 100mA forward current. Space receivers 5cm from emitters to form a 30° detection cone–calibrate angles using a 1.5mm aperture mask. For range extension beyond 5m, add a boost converter (MT3608) set to 5V, increasing emitter current to 300mA while monitoring junction temperature below 85°C.

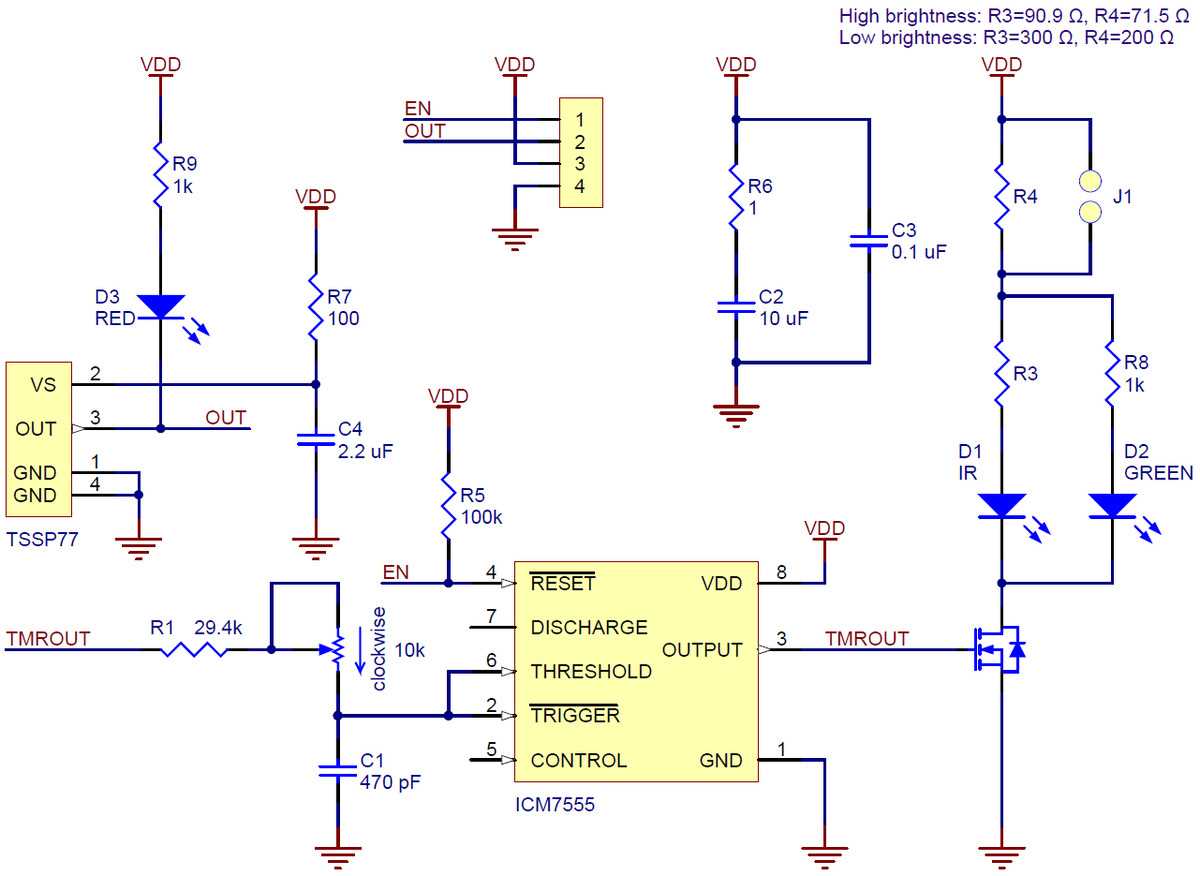

Decouple the entire assembly with a 47µF tantalum capacitor at the power input and route GND traces separately for analog/digital sections to avoid cross-talk. Test modulation reliability with a 555 timer configured for 38kHz ±2% tolerance; drift exceeding 5% degrades S/N ratio. For mobile applications, add a 3-axis accelerometer (ADXL335) to dynamically adjust thresholds, compensating for vibration-induced false positives.
Core Elements of a Thermal Detection Unit Layout

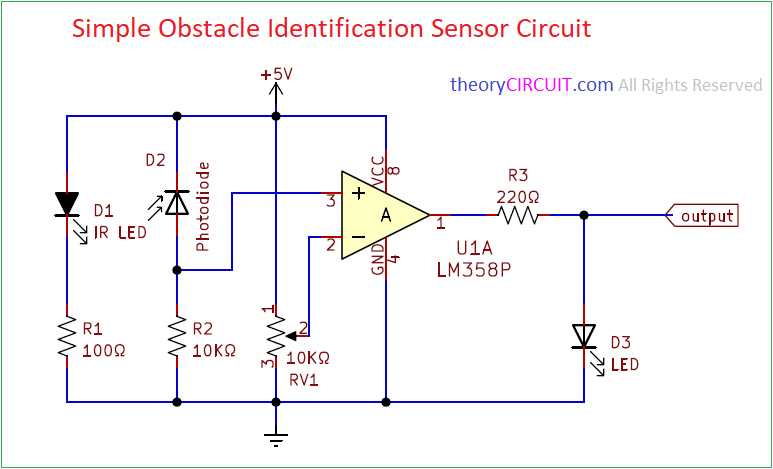

Begin by selecting a photodiode tailored for 0.7–1.4 μm peak sensitivity–common choices include the BPW34 or TEFD4300 for robust near-range detection. Pair it with a low-noise transimpedance amplifier (TIA) like the OPA380, configured with a feedback resistor (Rf = 100 kΩ–1 MΩ) to convert microampere-level currents into measurable voltages. Avoid op-amps with high input bias current (> 5 nA) to prevent drift in low-light conditions.
Stabilize the emitter–typically an 850 nm or 940 nm LED–with a series resistor (Rs) calculated via:
Rs = (Vcc – Vf) / If
where Vf (forward voltage) ≈ 1.2–1.5 V at 20–50 mA. Pulse modulation (e.g., 38 kHz) slashes ambient interference; use a 555 timer or MCU-generated square wave with 50% duty cycle for consistent illumination.
| Component | Typical Value | Critical Tolerance |
|---|---|---|
| Emitter LED (940 nm) | 20–50 mA | ±5% forward current |
| Photodiode load resistor (RL) | 10–100 kΩ | ±1% to minimize noise |
| TIA feedback cap (Cf) | 10–100 pF | <±20% for stability |
Decouple the supply lines near the receiver with 0.1 μF X7R ceramic capacitors–place them within 5 mm of the pins to suppress high-frequency transients. For battery-powered designs, add a 10 μF tantalum across the rails to counter low-frequency sag. Shield the photodiode with a 700–1100 nm bandpass filter (e.g., Edmund Optics #86-833) to block visible light.
Limit the detection range by adjusting emitter current and optical geometry. A parabolic reflector (focal length 15–30 mm) focuses the beam, extending reach to 1–5 meters with ; without it, expect 30° spread and reduced precision. Calibrate threshold voltages against known distances (test at 10 cm, 50 cm, 1 m)–record variations in a lookup table for compensation.
For ambient light rejection, subtract a DC baseline via a 2nd-order low-pass filter (fc = 10 Hz). Use a dual op-amp like the TLV2372–one channel buffers the raw signal, the other generates the baseline. Differential output improves SNR by 12–18 dB in daylight. Terminate unused MCU pins as outputs and pull high to prevent false triggers from floating inputs.
Step-by-Step Wiring for Passive Motion Detectors
Begin by connecting the detection module’s power pin to a 5V DC supply, ensuring stability with a 100µF capacitor across the input if voltage fluctuations occur. Typical modules like HC-SR501 draw 50µA in standby, so avoid exceeding 12V to prevent overheating. Use solid-core wires (22 AWG or thicker) for signal lines to minimize interference.
- Label wires during disassembly to avoid confusion: red for power, black for ground, yellow for data out.
- Solder joints should be cold-welded with rosin flux; avoid overheating the PCB pads.
- Test continuity with a multimeter before applying power to isolate shorts.
Calibration Adjustments Before Permanent Installation
Rotate the sensitivity potentiometer clockwise until the trigger threshold matches the target distance–start at 3 meters for indoor use. The time-delay dial (typically 5–300 seconds) should be set to 10 seconds for high-traffic areas. For outdoor applications, shield the unit from direct sunlight using a visor or frosted lens to prevent false triggers caused by thermal noise.
- Mount the detector at 2.1–2.4 meters height, angled downward by 15° for optimal coverage.
- Connect the output to a relay module if controlling high-current loads (e.g., 100W LED strips), using an NPN transistor (2N2222) as an intermediary switch.
- For battery-powered setups, add a 1N4007 diode in series to block reverse current and prolong lifespan.
Troubleshooting Common Wiring Errors
If the module fails to trigger, verify ground continuity between all components–floating grounds often cause erratic behavior. Check for voltage drops on the data line; it should read 3.3V when idle and drop to 0V upon detection. If interference persists, twist signal wires with their ground pairs (1 twist per 2 cm) to reduce EMI from nearby motors or fluorescent lights.
For installations requiring multiple detectors, wire them in parallel if covering contiguous zones, or series if chained sequencing is needed–each method alters total amperage draw. Use a flyback diode (1N4148) across inductive loads like solenoids to suppress voltage spikes. Finalize by sealing exposed connections with heat-shrink tubing or dielectric grease to prevent oxidation in humid environments.
Calculating Resistor and Capacitor Values for Signal Filtering
Use a first-order low-pass RC network to reject high-frequency noise, targeting a cutoff frequency (*fc*) of 1 kHz for most detection circuits. Pair a 1.6 kΩ resistor with a 100 nF ceramic capacitor: *fc* = 1/(2πRC)* yields ≈995 Hz, effectively attenuating >2 kHz signals by ≥20 dB. For tighter roll-off, cascade two identical stages–each with half the capacitor value–to achieve a sharper –40 dB/decade slope while maintaining the same *fc*.
For transient suppression in pulsed systems, add a parallel 10 kΩ resistor and 1 µF film capacitor across the sensing element; time constant (*τ* = RC) ≈10 ms stabilizes output within 50 ms of edge events, preventing false triggers during 50 Hz mains interference or mechanical vibration cycles.
Diagnosing Faults in Optical Detection Circuit Layouts
Check for reversed polarity on photodiode components before proceeding with complex tests. Many receiver failures stem from reversed bias connections, where the cathode (typically marked with a ring or flat edge) is incorrectly wired to the positive supply. Use a multimeter in diode-test mode to verify forward voltage drop (~0.6-0.7V for silicon) when the detector is illuminated. If readings show near-infinite resistance in both directions, suspect a broken bond wire or damaged junction.
Measure signal path impedance at each amplification stage. A common error in bi-level detectors involves coupling capacitors sized too small for the carrier frequency–values below 1μF fail to pass 38kHz modulation pulses effectively. Probe between op-amp outputs and comparator inputs; expect
Power Supply Decoupling Pitfalls
Inspect decoupling networks near active components. Missing or undersized capacitors (typically 0.1μF ceramic + 10μF electrolytic) at regulator outputs cause erratic behavior during burst transmissions. Place probes across these capacitors–AC ripple exceeding 50mV RMS indicates insufficient filtering. Verify ground plane continuity; fragmented returns create voltage differentials that corrupt pulse-width measurements.
Test pull-up resistors on open-drain comparator outputs. Values above 4.7kΩ introduce susceptibility to EMI, while values below 1kΩ overload weak pull-down transistors. Observe output waveforms on an oscilloscope; expected square waves should rise/fall within 1μs. Sluggish transitions suggest excessive capacitance on the output node or incorrect hysteresis settings.
Code-Specific Validation
Correlate detected pulse trains with expected protocol timings. NEC-encoded signals demand leader pulses of 9ms followed by 4.5ms pauses–deviations exceeding ±100μs imply incorrect bandpass filtering. Analyze comparator threshold voltages; tune reference points to 60-70% of peak carrier amplitude for optimal noise rejection. Persistent bit errors after these adjustments require verifying the detector’s spectral response matches the emitter wavelength (±20nm).
