For a functional setup, use a 120V AC source connected to a thin tungsten wire (≈240–260Ω) housed in a vacuum-sealed or inert-gas-filled enclosure. The resistance rating must match the voltage supply–never exceed 125% of nominal voltage–to prevent premature filament burnout. A single-pole switch in series ensures safe disconnection under load. Avoid solid-state components unless transient voltage protection (e.g., MOV rated at 150V+) is included.
Wire gauge selection is critical: 22–24 AWG copper for low-current (60W), 18 AWG or thicker is mandatory to prevent resistive losses. Insulation must withstand 200°C continuous–silicone or fiberglass sleeving outperforms PVC in durability. Ground the metallic base via a dedicated safety wire to a confirmed earth point if the housing is conductive.
Test with a multimeter in continuity mode before energizing: probe the socket contacts–measured resistance should align with filament specs (±10%). If readings spike or drop unpredictably, inspect for oxidized contacts or loose terminal screws. For dimming, a triac-based variable resistor (500kΩ) in series can modulate current, but expect non-linear brightness response below 20% power. Never substitute a resistor bank for proper thermal management–filament lifetime degrades exponentially with under-voltage.
For transient protection during power cycling, a snubber circuit (0.1μF capacitor + 100Ω resistor) across the filament absorbs voltage spikes. In DC applications, polarity reversal damages the wire–always verify terminals before connection. High-altitude installations require adjusted pressure or gas fill (argon/krypton) to prevent arcing. Document all modifications; retrace wires after servicing to confirm no exposed conductors remain within 5mm of metal surfaces.
Wiring Schematics for a Filament-Based Illumination Device
Begin by connecting the live wire (typically copper, 14–18 AWG) to a single-pole switch rated for 6–10 amps at 120V AC. Ensure the switch’s terminal screws are tightened to 8–12 inch-pounds of torque to prevent heat buildup. The neutral wire (white or light blue) should run directly to the holder’s screw base, bypassing any control mechanisms to maintain stable current flow. For safety, use a fuse or circuit breaker sized at 125% of the device’s wattage–e.g., a 60W unit requires a 0.75A fuse.
Grounding is non-negotiable: attach a 10–12 AWG green or bare wire from the holder’s metal base to the circuit’s grounding busbar or a cold-water pipe (minimum 4 AWG copper). Verify continuity with a multimeter (≤0.5Ω resistance). For dimming applications, replace the standard switch with a rheostat (linear taper, 200Ω to 1kΩ) and ensure the wattage rating exceeds the device’s load by 30%. Avoid exceeding 80% of the rheostat’s capacity to prevent overheating.
| Component | Specification | Installation Note |
|---|---|---|
| Filament holder | E26/E27 base, 250V max | Verify thread pitch matches regional standards (e.g., ANSI vs. IEC) |
| Wire insulation | THHN, 90°C rating | Avoid PVC in high-heat zones (≥60°C ambient) |
| Switch | SPST, 15A | Use arc-fault circuit interrupters for circuits >100W |
For low-voltage setups (12V–24V DC), use a step-down transformer with a VA rating double the device’s wattage. Primary winding must match the input voltage (e.g., 120V/230V); secondary winding should deliver 1–1.5V above the target voltage to compensate for line losses. Never exceed the filament’s cold resistance (∼1/15th of operating resistance) during startup–add a soft-start module if inrush current exceeds 3× steady-state. Test with a clamp meter: transient spikes should decay within 500ms.
Core Parts for a Fundamental Glow Element Setup

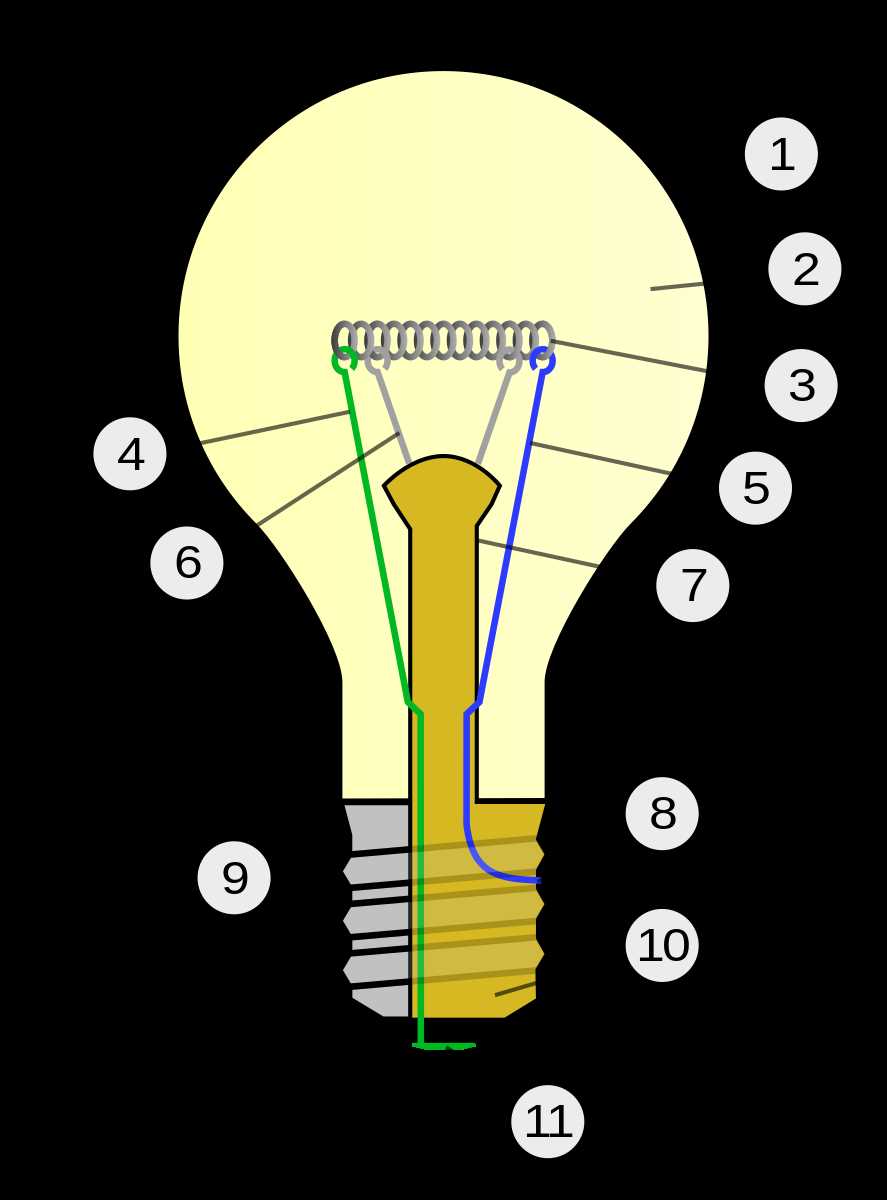

Select a tungsten filament with a resistance between 200–300 ohms for standard 60W equivalency; lower resistance risks premature burnout, higher values reduce luminosity inefficiently. Pair it with a glass enclosure containing argon or nitrogen (0.1–0.2 MPa pressure) to suppress oxidation–vacuum-sealed variants degrade faster due to filament evaporation. Ensure the base uses a medium screw (E26/E27) or bayonet (B22d) fitting, matched to regional voltage standards (120V AC for North America, 230V AC for Europe), to prevent mismatched wattage risks.
Fuse the system with a 1A–3A slow-blow fuse to handle inrush currents up to 8–12× steady-state amperage during cold starts; ceramic-encased fuses outlast glass ones under thermal cycling. Wire gauge must comply with ampacity: AWG 18 for 1–2 amps, AWG 16 for 2–3.5 amps–thinner conductors introduce resistive losses, thicker cables complicate terminal connections. Add a switch rated for 250V AC inductive loads, preferably double-break contacts to minimize arcing.
Step-by-Step Wiring Guide for a Basic Filament-Based Illumination System
Begin by ensuring the power source is disconnected. Use a voltage tester to confirm no current flows through the wires. Select a 60-watt tungsten element if the fixture supports standard household voltage (120V in the U.S., 230V in most of Europe), as higher wattage increases heat output and fire risk.
Strip ½ inch of insulation from the ends of three wires: live (typically black or red), neutral (white), and ground (green or bare copper). Twist the stranded copper strands tightly to prevent fraying. Secure connections with wire nuts rated for the amperage–15-amp nuts for standard residential setups.
Connecting the Components
- Attach the live wire to the brass terminal screw on the socket (usually marked “hot”). Loop the wire clockwise around the screw before tightening.
- Connect the neutral wire to the silver terminal, following the same looping method.
- Ground the green or bare wire to the socket’s green screw or the metallic junction box. Omitting this risks shock hazards.

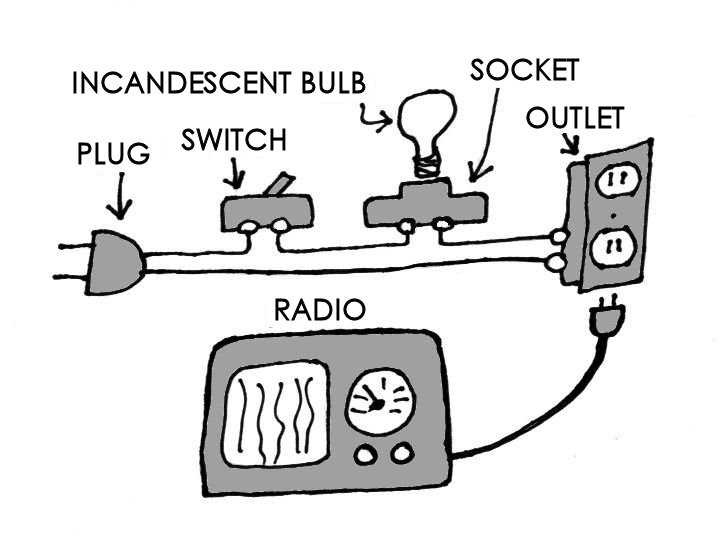

For a single-pole switch configuration, splice the live wire mid-run, running one segment to the switch and the other to the socket. Use a wire connector to join the switch’s output to the socket’s live terminal. Verify all nuts are snug–loose connections cause arcing, which degrades filaments prematurely.
Final Checks Before Powering On
- Inspect wiring for exposed copper; tape any bare sections with electrical tape.
- Tuck wires neatly into the junction box to prevent pinching when securing the cover.
- Thread the tungsten element into the socket until snug–over-tightening damages the base.
- Restore power and test with a multimeter: voltage between terminals should match the supply (e.g., 120V, 230V).
If flickering occurs, check for loose sockets or insufficient wattage. Replace corroded terminals or burnt wires immediately. For dimming functionality, use a compatible switch and reduce wattage to 40W or lower to extend filament life.
How to Calculate Voltage and Current Requirements for Safe Operation
Begin by identifying the filament’s wattage rating from the manufacturer’s datasheet–typically 40W, 60W, or 100W for standard resistive loads. Divide this value by the nominal line potential (e.g., 230V AC) to derive the steady-state current draw. For a 60W load: I = P / V = 60W / 230V ≈ 0.26A. This figure establishes the baseline for conductor sizing and protective device selection.
Account for inrush surges at power-on–filament resistance is nearly ten times lower when cold. Multiply the steady-state current by a factor of 10 to approximate the peak transient. A 0.26A load may spike to 2.6A, dictating fuse links rated at least 3A to avoid nuisance tripping while preventing overheating of wiring.
Verify the supply’s tolerance for voltage drops–aim for no more than 3% loss across conductors. Using Ohm’s Law, V_drop = I × R, calculate permissible cable resistance. For 0.26A over 10m of 1.5mm² copper (ρ = 0.0175 Ω·mm²/m), R = (0.0175 × 20) / 1.5 ≈ 0.23Ω, yielding a drop of 0.06V, well within limits. Exceeding this risks filament starvation and premature failure.
Select breakers or switches with a continuous current rating exceeding the steady-state value by 20–25%. For 0.26A, a 0.35A device ensures reliable operation without false triggers. For pulsed loads (e.g., dimming), derate by an additional 10% to compensate for thermal stress on contacts.
Measure ambient temperature–resistive load dissipation scales nonlinearly with heat. At 40°C, derate conductors by 15% using I_adj = I × √(k), where k is the temperature correction factor (e.g., 0.85 for PVC insulation). Ignoring this adjustment may lead to insulation degradation or fire hazards.
Cross-reference calculated currents against the equipment’s marking plate–discrepancies over 5% warrant investigation for undersized components or supply irregularities. Use a true-RMS multimeter to confirm readings under load, as distorted waveforms (e.g., from phase-cut dimmers) skew average-sensing meters.
Frequent Errors in Filament Device Wiring and Solutions
Connecting wires directly to a socket’s base without proper strain relief guarantees premature failure. Use a terminal block or solder joints wrapped in heat-shrink tubing rated for at least 200°C–standard PVC insulation melts at 105°C. Strip only 5mm of wire to prevent shorts; excess bare copper oxidizes faster under heat, increasing resistance by 12% within 50 hours of operation.
Improper Voltage Matching
Applying 240V to a 120V-rated filament burns it out instantly–current surges to 4x nominal, accelerating tungsten evaporation. Verify transformer taps or wall voltage with a multimeter before assembly; most residential lines vary ±5%, enough to halve lifespan. For low-voltage setups, use a buck converter with ≤1% ripple to prevent flicker at 120Hz, which reduces thermal cycling stress.
Skipping a fuse or using one rated above 125% of the device’s operating current invites fire hazards. A 60W unit drawing 0.5A needs a 0.63A slow-blow fuse–fast-acting types nuisance-trip during inrush peaks (8-10x steady-state). Mount the fuse holder in a ventilated section; permanent circuits benefit from resettable PTC thermistors (e.g., 0.75A hold, 1.5A trip) instead of glass fuses for repeated cycling.
