The primary power distribution for this vehicle’s startup system begins at the battery and flows through fuse #15 in the under-hood relay center. This 30A fuse provides direct power to the ignition relay coil and the ignition switch. From the switch, power splits into two critical paths: the first feeds the run/crank circuit (orange wire, #439), while the second delivers accessory power (pink wire, #440) when the key is turned to the ON position. Ensure these wires are free of corrosion or chafing, particularly where they pass through the firewall grommet near the brake booster.
Trace the orange wire (#439) from the ignition switch to the powertrain control module (PCM) connector C1. This wire delivers constant power during startup and must maintain uninterrupted contact. If the engine stalls when releasing the key, inspect the crank signal wire (yellow, #444), which delivers a momentary 12V pulse from the ignition switch to the PCM, triggering fuel pump activation. Check for voltage at PCM pin 58 with a multimeter during cranking–values below 9V indicate resistance in the circuit, commonly caused by a failing ignition switch or corroded ground at G102.
The fuel pump relay receives power from fuse #22 (15A) and is energized by the PCM via a dark green wire (#85). If the pump fails to prime, verify relay operation by swapping with the horn relay (same part number: 15014432). The pump ground (black wire, #150) connects to chassis ground at G200–inspect this connection if the pump runs intermittently. For hard-start conditions, measure voltage at the pump connector while cranking; drops below 10V suggest a compromised wire or poor ground at the pump housing.
Secondary circuit elements include the engine coolant temperature sensor (ECT), which requires a stable 5V reference from the PCM (gray wire, #211). Loss of this signal triggers failsafe fueling, often misdiagnosed as a faulty pump. Probe PCM connector C2, pin 27 for 5V–absence indicates a shorted sensor or damaged PCM harness. The starter solenoid control wire (purple, #57) also merits attention; corrosion here mimics a dead battery, as it carries the critical ground-side signal from the ignition switch to engage the starter.
Electrical Circuit Layout for the 2006 Chevrolet Compact SUV
Begin troubleshooting by disconnecting the battery’s negative terminal to prevent accidental shorts. Trace the main power feed from the fuse box (located under the dashboard on the driver’s side) to the starter solenoid using a multimeter set to continuity mode–voltage should read 12V when the key is turned to the “start” position. If the reading is absent, inspect fuse #32 (15A) in the under-hood relay center; corrosion here often disrupts signal flow.
Examine the ignition switch’s five-pin connector (part #10340960) for frayed wires or brittle insulation. Pin assignments are as follows:
- Pin 1: Battery voltage (red wire, 12-gauge)
- Pin 2: Starter control (purple/yellow stripe, 18-gauge)
- Pin 3: Accessory feed (pink, 16-gauge)
- Pin 4: Ground reference (black, 16-gauge)
- Pin 5: Instrument panel signal (light blue, 20-gauge)
Replace the switch if resistance exceeds 0.5 ohms on any terminal when probed with a digital ohmmeter.
Locate the Passlock sensor’s two-wire connector (gray, near the steering column). The sensor’s 5V reference wire (yellow) and signal return (dark blue) must show a smooth voltage transition from 0.5V to 4.5V when slowly rotating the key. Sudden drops below 0.3V indicate a faulty sensor–bypass it temporarily by jumping the two wires with a 1k-ohm resistor to test engine response.
Check the engine control module (ECM) connectors C1 and C2 for bent pins or greenish oxidation. Key terminals to verify:
- C1-18 (white/black stripe): Ignition input
- C2-30 (brown): Security data link
- C2-47 (gray): Main relay control
Clean contacts with electronic cleaner and re-seat connectors firmly–intermittent faults here cause stalling after 3 seconds of runtime.
Test the crank position sensor’s 60-tooth reluctor ring by back-probing its three-pin connector while cranking. Voltage should alternate between 0.1V and 4.9V at approximately 3 pulses per engine rotation. Replace the sensor if pulses are erratic or amplitude deviates by more than 0.2V from specified values.
Finalize repairs by reprogramming the theft deterrent system via a scan tool in Mode $07. Enter VIN digits 10–17 into the Tech2 interface, then cycle the key twice within 10 seconds–successful calibration restores full starting authority without security light activation.
Finding Power Control Link Junctions in the SUV Model Year ’06
Start beneath the dashboard on the driver’s side–locate the fuse panel cover, secured by two Phillips screws. Remove the cover to expose the main harness bundle routed along the firewall. The critical connectors are clipped 4 inches above the brake pedal bracket; look for a white plastic housing with 12-pin layout and red locking tab. Squeeze the tab while pulling gently to separate–internal contacts should show three 14-gauge yellow leads (switched voltage), two 16-gauge black leads (ground), and a single 18-gauge pink feed (constant power). Verify pin spacing matches the factory service manual (Section 8D, page 17).

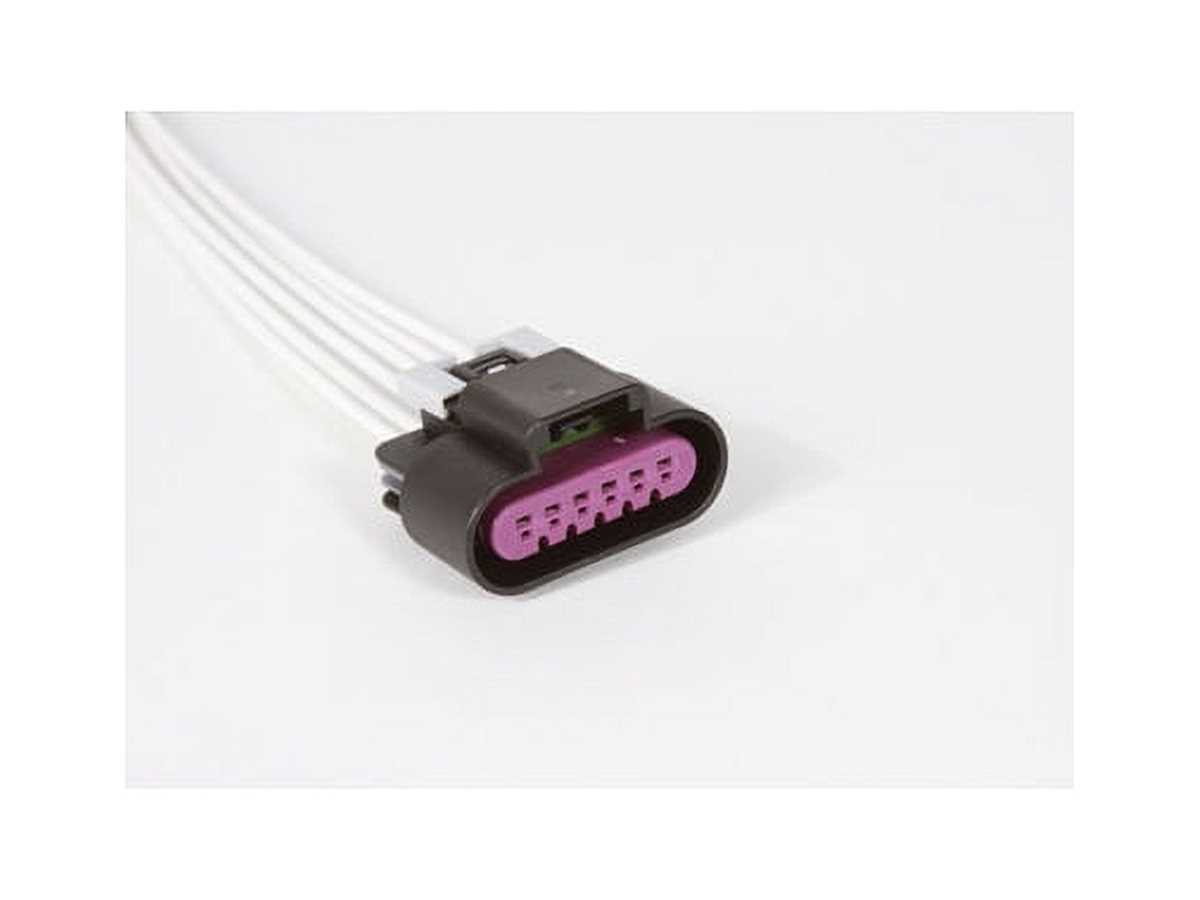

Inspect the steering column shroud next–pop off the upper half using a flat-head screwdriver at the seam just below the turn signal stalk. The secondary junction hides behind a rectangular snap-in plate; pry outward carefully to reveal a 6-pin oval connector tied to the immobilizer module. Pinout: leftmost terminal delivers 12V transient (controlled by ECM), adjacent pair handles CAN bus signals (twisted orange/white pairs), remaining slots ground circuit shields against radio interference.
How to Decode Electrical Circuit Color Markings and Symbols in Your Vehicle’s Power System
Locate the fuse block diagram first–it’s typically printed on the underside of the fuse panel cover. Match the label abbreviations to the colored strips on each conductor: PNK for pink, BLK for black, and ORN for orange. These shorthand codes correspond to the circuit function, so verify them against the legend before proceeding. A single 1 mm discrepancy in color can reroute voltage to the wrong node.
Trace each path starting at the battery positive terminal (red or ORN strip). Follow the line to the first junction–this is often the starter relay. Note abrupt changes in color: a DK BLU (dark blue) stripe indicates a sensor feed, while YEL (yellow) marks the main power distribution. Use a multimeter set to 20V DC to confirm continuity at each connection point; expected values should read between 11.8 and 14.2 volts when the engine is running.
- Solid color conductors (RED, GRY): Carry constant voltage.
- Striped conductors (RED/WHT, BLK/WHT): Ground paths or signal returns.
- Twisted pairs (TAN/BLK, ORN/GRN): Data buses or sensor inputs.
Cross-reference each connector pin number with the harness layout. The ECM connector (C1) pins follow a reverse-sequential pattern: pin 1 (top left) is data, pin 24 (bottom right) is chassis ground. Use a test light to isolate live circuits–probe the back of the connector while the key is in the ON position. Flashing light confirms a pulsed signal (e.g., fuel injector timing), steady light indicates a constant feed.
Record every color shift and voltage reading in a table. Compare against the vehicle service manual’s gauge specifications–any deviation larger than 0.3V suggests a corroded splice or broken strand. Replace damaged sections with the exact wire gauge: 18-gauge for sensor feeds, 12-gauge for high-current paths. Secure joints with solder and adhesive-lined heat shrink tubing to prevent moisture intrusion.
Key Electrical System Elements in the 2006 Chevrolet Compact SUV Blueprint
Begin by locating the powertrain control module (PCM) on the electrical layout–typically positioned near the engine bay firewall. This unit coordinates spark timing, fuel delivery, and sensor signals, so verify its connectors (C1 and C2) show no corrosion or bent pins. Use a multimeter to confirm 12V reference voltage on terminals 6, 40, and 58 (harness side) when the key is in the ON position.
Trace the crankshaft position sensor circuit next. The sensor itself (a magnetic reluctance type) mounts near the harmonic balancer, with two wires leading to the PCM. Check resistance between its terminals–values should read 500–900 ohms at room temperature. If readings deviate, inspect the wiring for chafing against the exhaust manifold or starter, common failure points on this model year.
Examine the coil packs individually. Each cylinder has a dedicated coil, controlled by the PCM via separate driver circuits. Swap suspect coils between cylinders to diagnose misfires–if the misfire follows the coil, replacement is needed. Below is a quick reference for coil connector pin assignments and expected voltages:
| Coil Terminal | PCM Pin (C1) | Voltage (Key ON) |
|---|---|---|
| B+ (Power) | – | 12V (Fused) |
| IC (Control) | 71, 72, 55, or 56 | 0V (12V Pulse) |
| Ground | – | 0V (Continuity) |
Finally, test the ignition feed relay–found in the underhood fuse block. Remove the relay and probe socket terminals: terminal 86 should show battery voltage, 85 should ground through the PCM, 30 outputs 12V when activated. If terminals 87 or 30 lack voltage, inspect the relay contacts for pitting or replace the relay with a matching 30A unit (Part #15866195).
