Begin by isolating the primary power source–the battery–and trace its connections to the starter solenoid. Use a multimeter to verify voltage at the solenoid terminal when the key is turned: a drop below 10.5V at 12V systems or 21V at 24V indicates resistance in the circuit. Identify the control wire (typically #10 AWG for 12V, #8 AWG for 24V) leading to the ignition switch, ensuring no fraying or corrosion disrupts the 3–5 amp current path.
Map the relay’s role–if present–by locating its coil (triggered by the ignition switch) and contacts (bridging battery to starter). Test relay continuity: an open coil (OL on multimeter) or welded contacts (audible click but no voltage output) mandate immediate replacement. For systems with electronic control modules, confirm 5V reference signals to sensors like crank/cam position; deviations (±0.2V) suggest faulty wiring or ECM grounding issues.
Examine grounding paths critically. A voltage drop exceeding 0.2V between the engine block and battery negative terminal confirms high-resistance connections. Clean all earth points with a wire brush and apply dielectric grease to prevent oxidation. For vehicles with automatic transmissions, ensure the neutral safety switch interrupts the circuit unless in Park/Neutral–test with a jumper wire directly from the switch to rule out internal failures.
Label each wire with heat-shrink tubing and document the color-code scheme before disassembly. Cross-reference with OEM manuals; aftermarket harnesses often reverse black/white (ground) and yellow/red (signal) conventions. For carbureted engines, verify the ballast resistor (if equipped) drops battery voltage to 9–10V at the coil’s positive terminal–resistor failure mimics weak spark.
Understanding Electrical Firing System Blueprints
Begin by isolating the control module connector pins on the wiring layout–typically labeled C1, C2, or ECU. Use a multimeter to verify voltage at each terminal: pin 1 should read 12V with the key in the “ON” position, while pin 3 must show continuity to ground. Deviations indicate corroded contacts or a faulty relay, often traced back to the fuse box under the dashboard.
Trace the trigger wire from the coil pack to the powertrain control unit (PCU). The circuit should maintain 0.5 ohms resistance across the path; readings above 2 ohms suggest damaged insulation or a broken strand. For GM vehicles, check the crankshaft position sensor (CKP) wiring–pink and black wires–at the 3-pin connector near the harmonic balancer. Interference here causes misfires registered as P0336 codes.
Verify the ballast resistor placement if working with carbureted engines. The wiring map will show a single wire running from the ignition switch to the coil’s positive terminal, bypassing the resistor only during startup. Remove the resistor temporarily and measure voltage drop: values exceeding 1.2V point to a failing component, often replaced with a modern electronic module.
For distributor-based systems, follow the rotor’s rotational path through the cap’s contacts. Each terminal corresponds to a cylinder–label them before disassembly. Test for carbon tracks inside the cap using a continuity tester: infinite resistance means the cap is intact; readings below 100k ohms require replacement. Rotors with worn tips cause random misfires, especially in damp conditions.
Inspect the anti-theft immobilizer wiring if the engine cranks but won’t start. Locate the transponder ring around the ignition lock cylinder–purple and yellow wires–and ensure they aren’t shorted to the steering column’s ground. Modern systems use a 56k ohm resistor between these wires; deviations prevent fuel injector activation. Bypass temporarily by connecting a jumper wire to test functionality.
Cross-reference the voltage regulator’s behavior with the firing sequence. On Ford’s EDIS systems, the profile ignition pickup (PIP) sensor–mounted behind the crank pulley–sends a 5V square wave signal. Oscilloscope readings should show clean edges; rounded waveforms indicate a failing sensor or excessive resistance in the gray/red signal wire. Replace the PIP sensor if amplitude drops below 4V peak-to-peak.
Document every modification directly on the printed layout–use red for power wires, blue for sensors, and black for grounds. Highlight splices with a yellow marker. Store the annotated version alongside the vehicle’s repair history; this accelerates future diagnostics by eliminating redundant checks. For engines with variable timing (VVT), add notation for the oil control solenoid wiring–often confused with knock sensor circuits–to prevent misdiagnosis.
Core Elements of a Vehicle Spark Generation Setup
Ensure the battery delivers a minimum of 12.6V when fully charged–anything below 12.2V risks inconsistent firing. Replace weak cells immediately; sulfation accelerates below 11.8V, reducing spark energy by up to 40%. Verify connections with a multimeter: terminals should read 0 ohms; corrosion increases resistance, causing misfires under load.
Coil packs must maintain secondary resistance between 5,000–15,000 ohms. Test with an ohmmeter; deviations indicate internal shorts or open circuits. High-energy coils (e.g., MSD Blaster) demand 8mm silicone wires; insufficient diameter causes voltage drop exceeding 1V per foot, degrading performance. Replace wires every 60,000 miles–silicone degrades faster than EPDM under heat cycles.
Spark plugs require precise gap settings: 0.044″ for most street engines, 0.035″ for forced induction. Nickel-alloy electrodes last 30,000 miles; iridium resists erosion for 100,000 miles but demands cleaner fuel–ethanol blends accelerate wear. Index gaps in crossflow heads; incorrect orientation reduces flame kernel propagation by 22%. Torque to 12–15 ft-lbs–over-tightening cracks insulators.
Distributors in points-style systems need dwell angles of 28–32 degrees. Adjust with a dwell meter; incorrect dwell causes coil saturation periods exceeding 3ms, leading to overheating. Replace breaker points every 12,000 miles–pitting from arcing reduces efficiency. Solid-state modules eliminate this but require heatsinks; temperatures above 200°F necessitate thermal paste between module and housing.
Crankshaft position sensors (Hall-effect or reluctor) trigger timing within ±0.5 degrees. Magnetic reluctors require gap adjustments: 0.020″–0.050″ for optimal signal strength. Weak signals from excessive gaps cause false triggers, stalling engines at cold starts. Shielded cables prevent EMI; unshielded wires pick up interference, causing erratic RPM readings in ECUs.
ECUs in coil-on-plug systems demand CKP/CMP signals exceeding 0.5V peak-to-peak. Voltage below this threshold results in cylinder dropout. Verify sensor harness continuity; intermittent connections mimic misfires. Timing advance maps should not exceed 36° BTDC for pump gas–knock sensors must retard timing within 2° of detection or risk piston damage.
Ballast resistors in older systems drop voltage to 9–10V for coils; bypassing them overloads the coil, reducing lifespan by 70%. Modern systems use switching transistors to pulse voltage–replace failed units promptly. Monitor coil current draw; values above 6A indicate impending failure. Ground straps must carry 200A without voltage drop–corroded grounds cause intermittent stumbles under acceleration.

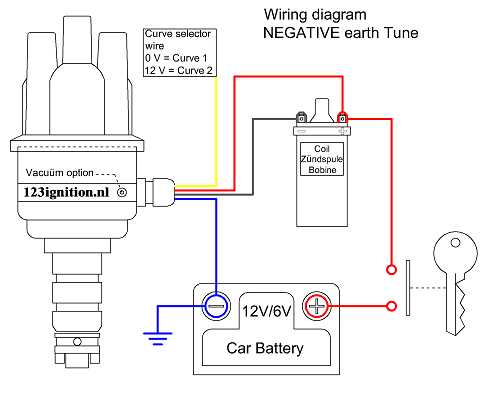

Step-by-Step Wiring for a Distributor-Based Firing Circuit
Locate the battery’s positive terminal and connect a 10-gauge wire to the primary side of the coil, marking this as the power feed. Ensure the wire includes an inline fuse rated at 20 amps to protect the circuit. Route the wire away from moving parts and sharp edges, securing it with Adel clamps every 12 inches.
Identify the distributor’s internal pickup coil or points terminal. Splice a 16-gauge wire from this terminal to the coil’s negative post, using a shielded cable for magnetic interference-prone installations. If the system uses points, verify the gap at 0.018–0.024 inches with a feeler gauge before proceeding. Poor gap adjustment causes timing drift and misfires.
- Strip 0.5 inches of insulation from the distributor-to-coil wire.
- Crimp a ring terminal onto the stripped end.
- Secure the terminal to the coil’s negative post with a 5/16-inch nut, torqued to 8 ft-lbs.
- Dress the wire along the engine block to prevent vibration-induced chafing.
Attach the coil’s high-voltage tower to the distributor’s center post using a 7mm suppression wire. Avoid routing this cable parallel to sensor wires or fuel lines; a 45-degree angle minimizes inductive coupling. For high-compression engines, upgrade to a spiral-core wire with at least 1,000 ohms per foot resistance to suppress radio frequency interference.
Ground the distributor’s base plate to the engine block using a braided strap. Clean both contact surfaces with a wire brush and apply dielectric grease to prevent corrosion. A single loose ground can introduce 0.5–1.5 volts of resistance, causing erratic timing advance and hard starting in cold conditions.
Test the circuit with a multimeter before final assembly:
- Set the meter to DC volts and probe the coil’s positive and negative terminals.
- Crank the engine; readings should fluctuate between 7–10 volts.
- If voltage drops below 5 volts, check for corroded terminals or undersized wires.
- For points-based systems, connect a dwell meter; aim for 28–32 degrees of dwell at 1,000 RPM.
Decoding Electrical Circuit Symbols for Engine Start Systems
Begin by locating the battery symbol–a rectangle with parallel lines (+ and −)–as the primary power source. Trace the bold lines outward to identify the starter solenoid, marked by a coil with an overlapping contact switch (two angled lines above a zigzag). Voltage flows through thick lines to the ignition coil (a zigzag inside a loop), where a resistor symbol (a jagged line or zigzag) regulates current before reaching the distributor (a circle with a rotating arm). Ground symbols (three descending lines or a T-bar) terminate these paths, confirming circuit completion. Note case-specific variations: older systems use mechanical breaker points (two facing arcs), while modern ones replace them with an electronic switch (a transistor symbol or a square with “ECU” label).
Key Variations Across Manufacturers
German blueprints (Bosch/VAG) depict relays as rectangles with internal contact layouts–pin numbers often match real-world connectors (e.g., “30” for input, “87” for output). Japanese diagrams (Toyota/Denso) use numbered networks: “B” for battery feed, “ST” for starter trigger, and “IG” for accessory circuits. American systems (Ford/GM) label wires with alphanumeric codes (e.g., “ORG” for orange) directly on the pathways; cross-reference these with the accompanying color legend. If a fuse symbol (a thin rectangle with a gap) appears mid-pathway, measure resistance on both sides to isolate faults.
