Begin with a 100nF decoupling capacitor directly between the power pins and ground to eliminate high-frequency noise–critical for stable output waveforms at frequencies above 1 kHz. Position it no farther than 2 mm from V+ and V- terminals; longer traces introduce parasitic inductance that distorts rising edges of square waves.
Wire the timing components following the formula f = 0.3 / (R1 × C), where R1 ranges from 1 kΩ to 1 MΩ and C from 100 pF to 100 µF. For symmetrical triangular output, tie pin 4 and pin 5 to ground through identical resistors; mismatched values tilt the waveform and widen duty-cycle error beyond the typical ±5% specification.
Insert a 1 kΩ trimpot between pins 12 and 7 to null DC offset–the unadjusted device may shift outputs by ±150 mV, corrupting amplitude-sensitive analog stages. Sweep the pot while monitoring pin 2 on an oscilloscope; the correct setting centers the waveform symmetrically around ground.
Omitting a 10 kΩ pull-down resistor on pin 8 (sweep input) leaves the chip vulnerable to noise-induced frequency modulation–keep the trace short and guard it with ground pour to prevent unintended FM interference.
A single-turn 20 kΩ potentiometer in place of R1 permits frequency tuning across three decades without recalculating component values; pair it with a 1% tolerance C for ±0.5% frequency stability over 0 °C to 70 °C. Higher tolerance capacitors drift less than 50 ppm/°C, ensuring repeatable performance in varied thermal environments.

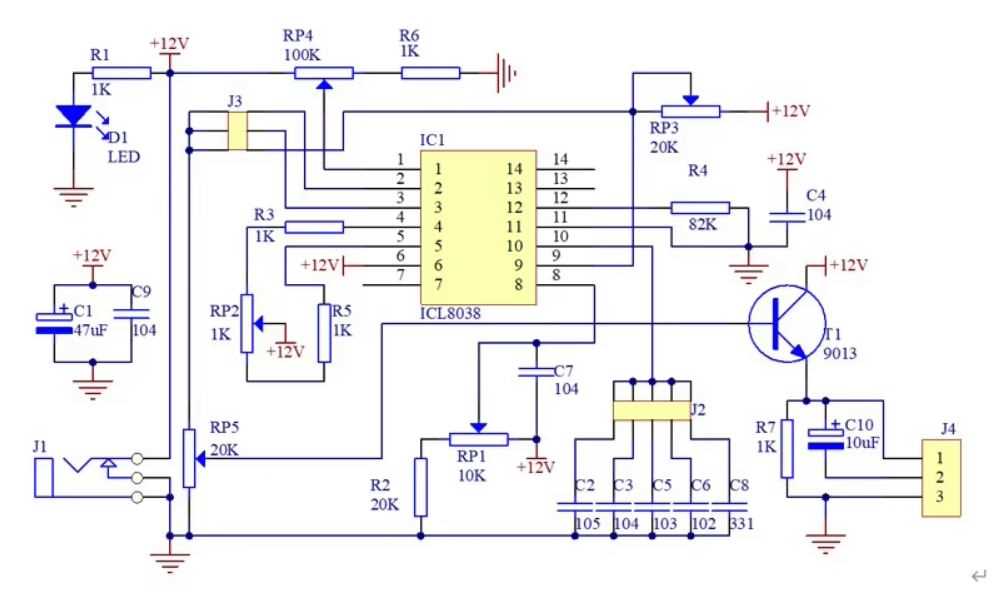

Function Generator Schematic: Hands-On Implementation
Begin by selecting a dual-supply configuration for optimal waveform symmetry–use ±9V to ±12V for clean, low-distortion outputs. Ground the reference pin (5) via a 100nF capacitor to eliminate high-frequency noise, while bypassing each supply pin (6, 11) with 1µF tantalum capacitors positioned within 5mm of the IC. Adjust the frequency-determining network with a 10kΩ potentiometer in series with a fixed 10kΩ resistor for coarse tuning; parallel a 1nF capacitor to define the upper frequency limit at ~100kHz without sacrificing stability.
Waveform precision demands three key connections:
- Triangle output (pin 3): Buffer through a unity-gain op-amp (e.g., TL072) to prevent loading effects–add a 1kΩ series resistor for short-circuit protection.
- Square output (pin 9): Directly drive logic gates or MOSFET gates, but include a 220Ω resistor to limit edge-rate currents above 50kHz.
- Sine output (pin 2): Attenuate with a 2kΩ trimmer to reduce residual distortion below 0.5%; verify with an FFT analyzer at 1kHz.
Troubleshooting Benchmark Values
Measure DC offsets at the outputs–triangle/sine should hover near 0V (±50mV); a 10mV deviation suggests a failing 100kΩ timing resistor or contaminated PCB traces. For duty-cycle adjustment, replace the default 22kΩ resistor (pin 4–7) with a 47kΩ precision trimmer; sweep from 10% to 90% while monitoring the square wave’s rise/fall symmetry on a scope. If thermal drift exceeds 50ppm/°C, substitute the timing capacitor with a polypropylene (C0G/NPO) type and relocate the IC away from heat sources like voltage regulators.

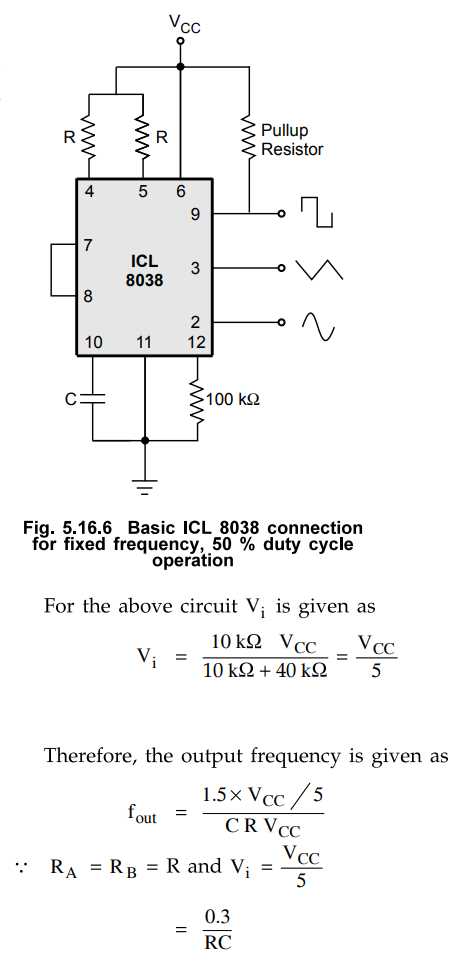

Basic Pin Configuration and Functionality of the Precision Waveform Generator
Connect pin 6 directly to a stable +5V to +30V DC supply for optimal performance–the exact voltage defines the amplitude of triangular and sine outputs without additional scaling components, reducing distortion below 0.5% at frequencies up to 100 kHz when powered at 15V. Bypass this pin with a 1 μF tantalum capacitor to ground near the package to suppress supply noise, especially when operating above 50 kHz.
Pin 1, labeled as the sine-wave output, delivers a signal with total harmonic distortion below 1% when the on-chip trim network is adjusted via the resistors tied to pins 12 and 4. For frequencies above 20 kHz, reduce the external 82 kΩ resistor on pin 12 to 47 kΩ to maintain distortion specs. Buffer this output with a unity-gain follower using an op-amp if driving capacitive loads exceeding 100 pF to prevent waveform clipping.
Pins 2 and 3 provide triangle and square-wave outputs, respectively. The triangle-wave swing is rail-to-rail relative to the negative supply on pin 11 when powered from a dual supply and settles at half the positive rail when operating single-ended. Square-wave edge speed reaches 100 ns rise/fall times at 10 kHz with a 100 Ω pull-up resistor to the positive rail; increase pull-up to 220 Ω for frequencies above 50 kHz to avoid duty-cycle errors.
| Pin | Primary Function | Recommended External Components | Critical Note |
|---|---|---|---|
| 4 | Frequency adjust input | 10 kΩ–1 MΩ resistor, 10 nF–1 μF timing capacitor | Capacitor leakage current must stay below 5 nA to prevent frequency drift |
| 8 | Modulation input | 0–10V signal via 10 kΩ resistor | Linearity degrades above 8V modulation input; clamp with diodes if exceeding |
| 11 | Negative supply (or ground in single-ended) | N/A | Bypass with 10 μF electrolytic plus 0.1 μF ceramic to reduce common-mode noise |
Pin 4 sets the oscillator’s center frequency through an external timing resistor; values between 1 kΩ and 1 MΩ paired with a 10 nF timing capacitor on pin 5 yield frequencies from 0.001 Hz to 300 kHz. Avoid electrolytic capacitors here–film or ceramic types prevent leakage-induced frequency instability. For predictable thermal drift, match the positive temperature coefficient timing resistor with an NTC thermistor if the ambient varies more than ±5°C.
Pin 8 accepts an external 0–10V modulation voltage to sweep frequency linearly without affecting waveform purity; inject via a 10 kΩ resistor to isolate source impedance above 5 kΩ. Square-wave duty-cycle exceeds 95% or drops below 5% when modulation voltage nears either rail–limit swing within 1V to 9V to maintain symmetrical waveforms. Add a low-pass RC network (1 kΩ, 10 nF) if modulation source carries RF noise above 10 mVpp.
Pins 7 and 9 output open-collector square waves for complementary or independent buffering; connect pull-up resistors directly to the desired logic level (3.3V–30V) without series resistors to achieve sharp edges. Use Schottky diodes from these pins to the positive rail to clamp overshoot when driving high-speed CMOS loads, preventing false triggering on downstream counters or edge detectors.

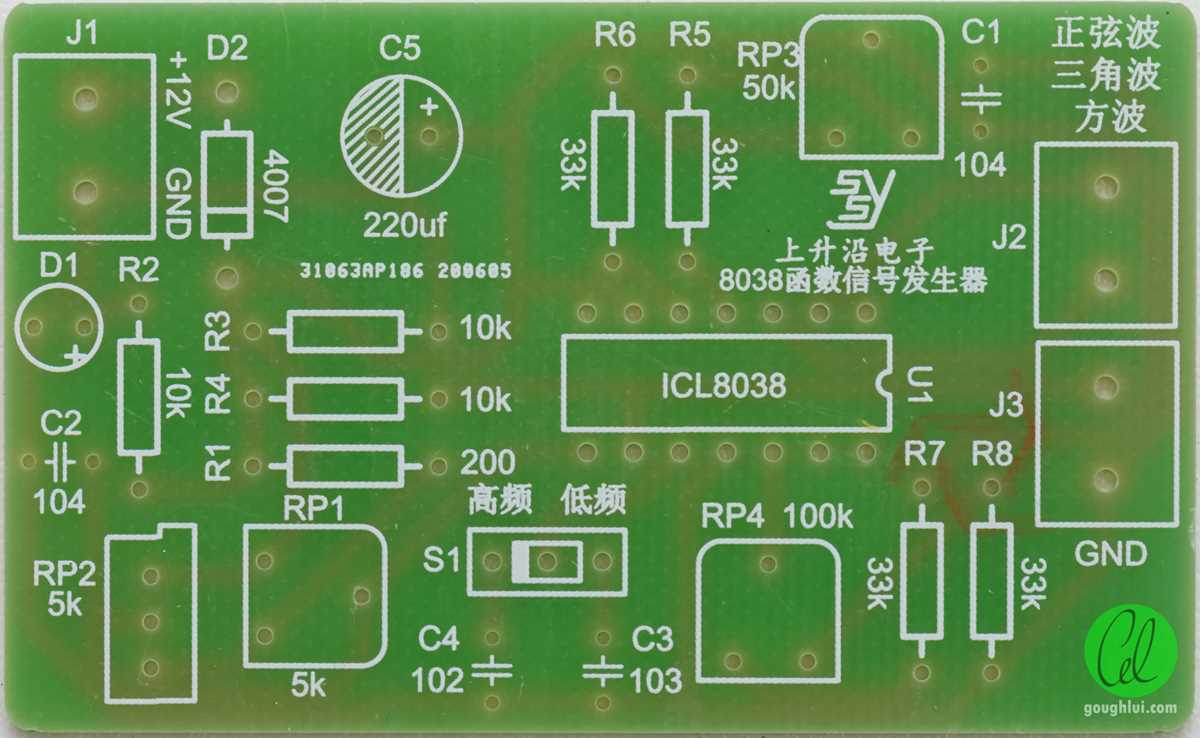

Step-by-Step Assembly of a Signal Generator Setup
Begin by securing a clean, non-conductive workspace with adequate lighting. Align all components–resistors, capacitors, potentiometers, the integrated waveform chip, a 9V power supply, and a breadboard–within easy reach. Verify component values against the schematic before insertion to prevent rework: 10kΩ resistors for frequency adjustment, 1nF capacitors for timing, and 100kΩ potentiometers for fine-tuning.
Insert the waveform chip into the breadboard, ensuring pin 1 aligns with row 1. Connect the power rails: attach the positive lead of the 9V supply to the top red rail and the negative to the blue rail. Bridge the rails to the chip’s V+ (pin 6) and ground (pin 11) using jumper wires. Avoid reversing polarity–this will damage the chip instantly.
Wire the timing network next. Link a 10kΩ resistor between the chip’s pin 8 (frequency control) and the positive rail. Add a 1nF capacitor from pin 7 (modulation input) to ground. For frequency adjustment, connect a 100kΩ potentiometer’s middle pin to pin 8, with one outer pin to V+ and the other to ground. Test continuity with a multimeter before powering on.
Add the output stage. Connect a 10kΩ resistor from pin 9 (sine/square output) to a 1μF coupling capacitor, then route it to an output jack. For a triangle waveform, repeat this process from pin 3. Shielded cable is optional but reduces noise for low-amplitude signals. Keep leads short to minimize stray capacitance.
Calibration and Troubleshooting
Power on the setup and measure DC voltages at key points: V+ (pin 6) should read 9V, ground (pin 11) 0V, and pin 8 ≈4.5V. If voltages deviate, check for cold solder joints or misaligned breadboard connections. Adjust the potentiometer while monitoring output with an oscilloscope; frequencies should span 20Hz to 20kHz without distortion.
If waveforms appear clipped or unstable, reduce the supply voltage to 5V or recalculate timing components. Replace the 1nF capacitor with a 10nF unit for lower frequencies, or a 470pF for higher ranges. For persistent issues, disconnect the potentiometer and measure resistance across its pins–shorted or open components are common failures.
Finalize assembly by securing components with hot glue and enclosing the breadboard in a grounded metal case. Label controls for future reference: mark potentiometers as “Frequency” and “Symmetry,” and output jacks with waveform types. Recheck all connections before storing–loose wires cause intermittent faults.
Calculating Resistor and Capacitor Values for Custom Waveform Outputs
To generate a 1 kHz sine wave with a 50% duty cycle, set R = 10 kΩ and C = 10 nF. The formula for frequency selection is:
f = 1 / (0.33 × R × C)for triangle/sine modesf = 1 / (0.6 × R × C)for square waves
Adjusting the timing network components directly scales the output frequency. A 1% change in resistor value shifts frequency by ~1% due to the inverse relationship. For precision, use metal-film resistors with a ±1% tolerance and NP0/C0G capacitors to minimize temperature drift–these maintain stability within ±30 ppm/°C across -55°C to +125°C.
For multi-range frequency designs, implement a switched capacitor array:
- Calculate base values for the highest frequency (e.g., 10 kHz).
- Add parallel capacitors for lower ranges:
- 20 kHz: C = 5 nF
- 5 kHz: Add 3 nF
- 1 kHz: Add 30 nF
Thermal stabilization requires pairing the timing resistor with a thermistor in a bridge configuration. A 10 kΩ NTC thermistor (B-value 3950) compensates for ±15% frequency drift over 0°C–70°C. For variable-frequency applications, use a 50 kΩ potentiometer in series with a fixed 2.2 kΩ resistor–this limits the minimum frequency to 10 Hz while enabling 1 MHz maximum output.
Duty cycle modulation requires a dedicated control loop:
- Triangle/sine waves: Adjust Rset (pin 4/5) with a 47 kΩ trimpot
- Square waves: Inject a DC offset via pin 7 (modulation input)
Ensure the modulation amplitude stays below VCC–2V to prevent output distortion. For sub-Hz frequencies, increase C to 1 µF (polypropylene) while reducing R to 50 kΩ to maintain charge/discharge linearity.
