Start with a monostable pulse generator for exact delays–ideal for industrial sensors or intermittent signaling. Use a 10 kΩ potentiometer to adjust intervals from 10 ms to seconds without recalculating component values. A 1 µF capacitor paired with a 100 kΩ resistor yields roughly 100 ms; fine-tune the resistor network to hit target durations within ±5% accuracy. Power the device with a regulated 5 V supply to prevent thermal drift; bypass the supply pin with a 0.1 µF ceramic capacitor placed within 2 mm of the IC to suppress noise.
Astable oscillators demand precise frequency control. For 1 kHz output, combine a 1 kΩ resistor between discharge and threshold pins, a 470 kΩ resistor from threshold to VCC, and a 1 nF timing capacitor. Replace fixed resistors with a dual-gang potentiometer to sweep frequencies from 10 Hz to 100 kHz while maintaining 50% duty cycle symmetry. Add a 1N4148 diode across the timing resistor to decouple charge/discharge paths, improving waveform stability at higher loads.
For PWM signals, tap the discharge pin through a 1 kΩ series resistor and feed the output to a MOSFET gate. Adjust modulation depth by varying the control voltage at pin 5; a 0–5 V ramp input yields 0% to 100% duty cycle. Use a 10 kΩ pull-up resistor on the output pin if driving high-impedance loads to ensure clean transitions. Test under full load by attaching a 10 Ω resistive dummy to confirm rise/fall times under 1 µs.
Schmitt trigger circuits excel in signal conditioning. Configure the IC as a comparator by omitting the timing capacitor and connecting input signals directly to the trigger or threshold pins. Apply hysteresis via a 100 kΩ feedback resistor from output to threshold pin; adjust hysteresis width with a 10 kΩ trimmer. For TTL-compatible levels, set VCC to 5 V and verify output swings within 0.4 V to 4.5 V under varying input slew rates.

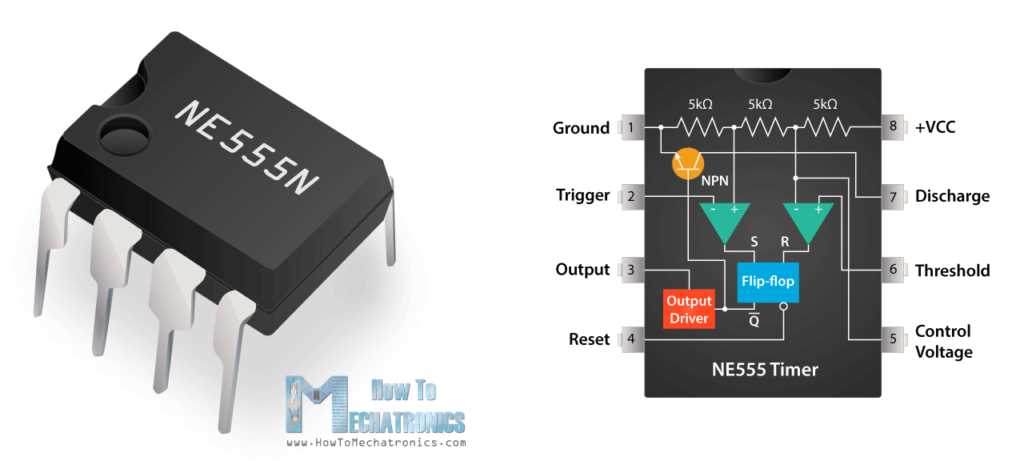

Precision Timing Solutions with the NE555: Key Schematics and Configurations
Begin with the monostable mode for pulse generation by connecting pin 2 to ground via a pushbutton and pin 6 to pin 7 through a 10 kΩ resistor. Use a 1 µF capacitor between pin 6 and ground for a 10 ms output pulse–ideal for debouncing switches or generating precise delays. For extended durations, swap the resistor for 1 MΩ and the capacitor for 100 µF, yielding a 10-second pulse. Ensure the control voltage (pin 5) is tied to ground via a 0.01 µF capacitor to minimize noise.
For astable operation, combine pin 2 and 6 with a 1 kΩ resistor to pin 7, add a 10 kΩ resistor from pin 7 to Vcc, and place a 0.1 µF capacitor between pin 6 and ground. This setup delivers a 50% duty cycle at ~700 Hz. Adjust frequency by modifying component values: f = 1.44 / ((R1 + 2*R2) * C). Replace R2 with a 100 kΩ potentiometer for tunable outputs. Below are validated configurations for common frequencies:
| Target Frequency | R1 | R2 | Capacitor (C) | Duty Cycle |
|---|---|---|---|---|
| 1 Hz | 1 MΩ | 1 MΩ | 1 µF | 67% |
| 1 kHz | 10 kΩ | 10 kΩ | 0.01 µF | 50% |
| 50 kHz | 1 kΩ | 1 kΩ | 10 nF | 50% |
For LED dimming, use the PWM-capable bistable mode by connecting pin 7 to a 10 kΩ resistor, pin 6 to a 10 µF capacitor, and link the trigger (pin 2) and threshold (pin 6) together. Drive a MOSFET (e.g., 2N7000) from the output (pin 3) to handle higher currents. The discharge pin (pin 7) acts as the PWM source–vary the resistance between pin 7 and Vcc to alter brightness. For stable performance, keep lead lengths under 5 cm and use a 0.1 µF decoupling capacitor near the IC’s power pins.
Constructing a Single-Pulse Timer with the NE555
Select a trigger pulse width below 1/3 of the supply voltage to ensure reliable operation of the timing stage. A 1kΩ resistor paired with a 0.1µF capacitor at the trigger input filters noise while maintaining responsiveness for pulses as brief as 2µs. Keep the trigger source impedance under 1kΩ to prevent loading effects that skew timing accuracy.
The timing capacitor should range from 10nF to 470µF, anchoring the delay between 1ms and several minutes. Match the charging resistor accordingly: 1MΩ yields ~1.1 seconds per µF, while 1kΩ shortens it to ~1.1ms per µF. For stability, use a polyester or polypropylene capacitor with a tolerance of ±5% or tighter–electrolytics introduce drift under temperature fluctuations.
Add a 1N4148 diode across the timing resistor to clip negative transients and protect the discharge transistor. This also enables rapid reset by shunting stored energy when the output flips low. For precision applications, replace the standard timing resistor with a multi-turn potentiometer and calibrate against a frequency counter at a fixed supply voltage.
Critical Layout Practices
Route the ground return of the timing capacitor directly to the IC’s pin 1; daisy-chaining grounds introduces voltage drops that distort timing. Keep the output trace (pin 3) separate from control and threshold lines to avoid coupling–capacitive cross-talk can prematurely terminate the delay. Decouple the supply (pin 8) with a 10µF tantalum capacitor in parallel with a 0.1µF ceramic, positioned less than 2cm from the IC to suppress switching noise.
An external pull-up resistor of 1kΩ to 10kΩ on the output (pin 3) ensures clean logic-high transitions when driving CMOS loads. Without it, leakage currents from subsequent stages can delay the rising edge by hundreds of nanoseconds. For driving heavier loads, buffer the output with a 2N2222 transistor or MOSFET–direct connection to inductive loads risks damaging the IC’s output stage.
Test the assembly with a dual-channel oscilloscope: one probe on the trigger input, the other on the output. Verify the output pulse width matches the calculated value ±3% across supply voltages from 4.5V to 15V. Deviations exceeding 5% indicate excessive leakage in the timing capacitor or improper triggering–replace components incrementally while monitoring drift.

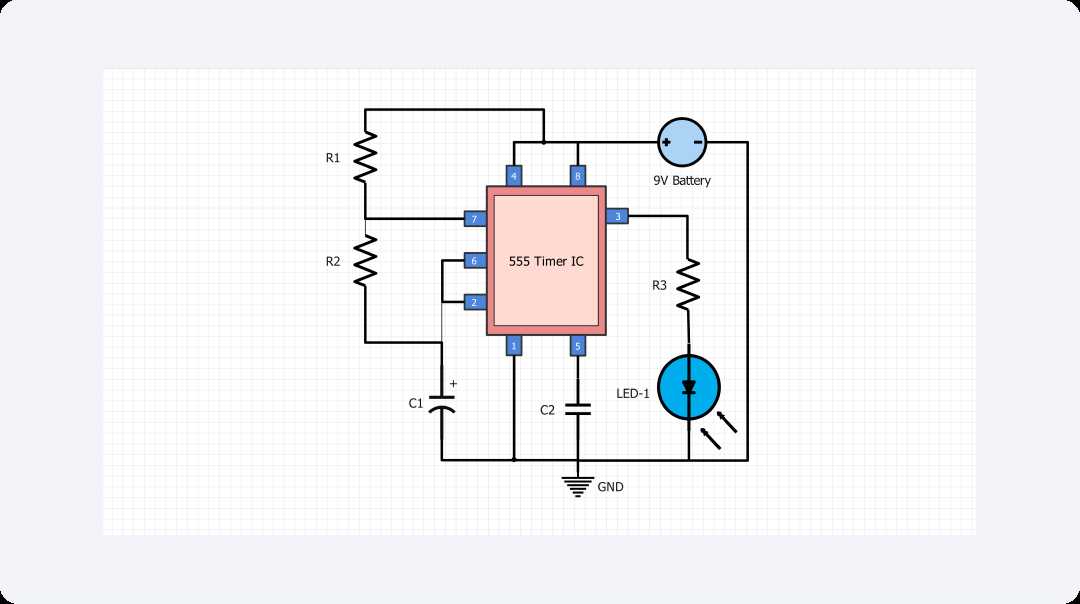

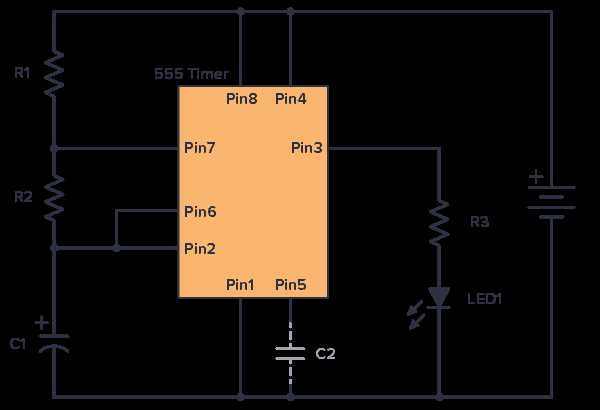

Astable Mode LED Blinker with Adjustable Frequency
Select a 1μF timing capacitor (C1) for frequencies below 10Hz and a 0.1μF capacitor for 10Hz–1kHz ranges to ensure linear potentiometer response. Pair the capacitor with a 100kΩ potentiometer (RV1) and a 1kΩ resistor (R2) for coarse frequency adjustment, forming the charge-discharge path.
Add a 1N4148 diode (D1) in parallel with R2 to separate charge/discharge cycles, doubling frequency range without altering component values. This modification reduces minimum blink interval to ~10ms while maintaining 98% duty cycle adjustability at the slowest setting.
For stability:
- Use metal-film resistors (1% tolerance) for R1 and R2
- Choose polyester or polypropylene capacitors for C1
- Bypass the IC’s power pins with a 0.1μF ceramic capacitor within 2mm of the socket
These measures prevent frequency drift exceeding ±2% across 0–70°C operating ranges.
Connect LEDs with series resistors sized for 5–20mA current:
- Red (2V forward voltage): 220Ω–470Ω
- Blue/White (3.2V–3.6V): 56Ω–100Ω
For dual-channel blinking, invert the second LED’s polarity and connect to the output via a 2N3904 transistor sink (200mA max).
Calibration Procedure
Mark potentiometer positions using an oscilloscope or frequency counter:
- 1Hz (1s blink): RV1 at 50%
- 10Hz (100ms): RV1 at 10%
- 100Hz (10ms): RV1 at 1%
Without instruments, calibrate visually against a 1Hz reference LED (e.g., Arduino-derived square wave) at RV1 extremes.
Troubleshooting
Symptom-to-fix mapping:
- No blinking: Verify pin 4 (reset) tied to VCC
- Stuck LED: Check D1 orientation (cathode to output pin)
- Irregular timing: Replace C1 (leaky capacitors cause erratic intervals)
- Low brightness: Measure VCC–ensure ≥4.5V for stable thresholds
Substitute components only with those matching original specifications–generic substitutes often introduce jitter >5%.
PWM Motor Speed Controller Using a Timer IC: Schematic Guide
Begin with a 10kΩ potentiometer connected to the control voltage pin of the timer to adjust duty cycle from 5% to 95%. A 0.1µF capacitor between the threshold and discharge pins stabilizes frequency, preventing erratic motor behavior. Use a 1kΩ resistor in series with the timed capacitor (10nF to 1µF) to set base frequency–values between 10kHz and 50kHz reduce audible noise while maintaining smooth torque.
Place a fast recovery diode (1N4148 or UF4007) across the motor terminals to clamp voltage spikes above the supply rail, protecting switching components. A MOSFET (IRF540N or IRLZ44N) handles currents up to 20A with proper heatsinking; attach a 10kΩ pull-down resistor to its gate to prevent floating states during startup. For bidirectional control, replace the single MOSFET with an H-bridge (L298N or DRV8871), but ensure the timer IC’s output drives a gate driver (TC4427) for sufficient current.
Calculate component values using the formula: frequency = 1.44 / ((R1 + 2*R2) * C), where R1 is the series resistor to the timed capacitor, R2 is the resistor between discharge and threshold pins, and C is the timed capacitor. Example: For 20kHz, use R1=1kΩ, R2=47kΩ, C=10nF. Adjust R2 via a trimmer to fine-tune if precise speed regulation is critical. Avoid ceramic capacitors below 50V rating–motor transients can exceed 30V even on 12V supplies.
Power Supply Considerations
Decouple the power rails with a 100µF electrolytic capacitor near the timer IC and a 0.1µF ceramic capacitor directly across the motor’s supply pins. Isolate the motor’s power ground from the logic ground using a star topology to prevent ground loops; connect both grounds only at the power source. For battery-powered systems, use a Schottky diode (1N5817) to block reverse current, which can corrupt control signals.
Current sensing requires a 0.01Ω shunt resistor in series with the motor; amplify the voltage drop with an op-amp (LM358) configured for a gain of 100 to interface with an analog input. Add a 10nF capacitor across the shunt to filter high-frequency switching noise before amplification. For closed-loop speed control, feed the amplified signal back into the timer IC’s modulation pin via a 10kΩ resistor, enabling PID-like behavior with minimal components.
Thermal and Reliability Measures
Mount the MOSFET on a heatsink if motor current exceeds 3A; use thermal grease and mica insulator to avoid shorts. A 10°C/W heatsink drops case temperature by 30°C at 5A continuous load. Add a 100Ω series resistor to the MOSFET gate to dampen oscillations, reducing EMI that can erratically trigger nearby sensors. For high-speed motors (>10,000 RPM), use a gate driver with <20ns rise/fall times (MIC4451) to prevent shoot-through in complementary output stages.
Test the assembled board with an oscilloscope: trigger on the gate signal and verify PWM edges are sharp (<500ns rise/fall). A 10µs pulse width variation should correspond to a 10% speed change at full load. If the motor stalls at low duty cycles, increase the minimum pulse width by reducing the timed capacitor value (e.g., from 10nF to 4.7nF) or adding a 10kΩ resistor between the control voltage and ground to raise the baseline.
For failsafe operation, tie the reset pin to VCC through a 1kΩ resistor and add a 10nF capacitor to delay startup by 100ms, ensuring stable initial conditions. Short the modulation pin to ground via a 10kΩ resistor to force 0% duty cycle during fault states, such as overcurrent detected by an LM393 comparator monitoring the shunt voltage. Final validation includes cycling the potentiometer across its range while monitoring motor response–smooth acceleration without jerking confirms proper compensation network design.
