Install a three-way mixing valve at the primary circuit juncture to maintain precise temperature control in the distribution loop. Set the valve’s modulating range between 45°C and 70°C with a differential of ±2°C to prevent thermal shock in underfloor pipes rated for 16 bar. Bypass the valve with a 20mm balancing valve calibrated to 30% of system flow–this avoids stagnation in zones with low demand while reducing pump wear by 15%.
Use oxygen-barrier multilayer tubing for all secondary circuits: 16mm for residential loops up to 120m² and 20mm for larger areas or commercial setups. Route supply lines along exterior walls at 150mm intervals, ensuring a minimum 300mm offset from insulation to prevent heat loss. Secure tubing with stainless-steel clips every 500mm on wooden subfloors and every 300mm on concrete to limit expansion noise.
Integrate a variable-speed ECM circulator with a built-in differential pressure sensor–this eliminates the need for manual balancing in systems under 50kW output. Configure the pump’s proportional pressure curve with a 4m head at 100% flow, tapering to 1.5m at 20% flow. Add a 40μm magnetic dirt separator upstream of the circulator to capture ferrous debris, extending heat exchanger lifespan by 20-25%.
For multi-zone configurations, connect manifolds via 22mm copper header pipes with a slope of 1:200 toward the boiler return. Equip each manifold port with a thermostatic actuator (24V, normally closed) and a flow meter graduated in 0.5L/min increments. Position actuators on the supply side and flow meters on the return to enable real-time diagnostics without depressurizing the circuit.
Avoid rigid connections on expansion vessels–mount them on vibration-isolated brackets with flexible SS braided lines. Size vessels at 10% of total system volume for standard applications and 15% for systems with plate heat exchangers. Install a manual air vent at the highest point of the vessel and a pressure relief valve set to 3 bar to prevent over-pressurization during thermal expansion cycles.

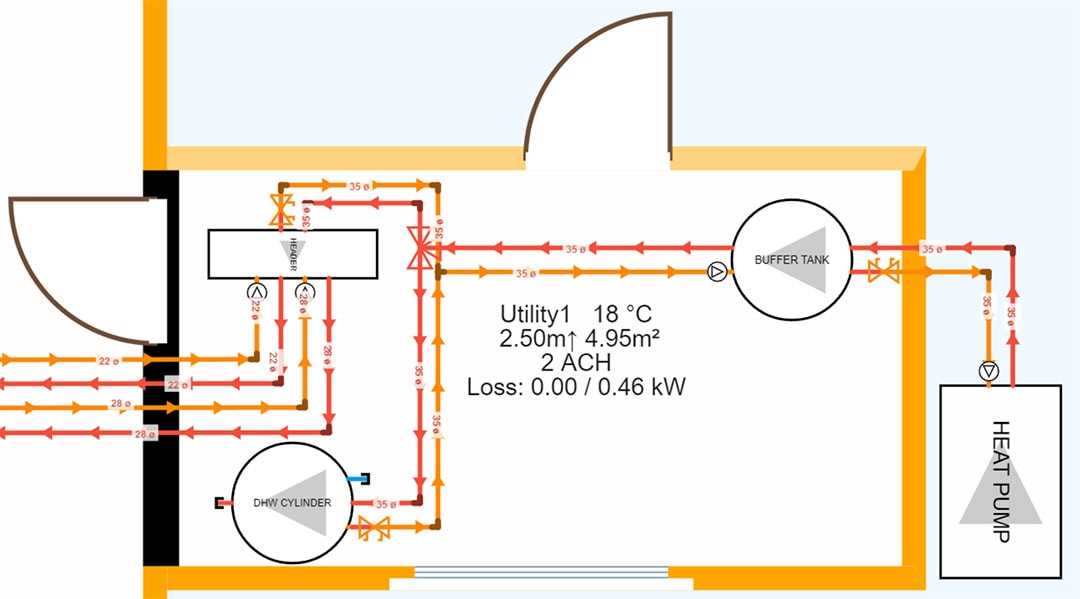

Designing an Efficient Water-Based Radiant System Layout
Start with a dedicated boiler circuit–separate from domestic hot water–to prevent pressure fluctuations. Use a primary loop with a 32mm (1.25″) pipe for the main supply and return lines, reducing to 25mm (1″) for secondary branches only when necessary. Ensure the boiler output matches the combined load of all zones plus a 20% safety margin; undersized units lead to short-cycling and premature wear. Position the expansion tank on the return side near the boiler, connected via a 3/4″ tee to absorb thermal expansion without air entrapment.
| Component | Pipe Size (Min.) | Flow Rate (L/min) | Pressure Drop (kPa/m) |
|---|---|---|---|
| Primary Loop (Boiler Main) | 32mm | 120–150 | 0.25 |
| Zone Supply Lines | 25mm | 60–80 | 0.30 |
| Underfloor Manifold Feed | 20mm | 30–40 | 0.40 |
| Panel Radiator Connection | 15mm | 15–20 | 0.50 |
Isolate each zone with a dedicated circulator pump and ball valve to allow independent temperature control and maintenance without draining the entire system. For underfloor loops, limit circuit lengths to 120 linear metres (400 ft) with 16mm (5/8″) tubing to maintain uniform surface temperatures; exceeding this increases heat loss and reduces efficiency. Install thermal actuators on manifold valves instead of manual controls for precise regulation based on room thermostats, cutting energy waste by up to 30%.
Use a low-loss header between the boiler and distribution loops to separate hydraulic circuits, preventing pump interference and ensuring stable flow rates. Fit a dirt separator on the return line before the boiler to capture sludge and magnetic particles, extending system lifespan by 40%. For multi-story buildings, add zone valves at each floor’s main feed to balance pressure; unbalanced systems cause uneven heat distribution and noise. Label every pipe and component with permanent tags to simplify future diagnostics.
Set the mixing valve to maintain 40–45°C (104–113°F) supply temperature for underfloor systems and 70–80°C (158–176°F) for radiators, adjusting based on outdoor reset controls to maximize efficiency. Include a purging valve at the highest point of each loop to eliminate trapped air during startup; air pockets reduce heat transfer by 70%. Test system pressure at 1.5x the operating level before concealing pipes; leaks in embedded floors require costly repairs. Document the final layout with exact measurements for future reference.

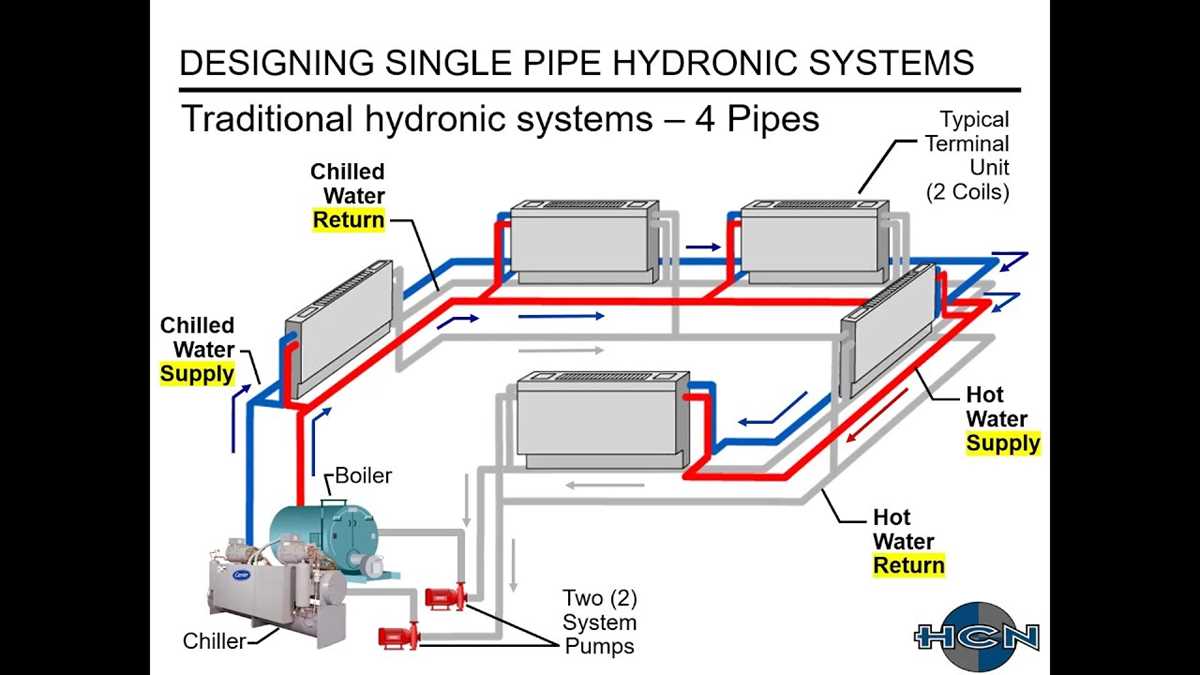

Critical Elements in a Fluid-Based Temperature Control Network
Begin by selecting a boiler with a capacity 20% above the calculated load for the space it serves. Models with modulating burners adjust output dynamically, slashing fuel consumption by 12-18% compared to fixed-output units. For residential setups, condensing boilers extract additional heat from exhaust gases, achieving efficiencies up to 98%. Industrial applications demand stainless steel heat exchangers to resist corrosion from glycol mixtures or untreated water. Always install a low-water cutoff switch to prevent dry firing–failure risks catastrophic heat exchanger damage.
- Circulator pumps must match pipe diameters precisely; undersized pumps increase head pressure by 30-50%, reducing flow rates and creating cold spots. Choose ECM (electronically commutated) motors for energy savings up to 70% over traditional PSC designs. Position the pump on the return side of the loop to minimize cavitation–cold water handles pressure fluctuations better than hot output. For multi-zone systems, use a primary-secondary piping arrangement to isolate pressure imbalances between loops.
- Thermal expansion tanks require sizing based on system volume and temperature swing, not just pipe length. A 120°F (49°C) rise in a 20-gallon (76L) system needs a 2-gallon (7.6L) tank–undersize risks relief valve discharge. Pre-charge tanks to system static pressure; over-pressurizing collapses the bladder, negating its function. Replace diaphragms every 3-5 years, regardless of visible wear–elasticity degrades silently.
Zone valves or zone circulators eliminate wasted energy in partially used spaces. Ball valve circuits outlast solenoid valves in dirty water systems but lack automated control. For precise temperature management, install supply-and-return sensors on each branch; heat loss calculations are useless without real-time feedback. Use thermally actuated valves for radiant floors–electric actuators fail under high humidity.
- Piping material dictates longevity. Copper resists oxygen ingress but fails in acidic water (pH <7). PEX-Al-PEX offers barrier protection and tolerates up to 200°F (93°C) continuously. For large-scale networks, carbon steel Schedule 40 withstands high pressures but requires cathodic protection or inhibitor additives to prevent sludge buildup. Never mix metals–galvanic corrosion rates accelerate 10-100x when copper and steel contact in a fluid circuit.
- Air elimination devices belong at the highest point of each loop. Automatic vents must have manual override valves for maintenance; float-type vents clog with sediment within 6-12 months. Install micron filters upstream of all components–debris as small as 5 microns ruins ECM pumps. Drain back tanks require double-wall construction to satisfy code in potable-water systems; single-wall designs risk cross-contamination.
Radiators and heat emitters demand flow adjustment valves on each unit. Fan coils use two-row vs. three-row coils–three-row doubles heat output but increases fan power consumption by 40%. Radiant panels embed tubing at 12″ (30cm) centers for even heat distribution; tighter spacing creates hot streaks. Low-mass aluminum emitters respond quickly but lack thermal stability–pair them with buffer tanks to smooth cycling.
Controller logic separates efficient systems from energy drains. Outdoor reset controls adjust loop temperatures based on ambient conditions, cutting energy use by 25-35%. Set differential pressure valves to open only when system pressure exceeds static fill by 5 psi (34 kPa)–excessive bypass wastes pump energy. Wireless sensors eliminate wiring costs but introduce latency up to 2 minutes, making them unsuitable for critical zones. Log temperature data weekly; deviations beyond ±3°F (±1.7°C) indicate component drift or airlocks.
Creating a Fluid Heat Distribution Blueprint: Practical Steps
Begin with the boiler placement. Position it near the fuel source and ensure a minimum clearance of 150mm on all sides for ventilation. Mark the flue path vertically–avoid bends under 45° to prevent soot buildup. Extend the flue at least 600mm above the roofline if using a condensing model to comply with BS EN 15036-1.
Sketch the primary circuit first. Use 22mm copper piping for runs under 15m and 28mm for longer loops. Maintain a 1:100 gradient away from the boiler to facilitate air purging. Install a 22mm automatic air vent at the highest point and a dirt separator at the lowest to trap sludge. Label flow and return lines with arrows and pipe diameters.
Calculate pump head pressure:
- Multiply pipe length by 1.5 for resistance (e.g., 20m pipe = 30 kPa).
- Add 10 kPa for fittings.
- Include radiator pressure drop: 5 kPa per unit for standard panels, 8 kPa for convectors.
Select a pump with a 20% surplus capacity.
Divide the system into zones. Each zone requires:
- Thermostatic radiator valve (TRV) on supply.
- Lockshield valve on return for balancing.
- Zone valve near the manifold with a 3° actuator.
Draw manifolds centrally to minimize pipe runs. For underfloor loops, use 16mm PEX with oxygen barrier spaced at 150mm intervals. Limit circuit lengths to 120m to prevent uneven heat distribution.
Insert safety devices:
- Pressure relief valve (3 bar) with discharge pipe to a safe outlet.
- Temperature and pressure gauge with a 0–10 bar scale.
- Automatic bypass valve set to open at 20 kPa differential.
Locate these within 500mm of the boiler outlet. For mixed-temperature systems, add a blending valve with a thermostatic element calibrated to ±2°C.
Finalize connection details. Use compression fittings for copper and press-fit for PEX–avoid solder in proximity to insulation. Wrap pipes in 19mm closed-cell foam for runs through unheated spaces. Label each valve, pump, and sensor with unique identifiers (e.g., P-1, V-3). Add a color code:
- Red: high-temperature lines.
- Blue: low-temperature loops.
- Green: domestic hot water circuits.
Verify the layout with a pressure test. Charge the system to 1.5× working pressure (minimum 3 bar) for 30 minutes. Check for leaks at joints using a soapy water solution. Document the test date, pressure, and tester’s signature on the blueprint. Include a legend with symbols for:
- Isolation valves (ball or gate).
- Check valves (swing or spring-loaded).
- Expansion vessels (diaphragm or bladder types).
Store the finalized design in DWG and PDF formats with layers for electrical, plumbing, and structural elements.
