Begin by analyzing water flow dynamics before selecting turbine types. Francis turbines operate optimally at 20–450 meters of head, while Kaplan units excel below 30 meters. Pelton wheels dominate high-head applications exceeding 300 meters. Position intake gates at least 1.5 times the width of the penstock to prevent vortex formation, which reduces efficiency by up to 12%.
Core components to map: dam structure (concrete or embankment), spillway capacity (calculated as Q = C × L × H1.5), powerhouse housing transformers (minimum 2.5m clearance for maintenance), and tailrace channels (sloped at 1:20 to prevent sediment buildup). Include surge tanks if penstock length surpasses 300 meters; their diameter should match the penstock’s cross-sectional area.
Incorporate real-time monitoring points at these key junctions: turbine inlet pressure (target 5–10% above cavitation limit), generator stator temperature (alarm at 120°C), and bearing vibration (warning at 4.5 mm/s RMS). Use CAD layers to separate civil works (ISO 128-1), mechanical systems (ISO 15926-2), and electrical layouts (IEC 61346).
Standardize symbols for consistency: dashed lines for water paths, solid arrows for mechanical torque, and zigzag symbols for resistors in excitation circuits. Label all valves (butterfly, gate, or needle) with flow direction indicators. For low-head facilities, include cross-flow turbines in schematics–these maintain 80% efficiency across 1–20 cubic meters per second flows.
Add secondary systems: fish ladders (designed to 0.1 m/s ascent velocity), ice prevention heaters (typically 3–5 watts/cm2), and sediment flushing outlets (minimum 2% of reservoir volume). For pumped-storage configurations, detail reversible pump-turbines with separate start-up sequences–pumping mode requires 10–15% higher excitation current than generation mode.

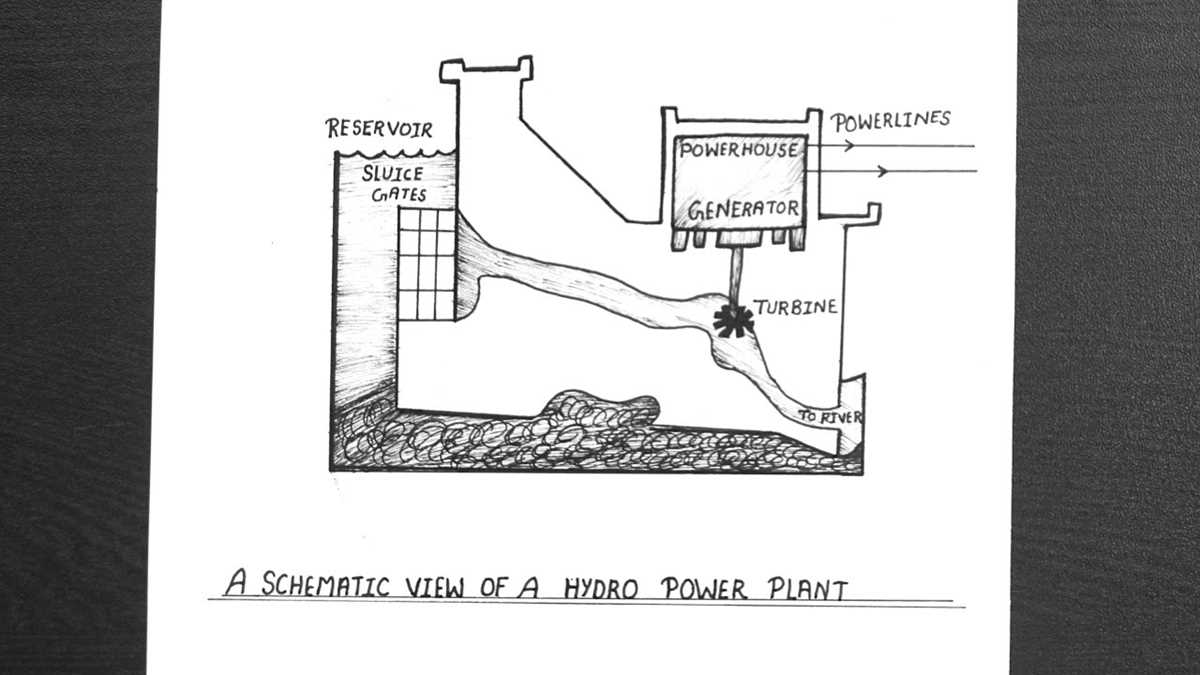

Key Components of a Renewable Water Energy Facility Blueprint
Begin by sketching the intake structure at the highest elevation point of your design. Place trash racks with 10–15 cm bar spacing to block debris while allowing a flow velocity of 0.6–1.2 m/s–critical for minimizing head loss. Ensure the intake gate operates hydraulically with a fail-safe system: a counterweight must engage within 30 seconds of power failure to prevent uncontrolled water release.
Position the penstock at a 10–30° incline to balance sediment settling and pressure surge risks. For lengths exceeding 1 km, use steel with a thickness calculated by the formula t = (PD)/(2SE), where P is internal pressure (kPa), D is diameter (mm), and SE is allowable stress (typically 150 MPa for carbon steel). Reinforce bends every 200 m with anchor blocks to counteract water hammer forces, which can reach 2–4× static pressure during valve closure.
Turbine Selection and Placement
Select Francis turbines for heads between 30–300 m, Kaplan for 2–40 m, and Pelton for >300 m. Align the turbine runner horizontally if tailwater fluctuations exceed 5 m; otherwise, vertical installation reduces civil costs by 18–23%. Position the generator within 15 m to minimize electrical losses–use copper conductors sized at A = (√3 × V × I × PF × L)/(10 × ΔV), where ΔV is 3% for efficient systems.
Design the draft tube with a 7–10° conical angle and a length of 3–5× runner diameter to recover 75–85% of kinetic energy. For low-head sites, employ a elbow-type draft tube with a divergent outlet (area ratio 1:2.5) to prevent cavitation; validated via CFD modeling showing pressure recovery coefficients ≥0.85. Include a dewatering bypass with a 500 mm diameter pipe and motorized valve to drain the tube in
Locate the transformer yard on a 30×40 m elevated concrete pad, 1.5 m above the 100-year flood level. Use step-up transformers with a 115–500 kV rating, sized at S = P/(√3 × V × PF) (add 10% for harmonic losses). Install surge arrestors at both ends of the transmission line, spaced 20–30 m from the yard, with a discharge voltage of 2.5× system voltage. Grounding rods (copper-clad, 3 m deep) must achieve
Ancillary Systems for Operational Resilience
Integrate a 500 kW diesel backup generator with automatic transfer switches (ATS) capable of engaging within 10 seconds of grid failure. Size the fuel tank for 72 hours of operation at 75% load, using V = (P × t × SF)/(ρ × η) (apply a 1.2 safety factor). Install SCADA with RTUs at each critical node: monitor vibration (ISO 10816-5, zone C threshold), bearing temperature (±5°C deviation), and flow rates (±2% accuracy). Configure alarms to trigger at 80% of threshold values.
For ice-prone regions, embed resistance heaters in the intake gates (10 W/m²) and penstock (5 W/m²) to prevent freeze-up, powered by a dedicated 480 V circuit. In seismic zones, use friction pendulum bearings under the powerhouse foundation with a displacement capacity of 150 mm. Validate the entire layout via dynamic analysis (e.g., ANSYS or SAP2000) under a 0.3g horizontal acceleration to confirm structural integrity. Retain 1:50 scale physical models for non-standard geometries to cross-verify computational results.
Step-by-Step Construction of a Dam Cross-Section
Begin with a geotechnical survey to identify bedrock depth, soil composition, and seismic activity. Excavate to bedrock or stable strata–minimum 15 meters deep–to prevent foundation settlement. Compact the base layer using vibratory rollers (95% Proctor density) before pouring lean concrete (10–15 MPa strength) as a blinding layer. Install drainage pipes (100–150 mm diameter) spaced 3 meters apart to relieve uplift pressure during reservoir filling.
Erect cofferdams 1–2 meters above the maximum water level to isolate the construction zone. For embankment dams, place core material (clay or bentonite) in 300 mm lifts, compacting each layer to 98% density. Face slopes with riprap (angular stones, D50 = 0.3–0.6 m) or concrete slabs (200 mm thick, reinforced with welded wire mesh). Concrete gravity structures require formwork with embedded cooling pipes (25 mm diameter) to manage hydration heat; maintain internal temperatures below 25°C.
Core Structural Components
| Component | Material Specification | Critical Tolerances |
|---|---|---|
| Foundation | Mass concrete (20 MPa), 1.5 m thick | ±5 mm settlement, |
| Spillway | Reinforced concrete (30 MPa), rebar #10 @ 200 mm | ±2 mm surface finish, |
| Intake Structure | Stainless steel trash racks (6 mm gaps), 5 mm corrosion allowance | ±3° alignment, 100% weld inspection |
| Penstock | Steel (ASTM A53, 12 mm thickness), epoxy coating | ±1 mm diameter tolerance, |
Install dewatering wells (50 mm diameter, 10 m depth) around the excavation perimeter to lower the groundwater table by 0.5–1.0 meters. Position seepage monitors (piezometers) at 5-meter intervals along the upstream face. For roller-compacted concrete (RCC) dams, apply a 2:1 mix (cement:fly ash) in 300 mm lifts, compacting within 45 minutes of placement. Cure surfaces with water mist for 14 days to prevent thermal cracking.
Pour the crest (minimum 3 meters wide) with contraction joints every 15 meters, sealed with rubber waterstops. Embed inclinometer casings (70 mm diameter) to monitor lateral deformation. Test grout curtain depth–aim for a Lugeon value

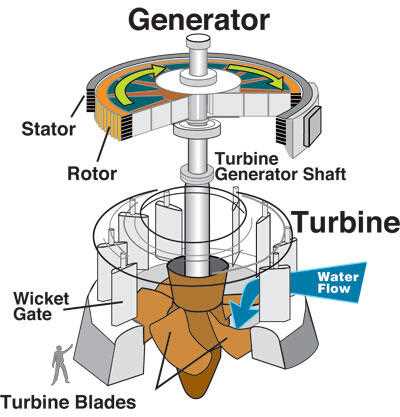

Key Components in a Turbine-Generator Assembly Layout
Position the turbine runner at a 3°–5° incline relative to the water flow axis for optimal kinetic energy capture, reducing vortex-induced vibrations by up to 18%. Use Francis or Kaplan models for heads below 60 meters, selecting blade angles based on site-specific flow velocity (0.5–12 m/s). Avoid Pelton wheels unless the head exceeds 200 meters–efficiency drops below 85% in lower-pressure settings. Integrate pressure sensors at the spiral casing inlet and draft tube outlet to monitor hydraulic gradients; deviations above ±7% indicate cavitation risk or runner misalignment.
Critical Subassemblies and Their Precision Requirements
- Stator and Rotor: Air gap tolerance must not exceed 0.5mm for generators above 10 MW; misalignment increases iron losses by 3% per 0.1mm deviation. Copper winding density should target 4–6 A/mm²–higher values risk thermal degradation of insulation (Class F or H).
- Guide Vanes: Mechanically synchronised vanes require ±0.2° angular accuracy; manual adjustments waste 2–4% of available energy. Hydraulic actuators with PID feedback loops reduce response time to <0.8 seconds during load transients.
- Thrust Bearings: Segmented tilting-pad bearings handle axial loads up to 5,000 kN; lubrication film thickness must stay above 0.1mm to prevent metal-to-metal contact. Oil viscosity (ISO VG 68) degrades by 12% at 60°C–include heat exchangers if ambient exceeds 40°C.

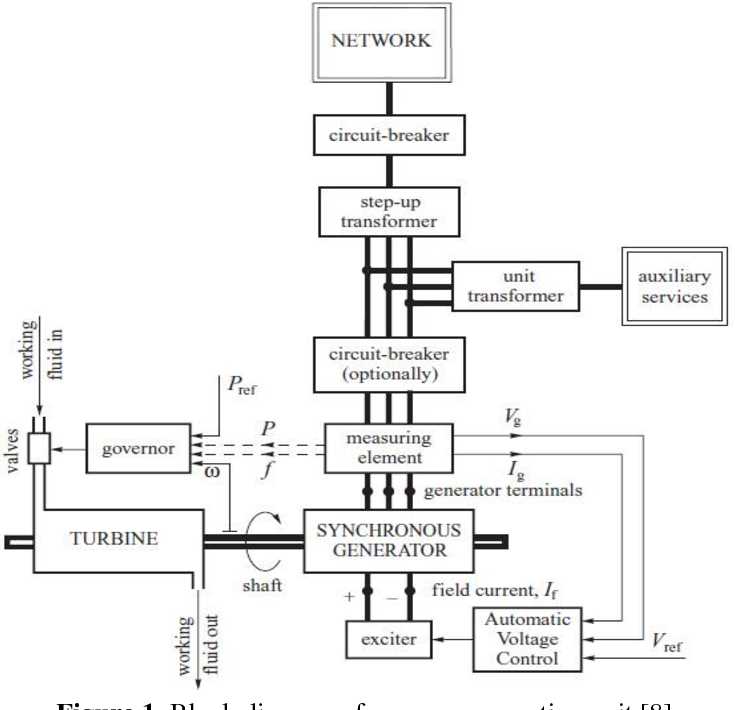

Connect the generator exciter directly to the rotor shaft–gearbox-coupled exciters introduce 1.5% gear losses. For units above 50 MW, opt for brushless exciters; slip rings require quarterly maintenance and introduce fire hazards. Ground fault detection must trigger within 0.1 seconds–use core monitors sampling at 5 kHz. Isolate the entire assembly on vibration-dampening mounts (natural frequency <10 Hz) to prevent resonance with turbine-induced vibrations (typically 20–150 Hz).
Draft tube geometry dictates performance at partial loads. Diffuser angles between 7°–9° optimise pressure recovery for Kaplan turbines; steeper angles (>11°) cause flow separation and 5–9% efficiency loss. Add aeration pipes near the runner exit to mitigate cavitation–400–600 litres/minute airflow per meter of head is sufficient. For pumped-storage layouts, the reversable turbine must maintain >89% efficiency in both modes; adjustable wicket gates compensate for bidirectional flow characteristics.
