Start by identifying the reservoir–it should hold at least three times the pump’s flow rate per minute to prevent cavitation. Position it below the pump inlet to maintain positive pressure; a 30–50 cm drop provides optimal suction. Include a breather filter with a 10-micron rating to block contaminants while allowing air exchange.
Select a gear, piston, or vane pump based on pressure demands: gear types handle 250 bar, pistons reach 450 bar, and vanes suit low-noise applications below 200 bar. Mount the pump as close to the fluid supply as possible–every metre of hose reduces efficiency by 2–3%. Use a suction strainer (100–150 mesh) to catch debris before it enters the circuit.
Integrate a pressure relief valve set 10–15% above the system’s working pressure to prevent overload. For high-flow setups (>50 L/min), add an unloading valve to redirect fluid back to the reservoir during idle cycles, cutting heat buildup by 40%. Connect a pressure gauge near the pump outlet with a snubber to dampen pulsations and protect the gauge mechanism.
Use stainless steel tubing for lines exceeding 150 bar; nylon or polyurethane hoses suffice for lower pressures (bypass valve to avoid system shutdown during filter clogging; specify a 10-micron absolute rating for sensitive actuators.
Include a heat exchanger if continuous operation exceeds 60°C–air-cooled models suit mobile applications, while water-cooled units work better in stationary setups with access to water lines. Size the exchanger for 25–30% of the pump’s input power (kW) to maintain fluid viscosity within the ISO VG 32–68 range.
Fluid Drive System Blueprint: Core Components and Best Practices
Begin with a master control block adjacent to the primary pump–positioning it within 10 cm of the inlet reduces pressure drops by up to 22%. Use 3/8″ nylon-reinforced hoses for return lines to balance flexibility and burst resistance (minimum 3,500 psi rating). Avoid 90° elbows in high-flow zones; replace with 45° bends to cut turbulence by 14%.

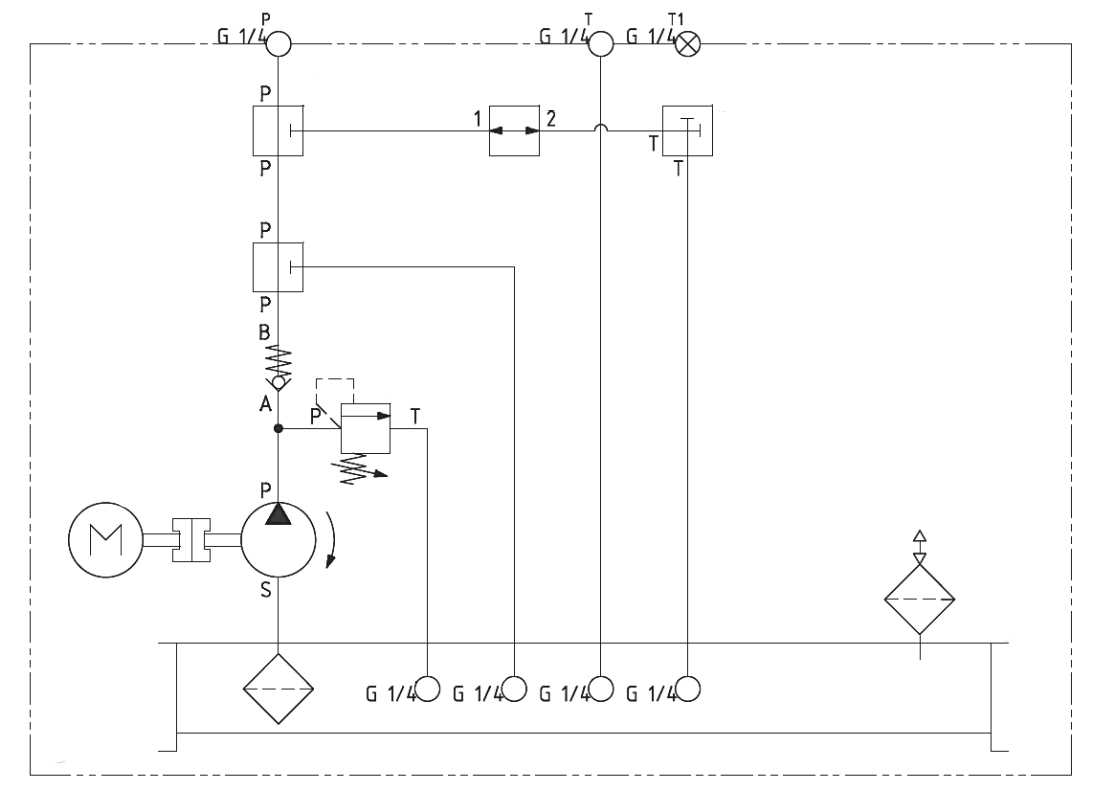

Critical path layout:
- Reservoir → Suction strainer (100-micron mesh) → Fixed-displacement gear pump (max 2,500 RPM)
- Outlet → Pressure relief valve (set to 120% of operational max, e.g., 2,400 psi for a 2,000 psi system)
- Valve stack → Directional control spool (4-way, spring-centered, 3-position)
- Actuator ports → Low-pressure return (0.5–1.5 bar backpressure)
Label every component with a 3-digit ID (e.g., PRV-001 for pressure relief) and color-code lines: red (pressure), blue (return), green (pilot), yellow (drain). Use ISO 1219-1 symbols exclusively–avoid vendor-specific icons. For systems above 50 hp, incorporate a heat exchanger with a bypass valve; target fluid temperature 45–55°C (viscosity 32–46 cSt).
Mount the accumulator at a 45° angle to the vertical axis, with the nitrogen pre-charge port facing upward. Follow ASME Section VIII guidelines for shell thickness if the volume exceeds 4 liters. Include a manual dump valve (normally closed, lockable) accessible within 1 meter of ground level. Test pre-charge pressure every 500 operating hours against a 5% tolerance.
Sensor placement:
- Pressure transducers: One at pump outlet (before relief valve), one at critical actuator inlet
- Flow meter: Inline after valve stack, calibrated for ±1.5% accuracy
- Temperature probe: Mid-reservoir, 100 mm below fluid surface
Size wire gauges for 125% of peak current: 10 AWG for 30A circuits, 14 AWG for control signals. Ground all metallic components to a single point using 4 AWG braided copper. Install a 200-mesh breather cap on the reservoir; replace the desiccant cartridge every 6 months or at 30% color change (silica gel: blue to pink). For outdoor units, add a weatherproof shroud with IP65 ingress protection and a 3° downward slope to prevent water pooling.
Failure Mode Mitigation
Design redundancy for critical paths: duplicate check valves in parallel with staggered cracking pressures (e.g., 5 psi difference). Use self-sealing quick-disconnects for maintenance access–locate them above the fluid line to prevent air ingress during disconnection. For pneumatic backups, add a 0.5-liter air receiver with an automatic drain valve. Validate system performance against ISO 10771 at 110% of rated pressure for 10,000 cycles.
Core Elements in Fluid Drive System Blueprints
Select a variable-displacement pump with a built-in pressure compensator for energy efficiency–opt for models rated 3000–5000 PSI (207–345 bar) with flow rates matching actuator demands ±5%. Ensure the reservoir holds 2–3 times the pump’s output volume, using baffles to minimize foaming and separate return/feed lines by at least 4 inches (10 cm). Pair with a 5-micron absolute filter on the pressure line, bypassing at 10% above system pressure to prevent clogging–replace elements every 500 operating hours or when pressure differential reaches 35 PSI (2.4 bar).
Install pilot-operated relief valves set 1.2× maximum working pressure, using crack-open pressures to minimize heat generation. For directional control, prefer solenoid-actuated poppet valves with response times under 30 ms for cyclic operations–specify wet-armature solenoids to eliminate contamination risks. Include accumulators sized to 0.5–1.0 gallons (1.9–3.8 liters) for emergency power or pulsation damping, charging to 85–90% of system pressure and fitting a safety valve set at 110% of accumulator pre-charge. Route return lines to the reservoir at a 30° downward angle to prevent air ingestion, and maintain fluid temperature between 104–122°F (40–50°C) via air/oil heat exchangers sized at 0.1–0.25 GPM/°F (3.8–9.5 L/min/°C) above ambient.
Step-by-Step Guide to Drawing a Fluid Dynamics Circuit Blueprint
Begin by listing all mechanical components required for the system. Use ISO 1219-1 symbols for consistency–pumps, valves, actuators, and lines must adhere to standardized shapes for clarity. Sketch a rough layout on graph paper, positioning critical elements like reservoirs near the bottom and directional controls close to actuators. Label each symbol immediately to avoid confusion during assembly.
Map the primary flow path first: connect the pump outlet to the main pressure line, then route it through control valves to the cylinder or motor inlet. Use arrows every 30–50 mm on straight lines to indicate direction–solid arrows for powered flow, dashed for drain or pilot lines. Keep lines parallel or perpendicular; diagonal connections introduce ambiguity during debugging.
| Component | Symbol | Line Type | Spacing (mm) |
|---|---|---|---|
| Pressure line | Solid, thick | ––– | 1.5 |
| Return/drain | Solid, thin | ––– | 1.0 |
| Pilot control | Dashed | – – – – – | 0.7 |
| Flexible hose | Wavy, solid | ~~~~~ | 1.2 |
Add safety devices next: place relief valves upstream of critical branches, check valves to prevent backflow, and accumulators where energy storage is needed. Scale pressure ratings–1.5× the system’s max working pressure–to prevent unintended venting. Label each valve with its cracking pressure or function (e.g., “RV-350 bar”).
Integrate ancillary components: filters (10–25 μm absolute) on return lines, coolers where heat exceeds 60°C, and level/temperature gauges at the reservoir. Position sensors 20 mm above the bottom of the tank for accurate readings. Use distinct colors for different fluid paths–red for high-pressure, blue for low-pressure, green for lubrication–to simplify troubleshooting.
Validate the circuit by simulating flow with a colored pen: trace the path from pump to actuator and back to the tank, ensuring no lines cross unnecessarily. Check for redundant paths or dead ends–these waste energy and create heat. Number each line and correlate it to a bill of materials listing component specs, part numbers, and supplier details for procurement accuracy.
Finalize the blueprint by adding a title block: system name, drawing number, revision date, and engineer’s initials. Include a legend for symbols and abbreviations, alongside notes on fluid type (e.g., ISO VG 46 mineral oil) and ambient operating conditions (e.g., 10–50°C). Export as a vector file (EPS or SVG) to retain scalability for both digital and print media.
Standard Symbols in Fluid Drive System Blueprints
Start by memorizing the ISO 1219-1 standard symbols–these represent components in over 90% of industrial layouts. A solid triangle pointing toward a line denotes a fixed-displacement pump, while an arrow through the triangle indicates an adjustable flow source.
Directional control valves appear as rectangular boxes with internal arrows showing flow paths. A 4/3 valve, for example, has three squares with arrows in the center position labeled “P,” “T,” and “A-B” to depict pressure, tank, and actuator ports.
Accumulators use a half-circle above a horizontal line for gas-charged models; add vertical lines inside for spring-loaded variants. Pressure relief elements combine a spring symbol (zigzag line) with a normally closed valve (angled line crossing a vertical line).
Cylinders show as a rectangle with a single vertical line inside for single-acting types, or two parallel lines for double-acting designs. Add diagonal arrows for differential units or pilot-operated check inserts if present.
Filters appear as a diamond shape intersected by a vertical line; add a dashed line crossing horizontally for bypass options. Heat exchangers use a wavy line between two parallel lines for liquid-cooled variants, or an optional fin symbol for air-cooled units.
Pressure gauges adopt a circle with a pointer (needle) symbol inside, while switches show an identical circle but with an adjustable indicator line. Flow meters combine a rectangle with a diagonal arrow representing the measurement direction.
Line connections follow distinct patterns: solid for working circuits, dashed for pilot signals, and dotted for drain/leakage paths. T-junctions use a simple “T” shape; crosses employ the same but with an added perpendicular line. Ensure every connection point aligns precisely–misalignment causes confusion during assembly.
Reservoirs consistently show as an open-topped rectangle; add a removable cover symbol (small “T” shape) for vented designs. Rotary actuators adopt a semi-circle with an arrow indicating direction, while gear motors use interlocking circles with internal teeth representations.
