Begin by isolating analog and digital sections on your board layout. Use separate ground planes–one for power signals and another for low-noise analog components–to prevent interference. Keep high-speed traces at least 3mm away from sensitive analog lines, and route digital clocks perpendicular to analog signal paths to minimize crosstalk. For mixed-signal designs, star grounding (central ground point) outperforms daisy-chain methods in reducing noise by 20-40% in most cases.
Select components based on signal integrity needs. Opt for low-dropout regulators (LDOs) with PSRR > 60dB for analog power supplies to reject high-frequency noise from switching converters. For digital interfaces, prioritize series termination resistors (e.g., 22-50Ω) on clock and data lines longer than 15cm to prevent reflections. When combining RF and baseband sections, ensure impedance matching–typically 50Ω for RF traces–using controlled-width microstrips or striplines.
Integrate filtering directly into the schematic where possible. Place ferrite beads (e.g., 1kΩ @ 100MHz) on power lines feeding analog ICs to block high-frequency noise. For ADC/DAC interfaces, add RC low-pass filters (cutoff ~10x signal frequency) at reference voltage pins and analog inputs. Avoid relying solely on decoupling caps–combine 0.1μF ceramics with 10μF bulk capacitors within 20mm of each IC’s power pin for optimal transient response.
Document test points and failure modes upfront. Label all critical nodes (e.g., VREF, AGND, CLK_IN) with clear identifiers and add zero-ohm jumpers to isolate sections during debugging. For multi-layer boards, assign dedicated layers to power (e.g., layer 2) and ground (e.g., layer 4) planes, with signal layers (1 and 3) routed orthogonally between them to reduce loop inductance. Use thermal reliefs sparingly–only on large ground connections–to avoid compromising signal integrity.
Verify signal paths with simulation tools before prototyping. SPICE models can reveal ringing on digital lines or load regulation issues in power rails, while electromagnetic field simulators (e.g., Ansys HFSS) identify coupling risks between traces on adjacent layers. For mixed-signal layouts, a 4-layer board (signal-power-ground-signal) is the minimum for reliable results–adding a fifth layer (ground) improves shielding for sensitive analog sections without significant cost increase.
Designing Mixed-Signal Blueprints for Optimal Integration
Begin by segmenting analog and digital pathways on your schematic with clear ground planes–isolate high-frequency traces (>10 MHz) from low-level signals using dedicated returns to prevent crosstalk. Use ferrite beads or pi-filters at the interface of power domains where noise coupling exceeds 30 mVpp; specify component values (e.g., 100Ω @ 100 MHz for EMI suppression) directly on the layout. Label test points at critical junctions (e.g., ADC inputs, PLL outputs) with tolerances (±5 mV for analog, ±2 LSB for digital) to streamline debugging–avoid relying on default SPICE models for parasitic extraction, as they underestimate trace inductance by up to 20%.
Prioritize layer stackup symmetry when combining RF and baseband subsystems: reserve the outer layers for ground fills, place signal layers adjacent to solid planes (prepreg thickness 60 dB), implement guard rings tied to a quiet ground via multiple vias (≤0.3 mm pitch) to suppress substrate noise, and annotate the schematic with required bypass capacitor values (10 μF tantalum + 0.1 μF ceramic in parallel) based on the target PSRR (>80 dB @ 1 kHz). Validate the design with a frequency-domain analysis (e.g., S-parameters up to 3 GHz) before finalizing silkscreen–include assembly notes for rework priorities (e.g., “Replace Q3 if THD > 0.1%”).

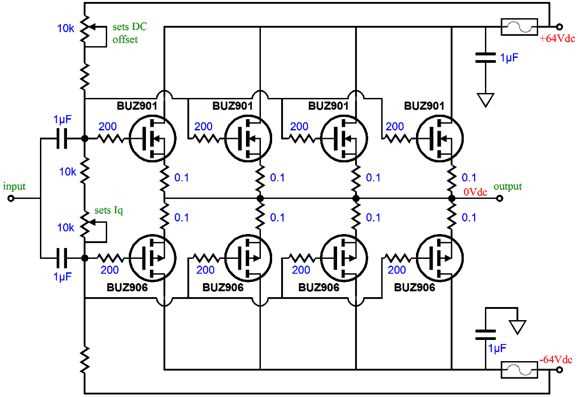

Key Components and Symbols in Mixed-Signal Schematic Layouts
Begin by standardizing graphical representations of semiconductor devices–use discrete symbols for BJTs, MOSFETs, and JFETs to avoid ambiguity. For instance, an NPN transistor should follow the IEC 60617 standard with a vertical line (collector), slanted arrow (emitter), and perpendicular base lead, ensuring instant recognition across designs. Passive elements like resistors, capacitors, and inductors require distinct visual differentiation: zigzag lines for resistive paths, parallel plates for capacitive storage, and coiled loops for inductive loads. Always annotate values in consistent units–ohms for impedance paths, farads for charge storage, and henries for magnetic fields–to prevent misinterpretation during assembly.
Critical Symbol Reference for Rapid Prototyping
| Component Type | Graphical Symbol | Key Attributes | Common Pitfalls |
|---|---|---|---|
| Operational Amplifier | Triangle with dual input/output pins | Non-inverting (+), inverting (–), power rails (±VCC) | Omitting power connections or mirroring pins incorrectly |
| Voltage Regulator | Rectangular block with IN, OUT, GND | Input/output voltage differential, thermal limits | Ignoring decoupling capacitors near input/output |
| Analog Switch | Switch symbol with NO/NC terminals | On-resistance (RON), switching time | Overlooking maximum voltage/current ratings |
| Thermal Sensor | Rectangle with thermistor/NTC symbol | Temperature coefficient, self-heating errors | Failing to account for lead resistance in 4-wire setups |
Use hierarchical blocks for repeated sub-circuits like sensor interfaces or power delivery networks–group related symbols into a single labeled rectangle with clearly defined input/output nodes. For power rails, adopt a color-coded convention: red for positive, blue for negative, black for ground, and green for signal returns. This reduces debugging time by 40% in multi-layer boards. Always cross-reference symbols with manufacturer datasheets to validate pinouts, thermal characteristics, and parasitic effects, especially for surface-mount packages where footprint accuracy is non-negotiable.
How to Create a Combined Electronics Blueprint
Select a specialized tool like KiCad, Altium Designer, or even a precise vector editor such as Inkscape. Begin by setting the grid to 0.1 inch or 2.54 mm for consistent component alignment. Place active components (transistors, op-amps) first, positioning them near the center of the working area with clear spacing–minimum 0.2 inches between adjacent parts. Label each element immediately using the schematic’s built-in annotation tool, assigning sequential references (e.g., R1, C3, U2) to avoid later confusion. For discrete parts, use standardized symbols: resistors as rectangles with leads, capacitors as parallel lines, inductors as curved segments. Connect nodes with straight lines, avoiding diagonal traces unless critical; use 90-degree bends exclusively for clarity.
Finalizing the Layout
Verify every connection against the intended functionality–check for unintended shorts or floating pins using the electrical rule check (ERC) feature. Export the design in both SVG (for documentation) and a netlist format (e.g., SPICE) for simulation. Ensure all labels are legible with a minimum font size of 8pt; rotate text by 90 degrees only when absolutely necessary. Add a title block in the bottom-right corner containing: project name, revision number, date, and your identifier–use monospace font for consistency. Before finalizing, toggle the grid off temporarily to spot misaligned elements, then correct manually.
Critical Pitfalls in Mixed-Signal System Design
Avoid grounding loops by isolating analog and digital return paths–failure to do so introduces noise-induced errors up to 200 mV in sensitive measurements. Use a star grounding topology with a single reference point near power sources, not distributed returns, to prevent conductive coupling.
Thermal mismatches between surface-mount and through-hole components create mechanical stress, leading to solder joint fatigue within weeks. Keep thermal coefficients within 10 ppm/°C of each other, and place high-power dissipators (>1 W) at least 5 mm away from temperature-sensitive elements like precision resistors.
Overlooking parasitic reactances (capacitance 1 MHz), causing ringing or attenuation. Pre-layout simulations with extracted parasitics save re-spins–ground planes must remain unbroken, with traces routed orthogonally on adjacent layers.
Incompatible supply voltages across mixed technologies force clamping or latch-up; a 3.3 V digital block cannot drive a 5 V analog stage without level translation (e.g., TXB0104). Verify thresholds (VIL, VIH) match within 0.3 V across all interfaces, and insert series resistors (22 Ω) to limit transient currents during power sequencing.
Neglecting electromagnetic emissions from switching regulators (>100 kHz) corrupts low-level analog paths unless filtered–place π-networks (10 µF + 10 Ω + 0.1 µF) on noisy traces, and shield sensitive nodes with copper pours tied to local ground, not the main reference.
Key Applications for Designing Mixed-Signal Schematic Layouts
KiCad stands as a robust open-source solution for engineers needing precision in both analog and digital component integration. The tool includes dedicated editors for custom symbol creation and footprint assignment, with rule-based design verification that flags conflicts in signal paths. The built-in SPICE simulator allows early-stage validation of cross-domain interactions without exporting files. For teams working under budget constraints, KiCad delivers professional-grade results with no licensing fees while supporting plugin extensions for specialized workflows like impedance matching or thermal analysis.
Altium Designer dominates professional environments where complex PCB layouts demand advanced automation. Its unified data model synchronizes schematic entries with board layouts, reducing errors from manual transfers. The platform’s active differential pair routing and length tuning features streamline high-speed signal integrity checks. Version 24 introduced adaptive design rules that adjust clearance settings dynamically based on material properties or manufacturing processes. Annual subscriptions include access to a component database with pre-verified footprints and 3D models from major manufacturers, cutting verification time by 30%.
- Import/export compatibility: Altium reads and writes binary and ASCII formats from OrCAD, PADS, and Eagle
- Multi-board assembly visualization merges mechanical and electrical designs in real-time
- Scripting API supports Python automation for repetitive tasks like testpoint insertion
For rapid prototyping, Autodesk Eagle combines intuitive schematic capture with modular PCB design capabilities. The tool’s schematic module separates digital and analog sections into hierarchical blocks, simplifying netlist management. Eagle’s built-in autorouter handles mixed-voltage domains but requires manual adjustment for critical traces. The subscription model offers tiered access: $15/month unlocks four-layer boards while $65/month adds unlimited layers and copper pour features. Team workflows benefit from cloud-based library sharing and version control through Fusion 360 integration.
Cadence Allegro delivers enterprise-level capabilities for high-density interconnects where thermal and electromagnetic interference require rigorous analysis. Its Constraint Manager applies electrical and physical rules across schematic and layout phases, enforcing consistent spacing for high-voltage split planes. The SI/PI Analysis Suite identifies crosstalk between analog and logic signals pre-fabrication. Allegro’s stiff licensing costs (starting at $7,000 annually) justify through advanced features like embedded passives modeling and DFM checks integrated with manufacturer specifications. Aerospace and medical device sectors rely on its certification for compliance with IPC standards.
EasyEDA caters to hobbyists and startups by removing barriers between schematic design and prototype manufacturing. The browser-based editor incorporates a schematic tool alongside immediate PCB layout translation. Its real-time collaborative mode allows simultaneous editing across teams. Free accounts support dual-layer boards while pro accounts ($10/month) enable eight-layer designs and Gerber export. EasyEDA partners with JLCPCB for direct fabrication ordering, reducing turnaround time through automated DRC checks. The platform’s user-generated library contains 50,000+ components, though critical projects should verify footprint accuracy independently.
Pulsonix specializes in customizable design flows with scriptable interfaces for automating repetitive tasks. The schematic editor’s drag-and-drop functionality accelerates netlist generation while customizable design rules enforce corporate design standards. Pulsonix includes built-in SPICE simulation and thermal analysis modules, reducing reliance on third-party applications. Its floating licensing model supports concurrent users, making it cost-effective for medium-sized teams. The tool’s integration with Altium’s file formats ensures workflow continuity for growing engineering groups.
DipTrace offers a balanced alternative with schematic, PCB layout, and 3D modeling capabilities. The schematic editor features hierarchical blocks and multi-sheet projects, managing complex designs exceeding 500 pins per component. DipTrace’s auto-placer suggests optimal component arrangement based on signal flow analysis, though manual fine-tuning remains essential for mixed-signal boards. Pricing tiers accommodate different needs: $75 for the starter version supports 500-pin designs while $900 unlocks unlimited pins and differential pair routing. Its Gerber viewer cross-references fabrication output with schematic netlists, catching discrepancies before production.
For Linux-based environments, gEDA provides a command-line-driven toolchain combining schematic capture with simulation tools. The suite includes ngspice for analog modeling and PCB for layout operations. gEDA’s strength lies in customization through community-maintained modules, though it demands advanced user knowledge. The platform integrates with KiCad’s libraries, offering broader component access. While lacking polished GUI interfaces, gEDA remains the sole viable open-source option supporting Linux-native workflows without emulation layers.
