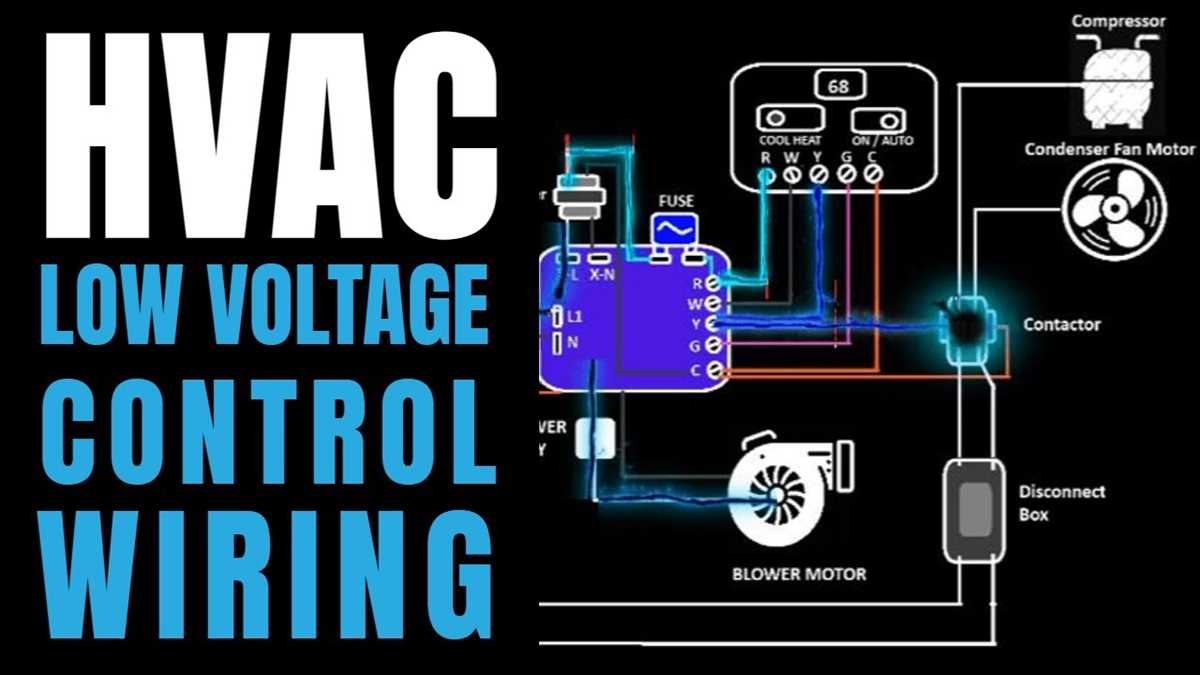

Begin by isolating the low-voltage control circuit–typically marked in red, blue, and yellow on terminal blocks. Trace these lines back to the thermostat’s subbase first, verifying continuity with a multimeter set to 24V AC. If readings deviate by more than ±2 volts, check for loose wire nuts behind the control panel or corroded terminals at the condenser contactor. Replace any degraded spade connectors immediately; standard ¼-inch female terminals with tin plating last longer than brass under seasonal thermal cycling.
High-voltage wiring demands 60°C-rated THHN copper conductors, sized at no less than 12 AWG for 20-amp circuits and 10 AWG for 30-amp. Route power cables separately from signal wires, keeping a minimum 2-inch air gap or using shielded conduit where crossover is unavoidable. Label each conductor with heat-shrink tubing–white for L1, black for L2, and red for switched legs–to eliminate ambiguity during future diagnostics. Avoid the common pitfall of omitting ground wires on outdoor units; loop a 6 AWG bare copper wire directly from the compressor housing to the nearest grounding rod.
Transformers in forced-air systems must match the VA rating of the original: 40 VA for single-stage setups, 60 VA for dual-stage, and 80 VA for variable-speed motors. Test load-side voltage under full draw–if the secondary drops below 22V AC, upgrade the transformer or reduce inductive loads from extended thermostat wiring runs. Capacitors–both start and run–require replacement every 5 years or at the first sign of bulging caps. Use only identical microfarad ratings and voltage tolerances (±6%); mismatched caps can reduce compressor lifespan by 30% due to uneven phase shifting.
Relays and sequencers need silicone dielectric grease on all contact surfaces during installation to prevent pitting from arcing. Position defrost boards at least 18 inches away from heat exchangers, and orient the PCB vertically to minimize condensate buildup on solder joints. For zoned systems, wire dampers in parallel–never series–with the zone controller’s 24V trigger to ensure fail-safe operation if one zone fails. Keep a spare set of jumper wires (18–22 AWG) on hand for bypassing thermostats during troubleshooting; this simple step can confirm faulty sensors in under 90 seconds.
Understanding Electrical Schematics for Climate Control Systems

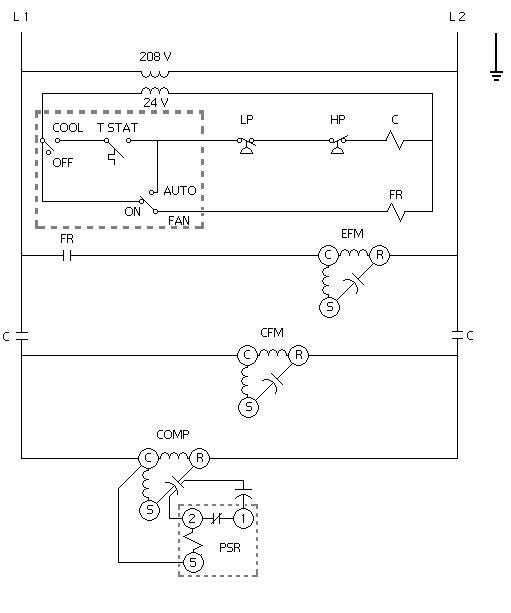

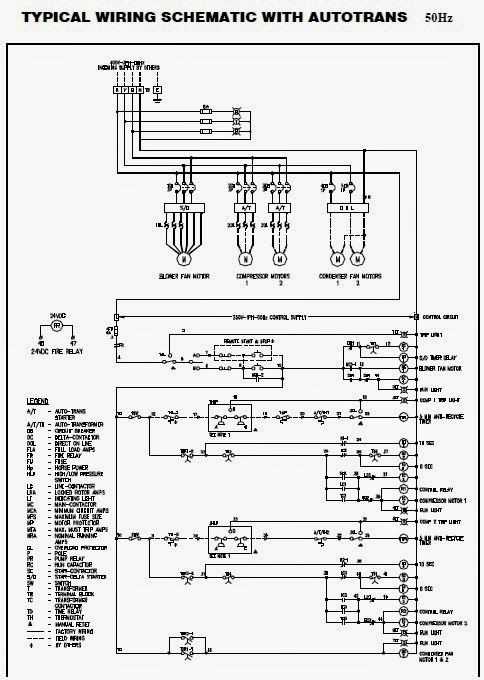

Always start by identifying the power source in the schematic–typically a 24V control circuit or 120/240V line voltage. Trace the path from the transformer through fuses or breakers to the thermostat base, then follow the colored conductors (R, Y, G, W, C) to their endpoints at relays, compressors, or blower motors. Mark live terminals with a highlighter to avoid misconnections.
Use a multimeter to verify continuity between components before powering up. Probe the R and C terminals at the indoor unit; readings should show ~24V AC. If voltage is absent, inspect the transformer secondary winding or replace a blown fuse. For outdoor units, measure across the contactor coil–failure to energize indicates a faulty thermostat wire (Y) or low-voltage issue.
Label all wires at both ends with heat-shrink tubing or adhesive tags to match the schematic symbols. Common mistakes include reversing G (fan) and Y (cool) wires, which forces the blower into continuous operation while disabling cooling. Cross-reference wire colors with the manufacturer’s legend–some brands (e.g., Carrier) swap blue and purple for common and reversing valve leads.
Check for dual-stage systems where a second thermostat wire (W2) triggers auxiliary heat or a two-speed compressor. These require dedicated relays with both NO (normally open) and NC (normally closed) contacts. Forgetting to jumper paralleled thermostat terminals in zoned systems causes uneven heating/cooling–validate all zone controllers against the wiring harness.
Document modifications by hand on a printed schematic immediately after testing. Photograph the control board before closing panels, noting jumper positions and dip switch settings. Store files named UnitModel_Date.pdf alongside maintenance logs to track circuit evolution–a 2022 Rheem condenser’s defrost board differs markedly from its 2018 predecessor, for example.
Decoding Fundamental Climate Control Circuit Symbols
Locate the power source first–often a transformer symbol labeled “L1” and “L2” or “R” and “C” in 24V systems. These mark high and low voltage sides, respectively; misidentifying them risks damaging equipment. Trace the path from the transformer to the thermostat subbase, noting jumper connections for heat, cool, or fan modes.
Understand thermostat contacts: W (heating), Y (cooling), G (fan), and R (power). A closed W circuit energizes gas valves or electric heat strips, while Y engages the compressor. Check color codes–red (R), white (W), yellow (Y), green (G)–but verify against labels as installations vary.
| Symbol | Meaning | Typical Wire Gauge | Voltage Drop Limit |
|---|---|---|---|
| ┬┐ (switch) | Normally open contact | 18-22 AWG | 0.5V |
| ┴┐ (switch) | Normally closed contact | 18-22 AWG | 0.5V |
| ⚡ | Capacitor (run/start) | 16 AWG | N/A |
| ⏚ | Ground | 14 AWG | 0.1V max |
| ~ (squiggle) | Indoor blower motor | 16-18 AWG | 1.0V |
Recognize capacitor symbols–two overlapping plates for start capacitors, three for dual-run types. Start capacitors (⚡⚡) assist motor initialization, while run capacitors (⚡) maintain steady torque. Measure microfarads (±10% tolerance) before replacing; mismatched values cause motor failure.
Identify relays by their coil (⌁) and contacts (┬┐/┴┐). A common 24V coil energizes when the thermostat calls for cooling, closing contacts to power the compressor. Check for diode symbols (▷▷) across coils–these suppress voltage spikes that can fry control boards.
Motor symbols combine circles (╬) with additional marks: squiggly lines (~) for AC induction, dashed circles for ECM types. PSC motors lack capacitors; ECM motors use modular controllers. Label schematics with RPM and horsepower values–undersized replacements overheat within hours.
Trace safety switches last: flame rollout (▯▮▯), high-pressure cutout (⚡┐), and fusible links (≣). Flame rollout switches reset manually; high-pressure cutouts require system evacuation before resetting. Fusible links melt at 217°F–never bypass them.
Cross-reference symbols with physical components using a multimeter. Set to continuity mode; probe terminals while activating the thermostat. No continuity? Check for broken wires, corroded connectors, or burnt-out coils. Record findings directly on the schematic–future troubleshooting starts here.
Step-by-Step Guide to Connecting a Thermostat to Climate Control Systems
Start by cutting power to the heating and cooling unit at the circuit breaker to prevent electrical hazards. Verify the shutdown with a non-contact voltage tester on all wires–standard low-voltage terminals (24V) include R (power), C (common), W (heat), Y (cool), G (fan), and O/B (heat pump reversal). Label each wire with masking tape as you disconnect the old thermostat to avoid misplacement. Match the new thermostat’s base plate holes to the wall mounting screws, ensuring a level alignment to prevent calibration errors.
Connect the labeled wires to the corresponding terminals on the new thermostat, tightening screws firmly–loose connections cause intermittent failures. For heat pumps, attach the O/B wire to the designated terminal (often a dual O/B port); incorrect placement reverses heating/cooling modes. If using a smart thermostat, connect the C-wire to the C terminal (or use a power extender kit if absent) to ensure continuous operation. Snap the thermostat faceplate onto the base, then restore power at the circuit breaker and test each mode (heat, cool, fan) separately, checking for delays or unusual cycling.
Program the initial settings: set temperature differentials to 2°F–3°F for optimal efficiency, and adjust recovery times based on system capacity (e.g., 30 minutes for a 3-ton AC). If the system fails to respond, recheck wire connections against the equipment’s schematic–crossed or swapped wires (e.g., W/Y) are common culprits. For dual-fuel systems, verify the outdoor sensor is correctly wired to avoid conflicts between auxiliary heat and the heat pump. Document the final configuration with a photo for future reference.
Key Voltage Variations in Climate Control System Cabling
Always route low-voltage (24V) thermostat cables in separate conduits from high-voltage (120V/240V) power lines to prevent electromagnetic interference. Use shielded twisted-pair wiring for control circuits near motors or transformers–unshielded conductors can pick up stray voltages, causing erratic operations like short cycling or failed relay engagement.
Terminate high-voltage connections with crimp connectors rated for at least 20% above the circuit’s maximum amperage. Standard wire nuts or insulation-displacement connectors are insufficient–heat-shrink butt splices or copper compression terminals prevent corrosion and loose connections, which account for 40% of field failures in compressor circuits.
Voltage-Specific Installation Rules
- 24V control circuits: Use 18 AWG solid copper for runs under 50 feet; stranded copper for longer distances to reduce signal drop. Avoid aluminum–a single nick in the insulation can cause a 3V drop, enough to disable a relay.
- 120V/240V power feeds: Size conductors based on NEC Table 310.16. For example, a 2-ton condenser requires 12 AWG copper at 240V for a 20A circuit, but upsize to 10 AWG if ambient temperatures exceed 30°C.
- Grounding: Connect high-voltage chassis grounds to a dedicated 6 AWG bare copper earth rod; low-voltage grounds terminate at the transformer core–not bonded to power grounds–to prevent ground loops.
Label all cables at both ends using heat-resistant tags. Low-voltage lines should specify function (e.g., “Y1–Compressor Contact”), while high-voltage cables must show amperage rating (e.g., “L1–240V/30A”). Mislabeling causes 15% of service delays–technicians waste an average of 45 minutes tracing unmarked wires.
Test continuity and resistance before energizing. For low-voltage circuits, use a multimeter in diode-test mode to verify 1MΩ insulation resistance–anything below 500kΩ indicates compromised insulation, risking arc faults.
Troubleshooting Voltage-Specific Failures
- Low-voltage issues: Measure voltage at the thermostat base–
- High-voltage failures: Use an infrared thermometer to scan terminals. Overheating (>60°C) at a disconnect indicates loose terminations–torque lugs to manufacturer specs (typically 15-20 lb-in for 10 AWG).
- Ground faults: If a GFCI trips, isolate the circuit by disconnecting low-voltage grounds first. If the trip persists, the fault is in the power wiring–inspect for rodent damage or moisture ingress near outdoor units.
Store spare cables in sealed plastic bags to prevent oxidation. Low-voltage strands oxidize faster–even stored copper develops a 5-10Ω resistance layer within six months in humid environments. High-voltage wires corrode at termination points; apply antioxidant paste (e.g., Noalox) before securing connections in coastal or industrial areas.
