Start with a 12-volt marine-grade battery as the primary power source–opt for AGM or lithium for reliability. Connect a 50-amp main breaker directly to the battery positive terminal before routing to a distribution panel. Use 4 AWG tinned copper cable for this link to handle current demands of navigation lights, bilge pumps, and electronics.
Divide circuits into three categories: critical safety (bilge pumps, alarms), essential navigation (GPS, VHF radio), and auxiliary (cabin lights, stereo). Each group must have its own fuse or breaker, sized no more than 125% of the wire’s ampacity rating. For example, a 14 AWG wire rated for 15 amps should use a 12-amp fuse to prevent overheating.

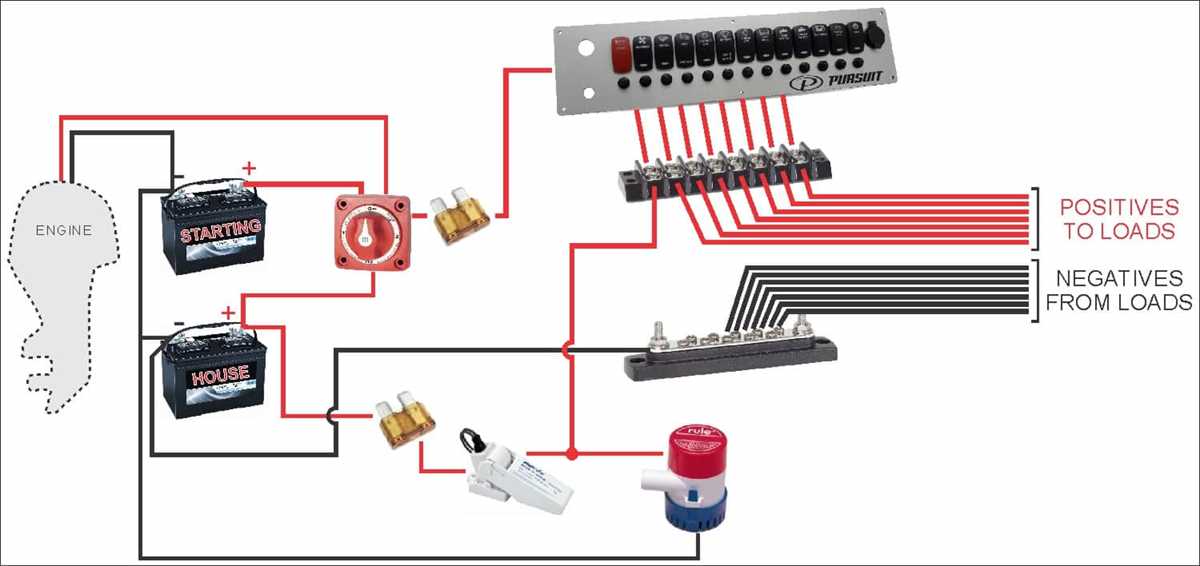

Ground all negative leads to a common bus bar, then run a single heavy-duty cable back to the battery negative. Avoid daisy-chaining grounds to multiple points–this creates voltage drops and interference. For devices prone to electromagnetic noise (fish finders, autopilot systems), install a capacitor-rated 16V or higher across power input terminals to stabilize voltage fluctuations.
Route all cables above potential bilge water lines and secure with UV-resistant zip ties every 18 inches. Use adhesive-lined heat shrink tubing at connectors to seal against moisture. Label both ends of every wire with heat-shrink markers indicating function and gauge (e.g., “NAV LTS – 14 AWG”). Test each circuit with a multimeter before finalizing connections–open the breaker and verify zero volts at the device terminal to confirm proper isolation.
For twin-engine models, duplicate the entire setup for redundancy. Cross-connect battery positives with a heavy-duty solenoid to enable jump-starting from either battery. Include a dedicated 10-amp circuit for a trickle charger mounted near the helm to maintain battery levels during storage. Avoid sharing this circuit with high-draw devices like windlasses to prevent voltage sag.
Electrical Schematic Guide for Recreational Vessels

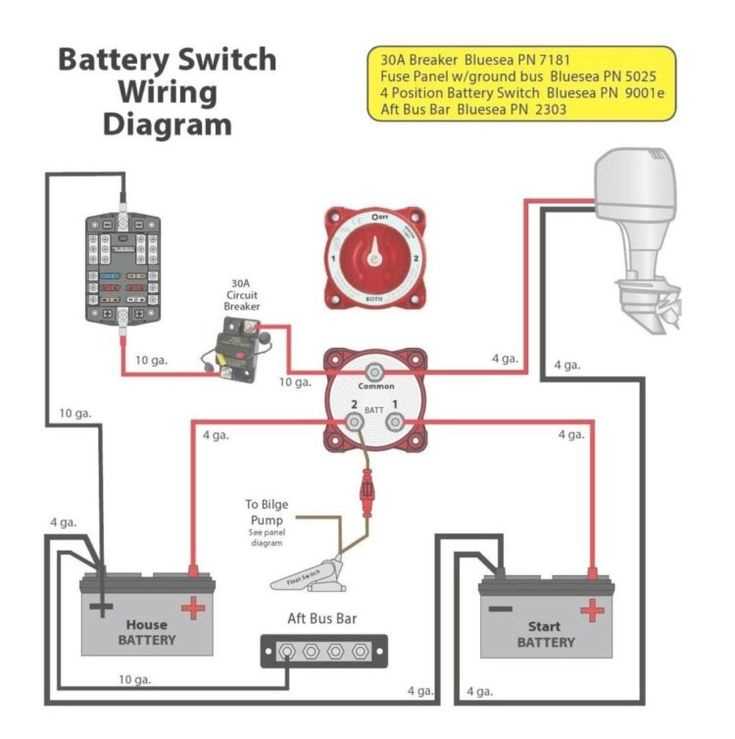

Begin by isolating the main power distribution panel–typically located near the helm–and verify its voltage rating matches your battery system (12V, 24V, or 48V). Label each circuit breaker with its corresponding component: navigation lights, bilge pump, stereo, or livewell aerator. Use marine-grade wiring (tinned copper, 10-16 AWG for high-current paths) and heat-shrink terminals to prevent corrosion. For dual-battery setups, install a battery isolator or combiner to ensure one bank remains charged for engine starting while allowing house loads to draw from the secondary battery independently.
Grounding and Circuit Protection
Connect all ground wires to a single, dedicated bus bar bolted directly to the vessel’s metallic frame or engine block. Avoid daisy-chaining grounds, which can create dangerous voltage drop under load. Install a 30-amp main breaker between the battery and distribution panel, and fuse each individual circuit at 125% of its expected current draw (e.g., a 10-amp fuse for a 8-amp bilge pump). For 120V AC systems, include a galvanic isolator to block stray currents that accelerate corrosion, and ground the shore power inlet to the same bus bar as the DC system.
Trace each wire run from the panel to its endpoint, securing with nylon clamps every 18 inches to prevent chafing. For critical safety systems–bilge pumps, engine kill switches, or fuel shutoffs–route wires above potential waterlines and use redundant connections (e.g., dual bilge pumps on separate breakers). Test all circuits with a multimeter before sealing panels: open circuits should read 0V, and closed circuits should match battery voltage. Document every wire color, gauge, and route in a schematic for future troubleshooting.
Locating Critical Elements in Marine Vessel Electrical Layouts
Trace the main power distribution panel first–it serves as the central hub for all circuits. Label each breaker or fuse with its corresponding circuit to avoid confusion during diagnostics. Modern setups often integrate color-coded wires: red for positive, black for negative, and yellow or green for auxiliary functions. Cross-reference these with the vessel’s manual to confirm standard adherence, as some builders deviate from typical conventions.
Inspect the switch panel connections, particularly for bilge pumps, navigation lights, and instrument clusters. Loose terminals here cause intermittent failures common in rough conditions. Use a multimeter to verify voltage at the panel outputs–measurements should match the expected 12V or 24V system. Deviations suggest corroded contacts or insufficient gauge wire for the current draw, requiring immediate replacement.
| Component | Typical Voltage (VDC) | Wire Gauge (AWG) Range | Symptoms of Failure |
|---|---|---|---|
| Bilge pump motor | 12–13.8 | 10–14 | Slow activation, overheating |
| Navigation lights | 12 | 16–18 | Flickering, dim output |
| Battery isolator | 13.2–14.4 | 6–8 | Uneven charging, battery drain |
Prioritize grounding paths: improper grounding leads to stray current corrosion, a leading cause of electrical failures in marine environments. Check that all grounding wires terminate at a common bus bar or directly to the engine block. Avoid attaching grounds to through-hull fittings, as dissimilar metals accelerate corrosion. Test continuity between the engine block and battery negative terminal–readings above 0.5 ohms indicate compromised connections.
Examine wire runs for chafe points, especially where cables pass through bulkheads or near moving parts. Replace any wire with damaged insulation, as saltwater intrusion will rapidly degrade exposed conductors. Use adhesive-lined heat shrink tubing for repairs–standard electrical tape degrades quickly under UV exposure and moisture. Secure cables with non-metallic clamps spaced at least every 18 inches to prevent vibration-related fatigue.
Shore power inlets demand separate scrutiny. Verify the polarity indicator light operates correctly; reversed polarity risks damaging onboard electronics. Test ground fault protection by measuring current leakage–acceptable levels remain below 30 milliamps. If readings exceed this, inspect the inlet, cord, and connected appliances for insulation breaches or moisture ingress.
Battery selection impacts system reliability more than any other component. Flooded lead-acid units require monthly electrolyte checks, while AGM or lithium setups need compatible chargers to prevent premature failure. Measure resting voltage before charging: 12.6V indicates full charge for lead-acid, 13.1V for lithium. Anything lower suggests sulfation (lead-acid) or cell imbalance (lithium), necessitating equalization or professional servicing.
Relays and solenoids often fail silently. Test them by applying 12V directly to the control terminals–an audible click confirms operation. Corrosion on the contacts manifests as high resistance; clean with a wire brush or replace if pitted. For fuel pumps or electric winches, verify the relay’s current rating exceeds the device’s maximum draw by at least 20% to handle startup surges.

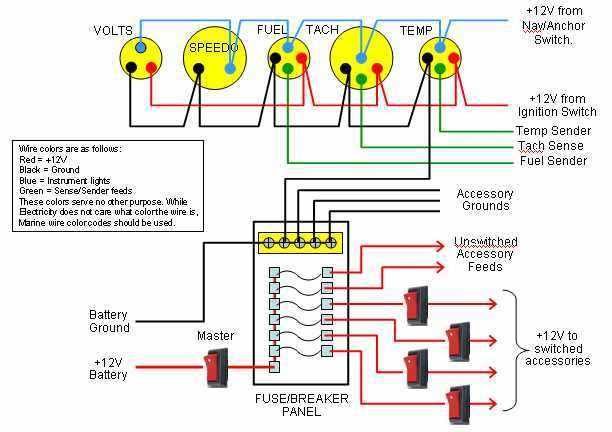

Instrumentation clusters hide failure modes behind error codes. Cross-reference digital displays with analog gauges (if available) to isolate sensor faults versus display issues. For example, a fluctuating fuel gauge combined with a steady sender reading points to a faulty gauge, while erratic sender behavior suggests a wiring issue. Check sensor grounds first–loose or corroded connections here produce erratic readings across multiple instruments simultaneously.
Step-by-Step Guide to Mapping Electrical Circuits on Marine Vessels
Begin by securing the vessel’s schematic plans, ensuring they match the model year and configuration. Cross-reference the visual layout with the physical routing paths–look for discrepancies in labeling or unmarked splits in conduits. Older models often have handwritten revisions; verify these against the original build documentation.
Equip yourself with a multimeter set to continuity mode, a non-contact voltage detector, and a probe with a sharp tip for piercing insulation if necessary. Test all ground connections first–corrosion at bonding points is the most common failure point. Document each measurement immediately, noting resistance values and any irregularities like intermittent shorts or high impedance.
- Disconnect the main power source before probing any circuit to prevent false readings or accidental shorts.
- Trace each line from the fuse panel outward, following the color-coding standards (e.g., red for positive, black/yellow for switched circuits).
- Use a tone generator on unmarked runs–attach the transmitter to one end and follow the audible signal to the other.
Identify junctions where wires merge or branch. Label these points with numbered tags and photograph them from multiple angles. For bundled lines, gently separate each conductor with a plastic pry tool–avoid metal tools to prevent nicking insulation. Note if any lines share a conduit with high-current devices (e.g., thrusters, pumps), as these can induce voltage spikes.
Isolate each circuit by disconnecting it at both ends. Test for resistance between conductors and to ground–values above 1 megaohm typically indicate healthy insulation, while lower readings suggest moisture ingress or degraded materials. Pay extra attention to connections near bilge areas, where humidity accelerates corrosion.
Common Pitfalls and Debugging
- Intermittent faults: Tap suspected wires with a wooden dowel while monitoring the multimeter–vibrations can reveal loose internal strands.
- Color mismatches: Some manufacturers reuse colors within the same harness; use the schematic to confirm, not the wire’s hue alone.
- Hidden splices: Check behind panels and under flooring for factory or aftermarket joins, which are prone to failure.
Reassemble components only after verifying all connections. Reconnect power incrementally, starting with the main bus, then branches, and finally individual devices. Use a clamp meter to measure current draw at each step–unexpected loads often reveal overlooked shorts or misrouted lines. Store annotated schematics and photos in a waterproof case for future reference.
