Locate the capacitor inside the motor housing before attaching any wires–most modern units use a black or dark-colored cylindrical component, rated at 2–5 μF. Identify the blue (lighting circuit), white (neutral), and red or striped (receiver input) leads on the control module; cross-reference them with the supplied schematic for polarities if the colors differ. Cut power at the circuit breaker, then verify absence of voltage using a non-contact tester on each conductor.

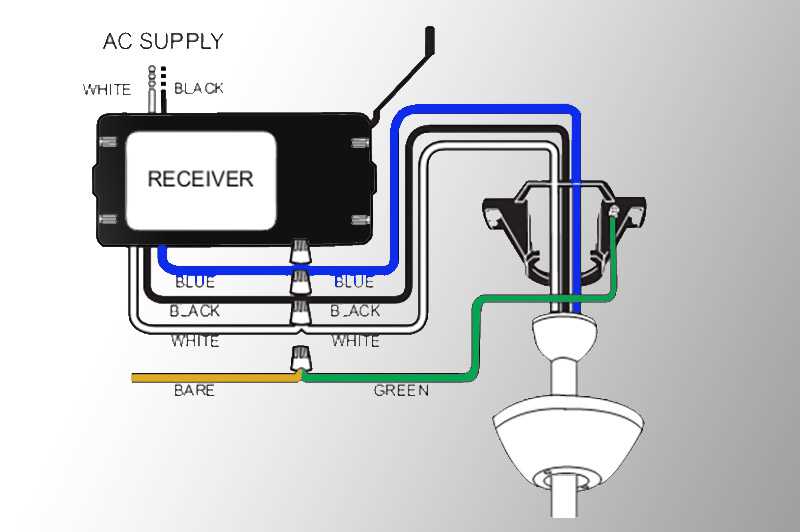

Connect the receiver’s white wire directly to the common neutral bundle in the electrical box–splice with UL-listed wire nuts, twisting clockwise under moderate pressure. Attach the brown or black receiver lead to the live feed from the wall switch, ensuring minimal exposed copper to prevent shorting across junction contacts. Secure the remote antenna inside the motor canopy by looping it around three non-conductive mounting screws, away from metal surfaces that dampen signal strength.
Program the transmitter before finalizing connections: press and hold the “set” button for five seconds until the indicator LED flashes twice, confirming pairing mode. Test each speed setting sequentially on the handheld device–if rotation starts in reverse, swap the black and striped motor leads at the receiver. Seal splices with electrical tape, then tuck wires neatly into the canopy to prevent vibration damage during operation.
Install the blades last, aligning the numbers imprinted on each arm with those on the motor hub–blades marked differently can create imbalance exceeding 0.01-inch tolerance. Check airflow direction by activating the reverse function on the handheld; correct operation should pull air upwards in summer mode and push it downwards during winter settings. If flickering occurs at dimmer settings, replace the lighting circuit module with one supporting DC 12V LED compatibility.
Connecting Ceiling Units via Wireless Control: A Detailed Guide
Begin by identifying the power source connections on the motor housing–typically labeled L (live), N (neutral), and ground (bare or green). Modern assemblies integrate a receiver module near the mounting bracket; ensure it aligns with the manufacturer’s color-coding before proceeding. For instance, black often denotes the main supply line, while blue or red may correspond to auxiliary functions like lighting. Cross-reference these with the provided schematic to avoid miswiring, which could damage the internal circuits or render the wireless function inoperative.
Install the wall switch or handheld transmitter by matching its frequency to the unit’s pre-configured channels. Most adjustable-speed models operate on a 433 MHz band, but dual-band variants may require manual pairing. Press and hold the “set” button on the motor’s receiver for 5 seconds until the LED flashes rapidly–this indicates pairing mode. Within 30 seconds, press the corresponding button on the remote to sync the devices. Failure to pair within this window will reset the receiver, necessitating a repeat of the process.
Common Pitfalls and Corrections
- Interference from adjacent units: Reposition the receiver away from other wireless devices or fluorescent lighting, which emit disruptive signals. Shielding the module with aluminum foil during setup can isolate it temporarily.
- Erratic speed control: Verify the capacitor’s microfarad rating matches the motor’s requirements (usually 4-6 μF for 52-inch blades). A mismatched capacitor causes stuttering or failure to start.
- Non-responsive remote: Replace the transmitter batteries first. If the issue persists, check for corroded contacts on the receiver board–a common issue in humid environments. Clean with isopropyl alcohol and a small brush.
For units featuring integrated LED circuits, note the separate wiring harness. Connect the dimmable supply (often purple) to the lighting module before attaching the common neutral. Skipping this step may force the LEDs to operate at full brightness without adjustable settings. Use wire nuts rated for 18-14 AWG and secure them with electrical tape to prevent vibrations from loosening connections over time. Label each wire with masking tape during disassembly to simplify reassembly if troubleshooting is required later.
After securing all connections, restore power and test the unit incrementally. Activate the lowest speed setting first–if the blades rotate clockwise without unusual noise, proceed to higher speeds and lighting functions. Listen for a quiet hum; a grinding sound suggests misaligned bearings or inadequate lubrication. If the wireless control fails, re-examine the receiver’s antenna wire–it should be fully extended and not coiled tightly against the housing. Some models require a “reset” sequence (e.g., toggling the power switch three times) after a blackout to recalibrate the internal sensors.
Advanced Configuration for Zoning
- For multi-room installations, use a dual-cable setup: one power feed per motor to prevent voltage drop over longer runs. Calculate wire gauge based on distance (e.g., 14 AWG for up to 50 feet).
- Program group modes by syncing multiple receivers to a single remote. Hold the “light” button on the first unit’s receiver until its LED blinks, then repeat for subsequent units. Press the desired group button on the remote to associate them.
- Upgrade firmware (if available) by connecting the receiver to a PC via USB adapter. This enables compatibility with smart home ecosystems like Alexa or HomeKit, though latency may increase with third-party integrations.
Finalize the installation by sealing exposed connections with heat-shrink tubing or waterproof conduit if the fixture is outdoors or in damp locations. Document your setup with photos before closing the canopy–this accelerates future diagnostics. For troubleshooting, consult the error code table in the manual; e.g., “E2” often indicates a faulty speed sensor, while “F3” points to a stalled rotor requiring manual spin tests.
Key Electrical Parts for Ceiling Systems with Wireless Operation
Begin by locating the receiver module inside the motor housing–most models position it near the mounting bracket or under the motor cover. This component decodes signals from the handheld controller and distributes current to the motor and lighting circuits. Identify the small rectangular or circular PCB with labeled connectors; these correspond to power input, output to the motor, and output to any integrated illumination. Verify the module’s model number against the installation manual to confirm compatibility with the specific ceiling unit.
The motor windings consist of two primary leads: the main winding (high-speed) and the auxiliary winding (low-speed). These copper coils connect directly to the receiver via color-coded wires–typically black for high speed, blue or yellow for low speed, and green or bare copper for grounding. Use a multimeter set to continuity mode to test each lead; expect resistance values between 50–200 ohms for functional windings. Any reading outside this range indicates a defective coil requiring replacement.
| Component | Wire Color | Typical Voltage | Testing Method |
|---|---|---|---|
| High-speed winding | Black | 110–125V AC | Multimeter, 50–200 ohms |
| Low-speed winding | Blue/Yellow | 110–125V AC | Multimeter, 50–200 ohms |
| Ground | Green/Bare | 0V | Continuity to housing |
| Neutral (common) | White | 0V (reference) | Voltage test against hot |
Capacitors regulate phase shifts between windings–look for a cylindrical or oval component, usually rated 4–6 µF for 120V systems. The capacitor’s leads connect to both the high-speed and low-speed windings, with the third lead tied to the neutral. Failure symptoms include erratic speed changes or humming without rotation. Replace capacitors with matching µF and voltage ratings (minimum 300V for safety margins).
Wall switches or pull chains bypass wireless operation; ensure these are disconnected or set to “remote” mode before testing. If the system includes lights, check for a separate circuit with a dedicated wire (often purple or orange) feeding the bulb sockets. Burnt bulbs or flickering often stem from loose socket connections–tighten terminals or replace sockets if corrosion is present. For optimal performance, use LED bulbs rated for 120V and avoid exceeding the fixture’s wattage limit.
Secure all wire nuts with electrical tape after connections–loose connections cause intermittent operation or tripped breakers. For models with advanced features (e.g., reverse direction), identify the blue wire leading from the receiver to the motor; this carries the directional signal. If the unit fails to respond, test the handheld controller’s batteries or reprogram it using the reset procedure outlined in the product documentation.
How to Link Ceiling Appliance Cables to a Control Panel: A Detailed Walkthrough
Turn off the circuit breaker supplying power to the appliance and verify absence of voltage using a non-contact voltage tester. Failure to confirm zero current risks severe injury or equipment damage.
Identify the three primary conductors from the overhead unit: hot (typically black or red), neutral (white), and ground (bare copper or green). If the unit includes a light kit, an additional hot conductor (often blue) will be present for illumination control.
Remove the existing control panel cover plate and unscrew the switch to expose the terminal screws. Note the configuration of connected cables–standard single-pole setups have two brass screws for the hot wires and one green screw for grounding.
- For a single-switch setup controlling only rotation:
Connect the black appliance conductor to the top brass screw. Join the lower brass screw to the incoming power cable (usually black) using a wire nut if no pigtail exists. Secure both conductors under their respective screws, tightening firmly with a screwdriver. - For dual-switch control (rotation + illumination):
Install a second switch adjacent to the first. Attach the blue conductor to the top brass screw of the new switch. Link the remaining black appliance conductor to the first switch as above. The incoming power cable splits: connect its black wire to both lower switch terminals via a short pigtail or two separate nuts.
Ground all components by connecting the green or bare copper conductor from the overhead unit to the green terminal screw on the first switch. If the control panel lacks a grounding terminal, attach it directly to the metal box using a grounding clip or screw.
Neutral conductors (white) typically bypass the switches unless integrating smart controls requiring constant power. Bundle them inside the junction box using a wire nut, ensuring no exposed strands remain. If the new setup demands neutral access, route it to the designated terminal on smart switches.
Tuck all spliced connections neatly into the box, avoiding contact with terminal screws. Reattach switches to the box with mounting screws, ensuring no conductors become pinched. Reinstall the cover plate before restoring power at the circuit breaker.
After reactivation, test rotation and illumination independently to confirm proper linkage. If inconsistencies arise, recheck cable connections against the color-coded scheme: black (rotation), blue (lighting), white (neutral), green/bare (ground). Adjust switch positions or tighten loose screws as needed.
