Begin by identifying the power source wire–typically black–and connect it to the common terminal on the controller. The remaining three wires (usually white, gray, and brown) correspond to low, medium, and high settings. Attach each to its designated terminal per the manufacturer’s color code. Verify polarity: neutral wires (often white) must converge at a single junction before linking to the main neutral line. Misalignment here risks short circuits or inoperative stages.
For models with a light kit, isolate the auxiliary circuit. The blue or purple wire typically governs illumination; connect it only to a dedicated dimmer or wall control, never to the regulator’s main terminals. Bypass capacitors (if present) should remain untouched unless the schematics explicitly indicate otherwise. Ignoring this detail can lead to flickering or premature failure.
Testing requires a multimeter. Activate each stage individually, checking for consistent voltage between the power source and neutral–120V in North America, 230V in most other regions. Deviations suggest incorrect connections or faulty internals. If voltage drops mid-switching, re-examine the internal relay contacts for corrosion or loose coupling.
Grounding is non-negotiable. The bare or green wire must attach to the regulator’s metal chassis and extend to the main electrical box. Skipping this step voids safety certifications and exposes the circuit to interference. For retrofits, match the gauge of replacement wires to the original: 18 AWG for internal links, 14 AWG for power feeds.
Label all wires before disconnecting. Photograph the setup, including terminal positions, to avoid confusion during reassembly. Avoid relying on memory–even minor misplacements can neutralize speed transitions. If the regulator lacks a schematic, trace the circuit paths with a continuity tester to confirm each path’s integrity before finalizing.
Connecting a Three-Stage Ceiling Regulator Correctly
Identify the power source’s hot wire (typically black) and connect it to the common terminal labeled “L” or “Line” on the control module. Ensure the neutral wire (white) remains uninterrupted and secured in the junction box–never splice it to the device. Verify the voltage between the hot and neutral lines matches the regulator’s rating (usually 120V AC) using a multimeter before proceeding.
The remaining wires (often red, blue, and yellow) correspond to low, medium, and high stages–attach them to the marked outputs in sequence. Mistakes here lead to reversed operation or motor damage. For reversible rotation models, check the manual for a dedicated capacitor connection and polarity reversal steps. Test each stage separately by toggling the control, listening for smooth acceleration without humming or stalling.
Ground the module (green or bare copper wire) directly to the metal box or a dedicated grounding screw–never omit this step, as improper grounding risks electrical shock or fire. Cap unused wires with wire nuts and secure them inside the box to prevent short circuits. Label all connections with adhesive tags for future maintenance.
Identifying Terminals on a Three-Position Airflow Regulator

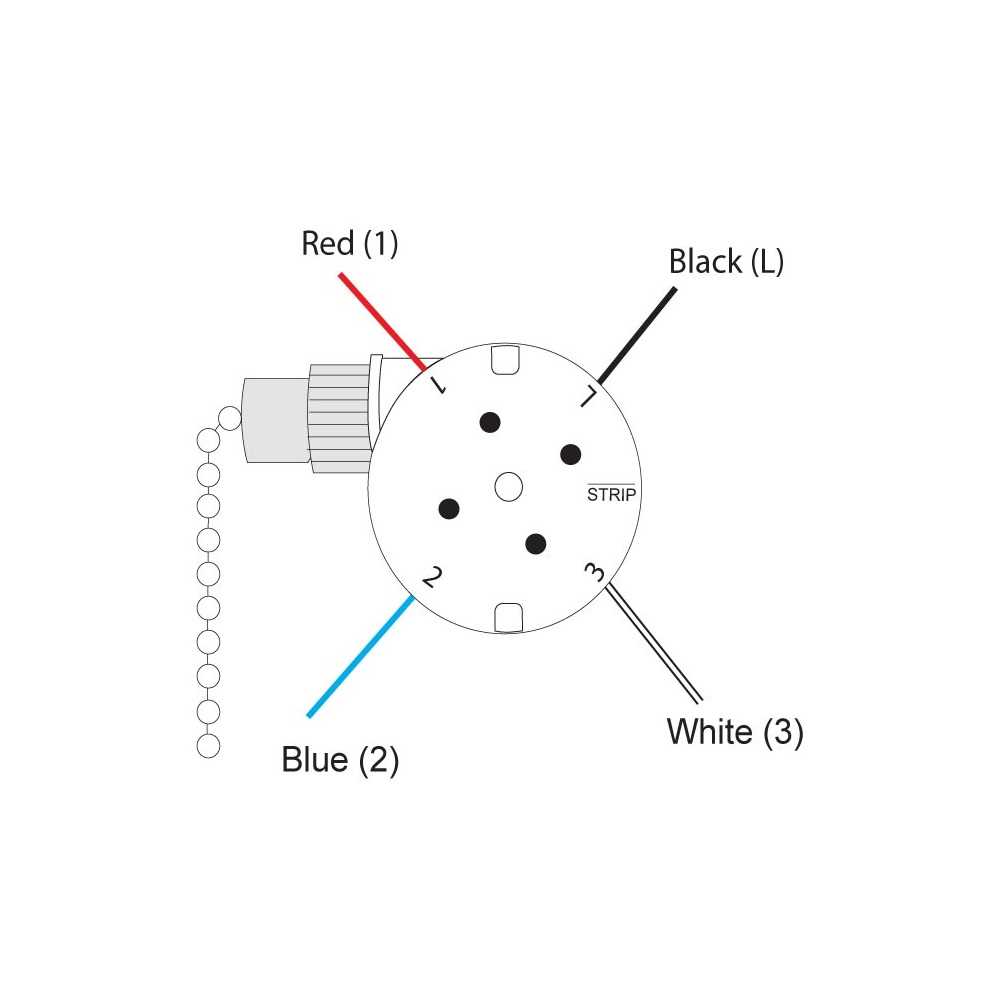

Locate the labeled terminals on the rear of the unit: L (line), 1, 2, and 3. The L terminal connects to the power source, while 1, 2, and 3 correspond to low, medium, and high airflow settings respectively. Verify labels on the device itself–some models mark terminals with numerical values alone, requiring a multimeter to confirm function if labels are absent or worn.
Use a continuity tester to ensure correct mapping:
- Set the tester to continuity mode.
- Connect one probe to the L terminal.
- Touch the other probe to each numbered terminal in sequence while toggling the control to each position.
- An audible beep on 1 at the slowest setting confirms proper connection; repeat for 2 (med) and 3 (fast).
- If no sound occurs, inspect for loose wires or internal breakage.
Replace any compromised parts before energizing the circuit.

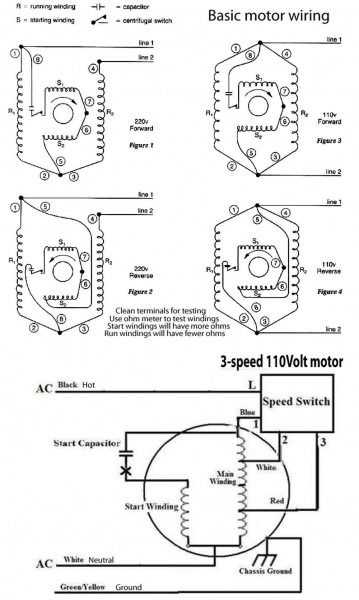

Connecting a 3-Position Control for Ceiling Rotators
Start by cutting power at the circuit breaker–confirm absence of current with a non-contact voltage tester. Remove the existing control plate to expose the terminal block, then strip 6mm of insulation from each conductor (typically black, blue, white, and green/bare). Label wires with masking tape: Line (power source), Load (rotator motor), Neutral, and Ground. Attach the black wire to the L terminal, blue to High, white to N, and green/bare to the grounding screw. Secure connections with a torque screwdriver (1.4 Nm for brass terminals).
| Terminal | Wire Color | Function | Torque (Nm) |
|---|---|---|---|
| L | Black | Incoming power | 1.4 |
| High | Blue | Maximum airflow setting | 1.4 |
| Med | Red (if present) | Intermediate setting | 1.1 |
| Low | Yellow (if present) | Minimum airflow | 1.1 |
| N | White | Neutral return path | 1.4 |
Fold excess conductor into the electrical box, align the new control with the wall plate, and fasten screws evenly to prevent misalignment. Restore power and test each position–High (full rotation), Medium (moderate speed), Low (slowest)–ensuring smooth operation without buzzing or hesitation. If interference occurs, recheck grounding or use a 0.2μF capacitor across the motor leads. For 14-gauge wire, verify connections with a multimeter (continuity mode) before closing the box; readings should show infinite resistance between Line and Ground when off.
Common Errors in Connecting a Three-Stage Airflow Regulator
Reversing the low and medium current inputs during installation often causes the unit to operate at incorrect velocities, damaging the motor windings over time. Check the color-coded terminals–black (high), blue (medium), red (low)–against the manufacturer’s label before attaching wires. A multimeter test at 120V AC should confirm voltage matches: high (full), medium (~70%), low (~40%). Skipping this step may void warranties due to overheating.
Neglecting to secure the grounded conductor leads to erratic performance or tripped breakers. The green or bare wire must connect to a verified ground–either a dedicated terminal block or the electrical box’s grounding screw. Verify continuity with a tester; resistance should read near zero ohms. Using a neutral wire (white) as ground creates a serious safety hazard.
Overlooking compatibility with capacitor values results in weak rotation or failure to start. Confirm the motor’s microfarad rating (typically 4-6 μF) matches the control module’s specs. Swapping capacitors without checking causes voltage drops, audible humming, or incomplete cycles. Use a capacitance meter if labels are missing.
Improperly stripping wires creates loose connections that arc or oxidize within weeks. Expose exactly 3/8″ of copper, twist strands clockwise, and insert fully into push-in terminals. For screw clamps, loop wire clockwise around the screw to prevent loosening. Tug-test each connection (3-5 lbs force) to ensure mechanical hold; crimp connectors if retightening occurs.
Essential Gear for Three-Tier Rotary Control Unit Retrofit
Select a precision screwdriver set containing both flat-head and Phillips tips in sizes #1, #2, and #0. Magnetic shafts prevent dropped fasteners during ceiling-level work, while insulated grips protect against accidental contact with live circuits. Confirm the set includes a 3-inch extension bar for recessed electrical enclosures common in older installations.
Verify multimeter accuracy by testing against a known 120V outlet before proceeding. Choose a model with:
- True RMS capability for distorted waveforms
- Cat III 600V safety rating
- Audible continuity buzzer for rapid circuit verification
- NCV (non-contact voltage) detector
Equip yourself with wire strippers featuring:
- 18-10 AWG gauge markings
- Spring-loaded handles for repetitive cuts
- Integrated crimping die for 1/4″ insulated terminals
- Bolstered cutting edge for solid #12 copper conductors
The Knipex 12 40 220 or equivalent ensures clean stripping without nicking strand cores, which compromises current capacity.
Source UL-listed lever-nut connectors in 2-port, 3-port, and 4-port configurations, color-coded for 12-16 AWG applications. Pre-twist conductor pairs 1.5 full turns clockwise before insertion to prevent loosening under thermal cycling. Avoid back-wire push-in style terminals, as they exhibit 30% lower pull-out resistance compared to screw-clamp variants.
Procure low-tack painter’s tape (1.5″ width) and indelible felt-tip pen for circuit labeling. Tag every conductor at both junction points with:
- Voltage designation (L1/L2/Neut)
- Terminal position (Hi/Med/Lo/Gnd)
- Date and initials
Secure tape with a single wrap to prevent adhesive migration over 10+ year lifespans.
Include a 12-inch fiberglass fish tape with non-conductive nylon leader for routing conductors between gang boxes and motor housings. Steel-core variants risk damaging sheathing insulation when navigating tight bends common in 3.5″ joist cavities. Apply paraffin wax to the leader to reduce friction by 40% during pulls.
Gather replacement screws, lock washers, and standoffs matching the original mounting hardware specifications–typically #8-32 machine screws in flat or oval head profiles. Verify thread pitch and diameter with calipers; imperial and metric variants appear visually identical but cause cross-threading. Keep a dedicated hardware organizer tray with magnetic base for preventing fastener loss during inverted installations.
