To properly diagnose board-level failures, obtain the full service documentation package directly from authorized repair centers. Manufacturer-issued repair guides include precise component placement grids, power delivery networks, and signal flow charts for the device in question. These documents detail critical test points, including voltage rails (e.g., VREG_MSM_1.8V, VCORE_1.2V), clock lines (XTAL_26MHz), and data buses (MIPI_DSI, I2C). Without this data, bench testing becomes inefficient–focus on tracing shorted capacitors or damaged ICs only after referencing factory schematics.
For immediate fault isolation, probe key sections in sequence: power IC (PMIC), application processor (AP/SoC), and baseband module. The BGA grid under the AP often hides corroded pads or cold solder joints; use a thermal camera to identify hidden shorts. If battery charging fails, verify CHG_IC output at VBAT (typically 3.8V–4.2V) and confirm OTG_EN signal integrity. Always cross-check measured voltages against the reference values listed in official service manuals–deviations over ±5% indicate component failure or PCB trace damage.
When replacing underfilled components (e.g., flash memory, RF transceivers), apply flux around the perimeter and use controlled hot air at 300°C–320°C to avoid delamination. Confirm data lines (eMMC_CLK, eMMC_CMD) are stable with an oscilloscope; ringing or excessive noise suggests impedance mismatch. For software-related issues, download the factory firmware file (.mbn or .xml) from the vendor’s repair portal–generic ROMs may brick secure boot partitions.
Critical tools include: multimeter (with diode/continuity mode), DC power supply (0–5A, 0–15V), JTAG debugger (for SoC-level debugging), and microscope (10x–30x) for inspecting micro-cracks. Avoid relying on third-party “reverse-engineered” schematics–these often omit safety circuit details (OCP, ESD protection) and may mislabel pinouts. If liquid damage is detected, remove corrosion immediately with isopropyl alcohol (>90%) and reflow affected areas (UART, SIM card traces) before powering on.
Practical Breakdown of the CUN-U29 Board Layout
Locate the power distribution network first. Trace the VBAT line from the main connector (J1) to the primary buck converter (U101). Measure input voltage at C102–expect 3.8V ±0.1V. If readings deviate, replace U101 or check adjacent capacitors C103-C105 for leakage.
Identify the baseband processor (M200) by marking pinouts 45-48 (clock signals). Use a spectrum analyzer to verify 26 MHz output at X201. Absent oscillation suggests a faulty crystal–swap X201 or reflow solder joints on R202 and R203.
- Boot sequence requires PMIC (U201) to initialize within 200ms. Probe TP203 during power-on; a flatline indicates U201 failure or shorted L201.
- RF path debugging begins at U302 (transceiver IC). Inject −40 dBm at antenna port (J3) and scan output at TP301. Missing −10 dBm signal mandates replacing U302 or checking duplexer FL301.
- Memory verification: Confirm DDR traces (DQ0-DQ7) from U401 to M200 show
Signal integrity checks involve auditing USB data lines (D+/−). At J4, differential impedance should read 90 Ω ±10%. If readings exceed tolerance, sever traces at C402/C403 and test individually–replace damaged components.
Short circuit detection prioritizes high-current paths. Disconnect battery, then probe inductors L101-L104 with a milli-ohmmeter. Resistance below 0.5 Ω signals a latent short–remove shielding to expose U103 and neighboring coils for thermal analysis.
- Flash recovery mode activation: Bridge test points TP501 and TP502 while powering on. If device halts at bootloader, erase NAND via JTAG at U501, pins 5-8.
- Charging circuit validation: Connect a 5V/2A adapter to J2. Ensure Q101 gates receive 1.8V at R106. No voltage? Replace Q101 or examine R107 for burns.
- Sensor calibration data resides in U601 (EEPROM). If gyroscope drift persists, dump U601 contents via I²C at SDA/SCL (pins 3/5) and overwrite corrupt sectors with factory backup.
Final assembly steps: Replace all EMI gaskets (G1-G4) and verify no conductive debris remains near SIM slot (J5). Reflow solder connections at M200 if intermittent hardware failures recur–confirm thermal paste integrity on the heat spreader.
Locating Official Technical Blueprints for the CUN-U29 Model
The most reliable source for the original circuit reference materials is the manufacturer’s authorized support portal. Log in using verified credentials–typically an enterprise account or service center license–and navigate to the downloads section. Filter by device model, then select hardware documentation. Files are usually stored in compressed formats like .zip or .rar, containing PDFs of the PCB layout and bill of materials.
For independent technicians, franchised repair forums often archive verified copies. Search for certified repair hubs that maintain repositories of internal service manuals. Avoid third-party file hosts; prioritize platforms with active moderation to prevent tampered or outdated versions. Some communities require registration but offer direct file access without paywalls.
Regional service centers hold physical copies or mirrored digital archives. Contact a local authorized outlet with proof of device ownership–they may grant time-limited access. Some centers impose fees for blueprint sharing, particularly for obsolete models. Clarify license terms before requesting copies to avoid legal complications.
Schematics occasionally surface in open technical libraries maintained by reverse-engineering collectives. These repositories include scanned copies or reconstructed diagrams from teardowns. While not official, they’re often cross-referenced with working samples. Validate authenticity by comparing against known good boards–discrepancies in component numbering or signal paths indicate potential errors.
Manufacturer-distributed firmware packages sometimes embed PCB layouts in hidden directories. Extract the archive and inspect subfolders labeled docs, hw_info, or schematics. Use a hex editor to scan binary files for embedded vector graphics if no obvious references appear. This method is unreliable for newer revisions but effective for legacy hardware.
When all else fails, engage with Chartered Engineers specializing in mobile hardware. Professional networks like IEEE or niche repair LinkedIn groups share controlled access to proprietary materials under NDA. Expect strict vetting–provide proof of legitimate use (repair, education) to qualify. Avoid brokering deals through unverified channels; counterfeit documents circulate widely and lack critical updates.

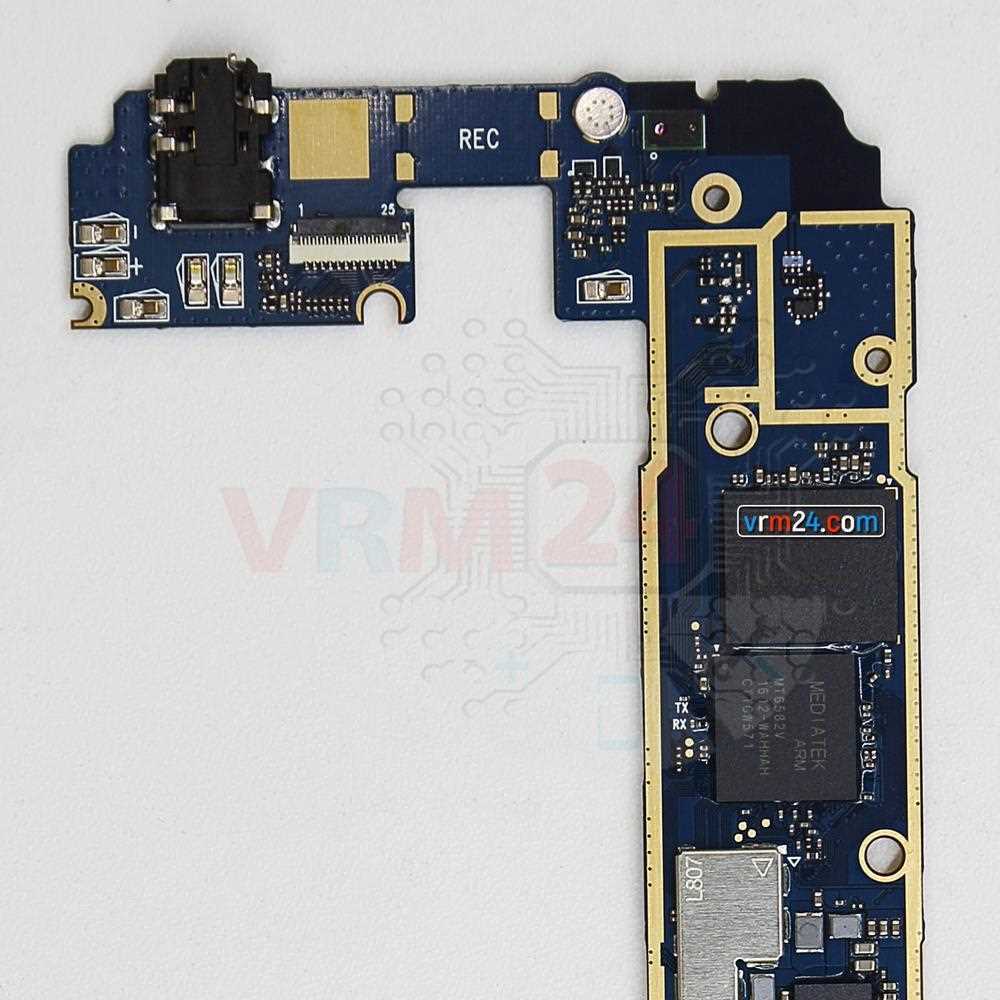

Key Components Layout in the CUN-U29 Board Blueprint
Identify the power management IC (PMIC) near the battery connector–marked U301 in most revisions–as the first critical node for diagnostics. Trace its output rails: buck converters for 3.3V and 1.9V must stabilize within 5% variance under load; deviations beyond 10% indicate failed inductors or capacitor leakage on C224-C227 clusters.
Processor and Memory Cluster
Locate the AP side-by-side with LPDDR3 chips (U201/U202) along the upper edge, separated by fine-pitch vias. Verify trace impedance using a 50Ω RF probe; mismatches above 5Ω disrupt DDR timing. Bypass capacitors–typically 0402 0.1µF–must sit within 2mm of each memory pin to suppress voltage ripple below 20mV peak-to-peak.
- Baseband processor (U101) interfaces via HSIC lanes; check differential pairs for skew <10ps.
- Flash storage (eMMC, U103) requires a dedicated 3.3V rail with 10µF tantalum bulk caps at C189-C191.
- RF front-end (PA/U402) needs low-ESR decoupling; swap suspect MLCCs if ESR >20mΩ at 800MHz.
Examine GPIO expander (U601) near SIM tray–corrosion on pins 5-8 often mimics SIM detect failures. Clean with isopropyl alcohol and reflow solder joints if resistance exceeds 1Ω. Adjacent microSD traces must maintain 50µm width to prevent crosstalk; verify with an oscilloscope during card initialization.
Peripheral Interfaces and Regulation
Charge IC (U701) integrates USB OTG and 1.5A buck converter; probe TP45 to confirm 5V input before debugging faulty charging. Hall sensor (U802) relies on a 2.8V rail–check for shorted C678 if false triggers occur. Camera connector (J105) uses MIPI lanes; insert a 15Ω series resistor in D+ line to mitigate ringing if image artifacts appear.
- Test points TP12 (VSYS) and TP34 (1.8V) serve as stability checkpoints; readings <90% nominal indicate faulty PMIC or input leakage.
- Wi-Fi module (U330) demands a dedicated 1.2V LDO–replace if output drifts >50mV under TX bursts.
- Vibration motor driver (Q1) requires a 1kΩ pull-up resistor at pin 2; omit causes intermittent wake failures.
Screen connector (J201) uses 4-lane MIPI-DSI; inspect ESD diodes D201-D204 for leakage if backlight flickers. Touch controller (U205) shares I2C bus with proximity sensor–isolate lines if ghost touches occur. Audio codec (U110) employs a digital microphone array; check for 1µF coupling caps at C77/C78 if recording distortion persists.
Thermal sensor (U801) connects via single-wire interface–calibrate against known-good NTC if heat shutdown thresholds misfire. NFC coil (L3) needs 68pF tuning capacitors at C12/C13 for ISO14443 compliance; measure resonance at 13.56MHz. Failing this, coil delamination often requires board rework while heating the PCB to 220°C for 30 seconds.
How to Read Voltage and Signal Paths in Circuit Blueprints
Locate the power rails first–these are typically marked with thick lines, labeled VBAT, VCC, 3V3, or similar. Use a multimeter in continuity mode to trace these paths physically if the document lacks clear annotations. Voltage values adjacent to components indicate expected readings; deviations suggest faults like shorted capacitors or broken traces. For example, a 2.8V rail feeding a PMIC should drop only millivolts across load switches–check datasheets for tolerance ranges.
Signal paths follow thinner lines, often annotated with net names like I2C_SDA, MIPI_CLK, or GPIO_5. Identify series components (resistors, ferrites) that form part of the path; their values and locations pinpoint impedance matching or filtering nodes. Use an oscilloscope to verify signal integrity–ringing or attenuation indicates mismatches or degraded components. Below is a reference table for common signal types and their expected characteristics:
| Signal Type | Typical Voltage (V) | Frequency Range (MHz) | Key Components in Path |
|---|---|---|---|
| I2C | 1.8–3.3 | 0.1–3.4 | Pull-up resistors, ESD diodes |
| MIPI | 1.2 (differential) | 100–1500 | Termination resistors, AC-coupling caps |
| RF (LTE) | 0.5–1.5 (peak) | 700–2600 | SAW filters, matching networks |
Cross-reference nets with connector pinouts or IC ball maps. Pads labeled NC (No Connect) should show infinite resistance to ground; finite readings suggest leakage. For high-speed paths (e.g., DDR, MIPI), ensure no stubs exceed 5–10mm–the document may highlight these with dashed lines or “keep-out” zones. Probe the path midpoint if the signal disappears; a missing clock lines might originate from a cold-soldered crystal oscillator.
Annotate your copy of the blueprint with actual measurements–circle tested nodes in green and faulty ones in red. Voltage regulators often mask upstream shorts; measure input/output differential (e.g., 5V → 1.8V) to confirm operation. Thermal imaging can reveal hotspots on load switches or inductors, but rely on schematic nets to correlate temperature anomalies with component roles–avalanche diodes or buck converters typically dissipate more heat than LDO linear regulators.
