Download the official service manual first. HP provides internal design blueprints for authorized technicians in PDF form–search the model number followed by “service documentation” on the HP support portal. Non-authorized sources often distribute incomplete or modified versions, so verify file integrity against known SHA-256 hashes listed in HP repair forums.
Focus on the power distribution subnet. The primary switching regulator (typically marked IC320 on the logic board) fails most often–trace its connections to capacitors C302, C303, and MOSFET Q301. Replace electrolytic capacitors if ESR exceeds 3Ω, and check gate voltages with a DSO oscilloscope to rule out false triggers.
Decode signal paths using three key rules: first, confirm continuity on data buses with a multimeter; second, measure impedance at test points listed in section 4.3 of the service guide; third, cross-reference voltage drops with the reference chart on page 72. Discrepancies above ±5% indicate corroded vias or cracked solder joints.
Laser scanning assemblies correlate to PWM controllers labelled U401 and U402–adjust R401 potentiometer only while monitoring beam alignment with a photosensitive detector. Misalignment beyond 0.2° degrades print resolution and triggers error code 75.2.
Understanding HP Device Internal Layouts for Repair and Upgrades
Download official service manuals directly from HP’s support portal using the exact model number–avoid third-party sources, as they often contain outdated or modified versions. Enter “HP [model] service manual” in the search bar, filtering by PDF downloads. Manuals for LaserJet Pro M404n, OfficeJet 8025e, and DeskJet 2700 series typically include board-level block representations, component locations, and voltage rails.
Locate power distribution schematics first–these show fuse ratings, MOSFET part numbers, and connection points for the main PCB to the fuser assembly or carriage motor. For example, the HP Color LaserJet Pro MFP M283fdw uses a 24V/5A rail fed through a 3A SMD fuse labeled F101 on the DC controller board. Verify these values with a multimeter before replacing components.
Trace signal paths from the formatter board to peripherals like the ADF or duplexer. Manuals like the HP OfficeJet Pro 9025 specify UART and I2C lines–look for resistors marked with “R” followed by a number (e.g., R407) and capacitors labeled “C” (e.g., C201). Replace these only with exact replacements from HP’s BOM documents or cross-reference with Murata, TDK, or KEMET datasheets.
Check the stepper motor driver ICs–popular HP models use Allegro A4988 (for LaserJets) or Toshiba TB6600 (for large-format devices). Identify the IC by scanning the silkscreen for numbers like “U302” on the board. If overheating, confirm proper heatsink adhesion or replace with a DirectFET-packaged variant to improve thermal dissipation.
For ink-based systems, inspect the carriage’s flex cables–common failure points include cracked traces near the encoder strip reader. Use a USB microscope to examine connections; if corrosion is present, clean with isopropyl alcohol (>90%) and reflow solder joints with lead-free paste (SAC305). Avoid excessive heat to prevent delamination of the flex circuit.

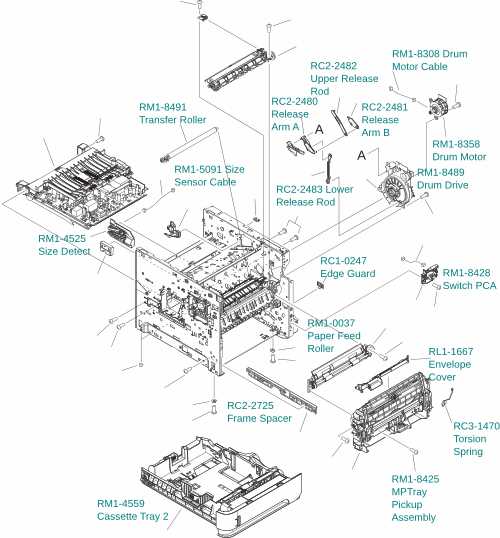

Reference the exploded view sections for mechanical assemblies–HP’s diagrams include exact torque specifications for screws (e.g., 0.5 Nm for carriage rails on DeskJet models) and lubrication points (silicone grease for rollers). Replace worn gears only with OEM parts; aftermarket gears may lack proper tooth engagement, leading to misalignment.
When troubleshooting scanner assemblies, focus on the CIS sensor’s ribbon cable–bends tighter than a 10mm radius will cause pixel dropouts. HP’s layouts indicate cable routing paths; follow these precisely to avoid interference with moving parts. Test sensors using HP’s built-in diagnostics (accessed via firmware menus) before assuming board failure.
Archive any modifications or component substitutions with dates and part numbers. Note deviations from default layouts–for instance, if swapping a 16MB RAM module (Hynix H5TQ2G63DFR) with a 32MB equivalent (Micron MT41K256M16), update the firmware to avoid incompatibility errors. Use HP’s Product Bulletin for confirmed component cross-references.
Where to Find Official HP Device Circuit Blueprints and Repair Guides
The first and most reliable source for HP’s internal technical documentation is the HP Customer Support website (support.hp.com). Select your model from the product list, then navigate to the “Manuals” section. Older units (pre-2018) often include full-service manuals with PCB layouts, signal flowcharts, and component maps–filter by document type to isolate these files. Note that newer models may restrict access to certain documents; signing in with a registered account sometimes unlocks additional resources.
For enterprise-grade hardware, HP’s Service Media Library holds restricted repair documentation. Access requires a valid service contract (HP Care Pack or authorized partner credentials). Visit internal.hpcloud.hp.com, log in with your business account, then search using the exact product number. The library includes exploded view schematics, voltage references, and firmware block diagrams–ideal for board-level diagnostics. Third-party aggregators (e.g., ManualsLib, ElectroSchematics) occasionally host mirrored copies, but verify revisions against HP’s official releases to avoid outdated or incorrect data.
| Source | Document Type | Access Requirements |
|---|---|---|
| HP Customer Support | User guides, limited circuit diagrams | Public or registered account |
| HP Service Media Library | Full PCB layouts, firmware maps | HP Care Pack or partner login |
| HP Enterprise Portal | Component datasheets, signal flowcharts | Corporate contract |
| Authorized Repair Centers | Confidential service bulletins | Proof of repair authorization |
HP’s Parts Store (parts.hp.com) provides indirect clues via exploded parts diagrams. While primarily for ordering replacements, these visuals often highlight critical board components (e.g., DC controllers, formatter PCBs) with part numbers. Cross-reference these with datasheets from manufacturers like Texas Instruments or Renesas to infer circuit paths. For discontinued models, search for “HP [model number] service manual PDF” on archive.org, where legacy documentation resurfaces periodically. Avoid forums offering “unlocked” files–these frequently contain malware or inaccuracies.
Alternatives for Restricted Models
If official channels lack blueprints, contact HP’s authorized repair network. Locate a center via hprc.ext.hp.com–some technicians share redacted excerpts under NDA. For DIY repairs involving SMD components, use thermal cameras to trace power rails on the board, then compare with similar models’ layouts (e.g., HP LaserJet Pro M402 circuit traces often match the M404 layout). Keep in mind that HP encrypts post-2020 firmware, so signal analysis via oscilloscope may be necessary where documents are unavailable.
Decoding Key Symbols in HP Board Blueprints
Start with power indicators: triangles with a circle (test points) denote voltage rails–VCC (5V, 3.3V, 12V) label adjacent lines. Resistors use zigzag lines: R101 (220Ω) near a MCU pin suggests pull-up/pull-down functions. Capacitors appear as parallel lines (polarized) or curved (non-polarized); C202 (10µF) near a voltage regulator stabilizes output. ICs are rectangles with numbered pins–pin 1 (dot/notch) marks orientation; datasheets confirm signal types (PWM, I²C, SPI).
Signal Paths and Fault-Point Markers
Trace thick lines for ground or high-current paths–GND symbols (horizontal line with downward forks) cluster near heat sinks. Thin lines with arrows represent data buses (USB, SPI); UART TX/RX pins flank main processors. Look for “NC” (no connection) or “DNP” (do not populate) labels on unpopulated pads–these often hide optional components for debugging. Fuses (rectangular outlines) and thermal sensors (thermistor symbol) sit near power ICs; check continuity if overheating is suspected.
Transistors (NPN/PNP) and MOSFETs (three-terminal devices) control motor drivers–Q1 labeled “2N3904” switches stepper coils, while diodes (arrow-shaped) protect against back-EMF. Crystals (two parallel lines with frequency in MHz) clock the CPU; corruption here causes boot failures. Always cross-reference with a multimeter: measure resistance on suspected open circuits (infinite Ω) or shorted caps (near-zero Ω) to isolate faults.
Step-by-Step Guide to Tracing Power Flow in HP LaserJet Circuit Layouts
Locate the primary power input terminal–marked AC IN or L/N–on the board layout. Verify its connection to a fuse (typically labeled F1 or FU1) rated for 3.15A to 6.3A, depending on the model series. Skipping this check risks overlooking a blown fuse, which isolates the entire downstream path.
Trace the fused line to the EMI filter. Identify components like L1 (common-mode choke), CY1/CY2 (Y-capacitors), and CX1 (X-capacitor). Measure capacitance values if labels are missing: CY capacitors should range 1nF–4.7nF, CX 0.1µF–1µF. A mismatch here points to a faulty filter, disrupting stable voltage delivery.
Follow the path into the rectifier stage. Full-wave bridges (DB1) or discrete diodes (D1–D4) convert AC to DC. Check for silkscreen notation like KBU6M or 1N5408; reverse polarity or open circuits halt all subsequent operations.
Proceed to the primary switching regulator–usually a flyback topology. Identify the MOSFET (Q1, e.g., 2SK2645) and PWM controller IC (U1, e.g., UC3843). Pin 7 (VCC) must reach 12–15V for startup; lower voltages indicate a failed bootstrap circuit.
Examine the transformer primary winding (T1). Count turns ratio between primary (≈50–100 turns) and secondary (≈5–10 turns) using a multimeter in continuity mode. A shorted winding collapses the magnetic field, stalling power conversion. For HP LaserJet 4000/5000 series, expect a 12:1 ratio at this stage.
Track secondary outputs from the transformer. Each winding supplies a distinct rail: +24V for motors, +5V for logic, +3.3V for memory. Look for Schottky diodes (D6–D8) and LC filters (L2/C9). Voltage drops exceeding 0.3V across diodes suggest excessive load or failed components.
Inspect feedback control via the optocoupler (PC1, e.g., PC817). The feedback winding (often labeled FB) must regulate output within ±5% of nominal. Replace the optocoupler if its CTR (current transfer ratio) falls below 50%, causing erratic voltage swings.
Confirm the standby circuit–usually a linear regulator (Q3/IC2) dropping 3.3V to 5V for firmware. Probe the enable pin (EN or STBY) on the main controller; floating voltages here prevent system initialization. For HP Color LaserJet models, check solder joints under the power board–thermal cycling often cracks connections near high-current paths.
