For precise repairs of the HP G6 laptop, obtain the official board-level circuit map from HP’s authorized documentation portal. Direct links to the PDF often include DATASHEET_G6_LA-572X_POWER.pdf or similar–search by motherboard revision (e.g., DA0LX4MB6G0, LA-5721P). These files detail power rails, test points, and signal paths essential for diagnosing charging faults, GPU failures, or BIOS corruption. Avoid third-party “reverse-engineered” versions; they lack critical annotations for components like the TPS51125 buck converter or AUO B156XTN04 LED backlight traces.
Use a multimeter with a minimum 1% accuracy rating to verify circuit continuity. Probe the DC jack pinout–center pin (positive) to SMD inductor L13 near the charging IC–before replacing the jack. For GPU-related issues, locate PU8 (Intel HM55 chipset) and check voltages at capacitors C25, C26, and C29; values below 1.05V (±5%) indicate VRAM or GPU substrate failure. The BIOS SPI flash (Winbond 25Q16) sits adjacent to the CMOS battery–desolder and reprogram using a CH341A programmer if POST codes indicate corruption (e.g., 0000 or blinking caps lock).
Signal tracing requires a logic analyzer for LVDS/eDP lanes. Identify the 30-pin LVDS connector (CN1) and verify 3.3V on pins 1-4; missing voltage suggests a failed PQ4 MOSFET near the PWM controller. For wireless troubleshooting, trace the Mini-PCIe slot to the AR9285 chipset–check for 1.2V at L2 (RF filter) before replacing the module. The keyboard matrix connects via a 15-pin FFC cable; replace the membrane if traces short (common with liquid damage). Always discharge capacitors before probing–HP G6 boards retain 1-3V on bulk caps for up to 30 minutes after power removal.
Thermal management relies on two-point calibration. Clean the CPU/GPU die and heatsink mating surface with >90% isopropyl alcohol, then apply Arctic MX-6 (never generic pastes). The fan header (CN3) requires 5V PWM–test with a 2kΩ resistor between pin 2 (PWM) and ground to force full speed. If the laptop shuts down under load, verify the LM358 op-amp near the cooling fan; failed units cause false thermal throttling. For backlight issues, replace the inverter fuse (F2) only after confirming 19V at the LCD connector (CN7 pin 1).
HP G6 Circuit Layout: A Practical Guide
First, locate power delivery paths on the motherboard–identify the MAX17020 IC near the CPU socket, marked U7 on most revisions. Trace its connections to Q22 (IRFH8318 MOSFET) and the 10uF/6.3V ceramic capacitors flanking it. Measure voltage between the IC’s SW node (pin 21) and ground with a multimeter; expect 5V (+/-0.2V) during standby. If readings deviate, inspect L15 (1uH inductor) for continuity–replace if resistance exceeds 0.3 ohms.
For BIOS recovery, bridge pins 5-6 on JCMOS1 (2×3 header near the DDR3 slots) while powering on. Use a 10k ohm resistor to short 3.3VSB to the BIOS chip’s CS# pin (often pin 1 on Winbond 25Q32BVSIG). Verify signal integrity with an oscilloscope: CS# should pulse at 2.5MHz with 3.3V amplitude. If missing, check R1243 (0 ohm resistor) for cold joints–reflow or bypass with a jumper if necessary.
To diagnose video output failures, test the LVDS connector (CN18) for 3.3V, 1.8V, and 5V rails. Probe pin 21 (LCD_VCC) first–voltage must match the LCD specification (typically 3.3V). If absent, trace back to PU9 (AOZ1036 buck converter) and confirm EN pin (pin 1) is pulled high. Replace PU9 if output remains low despite stable input (19V from the charger). For backlight issues, inspect Q8 (DMP2006UFDM) and L23 (47uH inductor)–shorts here cause immediate shutdown.
Keyboard input errors often stem from corroded traces near KBC (ITE IT8512E). Scrape away oxidation under JKB1 (18-pin connector) and resolder connections with 60/40 leaded solder for better flow. Test the KBC’s clock and data lines (pins 15/16) with a logic analyzer; signals should toggle at 100kHz. If signals are weak, replace C2218/C2219 (100nF capacitors) or reroute traces with 30AWG wire if pads are damaged.
When replacing the southbridge (Intel ICH9M), preheat the board to 150°C for 5 minutes to prevent thermal shock. Align pin 1 (marked with a triangle) to the PCB’s silkscreen dot, then solder with a 0.3mm chisel tip–avoid bridging adjacent pins (0.5mm pitch). After reflow, verify continuity on all critical pins (USB, SATA, PCIe) before reassembly. If post-repair BIOS beeps persist, flash the ME region using an external programmer (CH341A) and a known-good firmware binary.

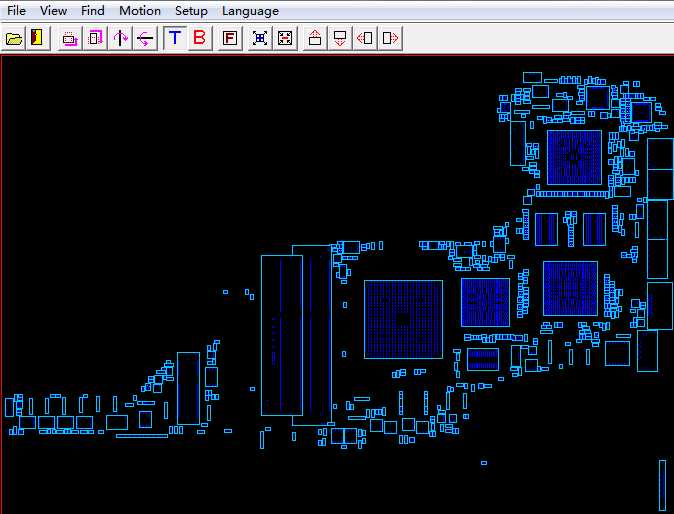

Where to Access Official HP G6 Board Layouts
Start with the HP Customer Support portal (support.hp.com). Enter the exact product number (e.g., “HP Pavilion g6-2200”) and filter results by “Maintenance and Service Guide.” These documents often include circuit blueprints and component maps for verified technicians. If unavailable, search for the model’s Service Manual–HP archives older versions under “Manuals” in the product page footer.
For direct downloads, use HP’s FTP server (ftp.ext.hp.com). Navigate to /pub/softpaq/ or /pub/softlib/software/ and locate folders labeled “Schematics” or “Board Files.” Filenames typically follow the format spXXXXX.pdf, where XXXXX is a SoftPaq number listed in the support portal’s “Drivers and Downloads” section. Verify file integrity by comparing SHA-1 hashes against HP’s published checksums.
Third-party repositories like Badcaps.net or Elektroda.pl host user-uploaded board layouts but lack HP’s official validation. Cross-reference any unofficial files with HP’s service guides before use–mismatched revisions may cause errors. For commercial repairs, request access to HP’s Partner Portal if you’re an authorized service provider; it grants deeper technical resources.

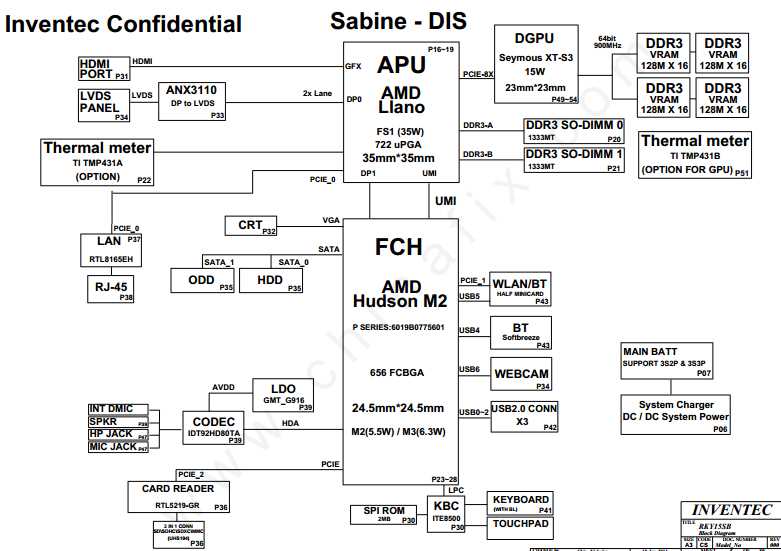

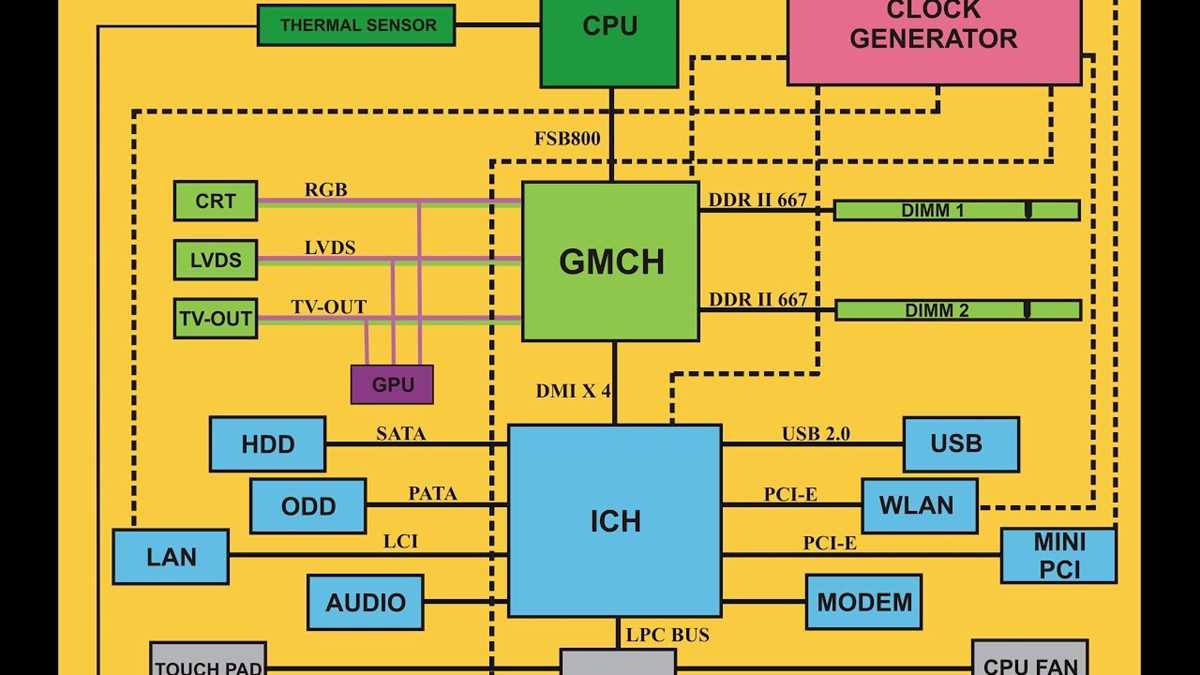

Key Components Identified in Hp g6 Circuit Layouts
Begin by locating the EC/KBC (Embedded Controller/Keyboard Controller) chip, typically marked as ITE IT8512E or similar variants. This component manages power sequencing, fan control, and keyboard inputs. Check pins A20GATE (power-on signal) and SUSP# (suspend mode) first–these often fail under voltage spikes or liquid damage. Replace torn solder joints near these pins with 0.3mm gauge wire if continuity issues arise.
The PCH (Platform Controller Hub), usually an Intel Series 5 or 6 chipset (e.g., BD82HM55), handles data flow between CPU, RAM, and peripherals. Focus on PWRBTN# (power button line), RSMRST# (resume well), and SLP_S3#/SLP_S5# (sleep states). A missing 3.3V_RTC here prevents boot; verify with a multimeter set to diode mode (expected ~0.450V). For intermittent failures, reflow the chip using a BGA station at 200°C for 60 seconds.
Power Delivery and Regulation
- PU1 (Primary MOSFET): Check APW7147 or ISL6237 controllers for 5V/3.3V rails. Measure VIN (19V input) and VOUT (5V_SB). Failed MOSFETs cause no power–replace with identical DPAK package components.
- PU6/7 (CPU Core VRM): ISL6271A or ADP2120 ICs regulate 1.05V for CPU cores. Probe VSNS and VOUT–low voltage here triggers overcurrent protection. Rework faulty inductors (e.g., L17/L18) with 33μH 6A SMD coils.
- DC Jack (CN1): Inspect ID pin (resistor R1, typically 10kΩ to GND). Corrosion here misidentifies charger type–clean with isopropyl alcohol and resolder R1 if necessary.
RAM circuits demand precise voltage (1.5V_DDR3) from the APL5913 or TPS51216 controller. Test capacitors C192/C193 (10μF) near memory slots–bulging or leaking capacitors disrupt data transfer. For “no display” issues, force-reset SPD by shorting SDA/SCL lines to GND for 30 seconds while powered on. Replace RAM slots if pins are bent or oxidized.
Peripheral Interfaces
- Graphics: AMD/ATI Whistler or Robson GPUs (M96 216-0751033) connect via PCIe x16. Check REFCLK+ and REFCLK- signals (expected 100MHz square wave). Reflow GPU if artifacts appear; thermal compound must be Arctic MX-4 for proper heat dissipation.
- SATA: Intel ICH9M controller (U2) manages HDD/SSD via TX+/RX+ pairs. Probe PP3C_SATA_VDD (3.3V) on capacitor C45. Replace U2 if HDD detection fails.
- WiFi: AR9285 or BCM4313 modules require stable 1.8V_AUX. Measure WLAN_EN (EC pin 130)–missing voltage disables RF. Replace u.FL antenna cables if signal strength drops below -70dBm.
- Touchpad: Synaptics or ALPS ICs connect via PS2/USB. Check TP_DATA and TP_CLK lines for 3.3V. Corrosion on flex cables causes erratic inputs–clean with eraser or replace the cable.
For BIOS corruption, flash HP sp52491.exe using a CH341A programmer. Backup the ME region (offset 0x1000–0xFFFF) separately–failed updates brick the board. If LED codes blink 5 times, replace MX25L1606E flash chip (SOIC8). For liquid damage, prioritize cleaning EC and PCH pins with ultrasonic cleaner at 60°C for 10 minutes, followed by reballing with SAC305 solder spheres.
Step-by-Step Tracing of Power Delivery Paths on HP g6 Board Layouts
Locate the main DC jack connector (J1) on the board layout, typically marked near the edge. Follow the thick copper traces leading from this point–these carry the input voltage (commonly 19V) to the first stage of voltage regulation. Use a multimeter in continuity mode to verify connections if traces disappear under components or vias.
Identify the primary power IC, often labeled U1 or PU1, such as the ISL6237 or similar chopper controller. Trace its Vin pins (usually 24, 25, or adjacent) back to the DC input path. Examine the layout for series components–a fuse (F1), a thermistor (NTC1), and a capacitor bank (C101, C102)–placed between the jack and the IC to filter noise and protect against surges.
- Check for a high-side MOSFET pair (Q1/Q2) near the controller–these manage the switching of input voltage.
- Locate the inductor (L1) connected to the controller’s SW node; this steps down voltage for the CPU core.
- Verify the output capacitors (C103–C108) on the far side of L1–these smooth the generated voltage before reaching the load.
For secondary rails (5V, 3.3V, 1.5V), find linear regulators (e.g., AIC1569) or buck converters (TPS51218). Follow their enable pins (EN/PSI) to ensure they receive signals from the EC (embedded controller) or BIOS. Trace the feedback loop (FB pin) back to a resistor divider network (R101/R102) near the output–adjustments here fine-tune the voltage.
Inspect the layout for protection circuits: overvoltage (OVP) diodes (D1), current-sense resistors (R103), and thermal sensors (thermistors). On modern HP g6 variants, some rails derive power from the CPU core rail via load switches–identify these by searching for components labeled “Q3” or “PQ3” with gate signals from the EC. Use an oscilloscope to confirm PWM signals on the SW node during boot if issues arise, ensuring the controller isn’t stuck in shutdown.
