For technicians servicing HP’s mid-tier portable computing devices, the board-level documentation is often fragmented across forums or buried in unofficial archives. The most reliable source begins with HP’s official service manual, typically listed under “HP Pavilion 15” revisions rather than model-specific coding. Look for internal document IDs like “433559-001” or “Spare 714318-001”–these contain detailed PCB component mapping and signal routing critical for diagnosing power failures, USB-C charging issues, or GPU disconnections.

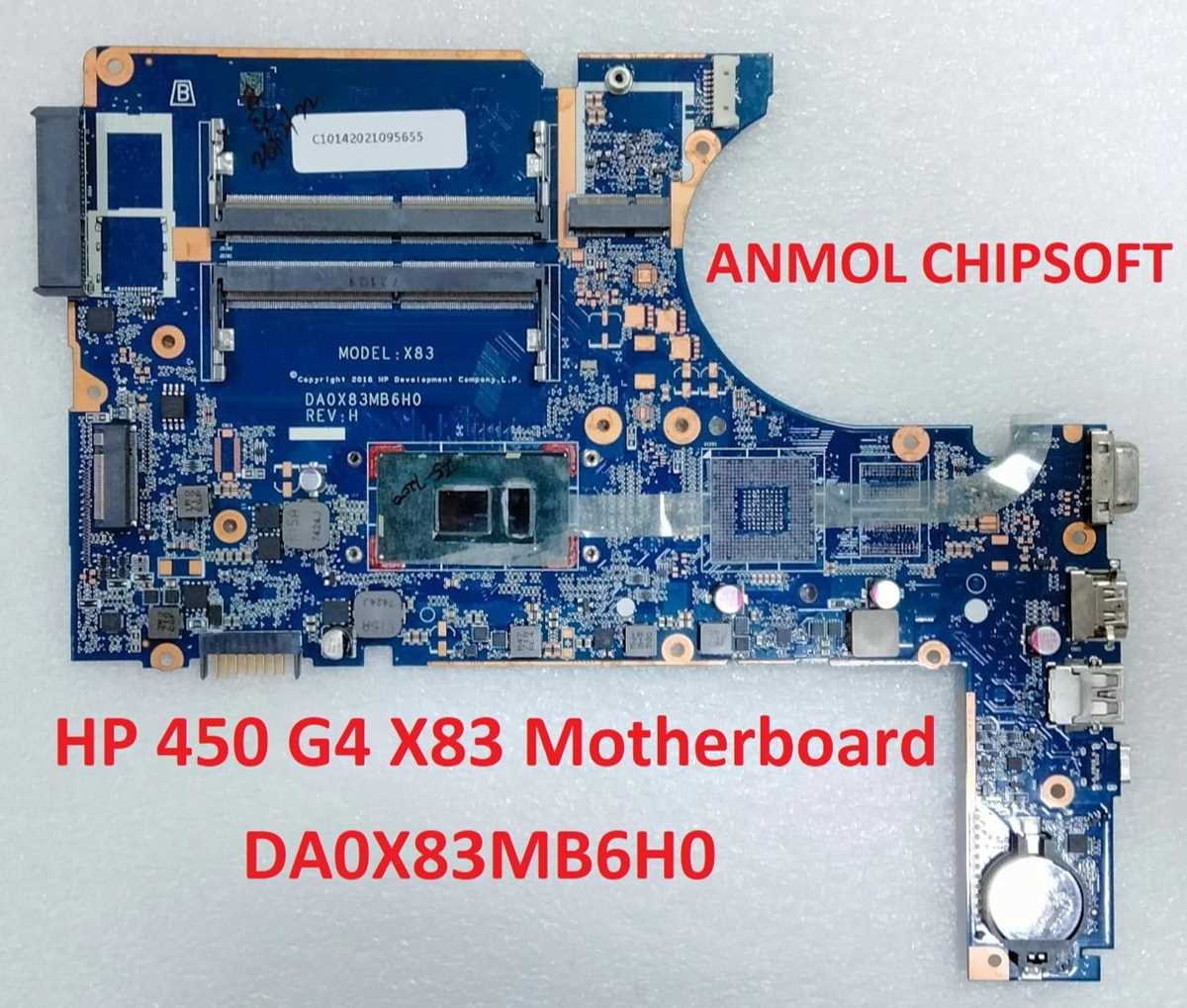

Third-party schematics require caution: verify they match the exact revision (check the motherboard’s silkscreen, e.g., “DA0ZZMB6E0” for 8th-gen Intel models). Trusted aggregators like badcaps.net or Electro-Tech-Online host user-uploaded diagrams, but cross-reference them against HP’s official BOM (Bill of Materials) to avoid inconsistencies in VRM layouts, BIOS chip pinouts, or keyboard matrix connections.
For hardware repairs, prioritize the power delivery section–locate the ISL9241 charger IC and surrounding LC filters (often under the heat sink). Signal traces near the PQ401 MOSFET cluster commonly fail after liquid exposure. If replacing the entire logic board, ensure compatibility with the existing display connector (look for variant codes like “C7” or “Q2” on the I/O board ribbon cable).
Debugging tips:
– Probe the RT8223B buck converter for 3.3V/5V standby voltages before assuming CPU failure.
– Check the Winbond 25Q128JV BIOS chip for corruption if the unit powers on but displays no video.
– Swap RAM modules–DDR4 soldered variants (e.g., “Hynix H9HCNNNCBXXXXR-NEE”) are prone to cold solder joints near the GPU.
Avoid generic “HP 15 schematic” results from search engines–they frequently mislabel resistor networks or capacitor banks, leading to unnecessary component replacements. Instead, filter sources by the exact motherboard model and cross-reference with at least two independent data points.
HP Portable PC Circuit Reference: Hands-On Repair Guide
Locate the service manual for the G6 model on authorized repair forums–search for “HP Pavilion maintenance guide”. This document contains the precise pinouts, power rails, and signal paths required for board-level diagnostics. Avoid third-party schematics unless verified by a trusted technician; counterfeit diagrams often mislabel voltage regulators, leading to short circuits.
- Identify the EC chip (usually ITE IT8587E or Winbond W83627DHG-P) on the motherboard–this controls fan speeds, battery communication, and keyboard input. Use a multimeter to check resistance on adjacent capacitors: values below 10Ω indicate a failed charging circuit.
- For video output failures, trace the LVDS connector (labelled CN_LCD) to the GPU. Probe the EDP_TX and EDP_RX lanes with an oscilloscope; absent waveforms confirm a broken signal chain.
- Replace the CMOS battery (Panasonic ML1220 or equivalent) if the system fails to retain BIOS settings. This battery powers the RTC circuit and often causes boot loops if depleted.
Disassemble the device using a T5 Torx screwdriver, but first discharge static by touching the metal chassis. Remove the bottom panel to access the PNR-1795 (or similar) power board–this handles DC-in and battery charging. Check for swollen KEMET T520 series polymer capacitors near the charging IC; bulging cases warrant immediate replacement to prevent fire hazards.
If Wi-Fi performance degrades, inspect the M.2 module (typically Intel AC-7265). Ensure both antenna cables (marked MAIN/AUX) are securely attached to the wireless card. Probe the 3.3V_S5 rail feeding the module–a voltage drop here suggests a failing VRM.
- Boot failures often stem from corrupted BIOS firmware. Recover using a USB drive formatted as FAT32 with the correct binary (spXXXXX.exe). Short the BIOS recovery pins (consult the board layout) while powering on to force flash mode.
- For unresponsive keyboards, verify the keyboard controller IC (usually STM32) has proper 5V supply. If missing, trace back to the TPS51218 buck converter–measure output with a scope at 20MHz bandwidth.
- Overheating may indicate a failed ADP2108 fan driver. Replace the IC if PWM signals are absent or erratic. Clean the heatsink fins thoroughly–clogged dust doubles thermal resistance.
USB ports failing? Measure the VCC5 rail on the GL850G hub–should read 4.75V–5.25V. If below threshold, replace the hub IC or check upstream APL5913 current-limiting switch. Test data lines with a USB protocol analyzer; a 0V differential confirms a broken trace.
Before reassembly, apply Arctic MX-4 thermal paste to the CPU and GPU, spreading an X-shaped pattern for optimal coverage. Re-secure the heatsink with even pressure–uneven mounting creates hotspots. Finally, update all drivers post-repair; outdated chipset drivers cause power management conflicts.
Locating Authorized Circuit Blueprints for HP Pavilion Notebooks
HP’s official support portal remains the primary source for sanctioned hardware documentation. Navigate directly to support.hp.com, select your device model from the product search, and filter results for “technical reference” or “service manual” downloads. These documents often embed board-level layouts within repair-focused PDFs, though direct PCB visuals may require deeper navigation into the “motherboard” sections.
For verified schematics, prioritize HP’s enterprise-grade maintenance guides over consumer-facing materials. Business-class manuals (e.g., HP Service Media Library) typically include detailed electrical schematics, component-level callouts, and signal flow charts. Access these through an authorized HP partner account–registration is free but may require proof of industry affiliation (repair technician, OEM liaison).
Alternative Repositories with Caution
Third-party electronics forums like BadCaps.net or EEVBlog Forum host community-uploaded circuit diagrams, though legitimacy varies. Verify file hashes against known-good releases from HP’s servers before relying on such sources. Tread carefully: unofficial channels often introduce inaccuracies in trace routing or revision-specific changes.
Specialized hardware restoration sites (e.g., eBay sellers specializing in board pulls) occasionally bundle schematics with physical components. Purchase only from vendors with positive feedback on schematic accuracy–ask for sample pages pre-transaction to confirm fidelity. Expect to pay $15–$50 for digitized boardsets, often delivered as password-protected ZIP archives.
Manufacturer-licensed distributors such as Allied Electronics or Digi-Key stock HP’s official service documentation as part of premium repair kits. These bundles target commercial repair centers and include both PDF schematics and interactive BOM tools. Subscription models may apply for ongoing access.
Verification and Usage Protocols
Cross-reference all acquired diagrams against HP’s Community Support Forums, where engineers occasionally upload corrected revisions or errata sheets. Use vector-based tools (Adobe Illustrator, KiCad) to overlay schematics onto high-resolution board photos for accuracy checks. Markup common pitfalls: mislabeled rails (e.g., “VCC” vs. “VSS”), reversed polarity warnings on small-signal capacitors, and thermal pad designations.
For offline reference, embed schematics into repair workflows using Repair.Wiki’s custom annotation layers. This platform allows version-controlled collaboration and integrates with multimeters/oscilloscopes for live circuit validation. Avoid printing on standard office paper–use 110gsm laser-compatible sheets to preserve fine trace details during physical repairs.
Direct requests to HP’s Technical Support Escalation teams ((800) 474-6836, Tier 3) can yield unredacted schematics for documented safety-critical scenarios. Prepare case numbers, proof of ownership, and a concise explanation of the repair need. Response times vary from 24 hours to two weeks; expedited handling requires corporate-level support contracts.
Step-by-Step Guide to Decoding HP Notebook Mainboard Blueprints
Start by locating the power delivery section near the top-left corner of the PCB layout–this area typically clusters voltage regulators, MOSFETs, and input capacitors marked with designators starting with “U” (ICs), “Q” (transistors), and “C” (capacitors). Use a highlighter to trace the VCC and GND rails across the sheet; these lines often appear as thick, continuous traces or thick buses intersecting other components. Verify the input voltage range (usually 19V for HP boards) by checking resistor values in series with the DC jack, labeled R_or similar near the “J” connector symbols.
Identify the BIOS chip–usually a 8-pin SOIC package labeled “U” followed by small numbering (e.g., U12)–positioned adjacent to the EC (Embedded Controller). Cross-reference its pinout with the SPI flash datasheet; pins 1-4 typically handle CS, CLK, MOSI, MISO, while 5-8 connect to VCC and GND. Measure resistance between BIOS CS pin and the EC’s GPIO line to confirm signal integrity; values below 10Ω suggest a direct trace path, while higher readings indicate series resistors or pull-ups.
Examine the clock generator IC, often a small QFN package near the PCH or CPU, marked with “Y” or “XO.” Trace its output traces to nearby capacitors and terminating resistors–these lines fork into multiple branches feeding the PCH, EC, and memory. Use an oscilloscope to probe the 25MHz crystal outputs; clean sine waves should appear, deviations suggest faulty crystals or load capacitors needing replacement. Document each branching point to map dependencies between components.
Find the memory controller interface by locating the DDR memory slots’ pinout–these appear as dense arrays of vias beneath the RAM connectors, labeled DQ0-DQ15, CA, and CK. Compare the onboard memory IC designators (e.g., U23) with the chip’s datasheet to verify voltage levels; HP mainboards typically run DDR4 at 1.2V. Test continuity from each RAM pad to the PCH using a multimeter, ensuring no shorts exist between adjacent DQ pins–a common failure point causing boot loops.
Track the EC’s keyboard matrix lines by locating the 8×8 grid of vias near the EC’s GPIO pins. Each row and column connects to a key switch through resistors marked “R” or “PR.” Measure diode drops across each junction; reverse bias readings should exceed 0.5V to rule out stuck keys. For backlight circuits, locate the PWM controller IC beneath the display connector–look for labels like “LED_EN” or “BL_ON” on traces leading to LED drivers.
Isolate the GPU power rails by identifying the dedicated regulator IC (often labeled “GPU_VCORE”) and its associated inductors and capacitors. Measure output voltage under load (3.3V or lower) and compare the inductor’s ripple current with its datasheet; excessive noise indicates failing output capacitors. For thermal management, locate the NTC thermistors near critical ICs–verify their resistance changes smoothly with temperature shifts to confirm proper CPU/GPU throttling behavior.
