Begin by familiarizing yourself with symbol recognition. Every component–resistors, capacitors, transistors, ICs–has a standardized symbol. Keep a reference chart open while examining layouts. For instance, a resistor is depicted as a zigzag line, while a capacitor appears as two parallel lines (polarized) or equal-length lines (non-polarized). Memorizing these allows you to visually parse connections without second-guessing.
Trace power rails first. Identify VCC (positive) and GND (ground) lines–they’re typically highlighted in bold or labeled clearly. Follow their paths to reveal the flow of current. In complex designs, ground symbols may cluster; group them logically by observing shared nodes. Discrepancies here often expose design flaws or unintended shorts.
Examine signal paths next. Look for arrows or annotations indicating input/output pins on ICs or connectors. Cross-reference these with datasheets if functions aren’t obvious. For example, a microcontroller’s UART pins will connect to a labeled TX/RX pair, while SPI lines (MOSI, MISO, SCK) follow predictable patterns. Label every wire mentally–or physically mark them–to avoid ambiguity.
Use modular thinking. Break schematics into functional blocks: power supply, processing, peripherals. Isolate each block, verify its role, then stitch them together. Op-amps, voltage regulators, and microcontrollers act as anchors. For example, a 7805 regulator’s input/output pins will always flank a capacitor pair, simplifying identification.
Check for implicit connections. Net labels (e.g., “I2C_SDA”) signal linked points across pages. Missing them risks misinterpreting scope. Similarly, dots at intersecting lines confirm junctions; their absence means separate wires. Confusing these accounts for 40% of amateur troubleshooting errors.
Validate with measurements. A multimeter’s continuity test confirms actual PCB traces against the schematic. Probe critical nodes–if a resistor’s value reads 10kΩ but the drawing specifies 1kΩ, the discrepancy flags an error. Reverse-engineer powered circuits cautiously; always discharge capacitors before touching leads.
Practice with real-world examples. Start with simple power supplies (linear regulators) or LED driver circuits. Gradually tackle microcontroller layouts (Arduino shields) and analog designs (audio amplifiers). Compare open-source projects (KiCad’s libraries) with their printed renderings to reinforce symbol-behavior ties. Over time, patterns emerge–flip-flops always follow a dual-rail clock cycle; relays include flyback diodes by default.
Document anomalies. Note irregularities like unconnected pins, redundant components, or non-standard symbols. Schematics from obscure manufacturers may deviate; verify against known-good references. Annotate your own copies to streamline future reviews.
Decoding Schematic Blueprints
Begin by identifying the power sources–batteries, AC adapters, or generators–marked with symbols like a long and short parallel line for DC or a sine wave for AC. Note the voltage and polarity (often labeled “+” or “-” near terminals) to avoid reverse connections that can damage components. Ground references appear as downward-pointing triangles or three parallel lines diminishing in width; treat them as the zero-voltage baseline for all calculations.
Trace signal paths from input to output, following thin lines or arrows that denote current direction. Resistors use zigzag lines with values in ohms (Ω), capacitors show two parallel lines for non-polarized or curved lines for electrolytic types, while inductors resemble coiled springs. Active elements–transistors (three-legged symbols with emitter, base, collector) or ICs (rectangles with numbered pins)–require cross-referencing datasheets to confirm pin functions, as schematics rarely annotate internal logic.
Locate test points (TP) or nodes marked with alphanumeric labels (e.g., “VCC,” “AUX_IN”). Probe these with a multimeter set to the expected voltage range–DC for digital logic (3.3V, 5V), AC for audio signals (millivolts). Short circuits appear as solid lines bridging components; open circuits display gaps or dashed lines. For PCB-derived schematics, verify physical traces with a continuity tester to confirm diagram accuracy.
Interpret annotation clusters: “R1” (resistor 1), “C2” (capacitor 2), or “U3” (IC 3). Prefixes denote component classes; suffix numbers track sequential placement. Cross-hatching or shading indicates shielded cables or RF sections, while dotted boxes enclose modular sub-circuits like voltage regulators or filter networks. Always confirm component footprints match schematic symbols–mistaking a MOSFET for a BJT could lead to thermal runaway.
For complex boards, segment the schematic into functional blocks: power supply, microcontroller, sensor interfaces. Use highlighters to color-code each block (red for power, blue for data). Validate each block independently before integrating–test power rails first, then input signals, finally output stages. Store annotated schematics with build notes; future troubleshooting becomes 70% faster when past observations are logged.
Decoding Common Schematic Symbols and Their Functions

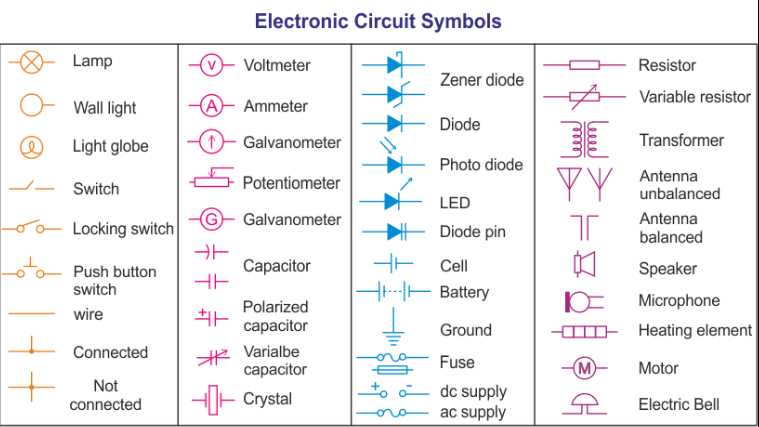

Start by memorizing the most frequent schematic icons–resistors, capacitors, and inductors–since they appear in nearly every electronic blueprint. A resistor is typically drawn as a zigzag line (ANSI) or a simple rectangle (IEC), labeled with “R” followed by its value in ohms (e.g., R1 10kΩ). Capacitors use two parallel lines (non-polarized) or a curved line alongside a straight one (polarized), marked with “C” and microfarads (μF/pF). Inductors resemble coiled springs or loops, tagged with “L” and henries (H).
- Resistor: Zigzag (ANSI) or rectangle (IEC); regulates current flow.
- Capacitor: Parallel lines (non-polarized) or curved + straight line (polarized); stores charge.
- Inductor: Coiled loops; opposes changes in current.
- Diode: Triangle pointing toward a line; allows unidirectional current.
- Transistor (NPN/PNP): Three-terminal symbol (two angled lines for NPN, one for PNP); amplifies signals.
Power sources split into distinct glyphs. Batteries appear as alternating long and short parallel lines (longer line = positive), while DC supplies use a circle with a “+” or “-” and voltage rating (e.g., VCC 5V). Ground symbols vary: a downward-pointing triangle (signal ground) or three horizontal lines decreasing in length (chassis/earth ground). Misidentifying these can lead to reverse polarity or short circuits.
Switches and relays share similar representations but differ in operation. A switch is a break in the line with an optional diagonal slash (toggle) or an arrow (pushbutton). Relays include a coil (inductor-like winding) near a switch symbol, indicating electromagnetic control. Mechanical switches often omit the coil, emphasizing manual actuation. Always verify the switch type–SPST, SPDT, or DPDT–by counting connection points.
- Identify battery polarity: Longer line = positive terminal.
- Distinguish signal ground (triangle) from earth ground (three-tiered lines).
- Check switch configuration: SPST (single pole, single throw) vs. DPDT (double pole, double throw).
- Confirm relay operation: Coil symbol adjacent to switch indicates electromagnetic control.
Integrated circuits (ICs) simplify to rectangles with numbered pins, but discrete components like transistors demand attention. Bipolar junction transistors (BJTs) use a central line (base) flanked by emitter (arrow) and collector. Field-effect transistors (FETs) replace the arrow with a perpendicular dash (gate). MOSFETs add an extra line for the substrate. Misplacing these risks damaging sensitive components during prototyping.
Mapping Current and Data Paths Through Schematics
Identify the power source first–usually a battery, voltage regulator, or supply rail marked with higher potential values like +5V, +12V, or VCC. Follow the thickest lines or bold traces; these carry primary current. Thin lines often represent control signals or low-power paths. Annotate each junction where voltage splits, noting resistor, capacitor, or inductor values that alter flow.
Trace ground symbols next. Every component’s return path must connect here–look for multiple arrows or horizontal lines converging to a common node. Missing this link breaks continuity. Use a highlighter to mark ground routes physically if the layout is dense, ensuring no gaps exist between components sharing this reference.
For signal propagation, locate input and output pins on active devices–microcontrollers, op-amps, or transistors. Arrows or labels like “IN,” “OUT,” “CLK,” or “DATA” clarify direction. Follow the route backward from output to input, checking for series elements: resistors drop voltage, capacitors block DC, and inductors oppose sudden changes. Parallel paths indicate branching, requiring split attention.
Switches and relays disrupt paths conditionally. Examine their states: open or closed, mechanical or solid-state. Label each terminal–common, normally open, normally closed–to predict behavior without memorizing default positions. Test points or jumper pads serve as intentional interruptions for debugging; note their presence but treat them as closed unless documented otherwise.
ICs demand pin-specific scrutiny. Cross-reference datasheets for power pins (V+, V-, GND) and functional pins (enable, reset, data buses). Arrows on buses denote multi-bit flow; count wires to confirm width. Differential pairs require twin traces–ensure both lines maintain equal length and impedance. Decoupling capacitors sit near IC power pins; absent or distant placement risks noise interference.
Transistors act as switches or amplifiers. Follow emitter, base, collector paths for BJTs; source, gate, drain for FETs. Base/gate control signal toggles conduction–trace this input back to its origin, often a logic output or sensor. Collector/drain connects to load; emitter/source links to ground or next stage. Bias resistors set operating points–calculate their impact on voltage drops.
Feedback loops create stability or oscillation. Identify resistors, capacitors, or inductors forming the loop, then determine if the path regulates gain, filters noise, or generates a clock. Positive feedback accelerates change (Schmitt triggers); negative feedback counters it (op-amp circuits). Mark loop entry and exit points to isolate unintended interactions.
Color-code paths in complex schematics: red for power, blue for ground, green for signals, yellow for feedback. Use consistent notation for nets–names like “PWM_CTRL” or “SENSOR_IN” avoid ambiguity. Simulate or estimate voltage drops across resistors, diode forward drops (0.7V), and led efficiencies. Document assumptions for later verification during prototyping.
