Begin by identifying the power source. Locate the battery symbol–usually a thick horizontal line or a labeled rectangle–marking the circuit’s origin. Trace its path through fuses, relays, and switches before reaching components. Each element has distinct symbols: circles for connectors, zigzags for resistors, and dotted lines for ground points. Missing this foundation guarantees misdiagnosis.
Isolate circuits by color codes. Manufacturers use standardized hues–red for constant power, black for ground, yellow for switched ignition. Cross-reference the legend if colors repeat across models. A single misread wire can lead to short circuits or dead systems. Use a multimeter to verify continuity between points, ensuring no breaks in the sequence.
Decode labels adjacent to symbols. “C101” might denote a connector, “F3” a fuse, “GND” a chassis connection. Ignore these, and you risk damaging modules or sensors. Follow the flow logically: power moves from source to load, with protective devices interrupting the path if faults occur. Reverse-engineering this order clarifies system behavior.
Map ground paths separately. Many failures stem from corroded or loose chassis attachments. Check for multiple ground points linked to a single node–common in body control modules. Test resistance between the negative terminal and each ground; readings above 0.5 ohms indicate issues requiring cleaning or replacement.
Study interaction between modules. Modern schematics show data buses as thick lines or arrows, connecting ECUs, sensors, and actuators. Understand CAN, LIN, or FlexRay protocols–disruptions here mimic component failures. Probe communication lines with an oscilloscope to confirm signal integrity; noise or absent pulses signal wiring or module faults.
Prioritize high-current paths. Starter motors, alternators, and HVAC systems draw heavy loads, often routed through thicker cables. Thinner wires alongside these are likely signal carriers–confusing them risks melting insulation. Confirm wire gauge specifications; undersized wiring causes voltage drops, mimicking weak batteries or faulty alternators.
Document deviations from standard symbols. Some brands use proprietary icons–luxury models may replace relay symbols with microcontroller diagrams. Keep manufacturer-specific guides handy; generic references often omit these nuances. An overlooked detail here can turn a 10-minute fix into hours of frustration.
Mastering Vehicle Circuit Schematics
Locate the power source first–it’s typically marked with a battery symbol or thick red line. Trace positive leads from fusible links, relays, or ignition switches to identify active circuits under different conditions (key-on, accessory, cranking). Ground paths often cluster at the chassis or engine block, shown as inverted triangles or black lines.
Component symbols vary: coils resemble loops with terminals, resistors look like zigzag lines, and solenoids show as rectangles with internal diagonal lines. ECUs (engine control units) appear as large boxes with multiple pins labeled alphanumerically. Verify these against the legend–some schematics use manufacturer-specific icons for sensors, motors, or actuators.
Colors follow international standards: red (power), black (ground), yellow (high-current), blue (signal/control), green (ground-controlled), and brown (illumination). However, Asian and European brands may swap brown for orange or violet. Cross-reference wire codes printed along lines–e.g., “G/Y” denotes a green wire with yellow stripe.
Switches toggle between positions; a dual-throw relay diagram shows normally closed (NC) and normally open (NO) contacts. Follow the path step-by-step: from battery → fuse → switch → load → ground. If a bulb fails to illuminate, check continuity from the switch output pin to the socket, not just the bulb itself.
Relay pinouts matter: 85/86 (coil), 30 (input), 87 (output). If a relay clicks but no power flows, test for voltage at pin 30 when activated and continuity between 87 and ground. Shorts hide in harness bends; use a multimeter’s diode test mode to detect accidentally crossed wires without powering the system.
Sensors (temperature, pressure, O2) transmit analog voltages between 0.5–4.5V. A MAP sensor’s signal wire, for instance, will read ~1.5V at idle and ~4.3V under boost. Probe the connector backside if removing the sensor risks damaging pins–check for clean 5V reference and signal returns before condemning the component.
Aftermarket modifications often splice into existing circuits–look for non-factory colors like pink or gray in late-model vehicles. Documentation rarely covers these; label every custom tap with heat-shrink tubing and photograph connections before reassembly. Jumper wires can simulate sensor outputs (e.g., connecting a TPS signal wire to 1.5V) to isolate faults without triggering error codes.
Decoding Critical Symbols in Vehicle Electrical Schematics
Begin by locating the ground symbols–a solid triangle or a downward-pointing arrow–these mark reference points for circuit completion. Confirm continuity between these points and the battery’s negative terminal to rule out open connections early.
Fuses and circuit breakers appear as rectangles with a single line passing through the center. Check the amperage rating printed adjacent; deviations between labeled and actual values often signal fatigue or improper replacement.
| Symbol | Function | Troubleshooting Tip |
|---|---|---|
| ⎓ (Reed relay) | Low-current switching for sensors | Measure coil resistance; 50–120 Ω typical |
| ⚡ (Spark gap) | High-voltage discharge path | Inspect for carbon tracking; replace if discolored |
| ⊞ (Potentiometer) | Variable resistance for throttle/sensors | Check for wiper wear; 0.5–4.5 kΩ range expected |
Switches are depicted as angled lines intersecting a straight conductor. Test for voltage drop across contacts in the “on” state–values exceeding 0.2V indicate corrosion or pitted contacts.
Connectors are circles or semicircles housing multiple pins. Cross-reference pin numbering with the legend; reversed or misaligned connectors cause intermittent faults in CAN or LIN bus networks.
Diodes–a triangle pointing to a line–prevent reverse current flow. Use a multimeter’s diode test mode; forward voltage should be 0.5–0.7V for silicon, 0.2–0.3V for Schottky types.
Resistors appear as zigzag lines. SMD components often omit values; decode color bands or use the legend’s numerical notation (e.g., “220R” = 220 ohms) to verify.
Sensors–thermistors, Hall effect, or oxygen–are rectangles with internal labels (e.g., “ECT,” “MAP”). Access real-time data via OBD-II PID 0x05 or 0x10; discrepancies between scanned and schematic values identify failed components.
Locating Energy Feeds and Earth Paths Methodically
Identify the battery symbol first–typically a large rectangle with “+” and “−” terminals. Follow the thickest lines outward; these represent primary current distribution. Note any fusible links or relays immediately downstream; these components act as circuit protectors and switching points.
- Highlight every red or dark line first–these denote active voltage carriers.
- Mark blue or lighter lines separately–these signify return paths to chassis or dedicated ground studs.
- Cross-reference each symbol with the legend; some schematics use dashed lines for grounded shields or sensor returns.
Trace each power feed to its endpoint–bulbs, motors, or control modules–using a highlighter. Avoid assuming continuity; verify each splice or connector icon. Count relay pins if the feed splits; pin 30 usually carries battery voltage straight from the source, while pin 87 outputs switched power to loads.
Ground connections appear as a series of symbols: triangles at chassis points, inverted triangles at engine blocks, or circles with downward arrows for dedicated studs. Measure resistance between these points and the negative battery terminal with a multimeter; values above 0.2 ohms indicate corrosion or loose fasteners.
- Disconnect the battery before probing ground studs.
- Clean mating surfaces–sandpaper grit 400 removes oxidation effectively.
- Apply dielectric grease post-install; zinc-based variants prevent sulfur buildup in humid environments.
Modern control units often share grounds; trace shared paths by noting identical symbols linked by thin solid lines. If multiple sensors or actuators reference the same ground bolt, verify each connection individually–faulty sharing can cause erratic signals without tripping diagnostic trouble codes.
Test voltage drop across both legs–positive and negative. Clip one multimeter probe to the battery negative terminal, the other to the component ground; readings exceeding 0.3V suggest excessive resistance. Repeat for the positive leg; unacceptable losses point to undersized wiring, corroded terminals, or missing fuse blocks.

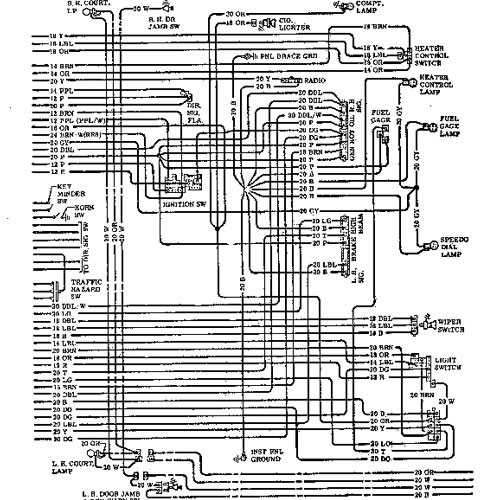

Decoding Wire Colors and Abbreviations for Accurate Troubleshooting
Begin by isolating the primary color code–found on the wire’s insulation–as the foundation. Black (BLK), white (WHT), and red (RED) typically denote ground, power, or ignition-fed circuits, but variations exist across manufacturers. For instance, Toyota often uses a black wire with a yellow stripe (BLK-Y) for ground, while Ford may label it BK/Y. Always cross-reference the schematic’s legend with the physical harness.
Stripe patterns reveal secondary identifiers. A wire marked YEL-BLU differs from YEL-BRN; the first stripe (YEL) is dominant. GM frequently uses this system to indicate fused power (ORG), sensor inputs (PPL), or actuator outputs (DK GRN). If the diagram lists “VIO-WHT,” trace the violet wire with a thin white stripe–not the reverse. Mistaking these leads to misdiagnosed shorts or open circuits.
- Abbreviations cheat sheet:
- B+ – Battery positive (unfused).
- IGN – Ignition-switched power.
- ACC – Accessory circuit (radio, power outlets).
- STR – Starter motor feed.
- GND – Chassis or engine ground.
- ILL – Illumination (headlights, dash lights).
- SEN – Sensor signal (O₂, MAP, etc.).
Component-specific codes often appear next to connectors. “ABS MOD” points to the anti-lock brake module; “PCM” targets the powertrain control module. A wire labeled “FRP” connects to the fuel rail pressure sensor–swapping it with “APP” (accelerator pedal position) can damage both sensors. Use a multimeter to verify voltage on the pin described in the diagram, not adjacent ones.
Manufacturer-Specific Anomalies
German brands (VW, BMW) use letter-number combos like “30,” “15,” and “50” for circuits. “30” is constant battery power; “15” is ignition-switched. Japanese schematics (Honda, Nissan) prefer terms like “BATT,” “IG1,” and “C” (common ground). Chrysler/Dodge often hides codes in the connector view–e.g., “C100” at pin 8 might show “ORN-WHT” for a specific function. Ignoring these conventions risks chasing phantom faults.
Probing Without Guesswork
Attach a test light or scope probe directly to the wire’s terminal, not the insulation. For twisted pairs (common in CAN bus systems), measure between the two wires, not chassis ground. If the diagram shows “BRN-YEL (OT)” next to an oxygen sensor, the “OT” likely means “output”–confirm by checking for 0.1–0.9V swings during engine operation. Never assume uniform color coding across model years; a 2010 Camry’s “BLU” wire may differ from a 2015’s.
