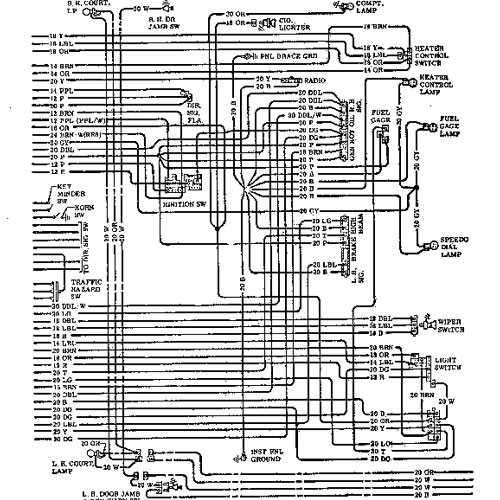

Begin by identifying the power source–a thick vertical or horizontal line, usually red–connecting directly to the battery’s positive terminal. Trace this primary conductor to its first junction, where it branches into thinner circuits feeding fuses, relays, or ignition switches. Each fuse, marked with a numerical current rating (e.g., 10A, 20A), sits upstream of its protected components, acting as the first fail-safe. Ignore generic labels; cross-reference the diagram legend to confirm wire colors (purple/yellow stripe denotes a secondary ignition feed, solid green indicates a ground path).
Locate the ground symbols–triangles, ovals, or circles–clustered at the bottom of the schematic. These connect to the chassis or engine block, completing the circuit loop. A missing ground can mimic component failure; verify continuity with a multimeter set to ohms, probing between the component’s ground terminal and bare metal. Switched circuits run through relay contacts or toggle switches, often toggled by the ignition key. A 12V feed labeled “accessory” energizes only when the key is in the ACC position–distinct from “run,” which maintains power to injection systems and ECUs.
Follow relay footprints: coil terminals (85/86) receive control signals, while power flows through contacts (30/87). A clicking relay signals a closed contact; if silent, backprobe 85 with a test light while grounding 86 to confirm the ECM or BCM’s trigger signal. Sensor wiring–throttle position, oxygen, or wheel-speed–terminates in multipin connectors. Pinout charts list these numbers (e.g., “TPS: B13-5 → A22”), guiding probes without piercing insulation. For CAN networks, differentiate high (orange/black) and low (yellow/black) data lines; reversed polarity corrupts messages, stalling communication.
Silk-screened component boxes–ignition coils, solenoids, motors–map internal functions abbreviations (e.g., “PCM: Powertrain Control Module,” “INJ: Fuel Injector”). Use a highlighter to isolate circuits of suspect devices, eliminating distractions from unrelated systems. Stray wires not connected to any load often link to emission valves (Purge Solenoid) or transmission range sensors; their absence at endpoints signifies normal design, not diagnostic dead-ends.
Decoding Automotive Electrical Schematics

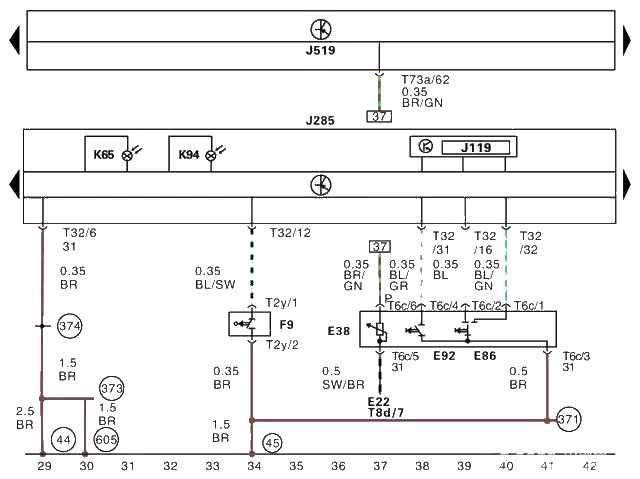

Locate the vehicle’s power sources first–battery symbols appear as two parallel lines (one longer for positive) or a simple rectangle. Ground points resemble a downward-pointing triangle or three horizontal lines decreasing in length. Identify fuses and relays by their standardized shapes: fuses are rectangles with a curve inside, relays display a switch symbol connected to a coil. Trace circuits from these components downstream to loads like motors, sensors, or lights, noting color codes (BK for black, RD for red, YL for yellow) printed beside each conductor.
- Symbols for common devices:
- Motors: circle with “M” inside
- Lamps: circle with “X” or filament symbol
- Sensors: diamond or zigzag line
- Connectors: arrowheads or dashed lines
- Voltage drops typically occur at switches, connectors, or worn wires–measure at the load with a multimeter set to DC volts, referencing the manual’s specified values (e.g., 12V at headlights, 5V at sensors).
- Multi-page schematics use reference markers (e.g., “C-105” at the edge) to continue circuits on another sheet; follow these without skipping.
Shielded cables (twisted pairs wrapped in foil) indicate critical data lines like CAN bus–handle only at connectors to avoid shorting. When diagnosing parasitic draws, disconnect modules sequentially starting with the smallest fuse rating; a 30-mA drop points to the faulty component. Use a tone generator on low-current wires to avoid damaging ECUs, probing only the outer jacket after verifying zero voltage.
Decoding Essential Symbols in Vehicle Electrical Schematics

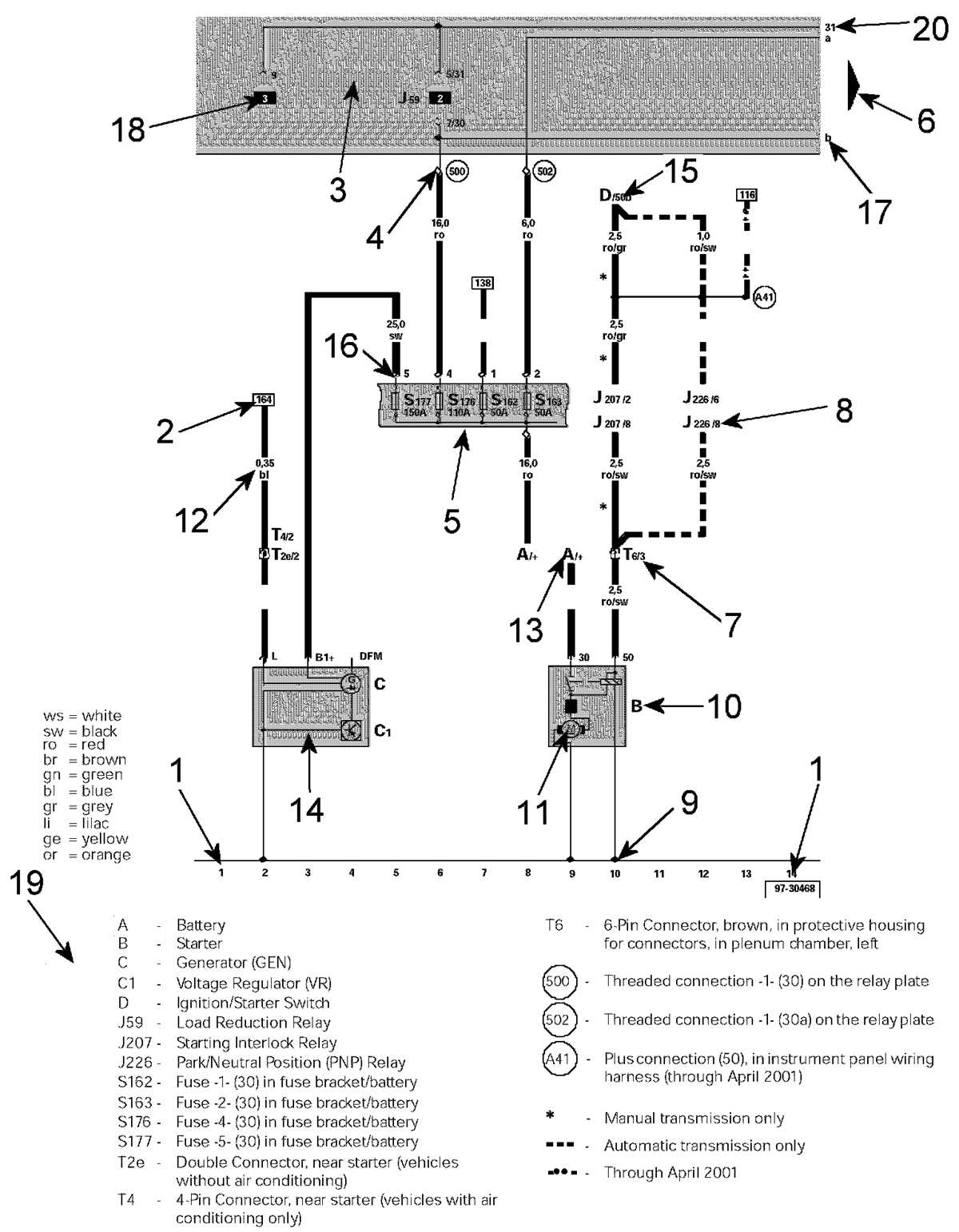

Locate the battery symbol immediately–typically a pair of parallel lines, one longer than the other, representing positive and negative terminals. This element anchors the entire layout, showing power sources, grounds, and circuit origins. Verify its position relative to fuses and switches to trace primary current flow.
Relays appear as rectangles with internal switch contacts, often labeled with coil resistance (e.g., “85-86”) and output terminals (e.g., “30-87”). Their diagrams include dashed lines connecting coils to driven components. Check for numbered pins matching connector views in repair manuals to avoid miswiring high-current devices like fuel pumps or cooling fans.
Ground points use inverted triangles or flat horizontal lines intersecting chassis symbols. Note variations: some manufacturers add letters (e.g., “G101”) for specific body or engine ground locations. Confirm these tie directly to the vehicle’s frame or common bus bars to prevent voltage drops causing erratic sensor behavior.
Fuses are drawn as rectangles with a wavy line cutting diagonally through them–thickness indicates amperage (thicker = higher rating). Cross-reference with the schematic’s legend; a “10A” fuse protecting a “T/C S/F” (traction control solenoid feed) must not be replaced with a “20A” unless specified by technical service bulletins.
Switches take multiple forms: momentary (arrow-tipped lines) for pushbuttons, latching (straight toggle) for ignition keys, and multi-position (stepped arcs) for stalk controls. Follow the path from contact to load–for example, a headlight switch’s “H” terminal should route to the lamp via a splice, not directly to the battery, to enable proper beam control.
Sensors and actuators share similar symbols–a circle with two or three radial lines–but context determines function. Oxygen sensors typically include “HT” (heater circuit) labels next to signal wires, while mass airflow meters emphasize “V+” and “SIG” connections. Measure voltage on the signal pin (usually 0.5–4.5V) to validate operation before replacing units.
Connectors appear as trapezoids or rectangles with numbered cavities. Match pin numbers to harness-side views using manufacturer documentation; Honda’s “C133” (instrument cluster connector) may differ entirely from Toyota’s “I19” even for identical functions. Use a multimeter’s continuity mode to verify each pin’s integrity across mates, eliminating intermittent faults from corrosion or bent terminals.
Step-by-Step Power and Ground Path Tracing in Electrical Schematics
Begin by locating the fuse box representation–marked with rectangular symbols labeled F1, F2, or similar. Identify the input side connected directly to the battery icon (often a thick red line). Follow the output line from the fuse to its first junction, noting if it splits into thinner branches (e.g., 16-gauge vs. 10-gauge wire). Color-coded identifiers (RED for power, BLK for ground) correlate to physical harnesses; confirm against the legend if non-standard codes appear. For hybrid systems, trace orange cables separately–these carry lethal voltages and terminate at dedicated relays.
| Component | Typical Voltage Drop | Wire Gauge Range | Key Connection Points |
|---|---|---|---|
| Starter solenoid | 0.5V max | 4–2 AWG | Battery positive → solenoid → motor |
| ECU constant power | 0.1V max | 18–20 AWG | Fuse → ignition-off relay → ECU pin 12 |
| Headlight circuit | 0.2V max | 14–16 AWG | Fuse → switch → bulb → chassis ground |
Ground paths demand equal scrutiny: locate chassis symbols (▽) or ground straps depicted as braided conductors. Verify continuity from each component’s black/ground wire to the nearest chassis bolt or engine block pad–resistance should measure
Decoding Color Schemes and Wire Thickness in Automotive Electrical Layouts
Start by memorizing the industry-standard color abbreviations–BK for black, WH for white, RD for red, YL for yellow, GN for green, BL for blue, BR for brown, and OG for orange. Manufacturers may vary slightly, but these form the core palette in most schematics. For instance, RD typically denotes a power wire carrying constant 12V, while BK often grounds a circuit. Check the legend on the diagram’s edge, as some brands use striped wires (e.g., YL/BK) to indicate secondary functions or shared circuits.
Wire gauge (AWG) directly impacts current capacity–thicker wires handle higher amperage without overheating. A 10-gauge cable supports roughly 30 amps, while 18-gauge maxes out near 10 amps. Always cross-reference the gauge with the fuse rating; a mismatch risks meltdown. For example, an 80-amp alternator feed usually requires 6-gauge wiring, whereas a cabin light circuit can safely use 20-gauge. Measure suspect wires with a caliper if the label is missing.
Trace color changes at junctions–where a BL wire splits into BL/WH, expect a relay or sensor input. These transitions often mark critical decision points in a flow chart. Use a multimeter set to continuity mode to confirm splices, especially in corroded harnesses. Scan for heat damage; discolored insulation near connectors signals resistance buildup, which demands immediate replacement to prevent voltage drop.
OEM-specific codes overlay universal standards. Toyota prefixes ground wires with “W-B,” while GM uses “PK/BK” for fuel pump power. European brands like BMW and Mercedes employ dual-color systems where the base hue (e.g., GN) splits into multiple variants (GN/YL, GN/RD) for different modules. Download brand-specific guides–aftermarket manuals simplify deciphering these nuances.
High-voltage systems in hybrids and EVs follow a separate color code–bright orange always indicates danger zones above 60V. These cables never mix with traditional 12-volt circuits; accidental contact guarantees catastrophic shorting. Isolate and label these segments first when troubleshooting hybrid powertrains, using non-conductive tools and gloves rated for the voltage.
Document every identification discrepancy between the schematic and physical wiring. A single mislabeled wire in an anti-lock brake module can trigger false fault codes. Photograph connectors before disassembly, noting pin locations, then compare against the layout map. Consistency between visual inspection and the chart ensures accurate repairs without guesswork.
